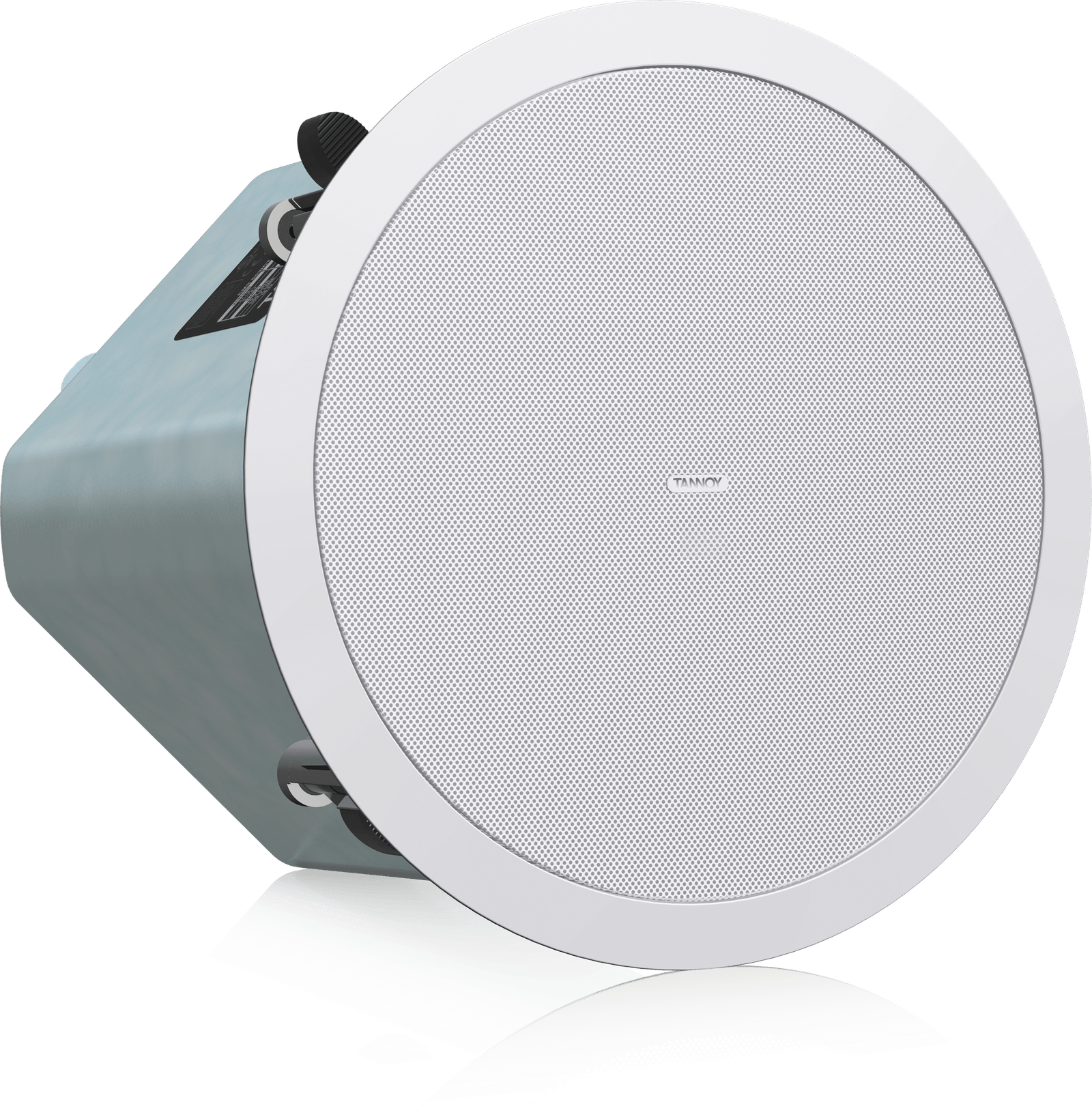

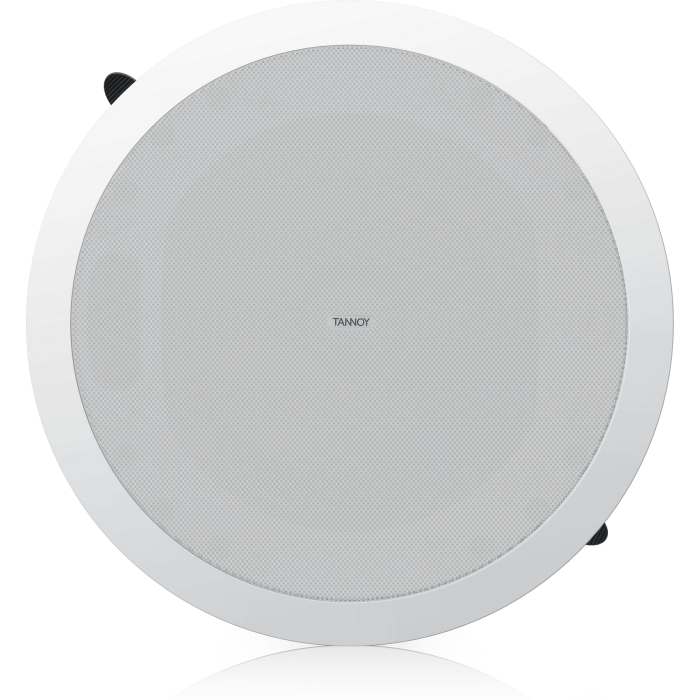

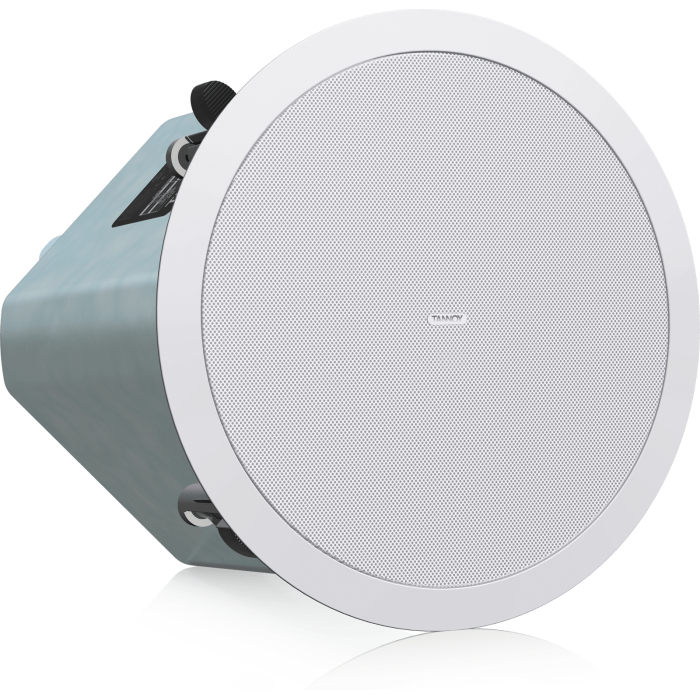

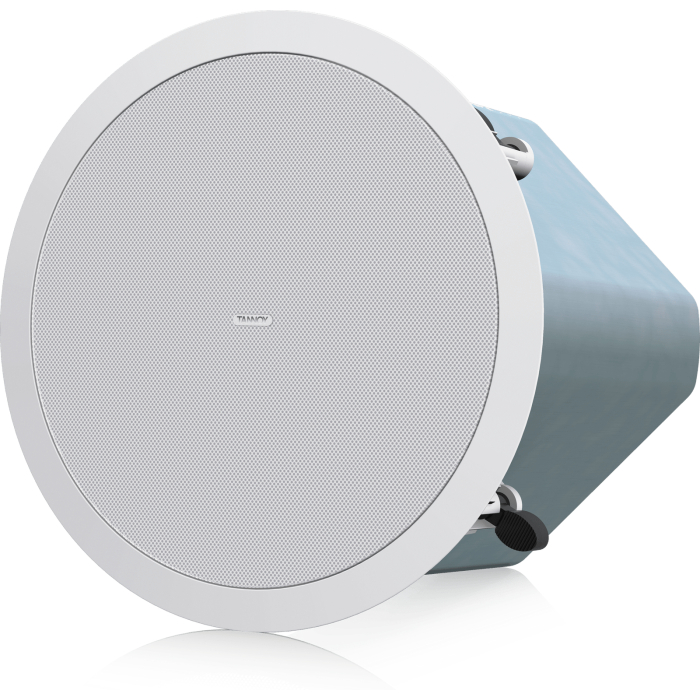

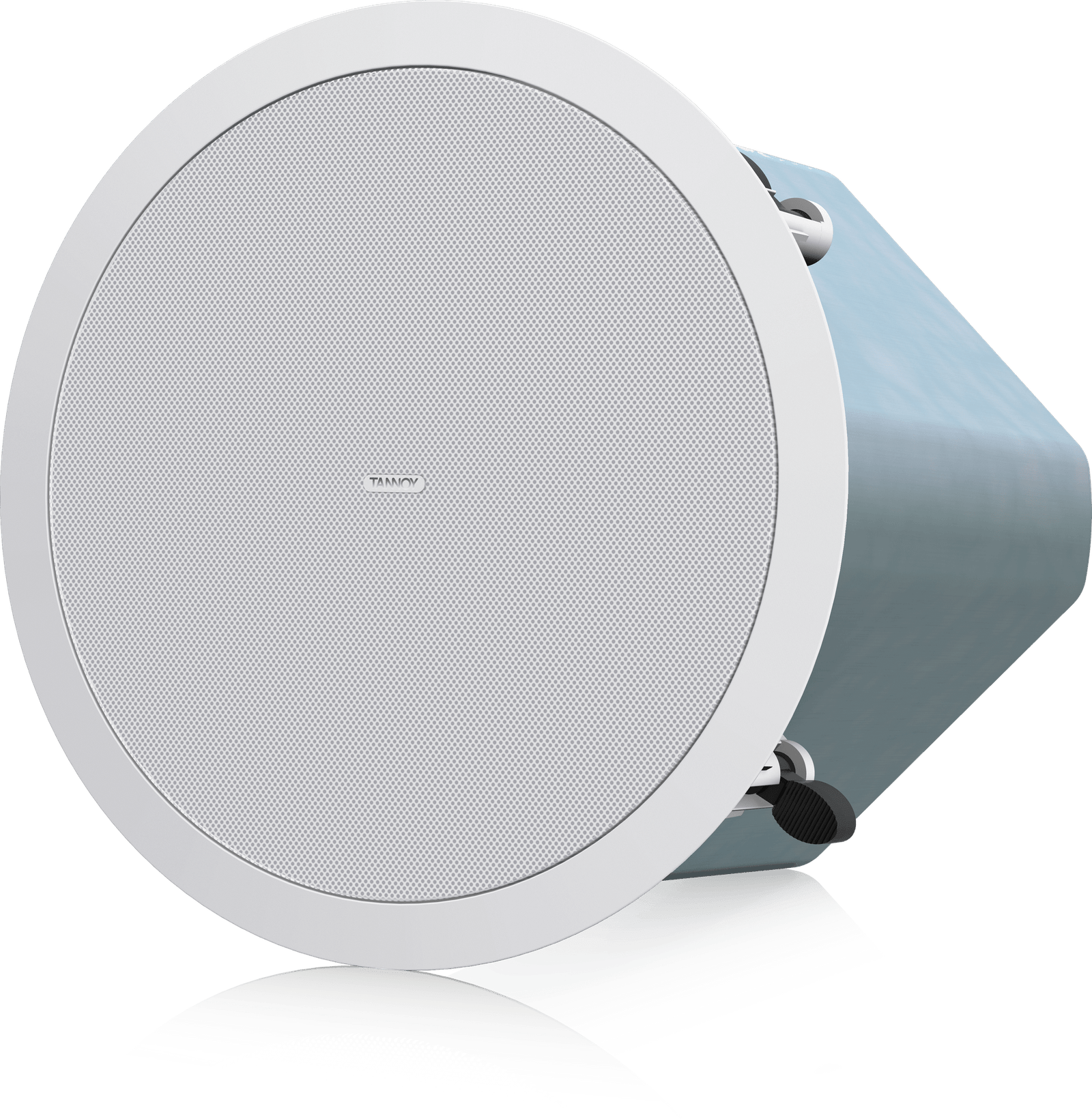

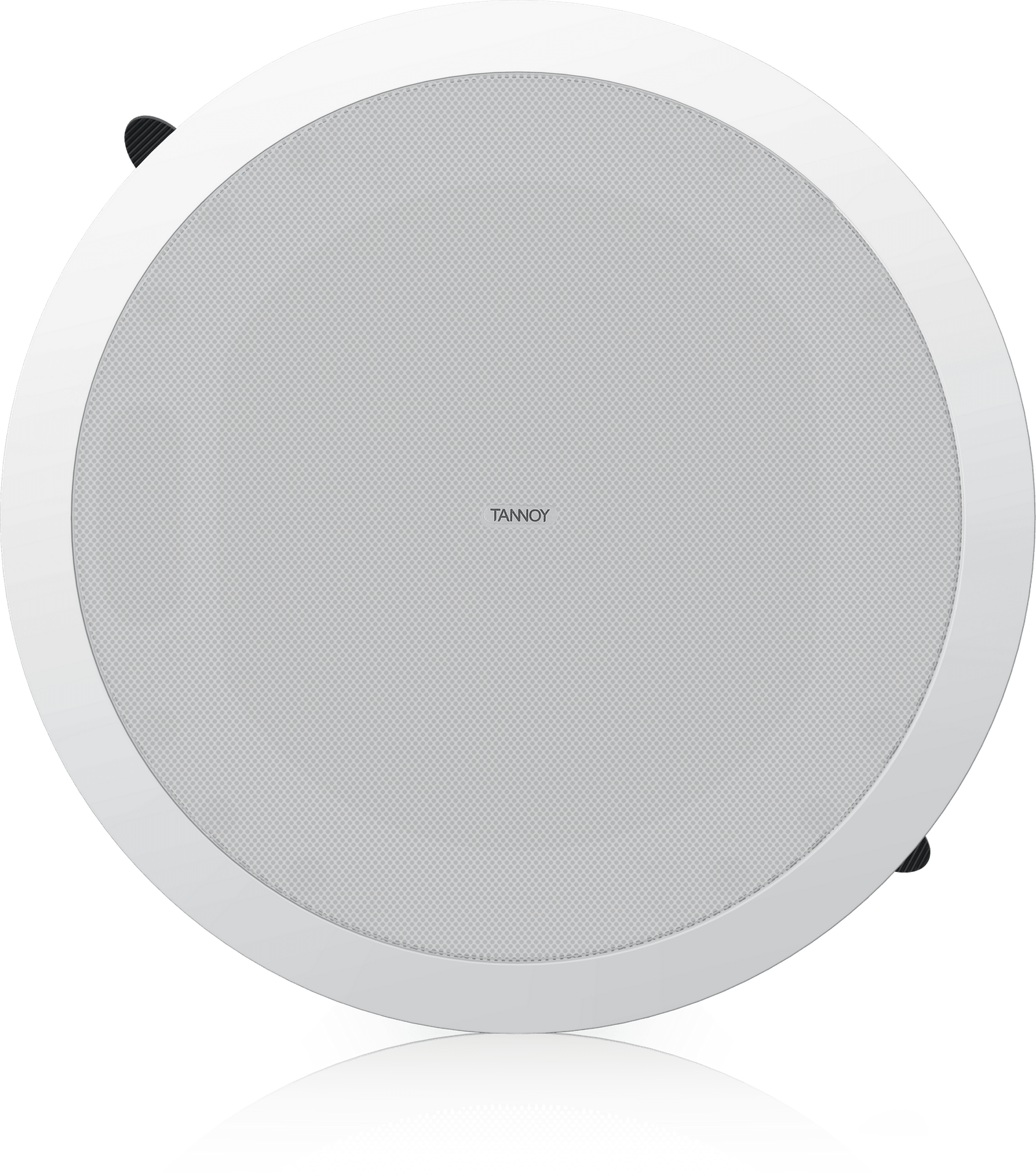

Tannoy Ceiling Loudspeaker CMS 603ICT BM 6-Inch 240W with ICT Driver

Tannoy

AED 1056.30 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CMS 603ICT BM Categories: , Brand:

The CMS 603ICT BM is a 240-Watt high sensitivity loudspeaker featuring CMS 3.0 technology with a 6″ ICT point source driver that offers extended frequency range and broadband directivity. Its UL certification and high reliability make it perfect for constant-use applications, providing enhanced intelligibility and consistent performance.

Description

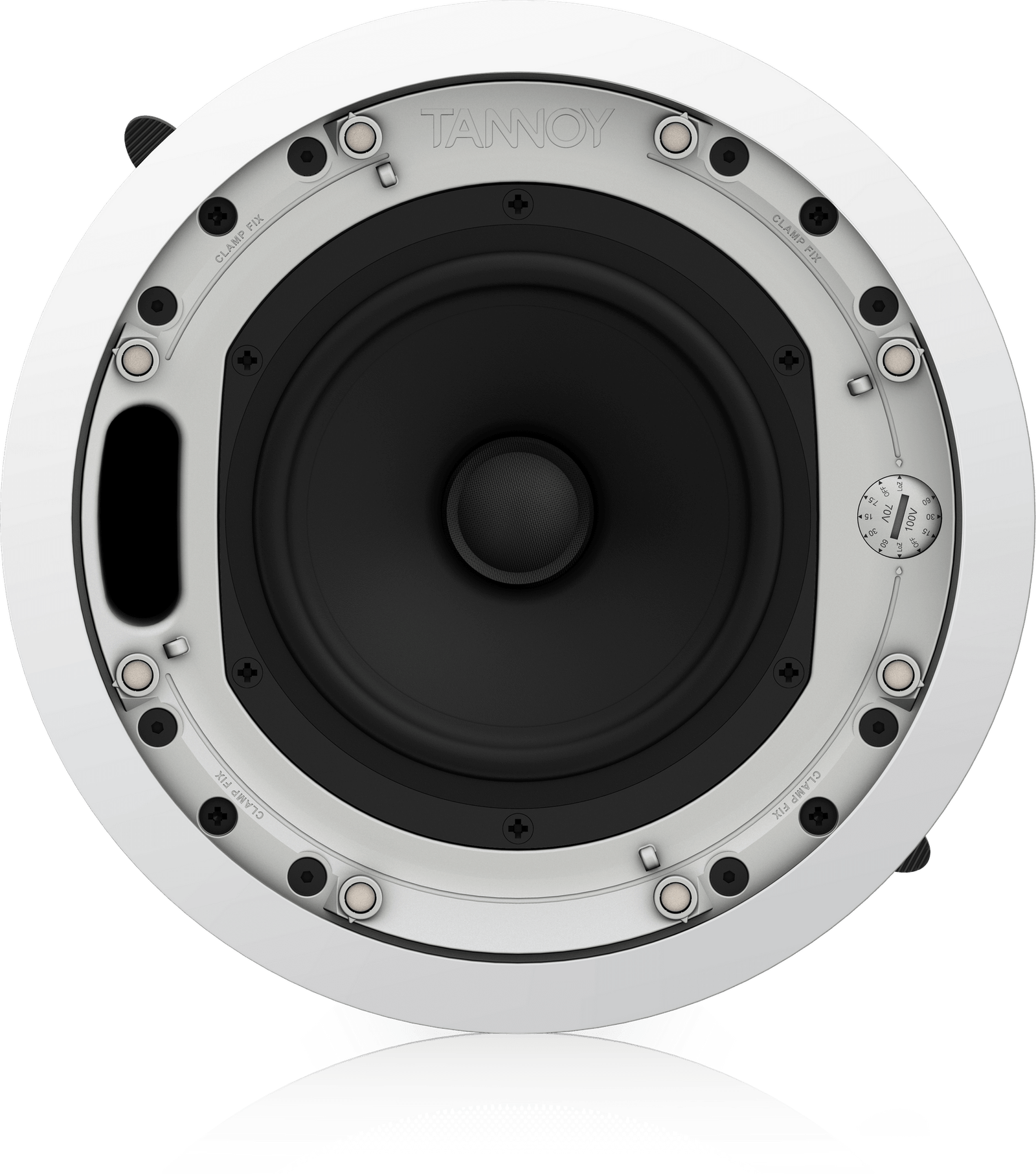

CMS 603ICT BM Ceiling Loudspeaker

The CMS 603ICT BM is a wide bandwidth 240-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 6″ ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 603ICT BM delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.

Key Features

  • Full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power

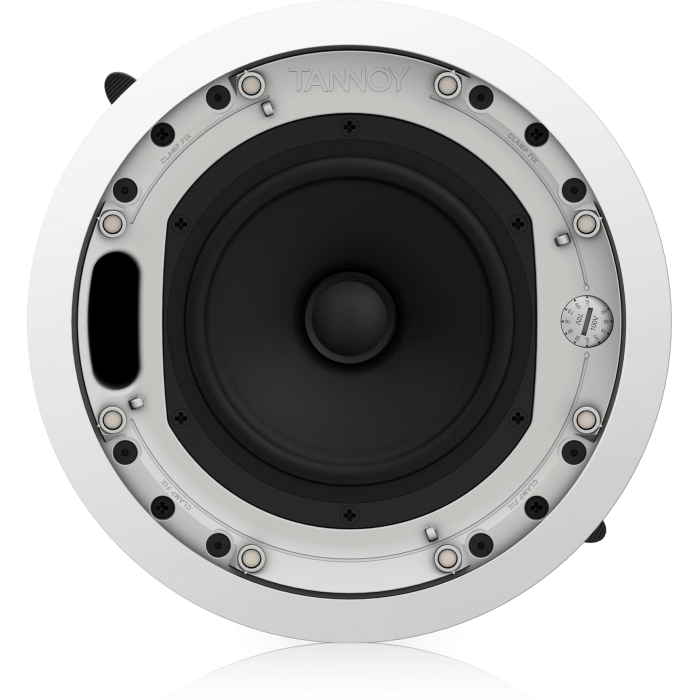

  • 6″ ICT (Inductive Coupling Technology) point source driver for extended frequency range

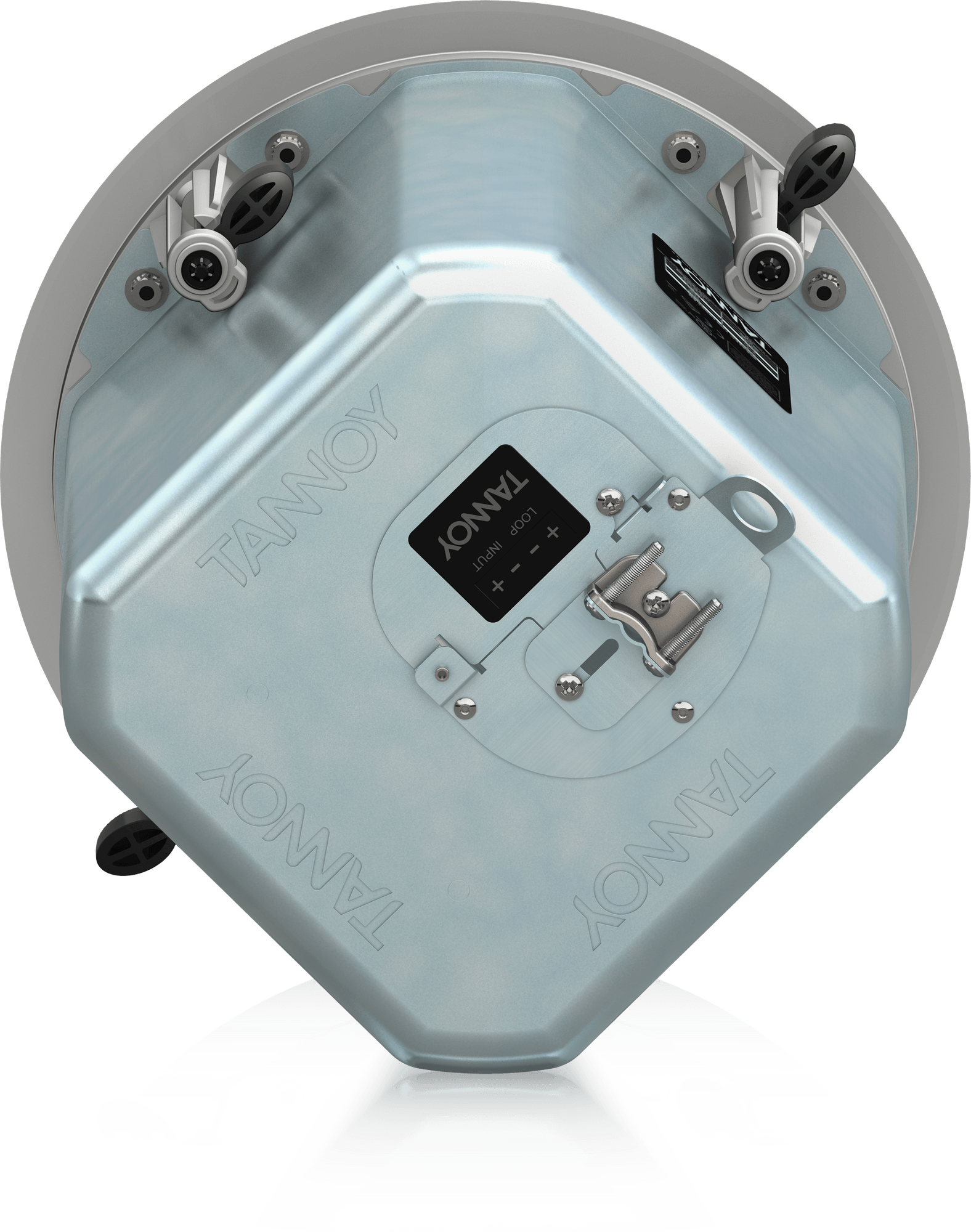

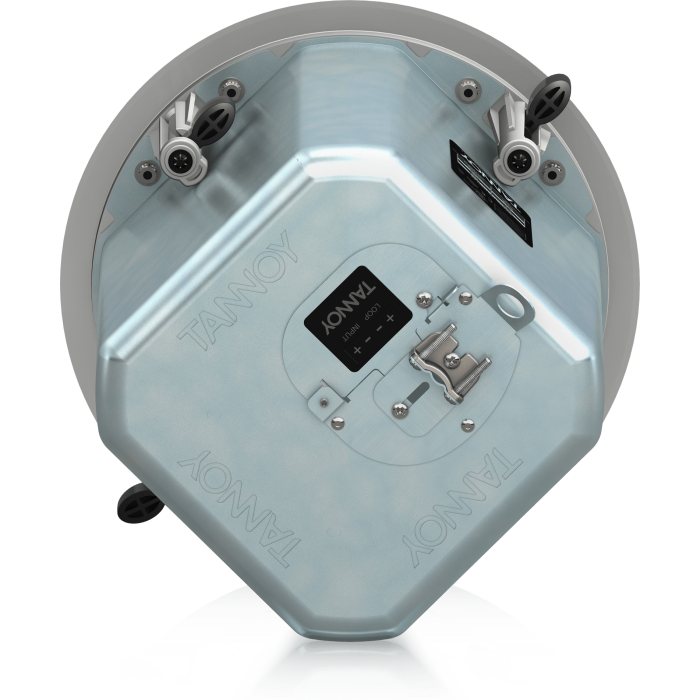

  • Blind Mount version supplied with acoustically enhanced zinc plated steel back can
  • Integrated single unit construction for ease of installation
  • High durability design for constant heavy usage in demanding applications
  • UL 1480 certified for general signalling systems
  • UL 2043 certified for air-handling spaces
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated UV resistant perforated steel mesh grille with dust protection
  • Removable magnetic grille for custom painting
  • Optional ARCO designer grilles available for minimal architectural impact
  • Self-aligning 4 way clamp mounting system
  • Mounting C-ring and ceiling tile rails included

Specifications

Specification Details
Frequency response (-3 dB) 78 Hz – 22 kHz
Frequency range (-10 dB) 51 Hz – 24 kHz
System sensitivity (1 W @ 1 m) 91 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle 90 degrees conical
Coverage Angle (1 kHz to 6 kHz) 92 degrees
Directivity Factor (Q) 7.1 averaged 1 kHz to 6 kHz
Directivity Index (DI) 7.9 averaged 1 kHz to 6 kHz
Recommended Amplifier Power 120 W @ 16 Ohms
Nominal Impedance (Lo, Z) 16 Ohms
Crossover 7 kHz inductively coupled
Low Frequency 165 mm (6.50″) mineral loaded polypropylene
High Frequency ICT aluminium dome
Safety Features Safety ring located at rear of enclosure for load bearing safety bond
CMS 603ICT LS UL 1480 UUMW certification for Life Safety applications
Clamping Design Security toggle clamp Min / Max clamping range 9.5 mm (0.37″) / 60 mm (2.36″)
Recommended clamp torque: 1.5 Nm
Backcan Options Complete with fixed backcan
Cable Entry Options Cable clamp & squeeze connector for conduit up to 22 mm
Connectors Removable locking connector with screw terminals with “loop through” facility
Compliance UL-1480, UL-2043, CE
Hole cutout diameter 253 mm (9.96″)
Net Weight 5.4 kg (11.9 lbs)
Included Accessories C-Ring, tile-bridge kit, paint mask, cut-out template, grille
Optional Accessories Plaster (mud) ring, Arco grille
Packed Quantity 2
