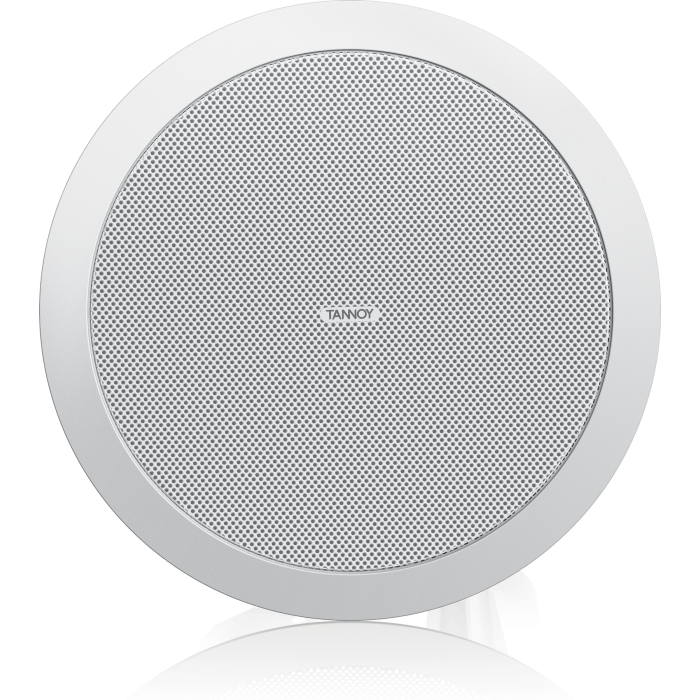

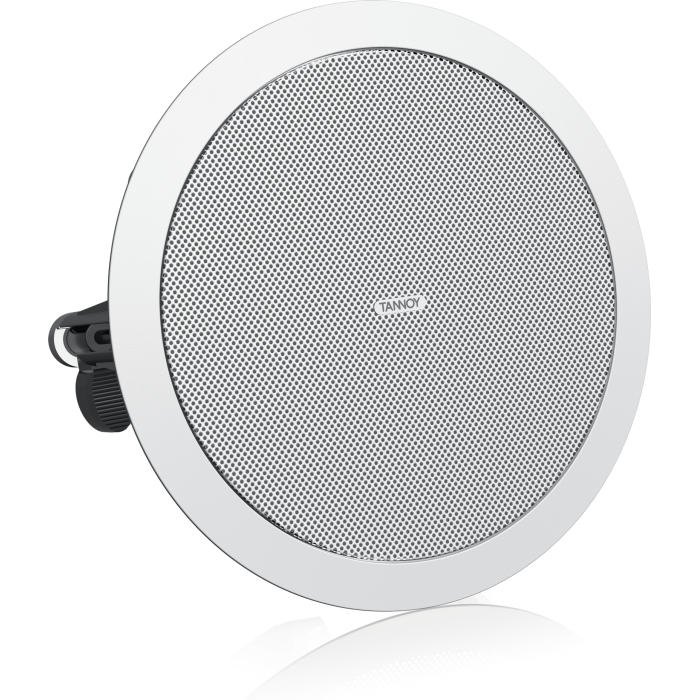

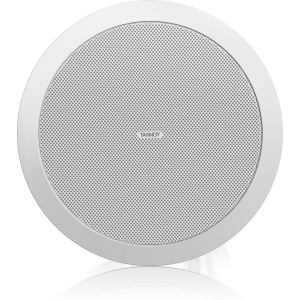

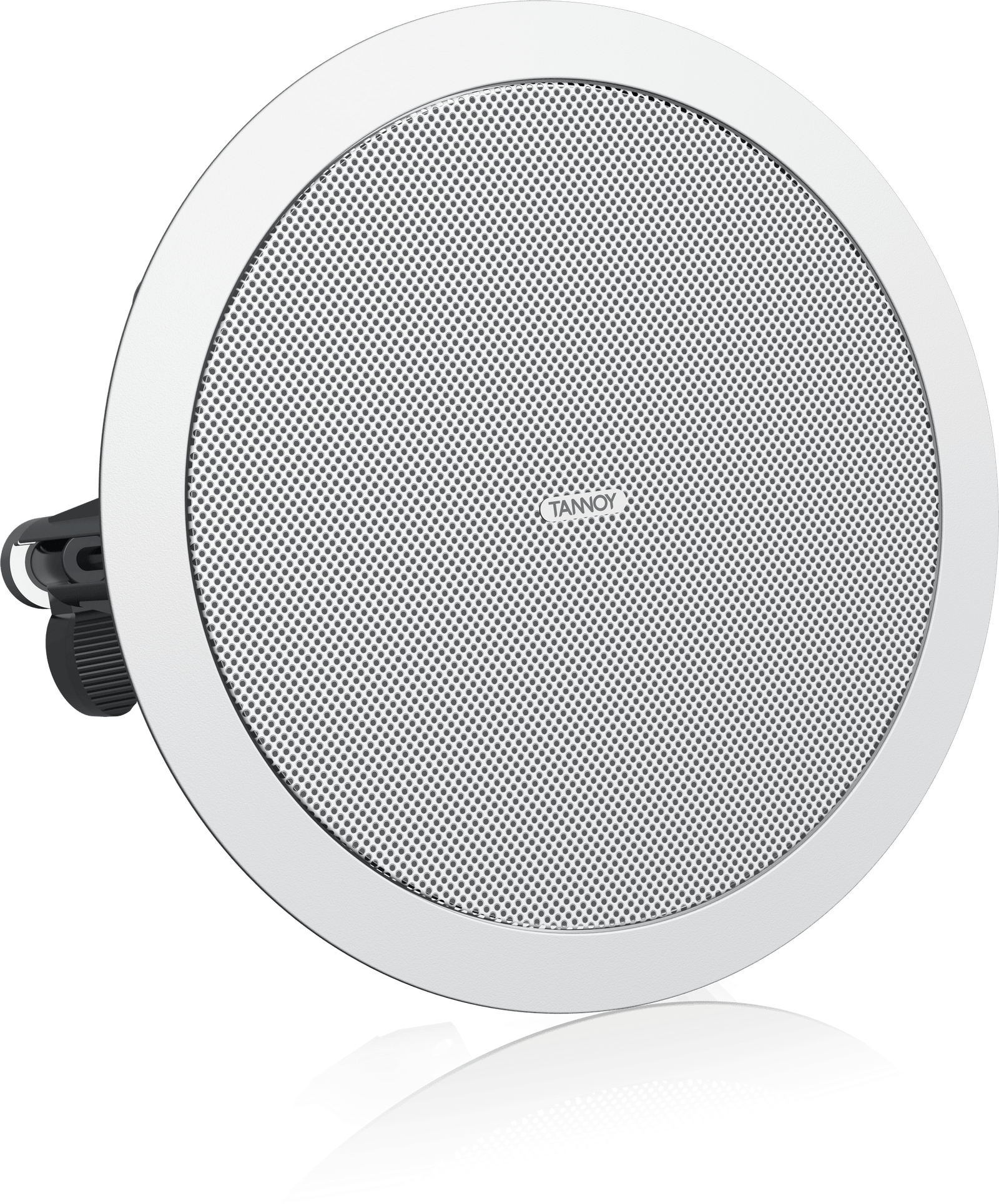

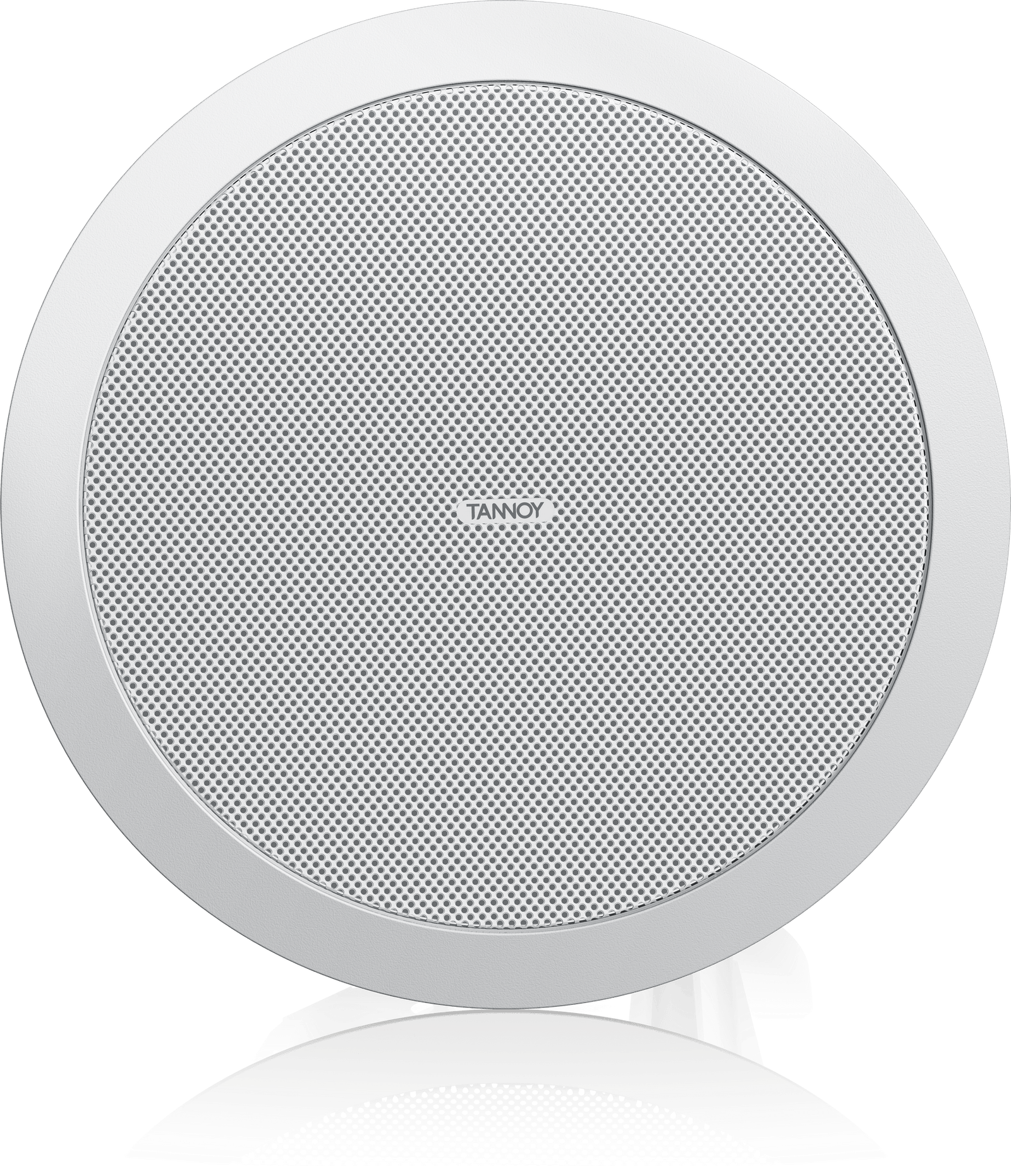

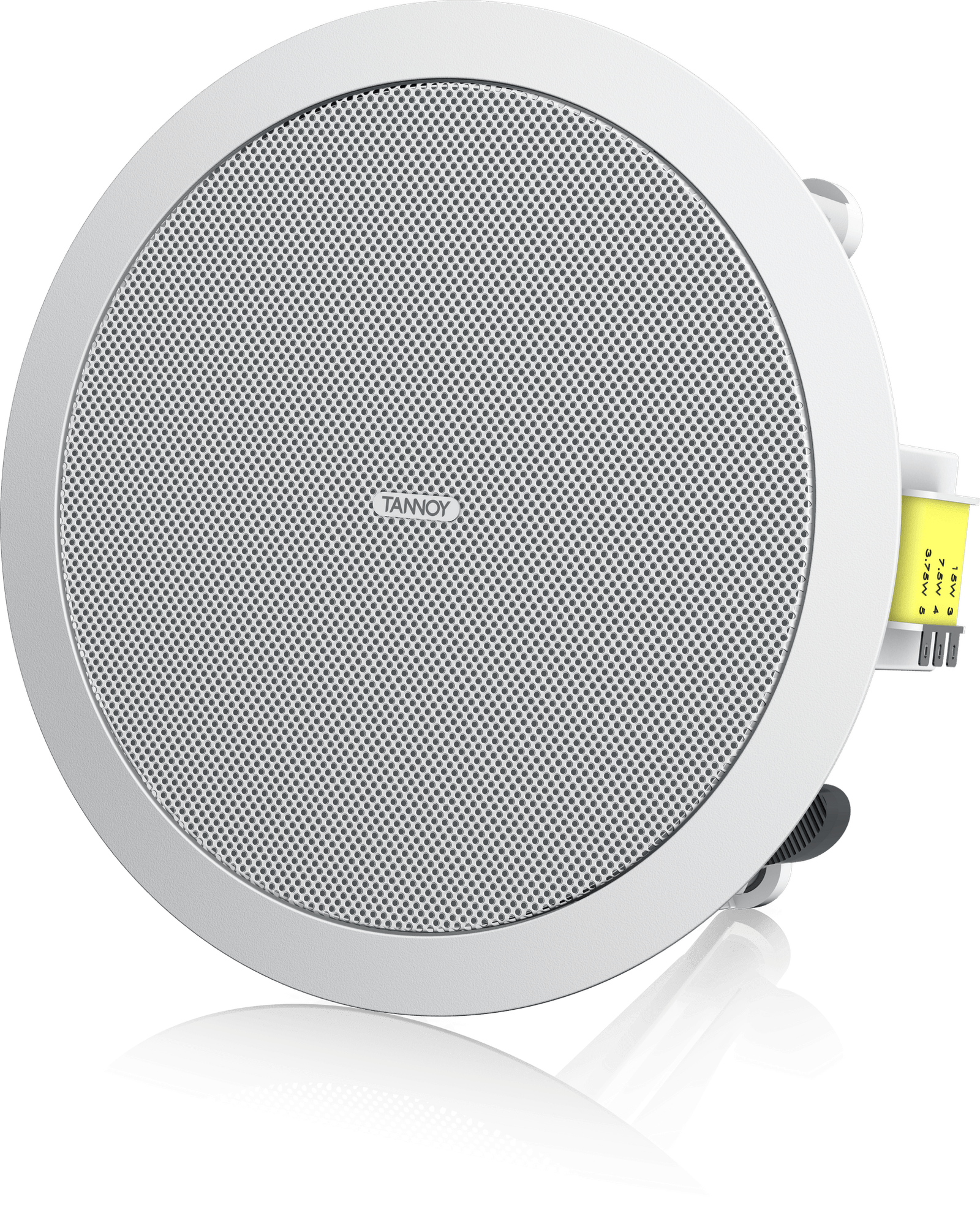

Tannoy Ceiling Speaker CMS 503ICT PI 5″ ICT Driver 200W
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
The CMS 503ICT PI is a 200-Watt high sensitivity loudspeaker featuring advanced CMS 3.0 technology and a 5″ ICT point source driver for extended frequency range. This UL certified speaker delivers consistent broadband directivity with enhanced intelligibility, making it perfect for constant-usage scenarios due to its exceptional long-term reliability.
Description
Product Description
The CMS 503ICT PI is a wide bandwidth 200-Watt high sensitivity loudspeaker that utilizes our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5″ ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 503ICT PI delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability and are ideal for constant-usage applications.
Features
- Full range ceiling loudspeaker for installation applications
- 50 Watts continuous, 200 Watts peak power

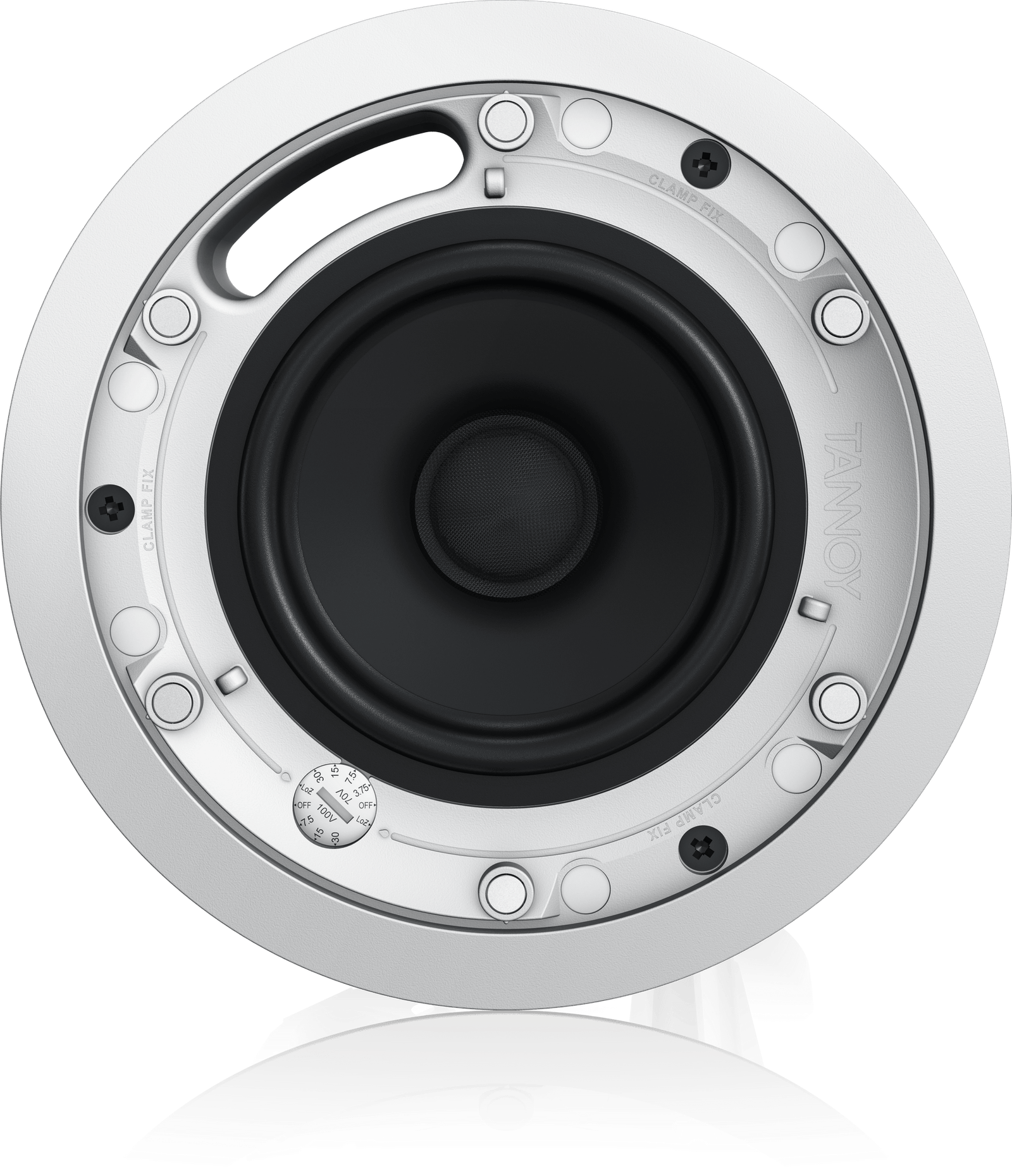

- 5″ ICT (Inductive Coupling Technology) point source driver for extended frequency range
- Pre-install version supplied without back can (available separately)
- High durability design for constant heavy usage in demanding applications
- UL 1480 certified for general signaling systems
- UL 2043 certified for air-handling spaces
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input

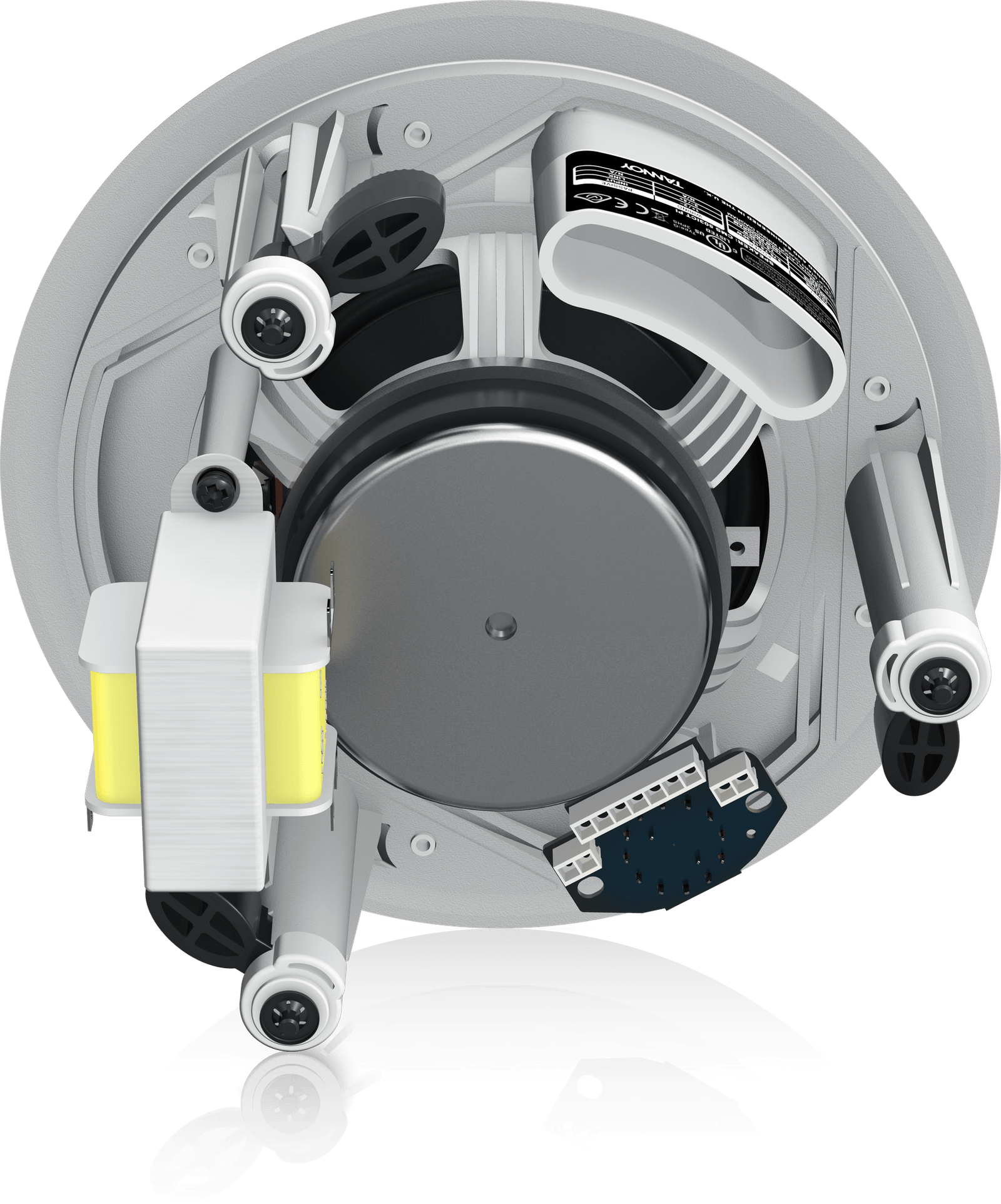

- Low insertion loss 30 W line transformer with easily accessible tapping switch
- Optimized for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
- Semi matt white finish fits unobtrusively in any environment
- Powder coated UV resistant perforated steel mesh grille with dust protection

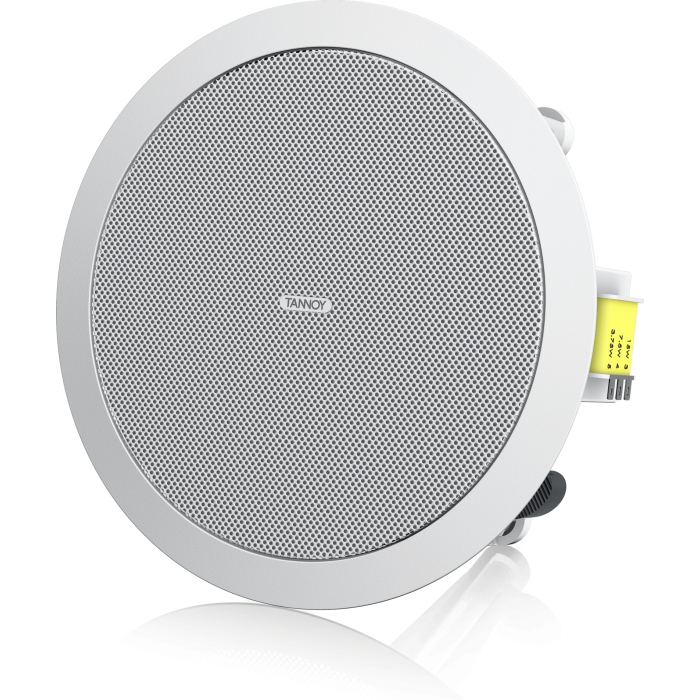

- Removable magnetic grille for custom painting
- Optional ARCO designer grilles available for minimal architectural impact
- Self-aligning 3-way clamp mounting system
- Mounting C-ring and ceiling tile rails included
Specifications
| Specification | Details |
|---|---|
| Frequency range (-10 dB) | 71 Hz – 24 kHz PI Backcan |
| System sensitivity (1 W @ 1 m) | 89 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Coverage Angle (1 kHz to 6 kHz) | 105 degrees |
| Directivity Factor (Q) | 5.6 averaged 1 kHz to 6 kHz |
| Directivity Index (DI) | 7.0 averaged 1 kHz to 6 kHz |
| Recommended Amplifier Power | 100 W @ 16 Ohms |
| Nominal Impedance (Lo, Z) | 16 Ohms |
| Crossover | 7 kHz inductively coupled |
| Low Frequency | 130 mm (5.00″) mineral loaded polypropylene |
| High Frequency | ICT aluminum dome |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Clamping Design | Security toggle clamp Min / Max clamping range 9.5 mm (0.37″) / 60 mm (2.36″) Recommended clamp torque: 1.5 Nm |
| Backcan Options | Complete with fixed backcan |
| Cable Entry Options | Cable clamp & squeeze connector for conduit up to 22 mm |
| Conduit Knockouts on PI Backcan | 3 Sets of horizontal positions 19 / 22 / 28 mm (0.75″ / 0.87″ / 1.10″) |
| Connectors | Removable locking connector with screw terminals with “loop through” facility |
| Compliance | UL-1480, UL-2043, CE |
| Hole cutout diameter (all models) | 190 mm (7.48″) |
| Net Weight (ea) | 3.95 kg (8.70 lbs) |
| Included Accessories | C-Ring, tile-bridge kit, paint mask, cut-out template, grille |
| Optional Accessories | Plaster (mud) ring, Arco grille |
| Packed Quantity | 2 |
