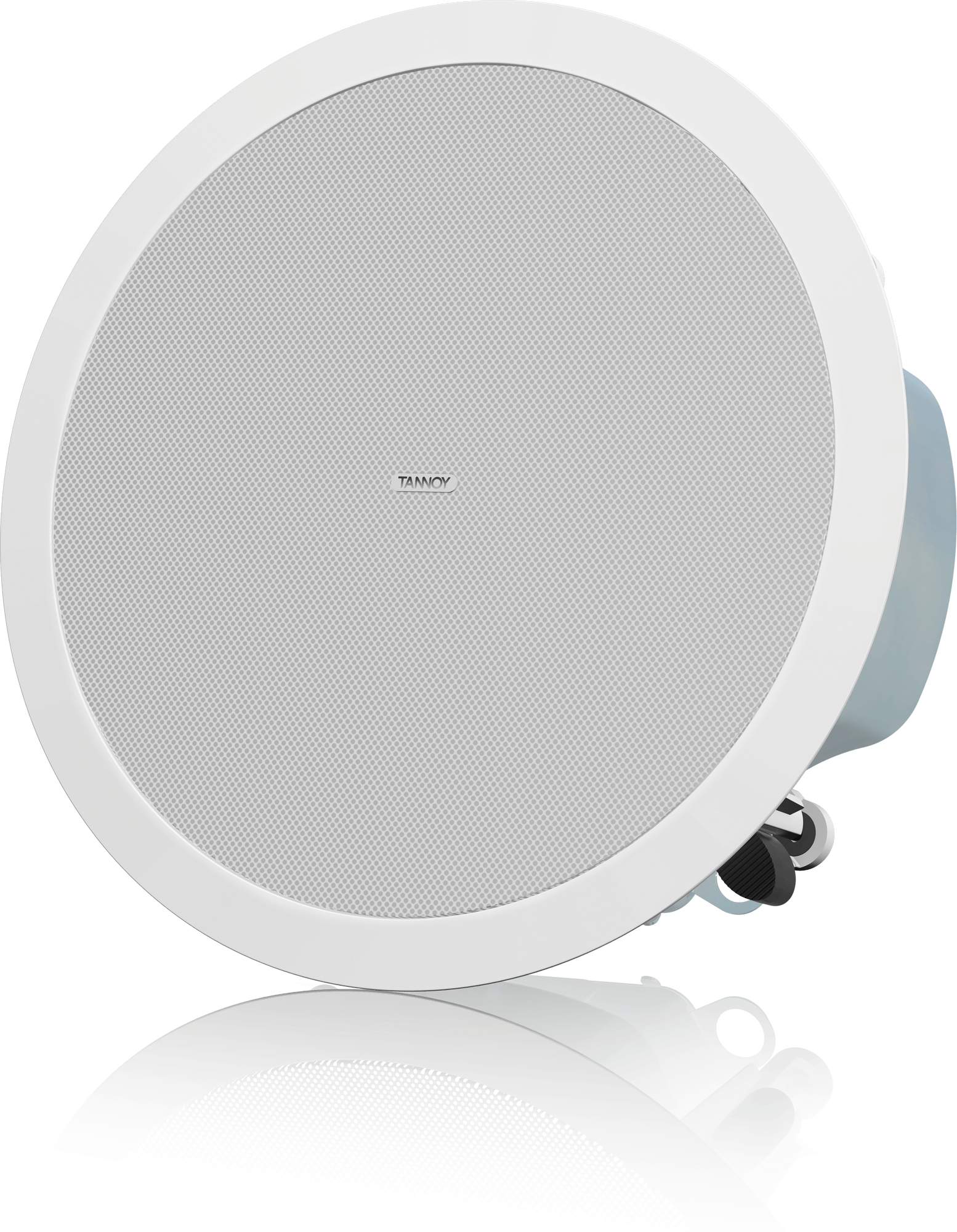

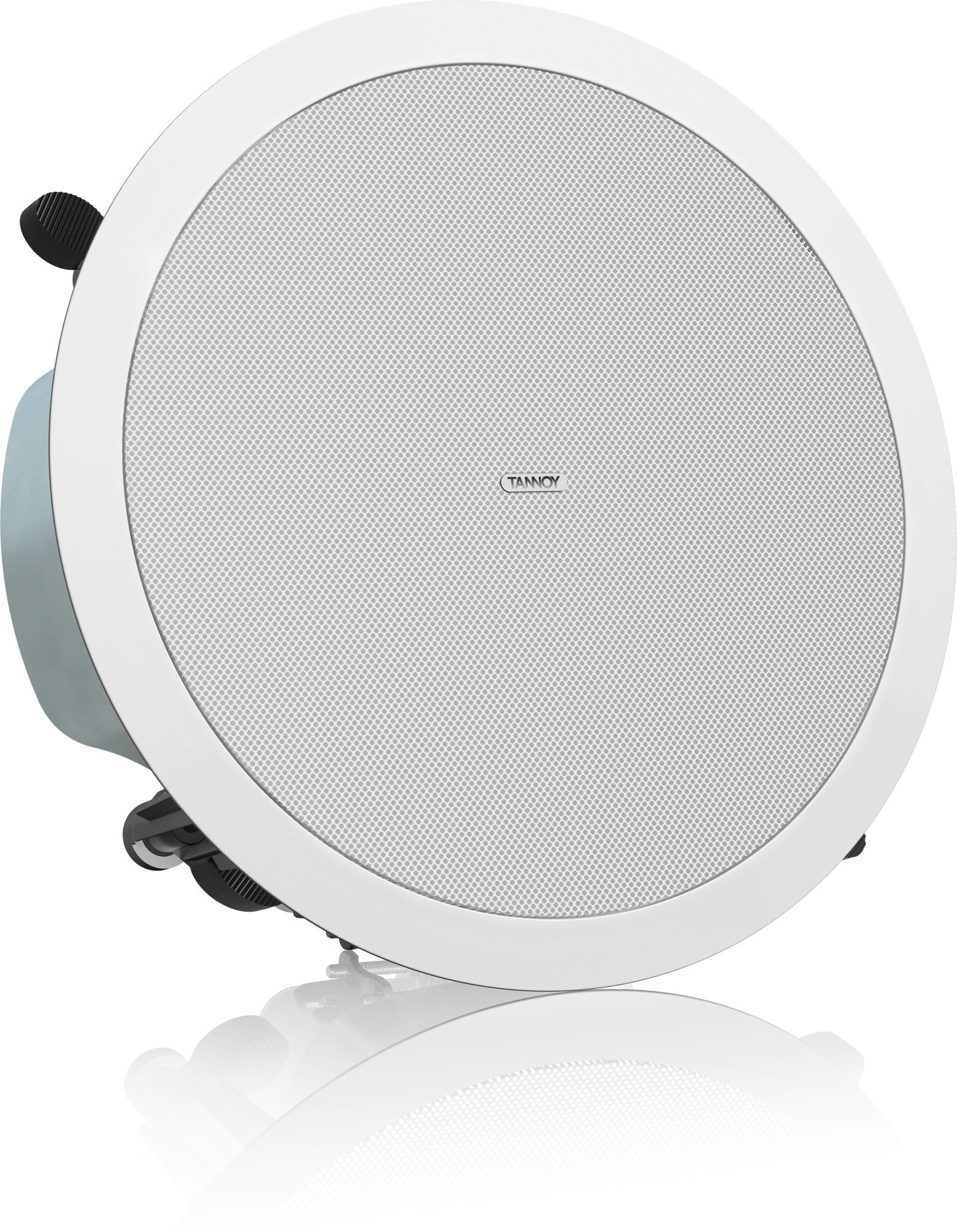

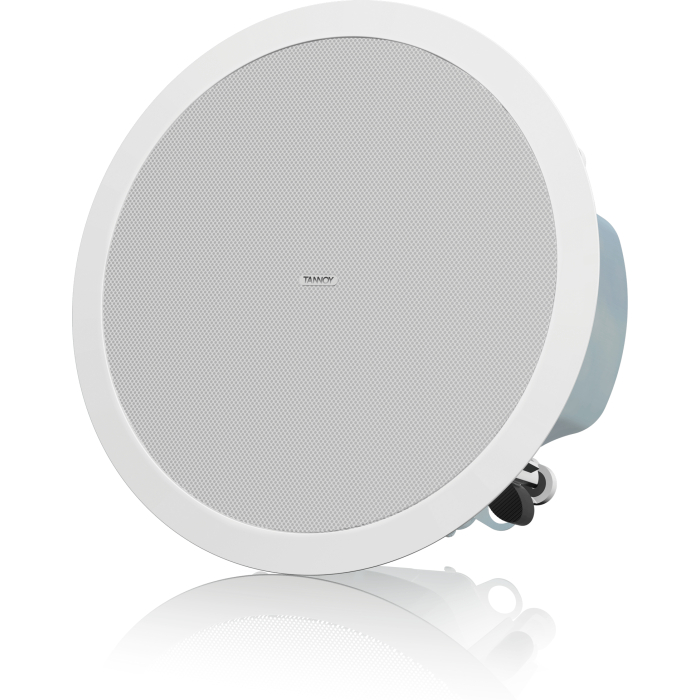

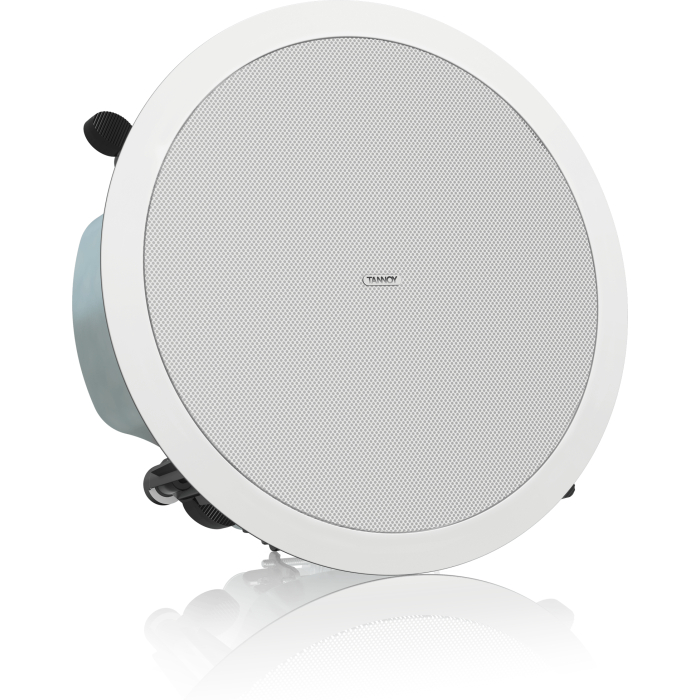

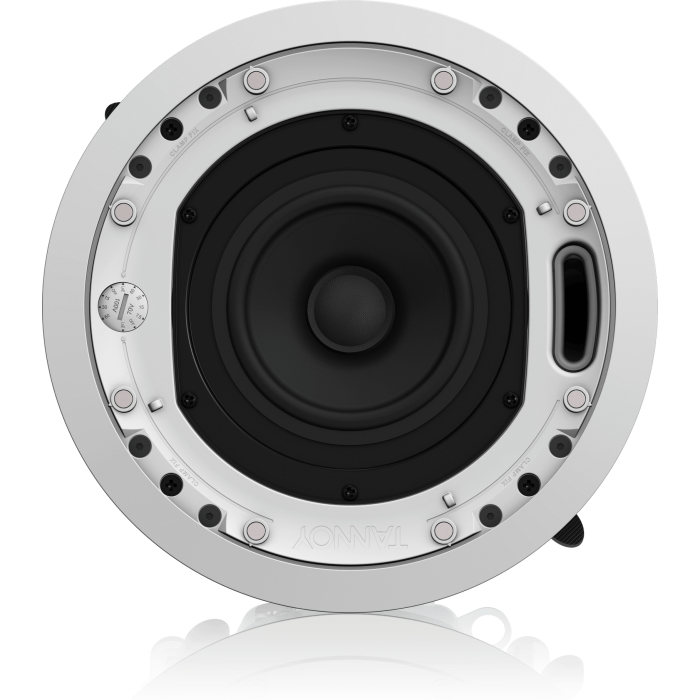

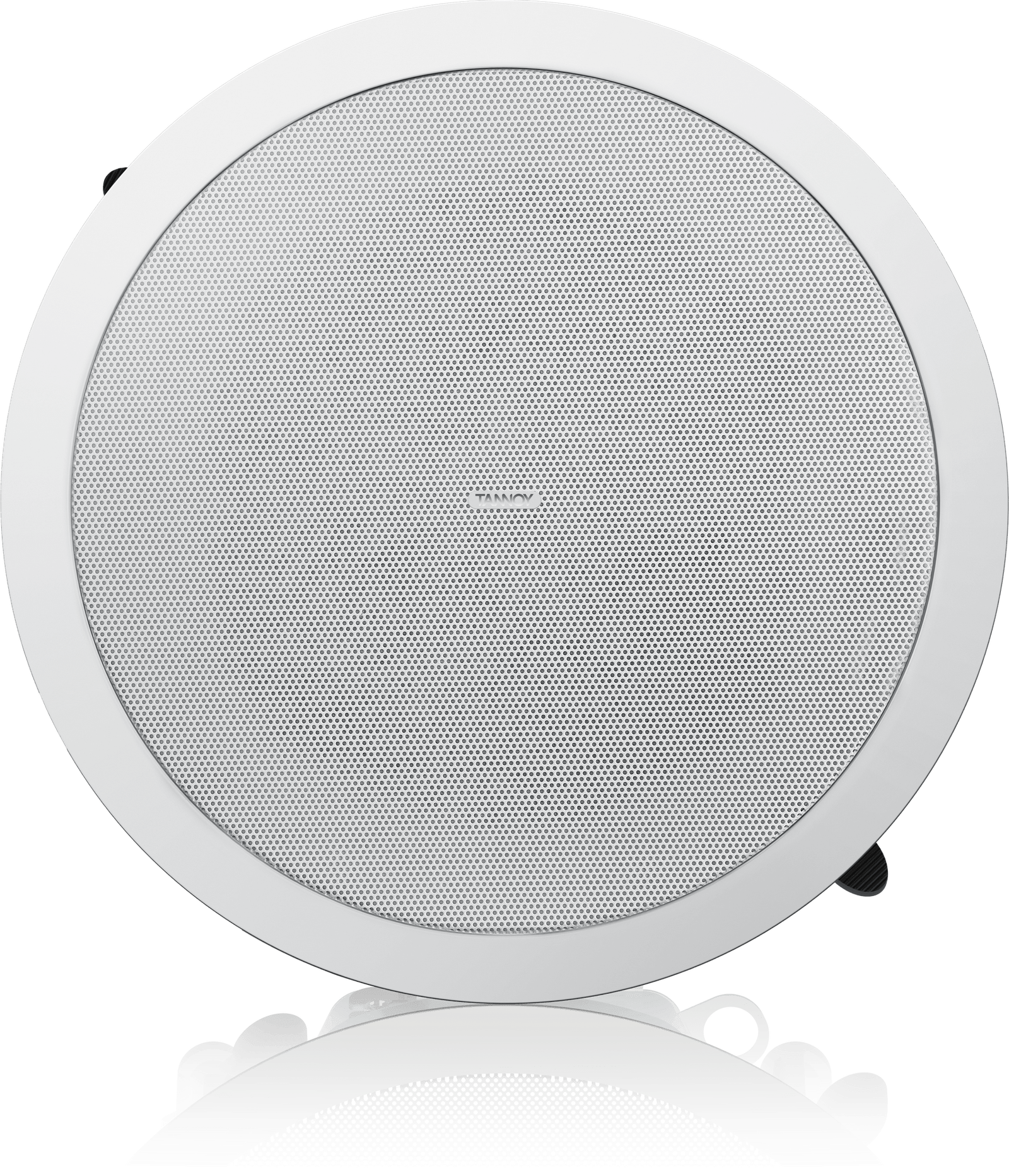

Tannoy CMS 503ICT LP 5″ Full Range Ceiling Speaker with ICT Driver

Tannoy

AED 885.15 inc VAT.

The CMS 503ICT LP is a 200-Watt high sensitivity loudspeaker featuring the third-generation Ceiling Monitor System technology. It includes a proprietary 5-inch ICT point source driver for extended frequency range and consistent broadband directivity. The UL certified speaker ensures enhanced intelligibility and long-term reliability, ideal for constant-usage applications.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CMS 503ICT LP Categories: , Brand:

Description

CMS 503ICT LP Full Bandwidth Loudspeaker

The CMS 503ICT LP is a full bandwidth 200-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5″ ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 503ICT LP delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.

Features

  • Full range ceiling loudspeaker for installation applications
  • 50 Watts continuous, 200 Watts peak power
  • 5″ ICT point source driver for extended frequency range
  • Ultra-shallow depth profile for restricted cavity space
  • High durability design for heavy usage
  • UL 1480 and UL 2043 certified
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low insertion loss 30 W line transformer with accessible tapping switch
  • Optimised for Lab Gruppen low impedance LUCIA amplifiers
  • Semi matt white finish fits unobtrusively in any environment

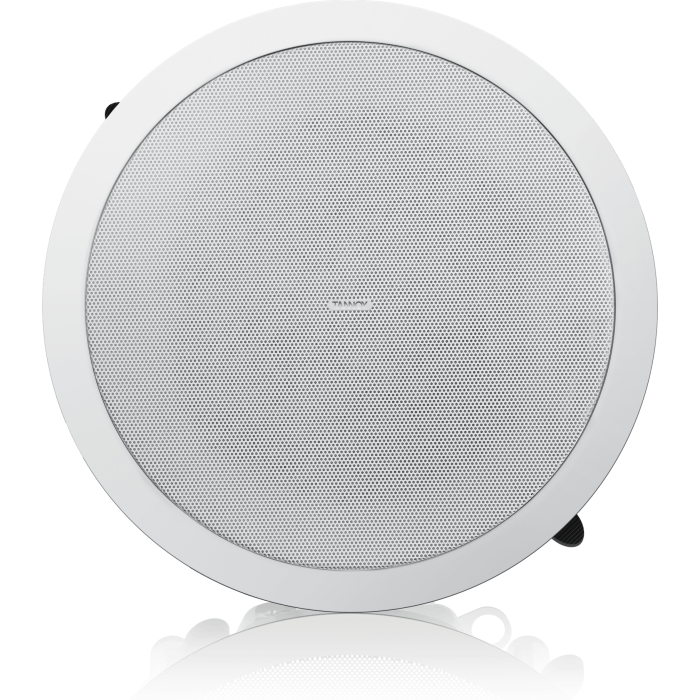

  • Powder coated UV resistant perforated steel mesh grille
  • Removable magnetic grille for custom painting
  • Optional ARCO designer grilles available
  • Self-aligning 4 way clamp mounting system
  • Mounting C-ring and ceiling tile rails included

Specifications

Specification Details
Frequency Response (-3 dB) 88 Hz – 50 kHz
Frequency Range (-10 dB) 77 Hz – 54 kHz
System Sensitivity (1 W @ 1 m) 89 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle 90 degrees conical
Power Handling
  • Average: 50 W
  • Programme: 100 W
  • Peak: 200 W
Recommended Amplifier Power 100 W @ 16 Ohms
Nominal Impedance (Lo, Z) 16 Ohms
Rated Maximum SPL
  • Average: 106 dB
  • Peak: 112 dB

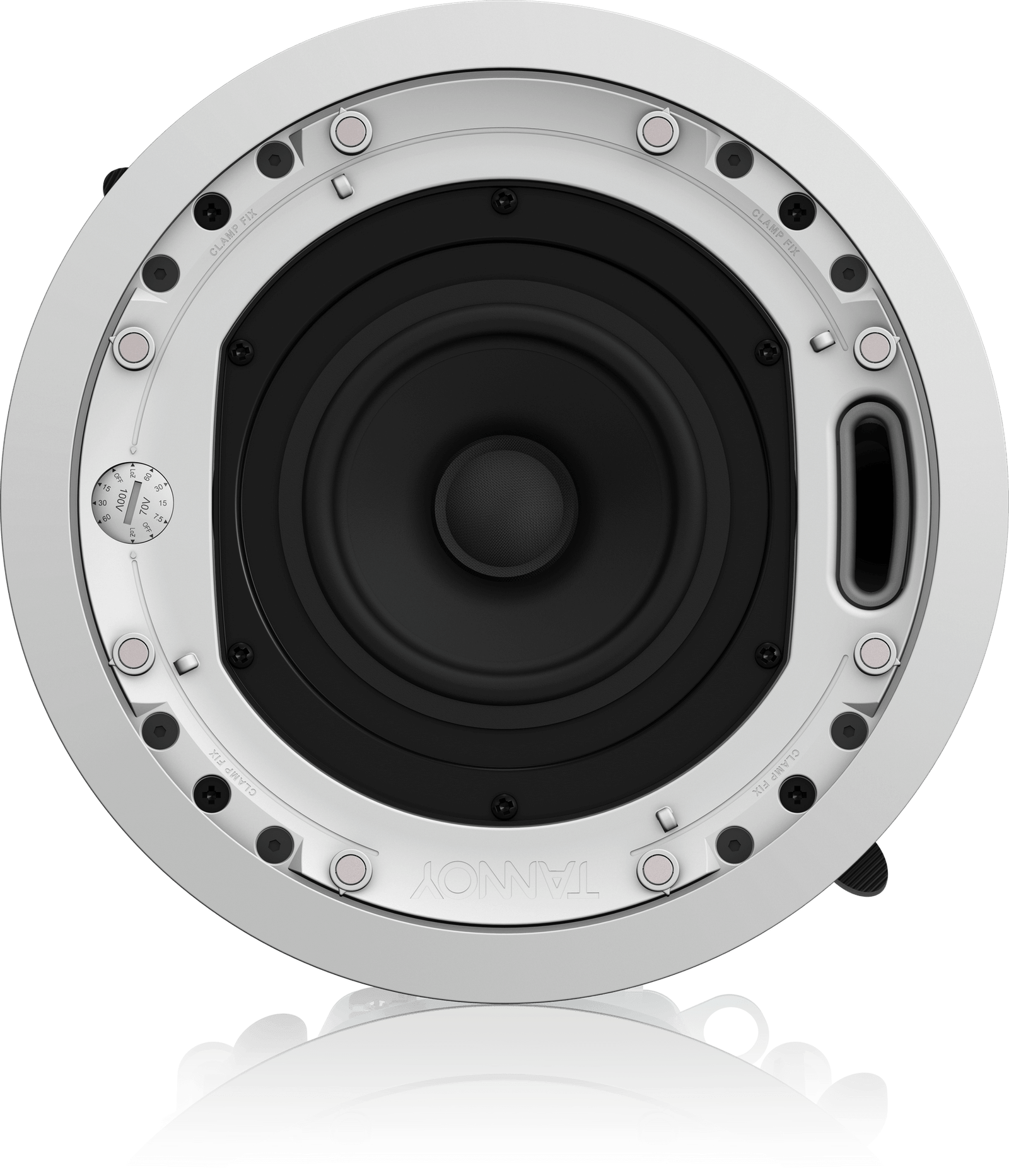

Transformer Taps (via front rotary switch)
  • 70 V: 30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / 3.75 W (1320 O) / OFF & low impedance operation
  • 100 V: 30 W (330 O) / 15 W (660 O) / 7.5 W (1320 O) / OFF & low impedance operation
Low Frequency 1 x 130 mm (5.0″) mineral loaded polypropylene
High Frequency ICT
Enclosure
  • Backcan: Zinc plated steel
  • Baffle: Reflex loaded UL 94V-0 rated ABS
  • Grille: Steel, with weather resistant coating
Safety Features Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design Security toggle clamp Min / Max clamping range 9.5 mm (0.37″) / 60 mm (2.36″)
Cable Entry Options Cable clamp & squeeze connector for conduit up to 22 mm

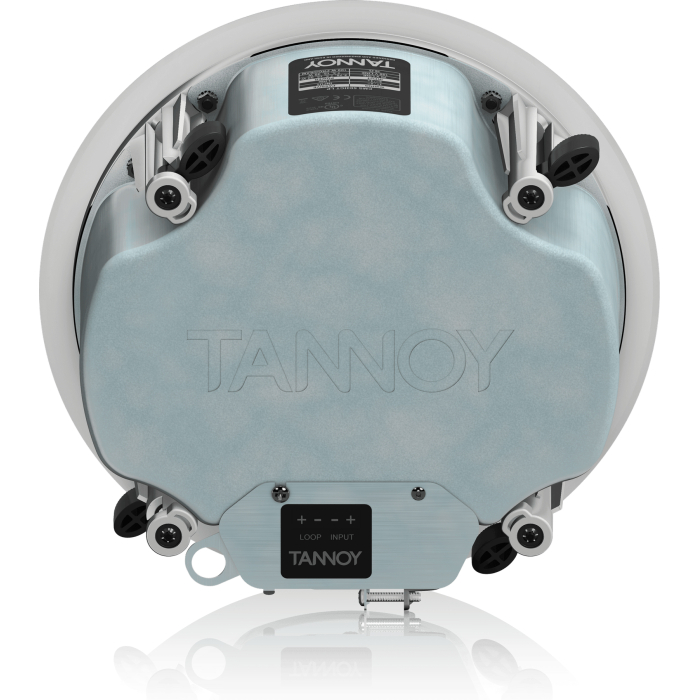

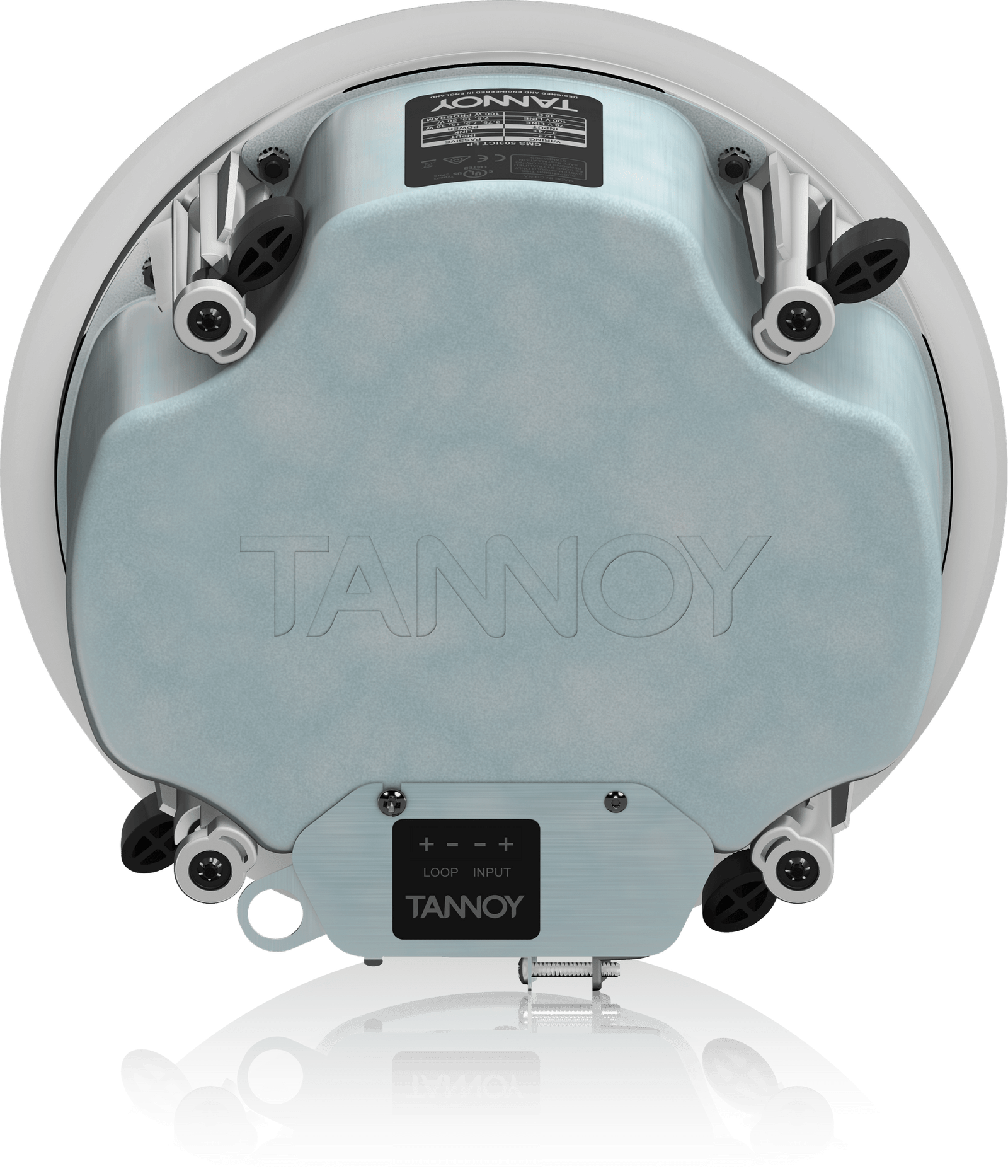

Connectors Removable locking connector with screw terminals with “loop through” facility
Compliance UL-1480, UL-2043, CE
Dimensions
  • Bezel diameter: 274.0 mm (10.79″)
  • Front of ceiling to rear of backcan: 98.6 mm (3.88″)
  • Hole cutout diameter: 253.0 mm (9.96″)
Net Weight (ea) 4.4 kg (9.70 lbs)
Included Accessories C-Ring, tile-bridge kit, paint mask, cut-out template, grille
Optional Accessories Plaster (mud) ring, Arco grille
Packed Quantity 2
