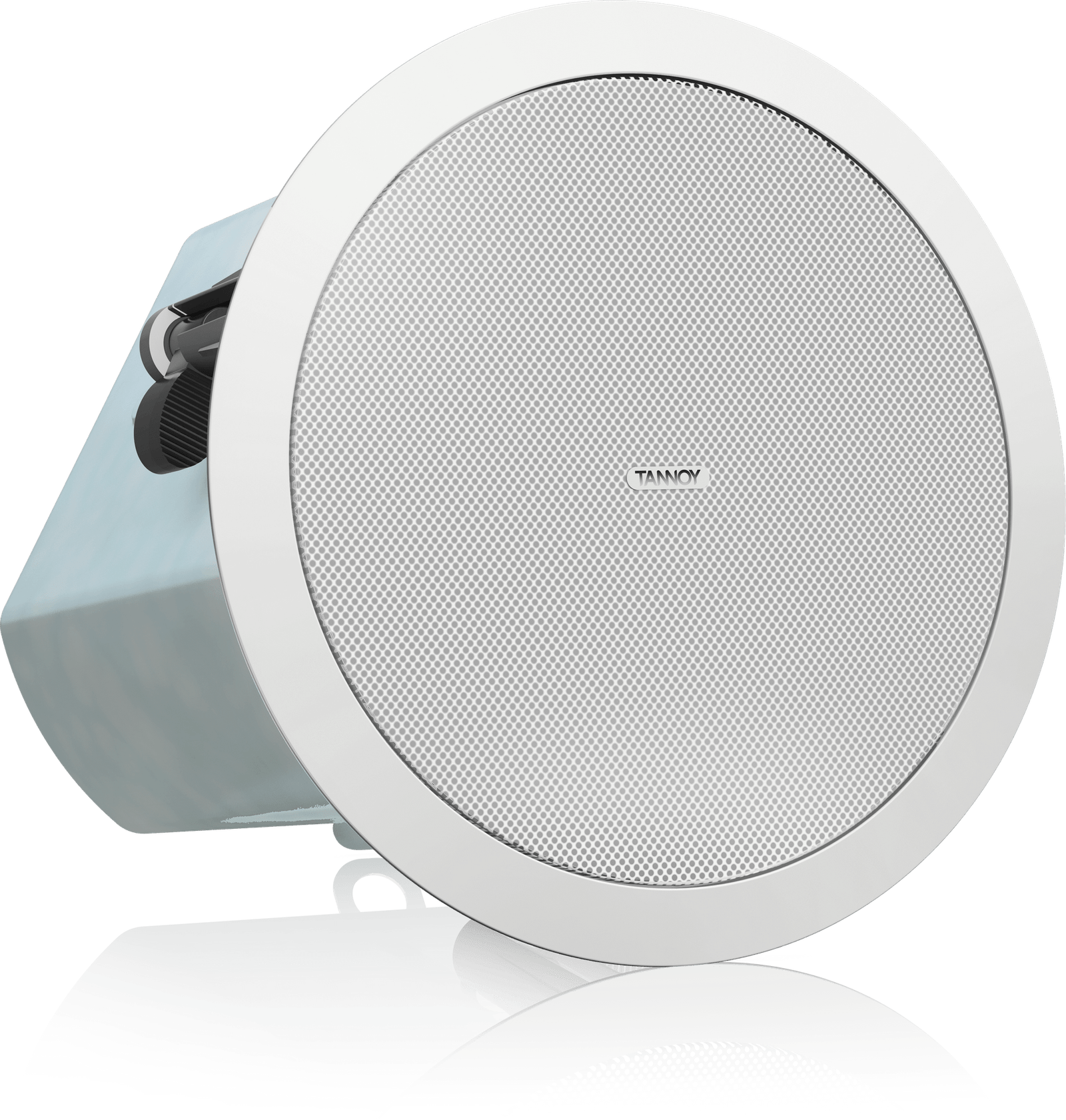

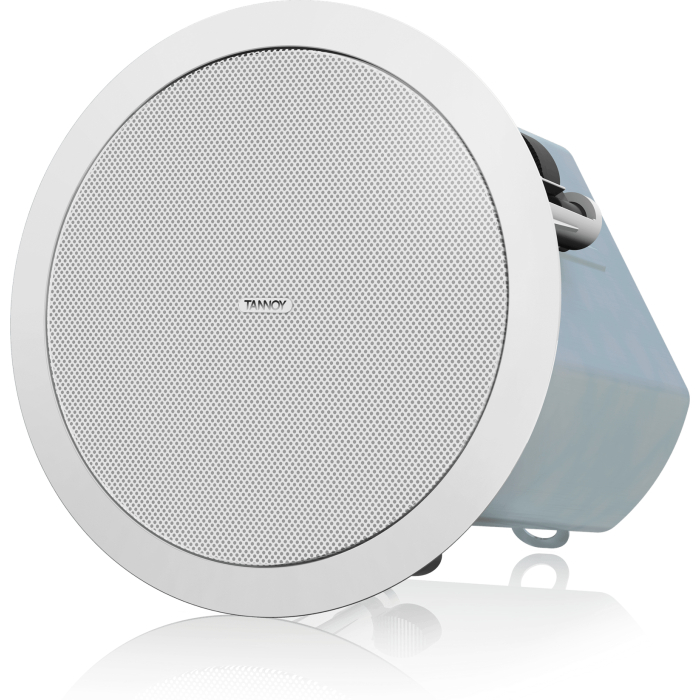

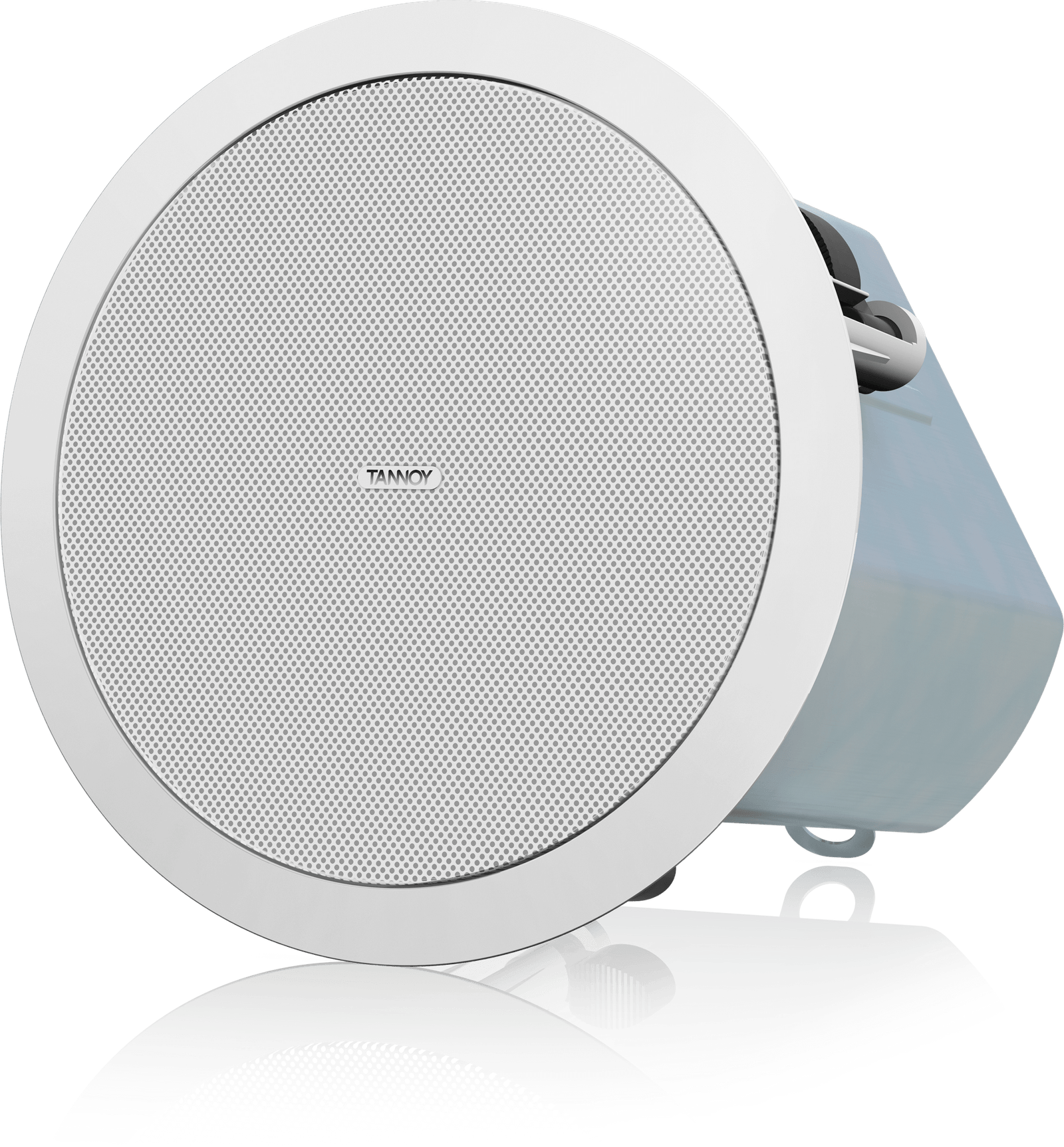

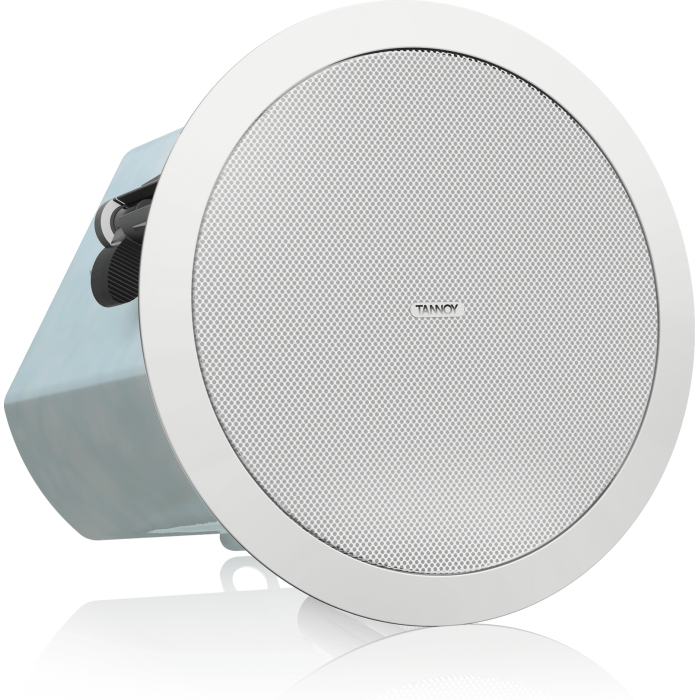

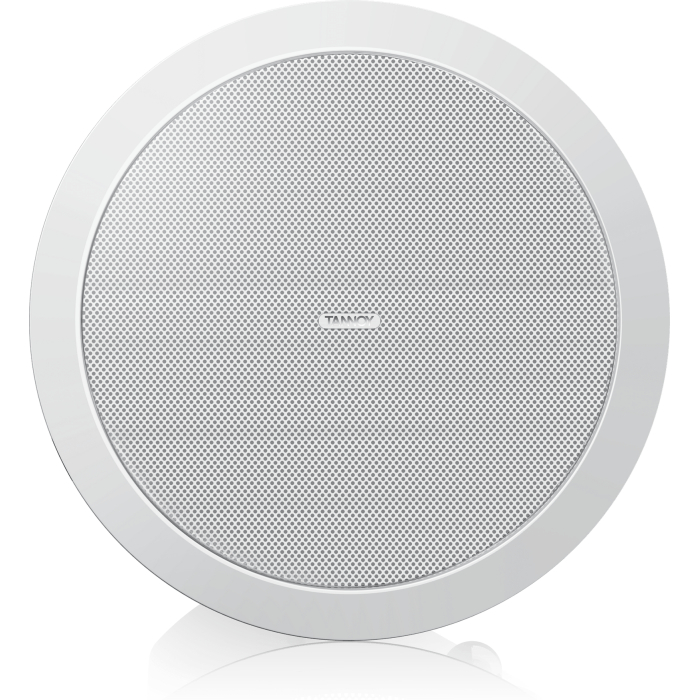

Tannoy CMS 503ICT BM 5″ Ceiling Loudspeaker with ICT Driver

Tannoy

AED 1036.35 inc VAT.

The CMS 503ICT BM is a 200-Watt wide bandwidth loudspeaker featuring third-generation Ceiling Monitor System technology, with a proprietary 5″ ICT driver for extended frequency range, offering consistent broadband directivity and enhanced intelligibility. This UL certified speaker ensures exceptional long-term reliability, making it ideal for constant-usage applications.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CMS 503ICT BM Categories: , Brand:

Description

CMS 503ICT BM Ceiling Loudspeaker

The CMS 503ICT BM is a wide bandwidth 200-Watt high sensitivity loudspeaker that utilizes our third-generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5″ ICT (Inductive Coupling Technology) point source driver with an extended frequency range, the UL certified CMS 503ICT BM delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – ideal for constant-usage applications.

Key Features

  • Full range ceiling loudspeaker for installation applications
  • 50 Watts continuous, 200 Watts peak power

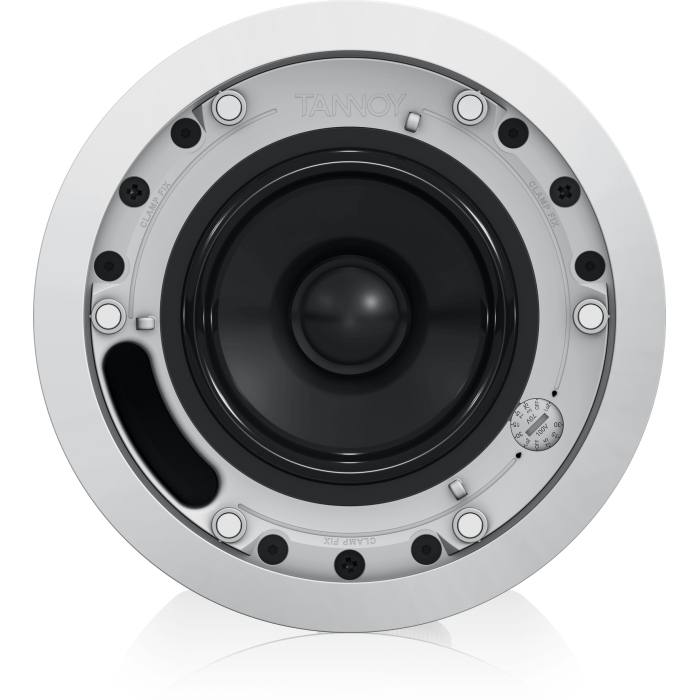

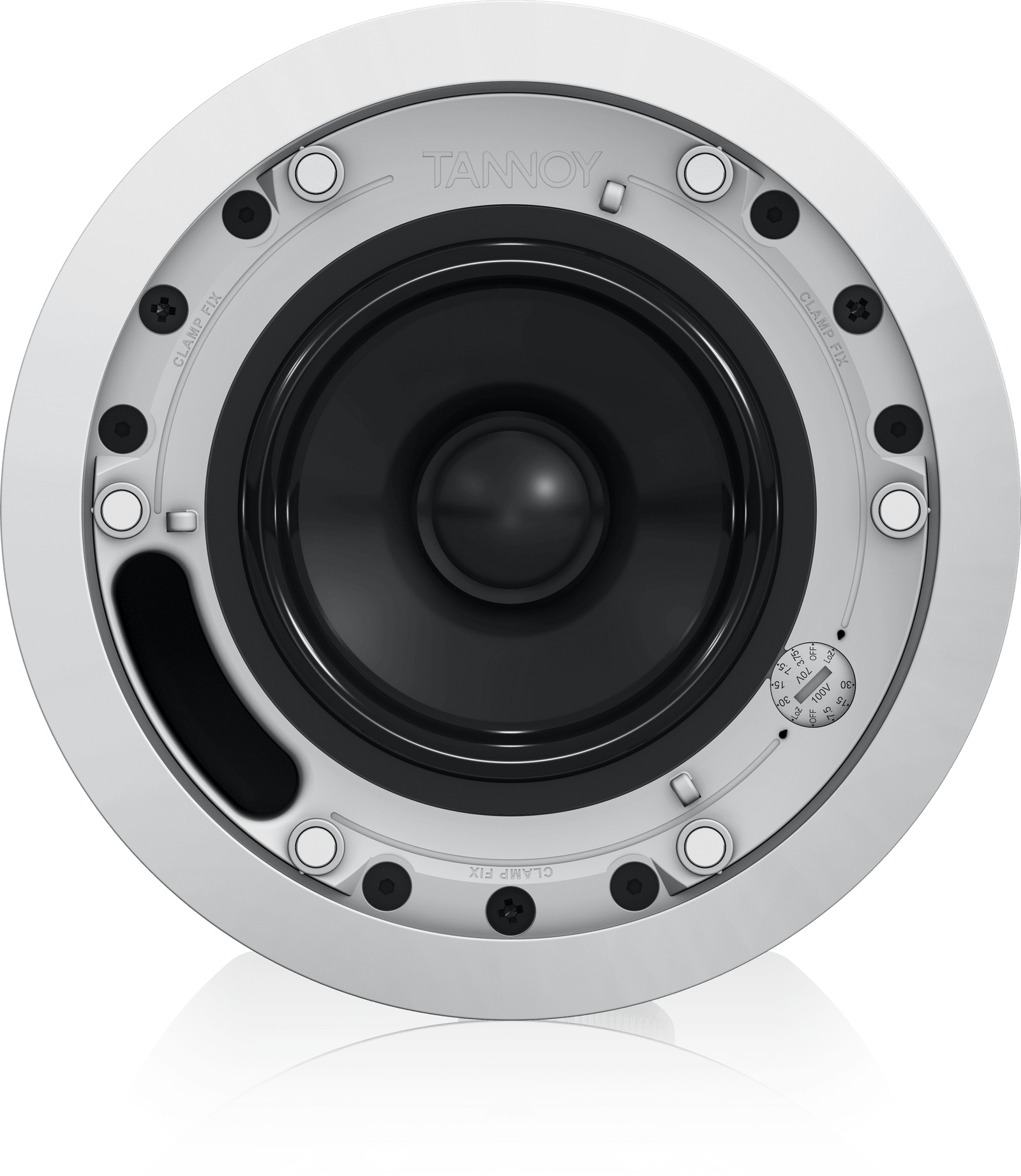

  • 5″ ICT (Inductive Coupling Technology) point source driver for extended frequency range

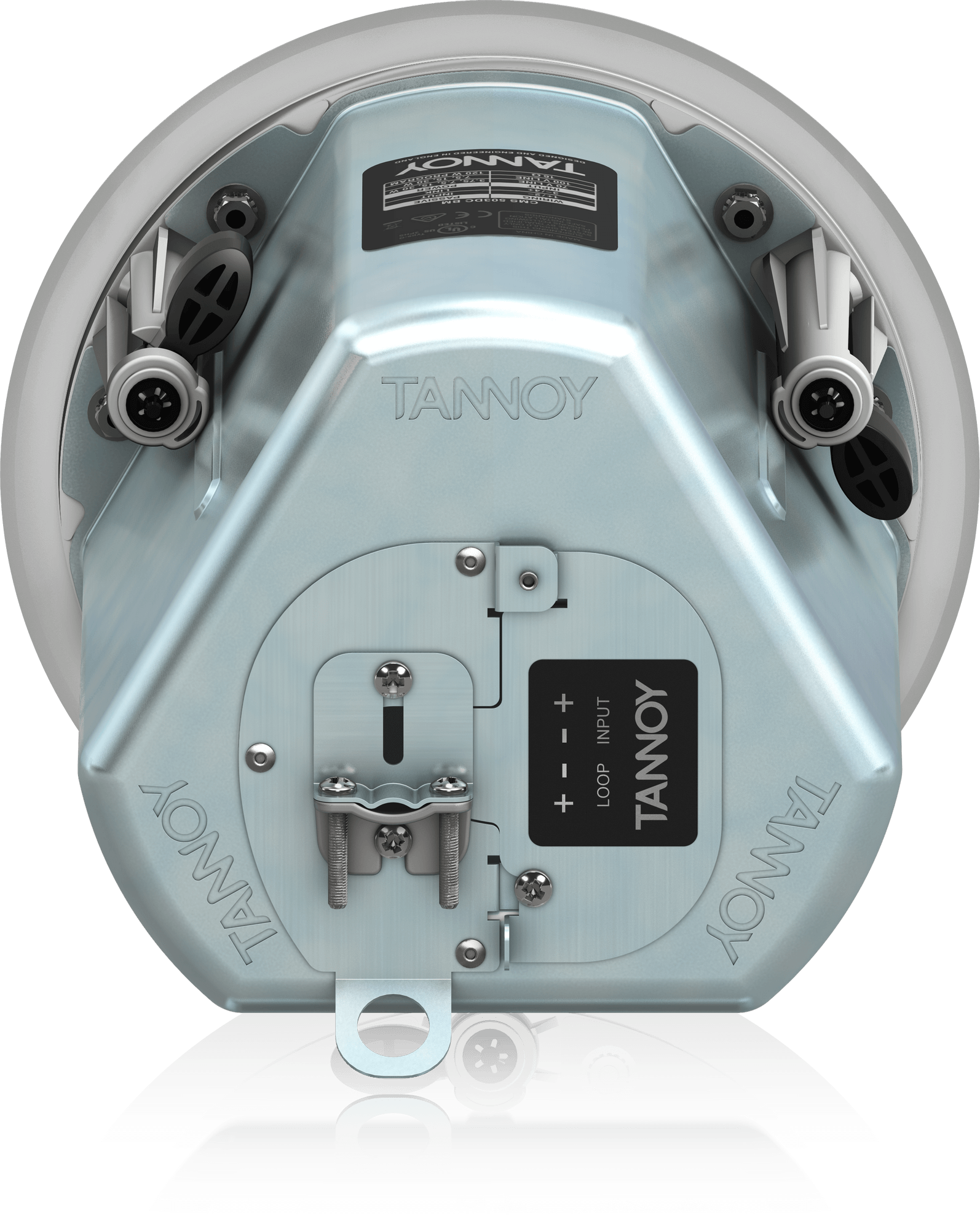

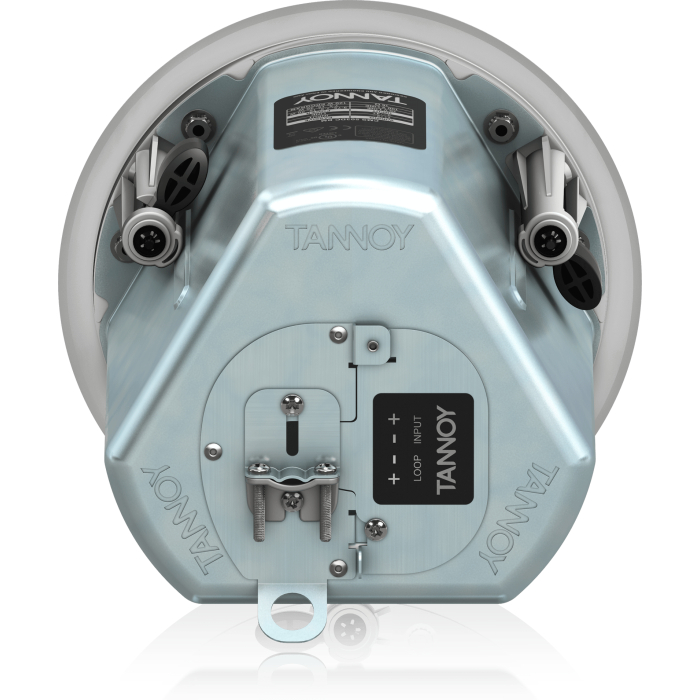

  • Blind Mount version supplied with acoustically enhanced zinc-plated steel back can
  • Integrated single unit construction for ease of installation
  • High durability design for constant heavy usage in demanding applications
  • UL 1480 certified for general signaling systems
  • UL 2043 certified for air-handling spaces
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low insertion loss 30 W line transformer with easily accessible tapping switch
  • Optimized for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
  • Semi-matte white finish fits unobtrusively in any environment

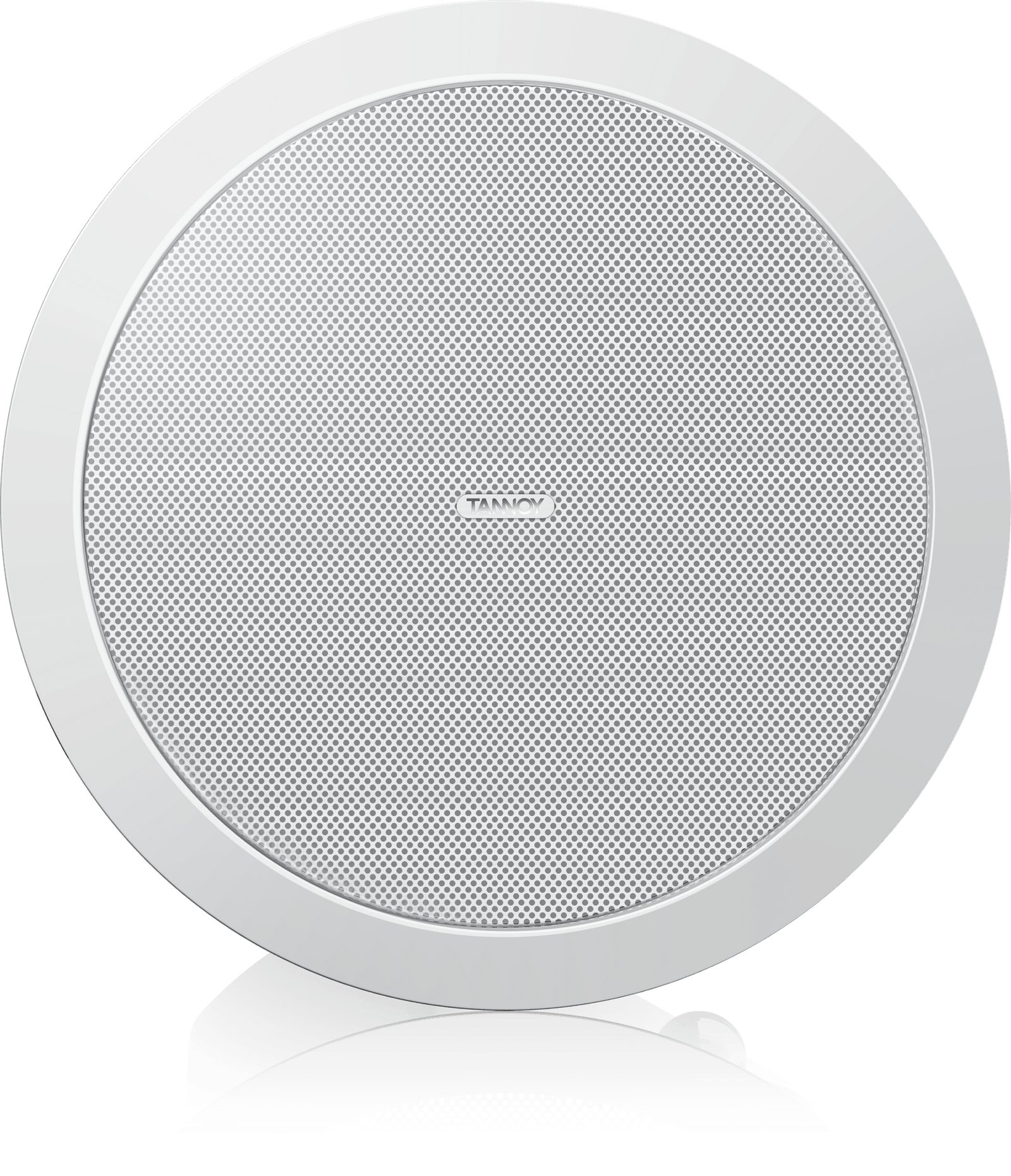

  • Powder-coated UV resistant perforated steel mesh grille with dust protection
  • Removable magnetic grille for custom painting
  • Optional ARCO designer grilles available for minimal architectural impact
  • Self-aligning 3-way clamp mounting system
  • Mounting C-ring and ceiling tile rails included

Specifications

Specification Details
Frequency response (-3 dB) 85 Hz – 22 kHz BM Backcan
Frequency range (-10 dB) 74 Hz – 24 kHz BM Backcan
System sensitivity (1 W @ 1 m) 89 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle 90 degrees conical
Coverage Angle (1 kHz to 6 kHz) 105 degrees
Directivity Factor (Q) 5.6 averaged 1 kHz to 6 kHz
Directivity Index (DI) 7.0 averaged 1 kHz to 6 kHz
Recommended Amplifier Power 100 W @ 16 Ohms
Nominal Impedance (Lo, Z) 16 Ohms
Crossover 7 kHz inductively coupled
Low Frequency 130 mm (5.00″) mineral-loaded polypropylene
High Frequency ICT aluminium dome
Safety Features Safety ring located at rear of enclosure for load-bearing safety bond
Clamping Design Security toggle clamp Min/Max clamping range 9.5 mm (0.37″) / 60 mm (2.36″)
Recommended clamp torque: 1.5 Nm
Backcan Options Complete with fixed backcan
Cable Entry Options Cable clamp & squeeze connector for conduit up to 22 mm
Conduit Knockouts on PI Backcan 3 Sets of horizontal positions 19 / 22 / 28 mm (0.75″ / 0.87″ / 1.10″)
Connectors Removable locking connector with screw terminals with “loop through” facility
Compliance UL-1480, UL-2043, CE
Hole cutout diameter (all models) 190 mm (7.48″)
Net Weight (ea) 3.95 kg (8.70 lbs)
Included Accessories C-Ring, tile-bridge kit, paint mask, cut-out template, grille
Optional Accessories Plaster (mud) ring, Arco grille
Packed Quantity 2
