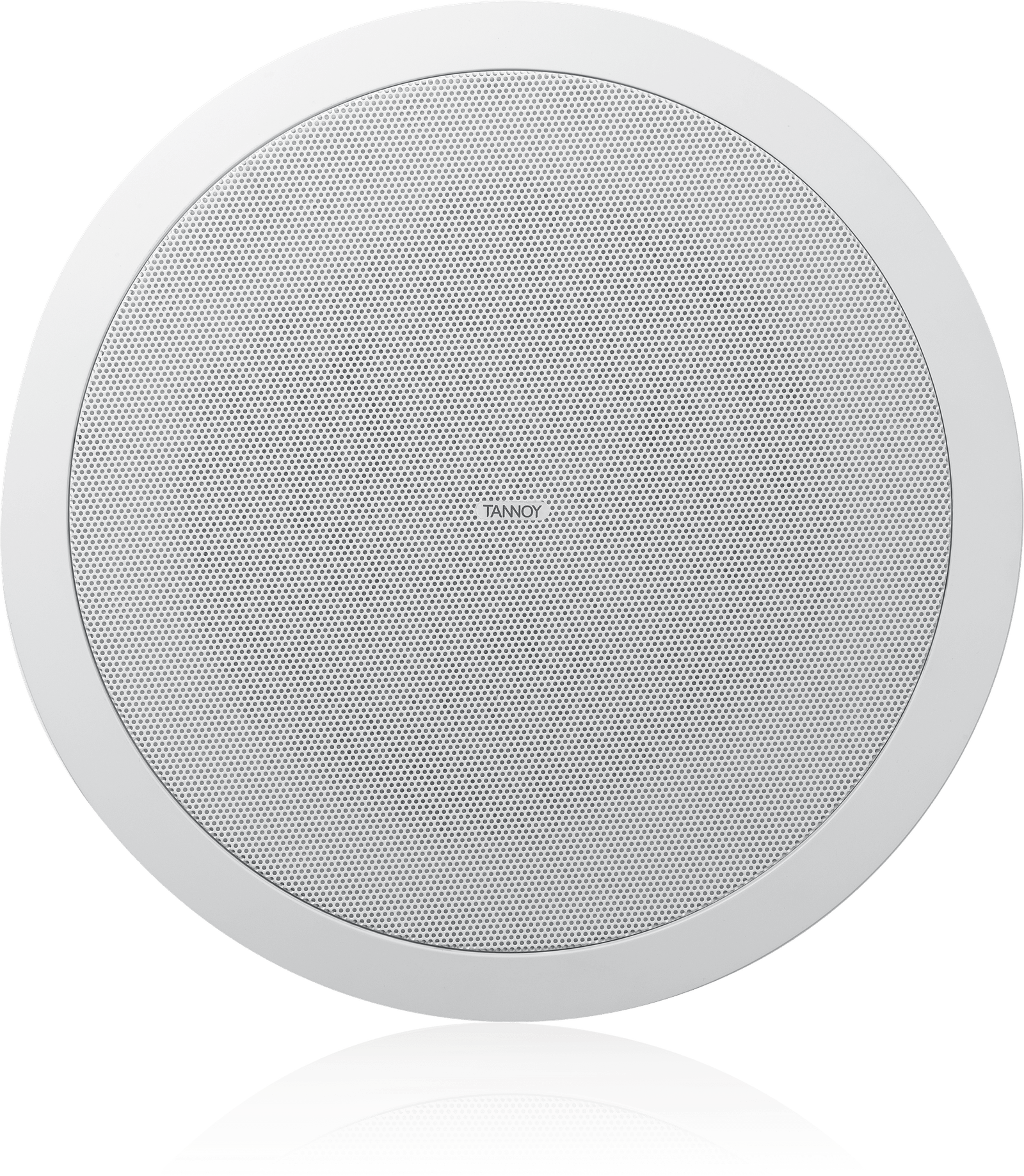

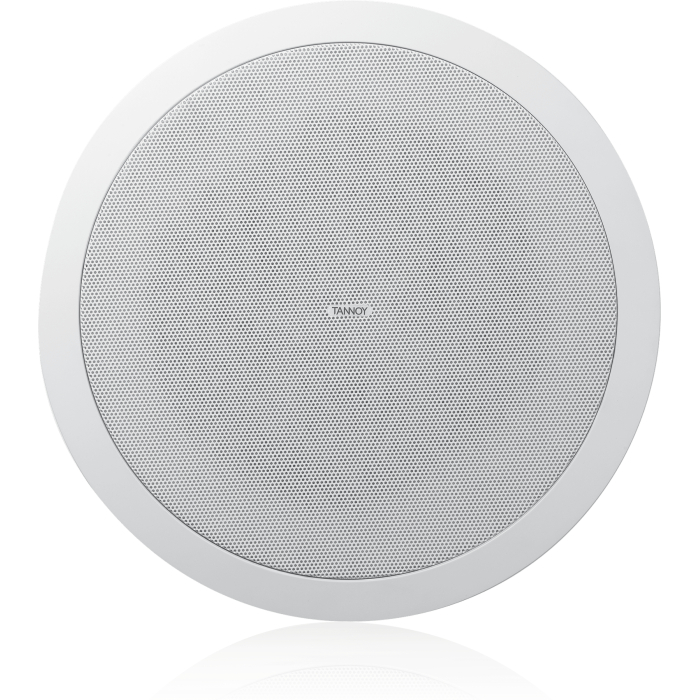

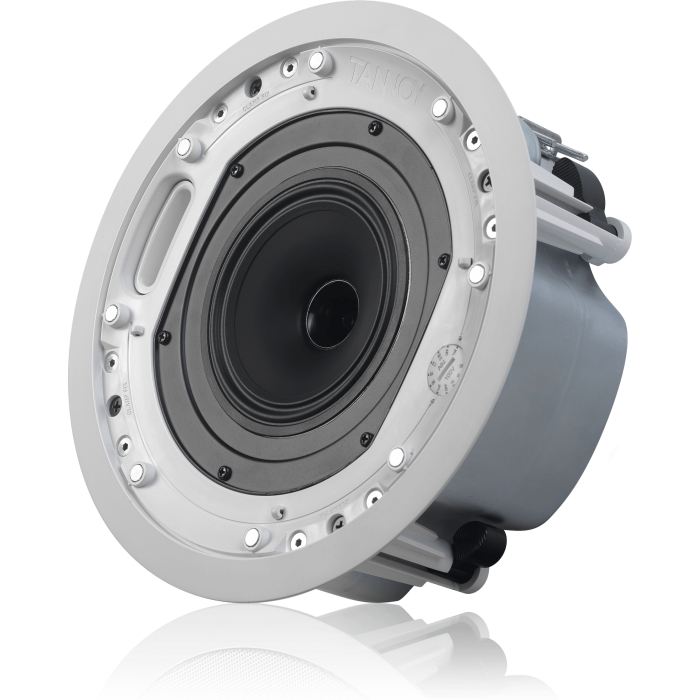

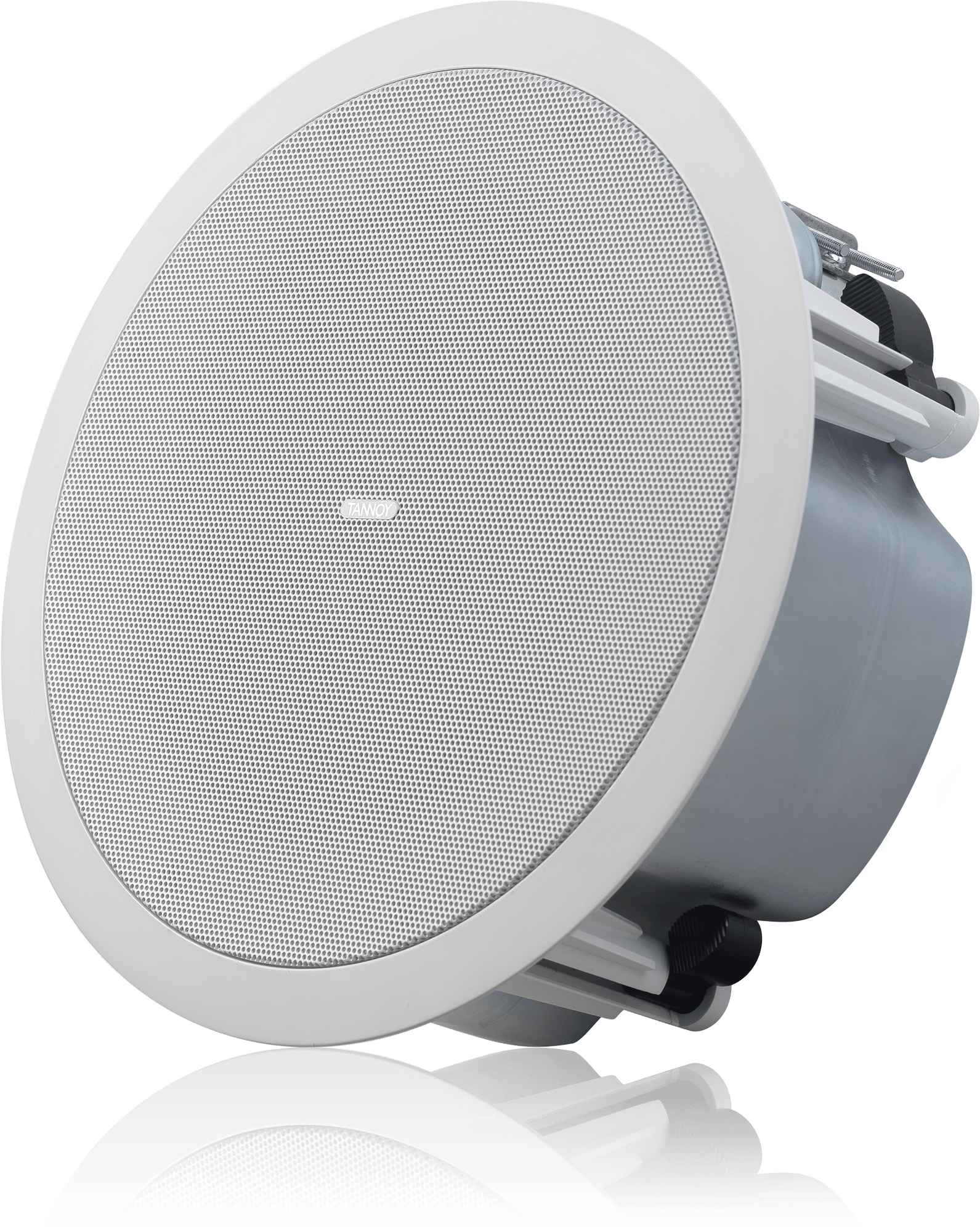

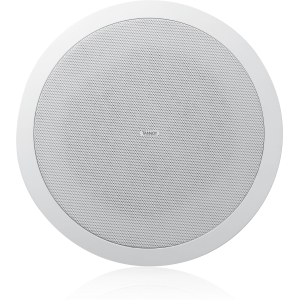

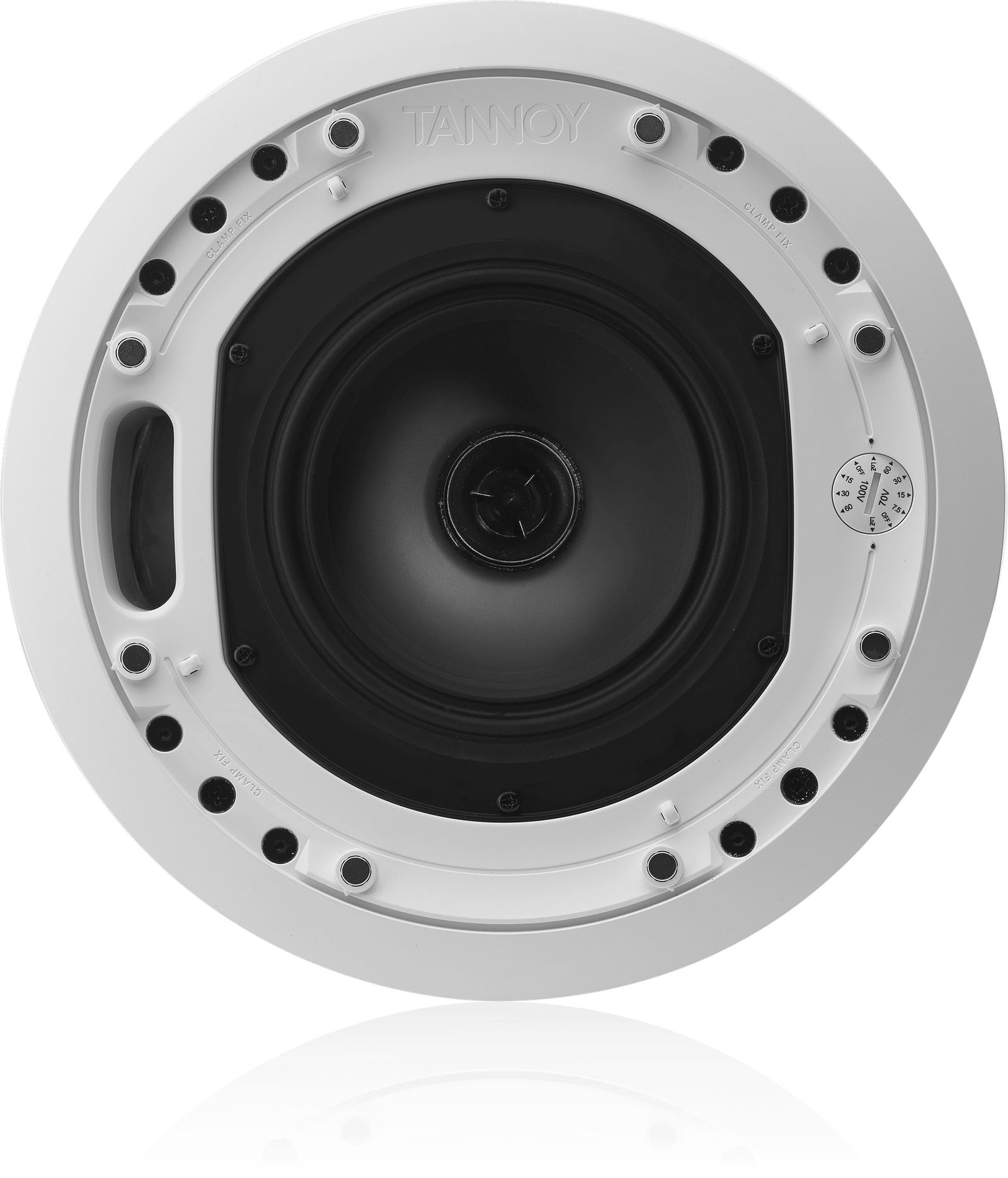

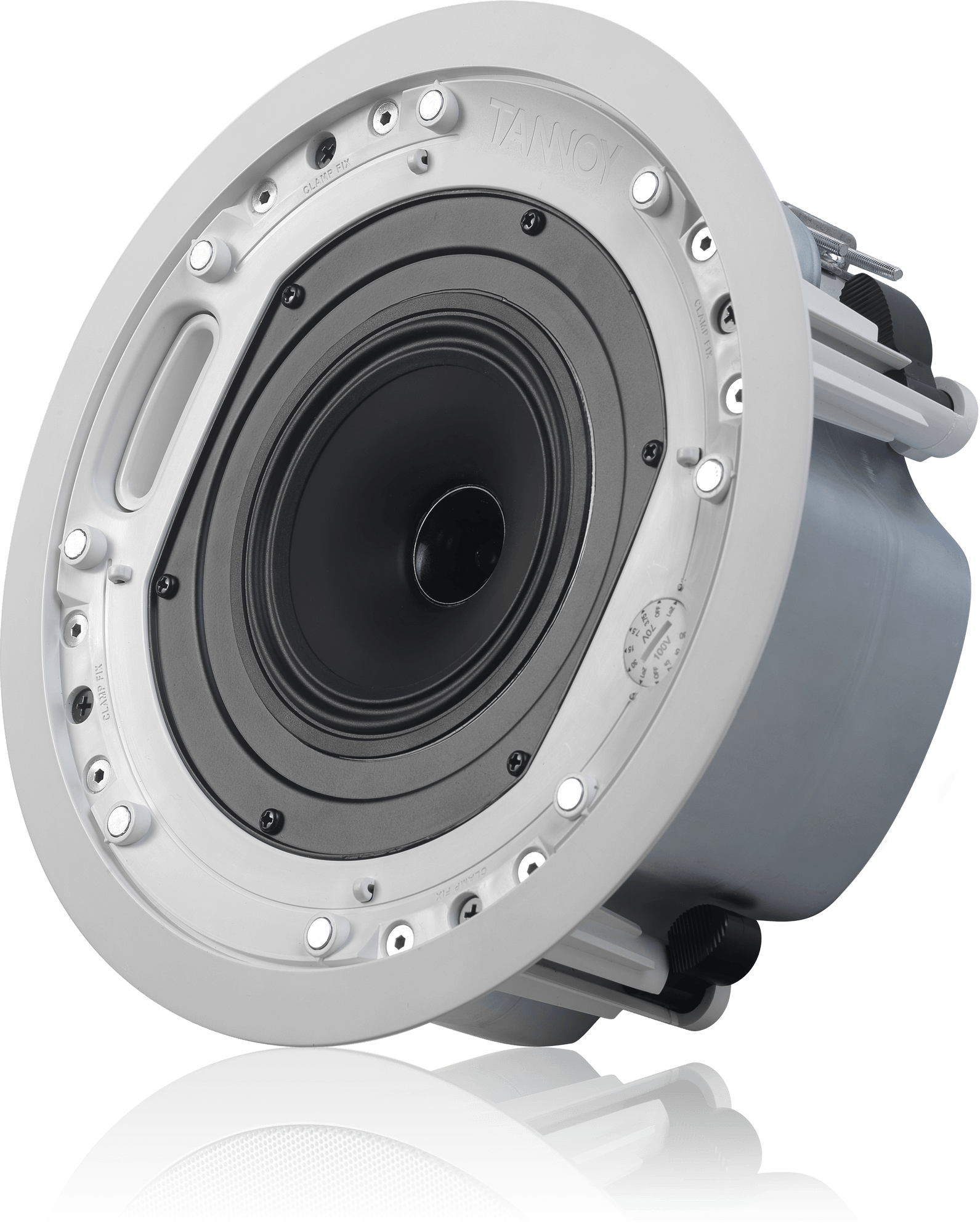

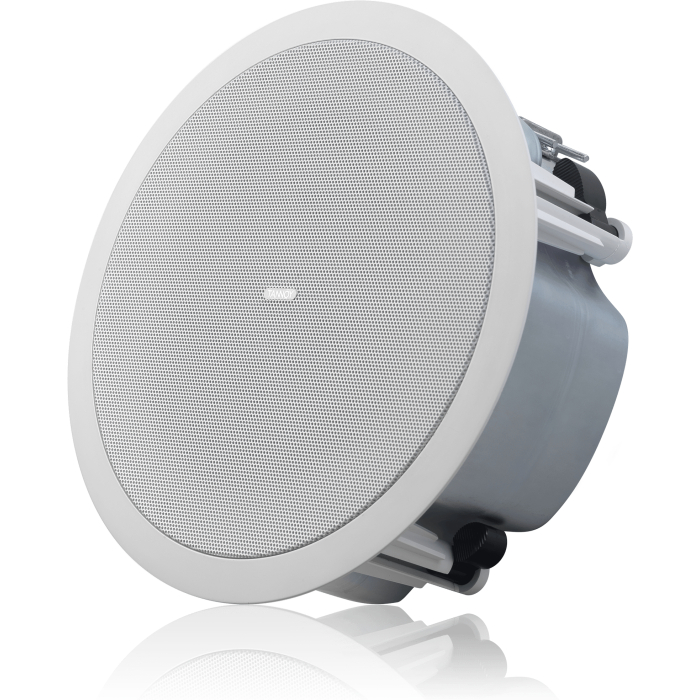

Tannoy CMS 503DC LP 5-Inch Ceiling Loudspeaker with Dual Concentric Driver Low Profile

Tannoy

AED 1,076.25 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CMS 503DC LP Categories: , Brand:

The CMS 503DC LP is a 240-Watt high sensitivity loudspeaker featuring the third generation Ceiling Monitor System technology (CMS 3.0), incorporating a proprietary 5″ Dual Concentric point-source driver with Omnimagnet technology and Torus Ogive Waveguide, ensuring wide consistent broadband directivity and enhanced intelligibility with accurate, linear response.

Description

The CMS 503DC LP is a full bandwidth 240-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5″ Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 503DC LP delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.

Features

  • Full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • Next generation 5″ Dual Concentric driver featuring Omnimagnet technology
  • Torus Ogive waveguide for improved high frequency response and directivity
  • Ultra-shallow depth profile for applications where cavity space is restricted
  • UL 1480 certified for general signalling systems
  • UL 2043 certified for air-handling spaces
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low insertion loss 30 W line transformer with easily accessible tapping switch
  • Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated UV resistant perforated steel mesh grille with dust protection
  • Removable magnetic grille for custom painting
  • Optional ARCO designer grilles available for minimal architectural impact
  • Self-aligning 4 way clamp mounting system
  • Mounting C-ring and ceiling tile rails included

Specifications

Frequency response (-3 dB) (1) 88 Hz – 22 kHz
Frequency range (-10 dB) (1) 77 Hz – 24 kHz
System sensitivity (1 W @ 1 m) (2) 89 dB (1 W = 4 V for 16 Ohms)
Nominal coverage angle 90 degrees conical
Power handling (3)
Average 60 W
Programme 120 W
Peak 240 W
Recommended amplifier power 120 W @ 16 Ohms
Nominal impedance (Lo, Z) 16 Ohms
Rated maximum SPL
Average 107 dB
Peak 113 dB
Transformer taps (via front rotary switch)
70 V 30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / 3.75 W (1320 O) / OFF & low impedance operation
100 V 30 W (330 O) / 15 W (660 O) / 7.5 W (1320 O) / OFF & low impedance operation
Transducers

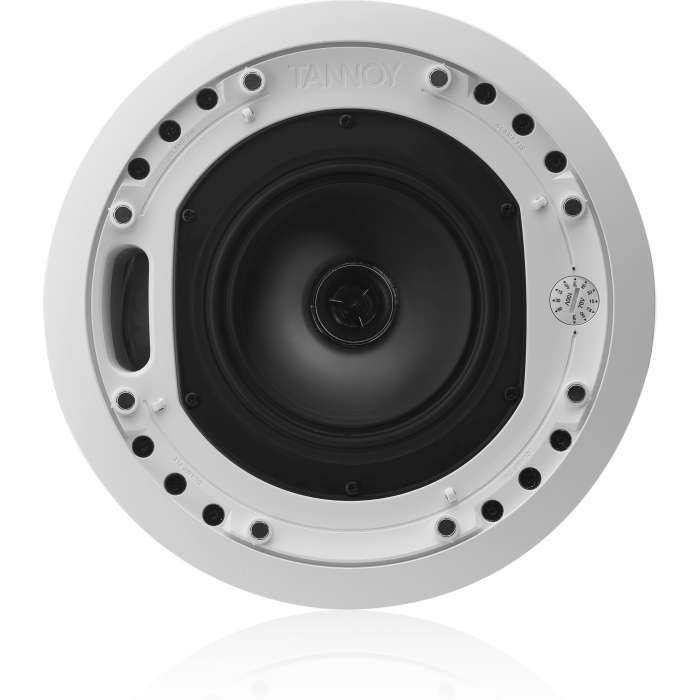

Dual concentric point source driver 1 x 130 mm (5.0″) Dual Concentric driver, using Omnimagnet technology
Low frequency 35 mm (1.38″) voice coil, treated multi fiber paper pulp cone
High frequency 20 mm (0.79″) PEI dome
Physical
Enclosure

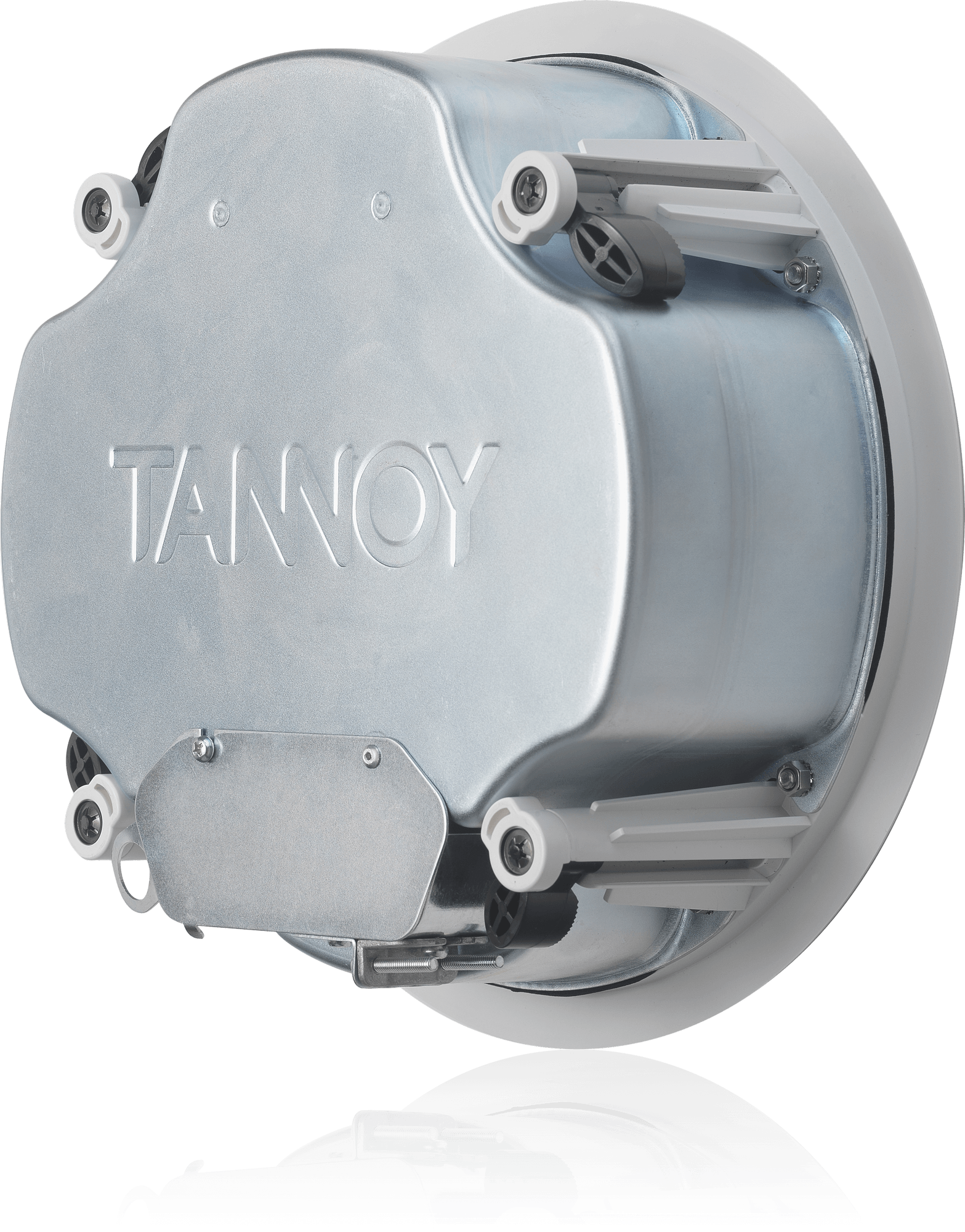

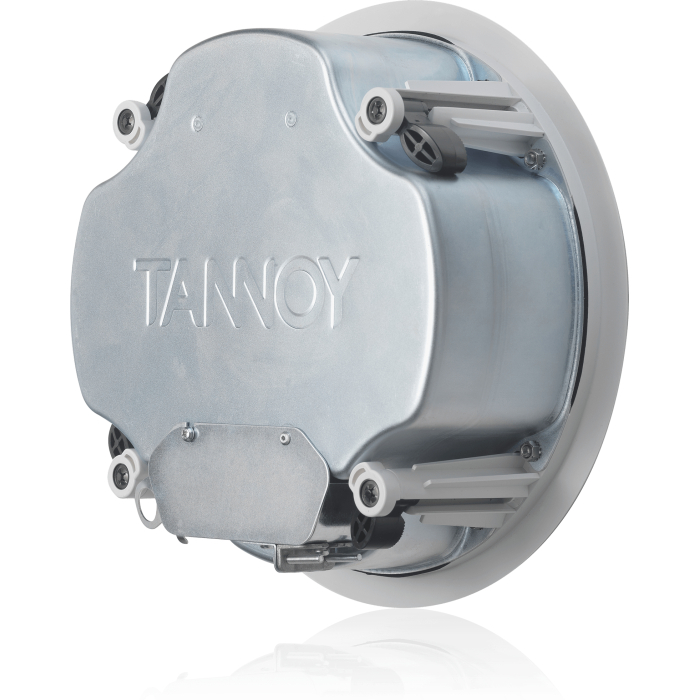

Backcan Zinc plated steel
Baffle Reflex loaded UL 94V-0 rated ABS
Grille Steel, with weather resistant coating
Safety features Safety ring located at rear of enclosure for load bearing safety bond
Clamping design Security toggle clamp Min / Max clamping range 9.5 mm (0.37″) / 60 mm (2.36″) Recommended clamp torque: 1.5 Nm
Backcan options
Blind mount (BM) —
Pre install (PI) —
Cable entry options Cable clamp & squeeze connector for conduit up to 22 mm
Conduit knockouts on PI Backcan —
Connectors Removable locking connector with screw terminals with “loop through” facility
Compliance UL-1480, UL-2043, CE
Dimensions
Bezel diameter 274.0 mm (10.79″)
Front of ceiling to rear of backcan 98.6 mm (3.88″)
Hole cutout diameter (all models) 253.0 mm (9.96″)
Net weight (ea) 4.7 kg (10.36 lbs)
Included accessories C-Ring, tile-bridge kit, paint mask, cut-out template, grille
Optional accessories Plaster (mud) ring, Arco grille
Packed quantity 2
