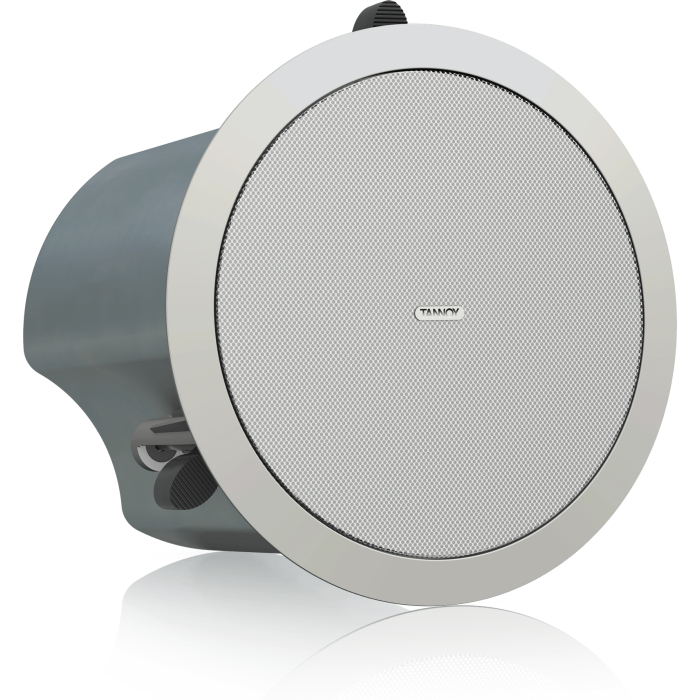

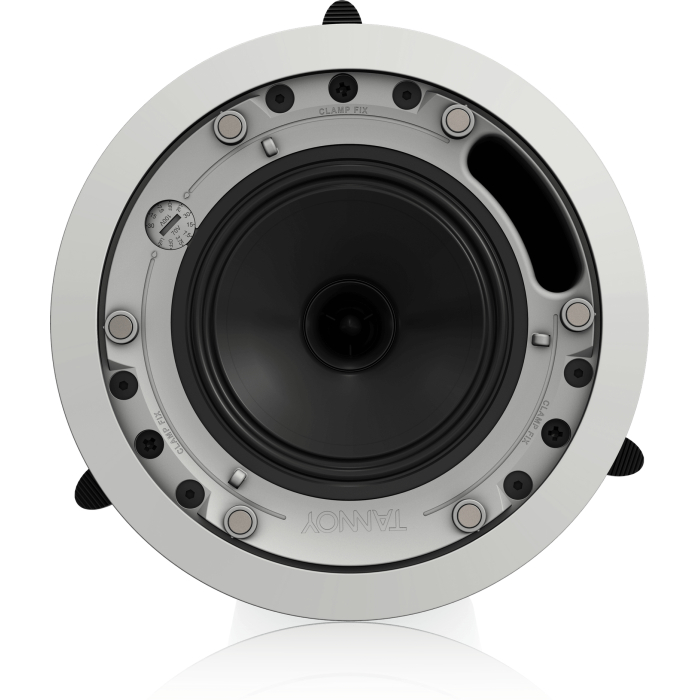

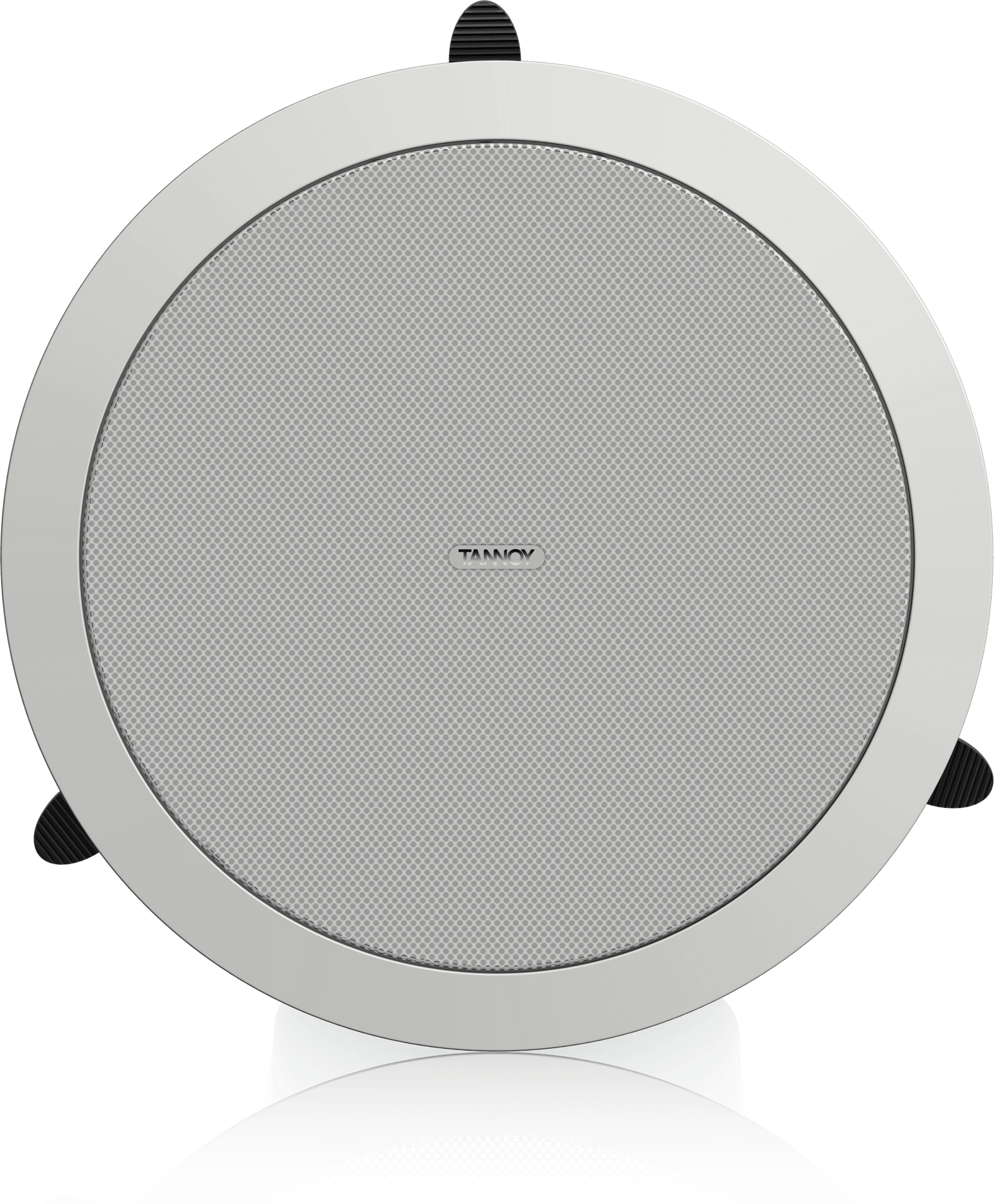

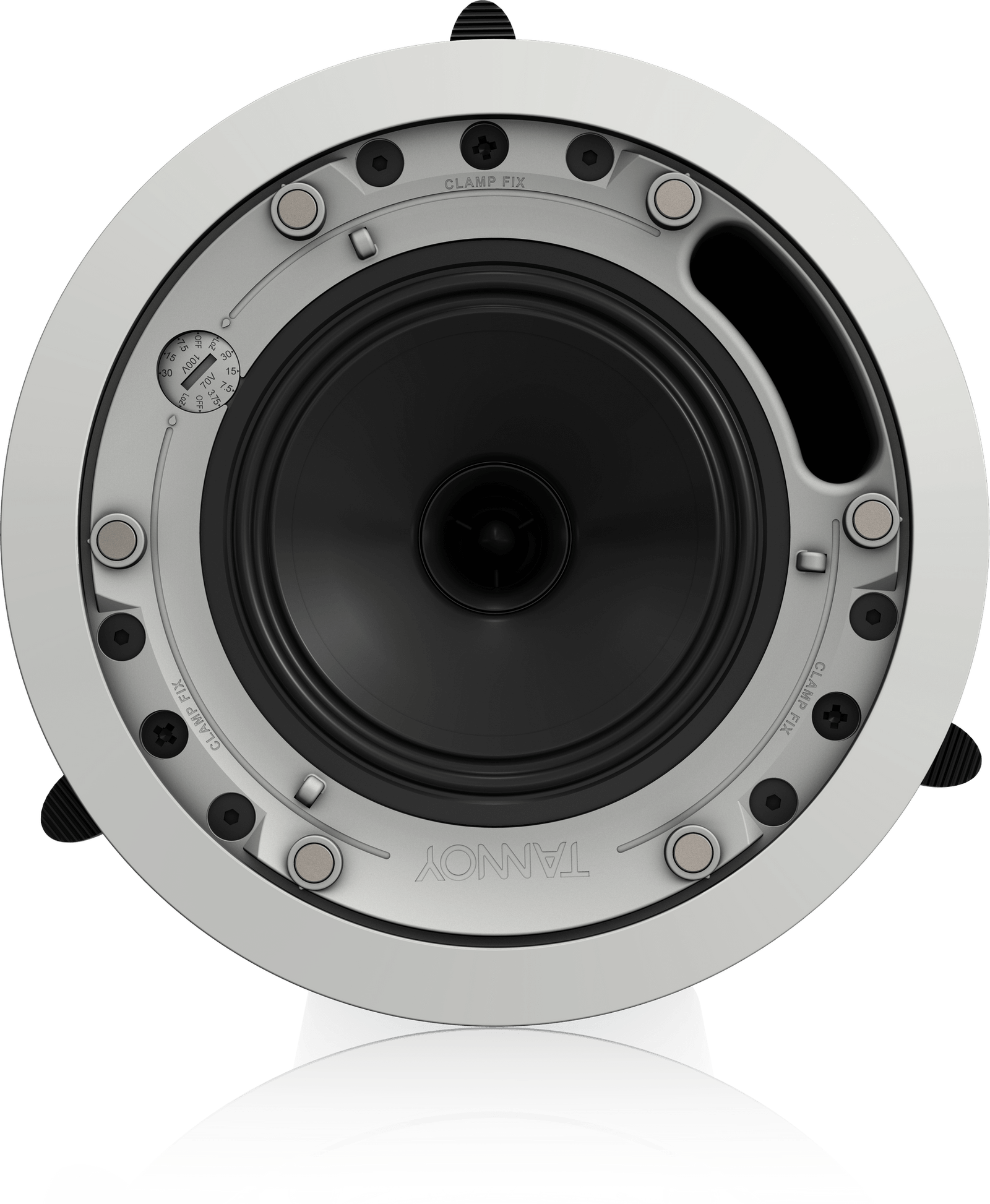

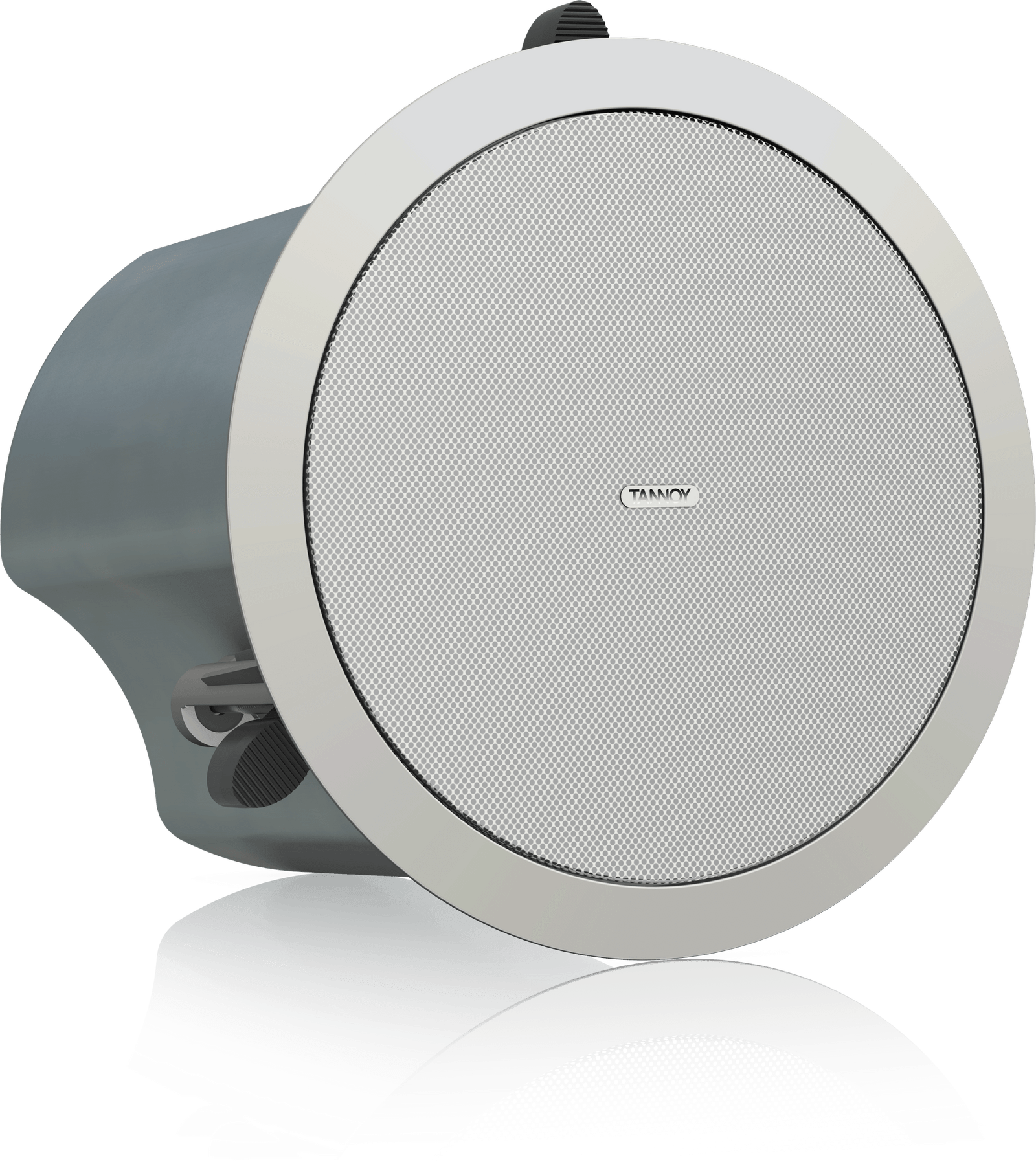

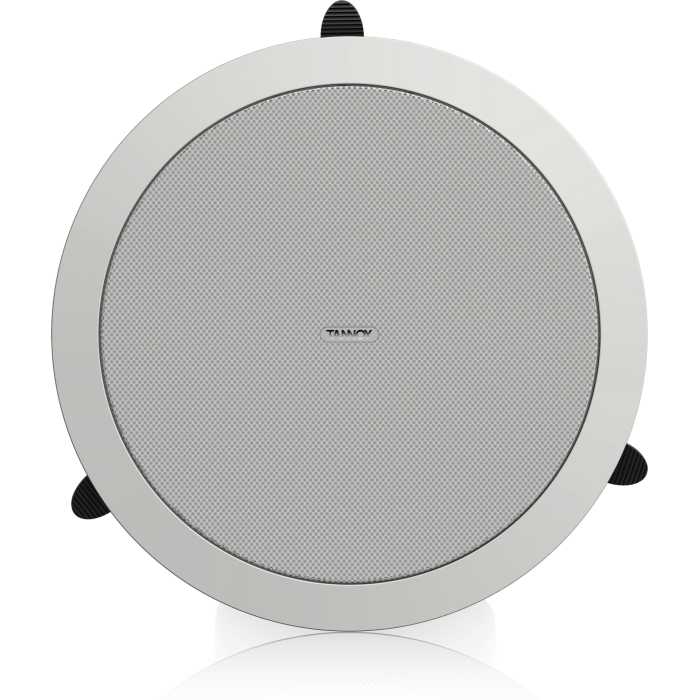

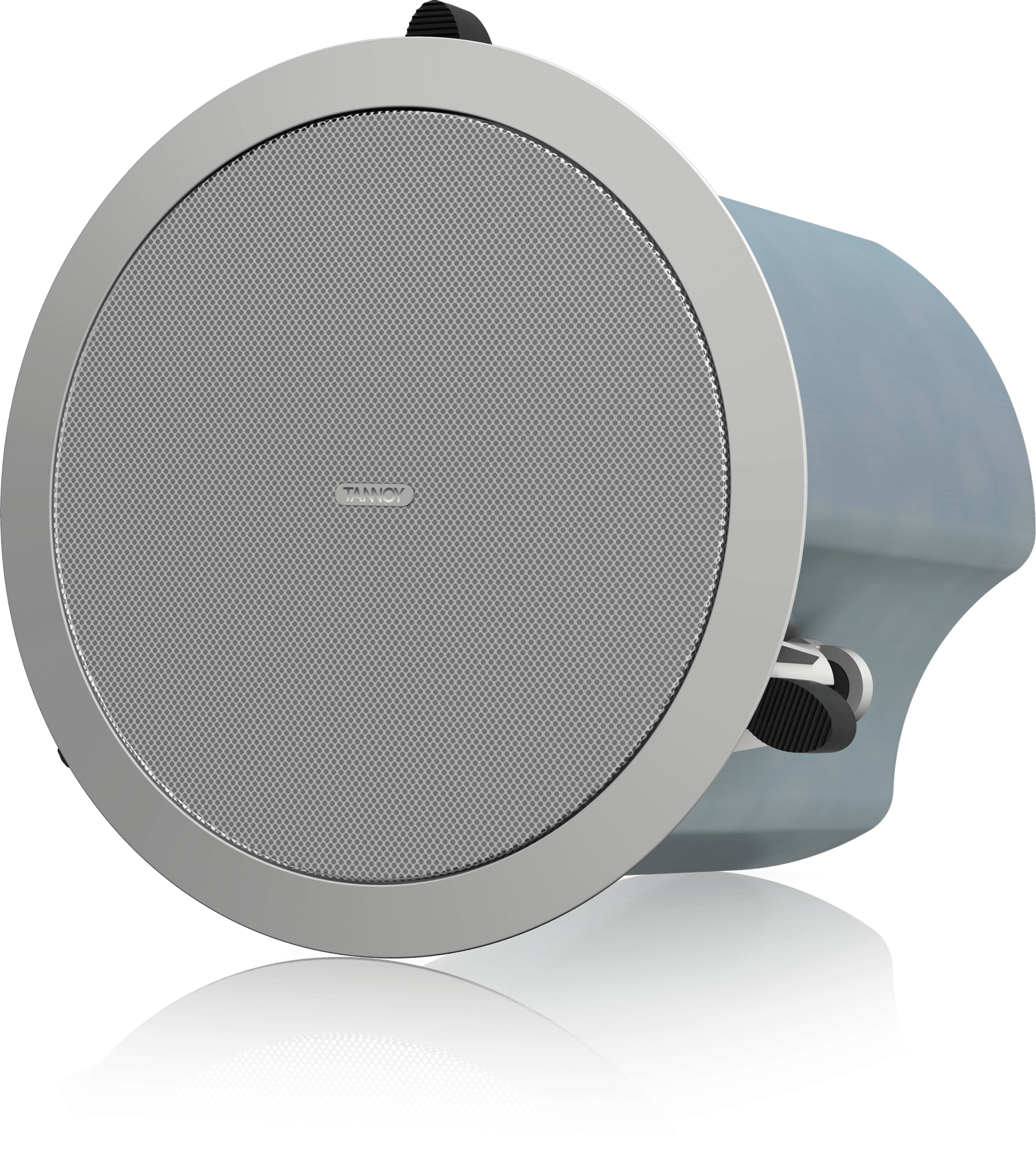

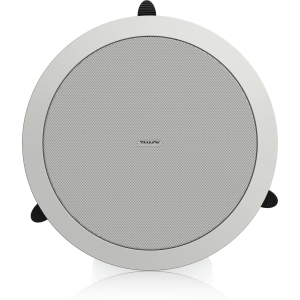

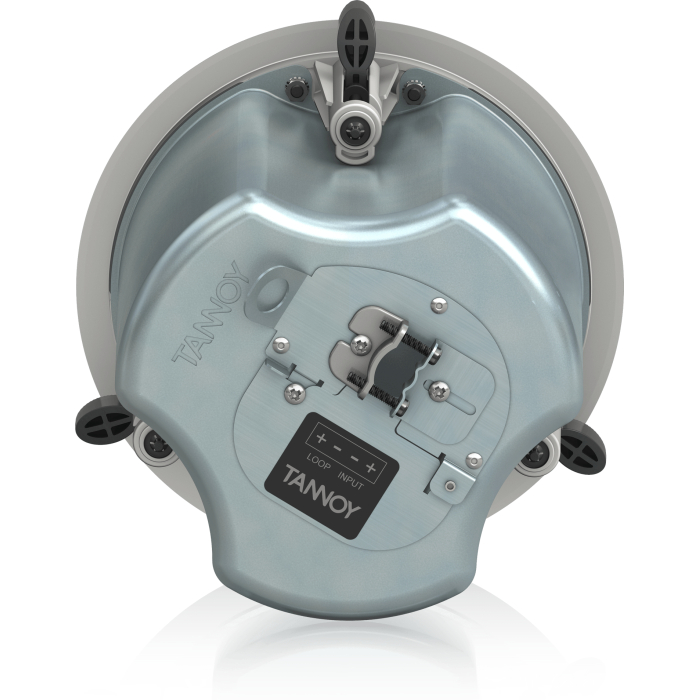

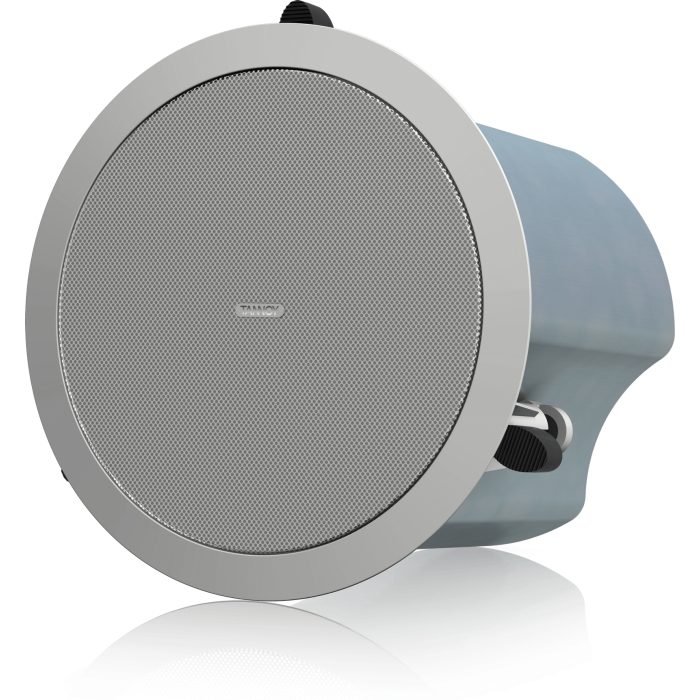

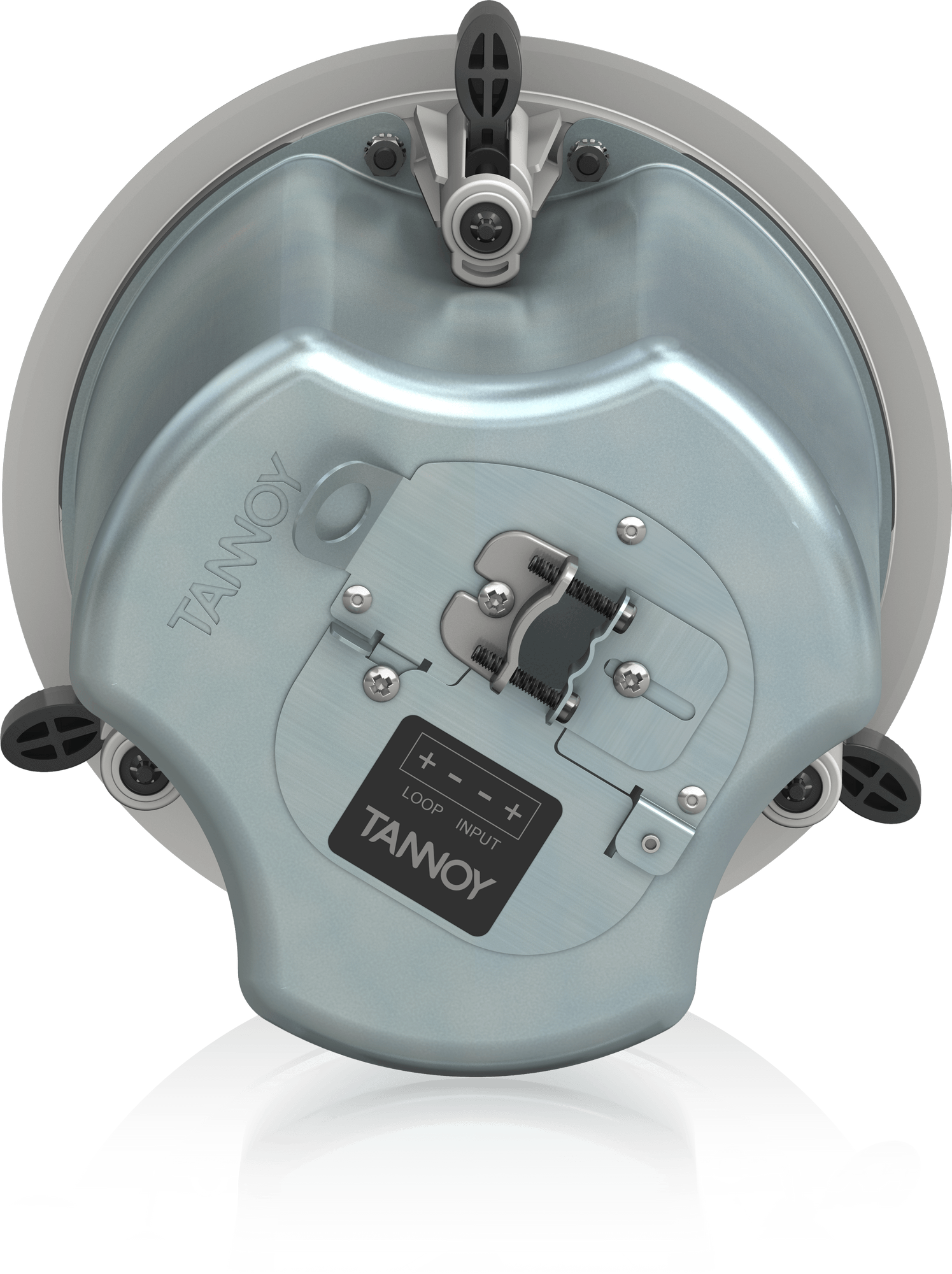

Tannoy Ceiling Loudspeaker CMS 503DC BM 5″ Dual Concentric Driver 240W

Tannoy

AED 996.45 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CMS 503DC BM Categories: , Brand:

The CMS 503DC BM is a 240-Watt, high sensitivity loudspeaker featuring third generation Ceiling Monitor System technology (CMS 3.0). It includes a proprietary 5″ Dual Concentric driver with Omnimagnet technology on a Torus Ogive Waveguide. This UL certified speaker delivers wide broadband directivity, improved intelligibility, and a highly accurate linear response.

Description

CMS 503DC BM Ceiling Loudspeaker

The CMS 503DC BM is a high-performance, full bandwidth 240-Watt ceiling loudspeaker. Utilizing our advanced CMS 3.0 technology, this loudspeaker features a new 5″ Dual Concentric driver with Omnimagnet technology on a Torus Ogive Waveguide. This design ensures superior broadband directivity and intelligibility with an accurate and linear response. Ideal for installation applications, the CMS 503DC BM provides exceptional sound quality in a versatile, easy-to-install package.

Features

  • Full range ceiling loudspeaker with 60 Watts continuous and 240 Watts peak power
  • Proprietary 5″ Dual Concentric driver with Omnimagnet technology
  • Torus Ogive waveguide for enhanced high-frequency response
  • UL 1480 and UL 2043 certified for safety and reliability
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Self-aligning 3-way clamp mounting system
  • Semi-matt white finish with removable magnetic grille for custom painting

Specifications

Specification Details
Frequency response (-3 dB) 85 Hz – 50 kHz BM Backcan
Frequency range (-10 dB) 70 Hz – 54 kHz PI Backcan
System sensitivity (1 W @ 1 m) 89 dB (1 W = 4 V for 16 Ohms)
Nominal coverage angle 90 degrees conical
Power handling 60 W (average), 120 W (program), 240 W (peak)
Recommended amplifier power 120 W @ 16 Ohms
Nominal impedance 16 Ohms
Rated maximum SPL 107 dB (average), 113 dB (peak)
Transformer taps (70 V / 100 V) 30 W / 15 W / 7.5 W / 3.75 W / OFF (70 V)

30 W / 15 W / 7.5 W / OFF (100 V)
Driver type 5″ Dual Concentric with Omnimagnet technology
High frequency driver 20 mm PEI dome
Enclosure material Zinc plated steel (Backcan), UL 94V-0 rated ABS (Baffle)
Grille Steel, powder coated UV resistant with dust protection
Mounting Security toggle clamp, 9.5 mm to 60 mm clamping range
Dimensions Bezel diameter: 205.9 mm, 188 mm depth (BM model), 133.3 mm depth (PI model)
Net weight (each) 4.3 kg (CMS 503DC BM), 3.2 kg (CMS 503DC PI)
Compliance UL-1480, UL-2043, CE
