Tannoy Wood Back Can Kit for PCI 7DC IW In-Wall Loudspeakers

Tannoy

AED 1797.60 inc VAT.

The PCI 7DC IW Back Can is a specialized wood back can designed for the pre-installation of PCI 7DC IW wall-mount loudspeakers, featuring a low profile for easy and quick setup. It includes two side-mounted cable glands for input and link output to streamline project completion.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: BACK CAN PCI 7DC IW Categories: , Brand:

Description

PCI 7DC IW Back Can

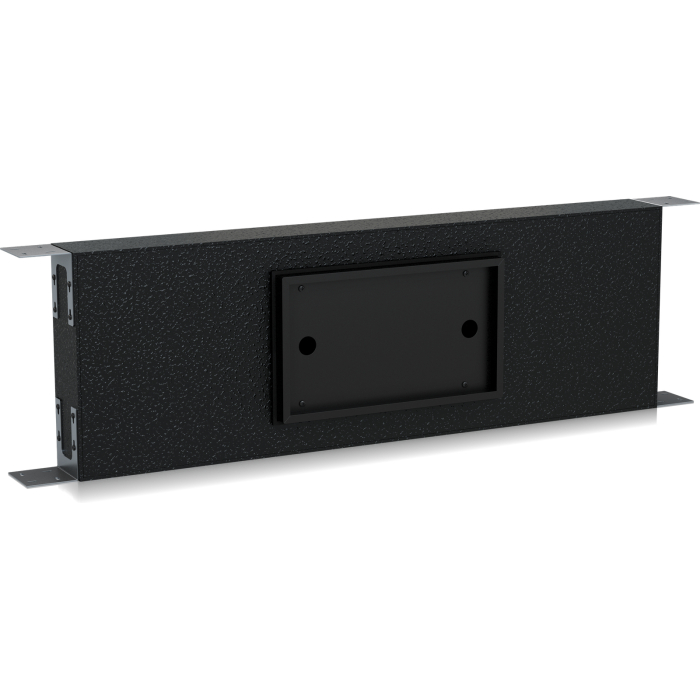

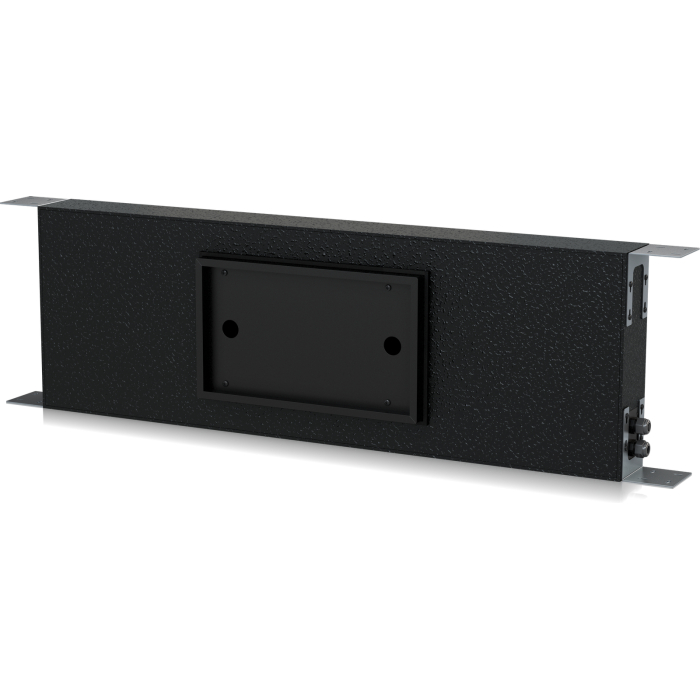

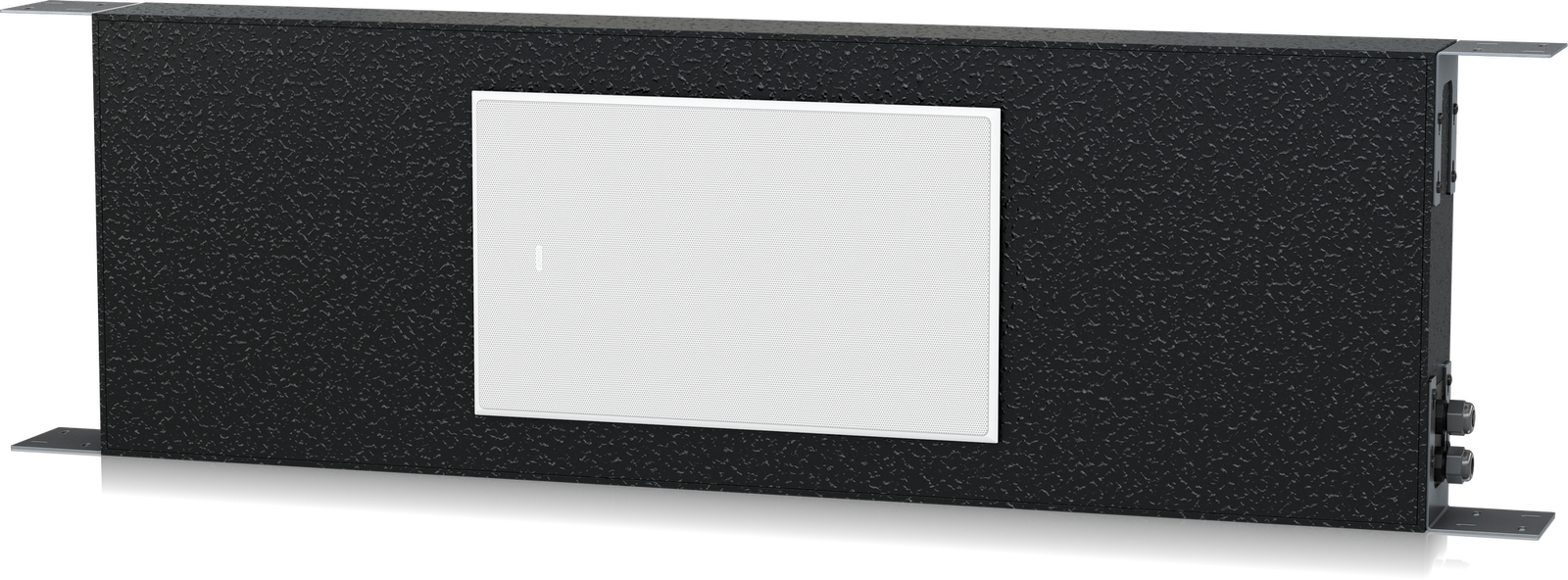

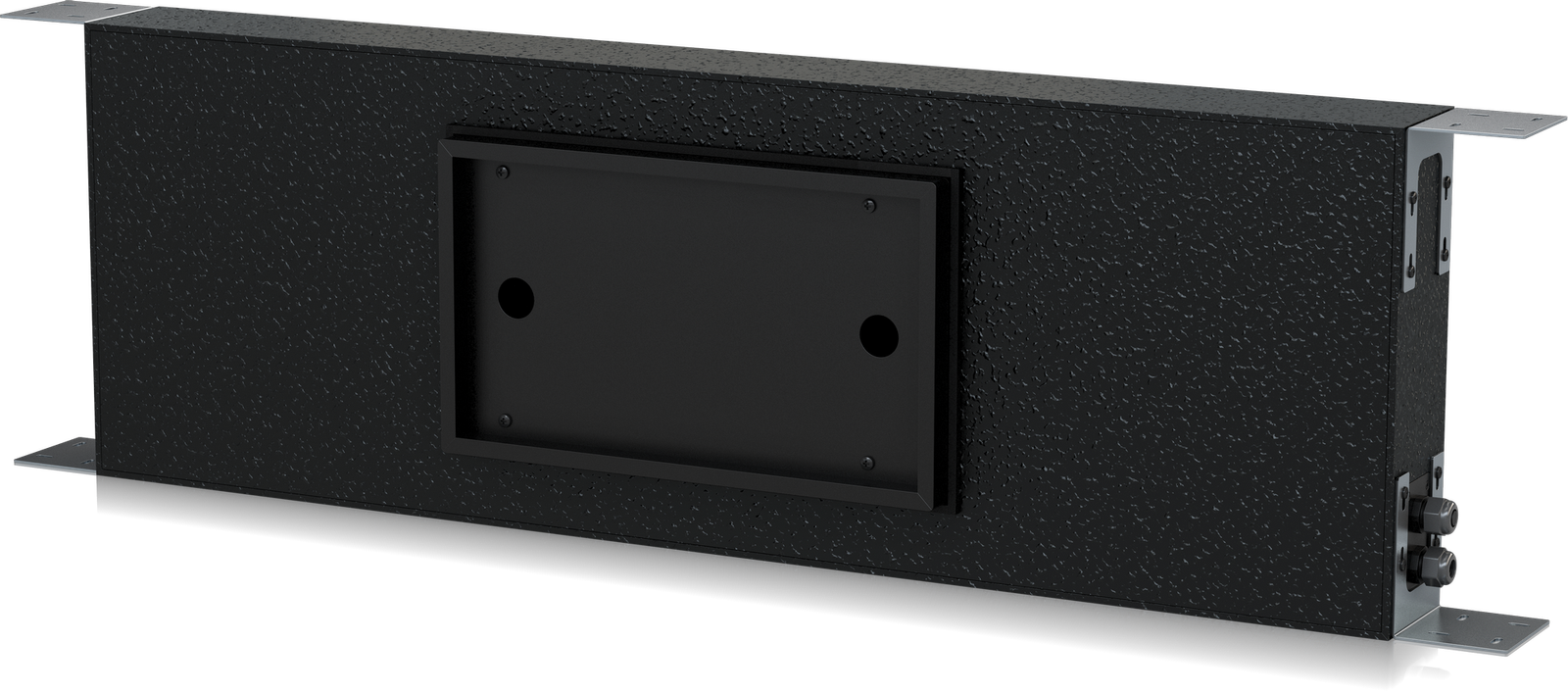

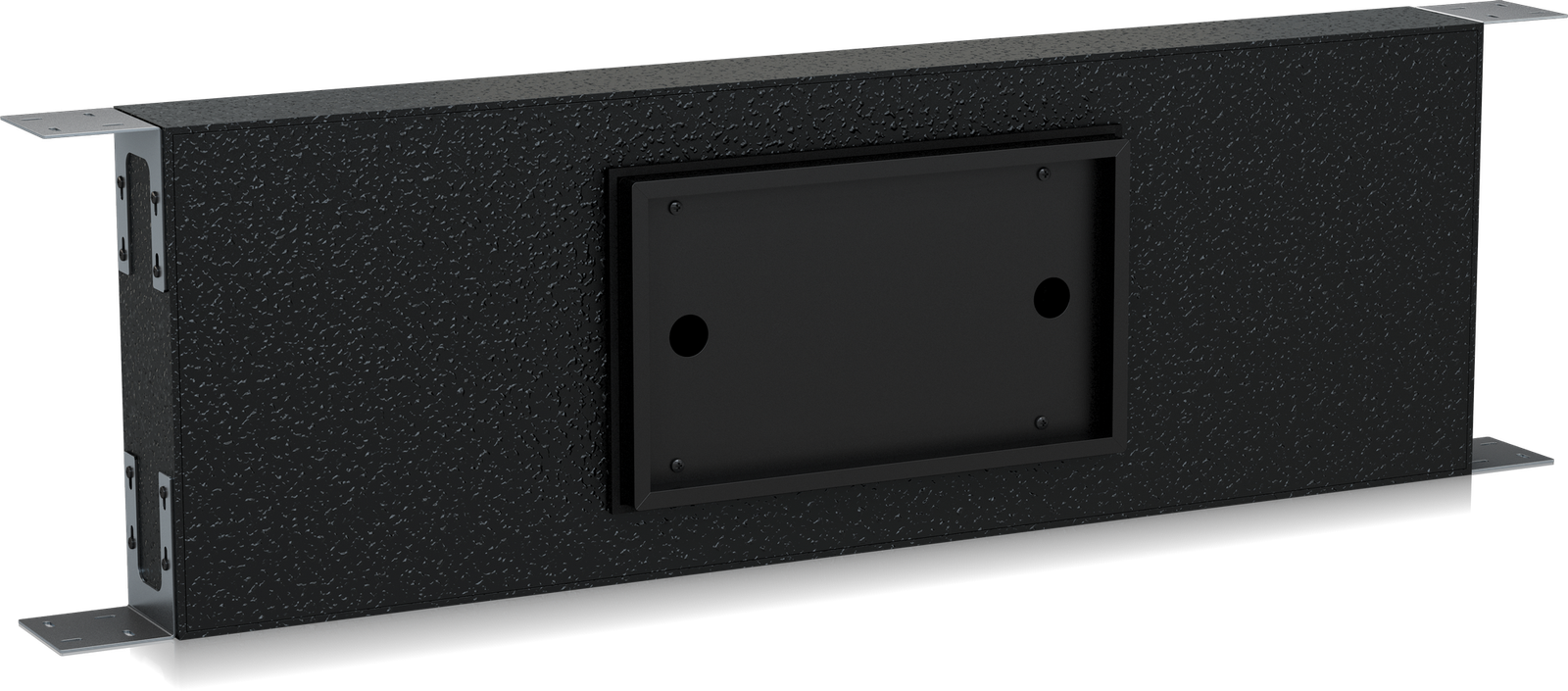

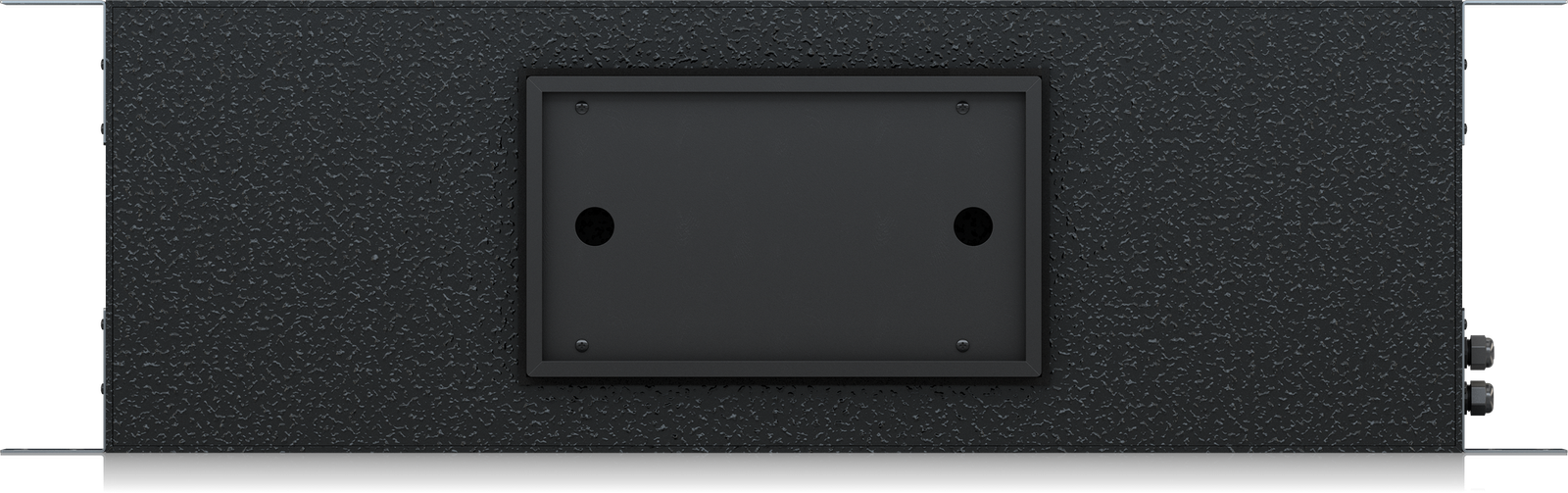

The PCI 7DC IW Back Can is an acoustically enhanced wood back can designed for the pre-installation of PCI 7DC IW wall-mount loudspeakers. Early installation of the low profile back can is fast and simple and significantly reduces the amount of time required for project finalisation. Two cable glands mounted on the side of the back can are provided for input and link output.

Features

  • Wood backcan installation kit for PCI 7DC IW in-wall loudspeakers
  • Secures optimum position and working space of the loudspeaker during construction pre-installation
  • Improves sound insulation to adjoining rooms
  • Includes positioning aid, place-holder rings, back can, cabling tube
  • Tannoy – Over 90 years of British sound heritage and innovation

Specifications

Category Specification Details
Performance Frequency response (± 3dB) 50 Hz – 20 kHz
Frequency response (-10dB) 30 Hz – 20 kHz
Sensitivity (1 W @ 1m) 86 dB
Directivity factor (Q) 4.4 averaged 1 kHz to 10 kHz
Directivity index (DI) 6.4 averaged 1 kHz to 10 kHz
Power Handling Average 80 W
Programme 160 W
Peak 320 W
Recommended amplifier power 240 W @ 8 Ω
Nominal Impedance (LoZ) 8 Ω
Rated maximum SPL (1 m, LoZ) 108 dB
Average 105 dB
Peak 111 dB
Crossover point 1.6 kHz
Coverage Angles 500 Hz 180° horizontal, 152° vertical
1 kHz 132° horizontal, 136° vertical
2 kHz 118° horizontal, 130° vertical
Transducers Low frequency diameter/material/type 201 mm (7″)
High frequency diameter/material/type 25.4 mm (1″)
Physical Back can Wood, with spray painting
Baffle Reflex loaded UL94 V-0 rated ABS
Grille Steel, with weather resistant coating
Connectors Replacement Plug Housing
Dimensions (HxWxD) 1202 x 347 x 128 mm (47.3 x 13.7 x 5.0″)
Bezel dimensions 410 x 248 mm (16.1 x 9.8″)
Mounting depth 101 mm (4.0″)
Hole cutout dimensions 395 x 231 mm (15.6 x 9.1″)
Net weight 13.5 kg (29.8 lbs)
Packed quantity 1
Included accessories Grille, paint mask, tool kit, screws (x4), spring washers (x4), plain washer (x4)
Optional accessories BACK CAN PCI 7DC IW
