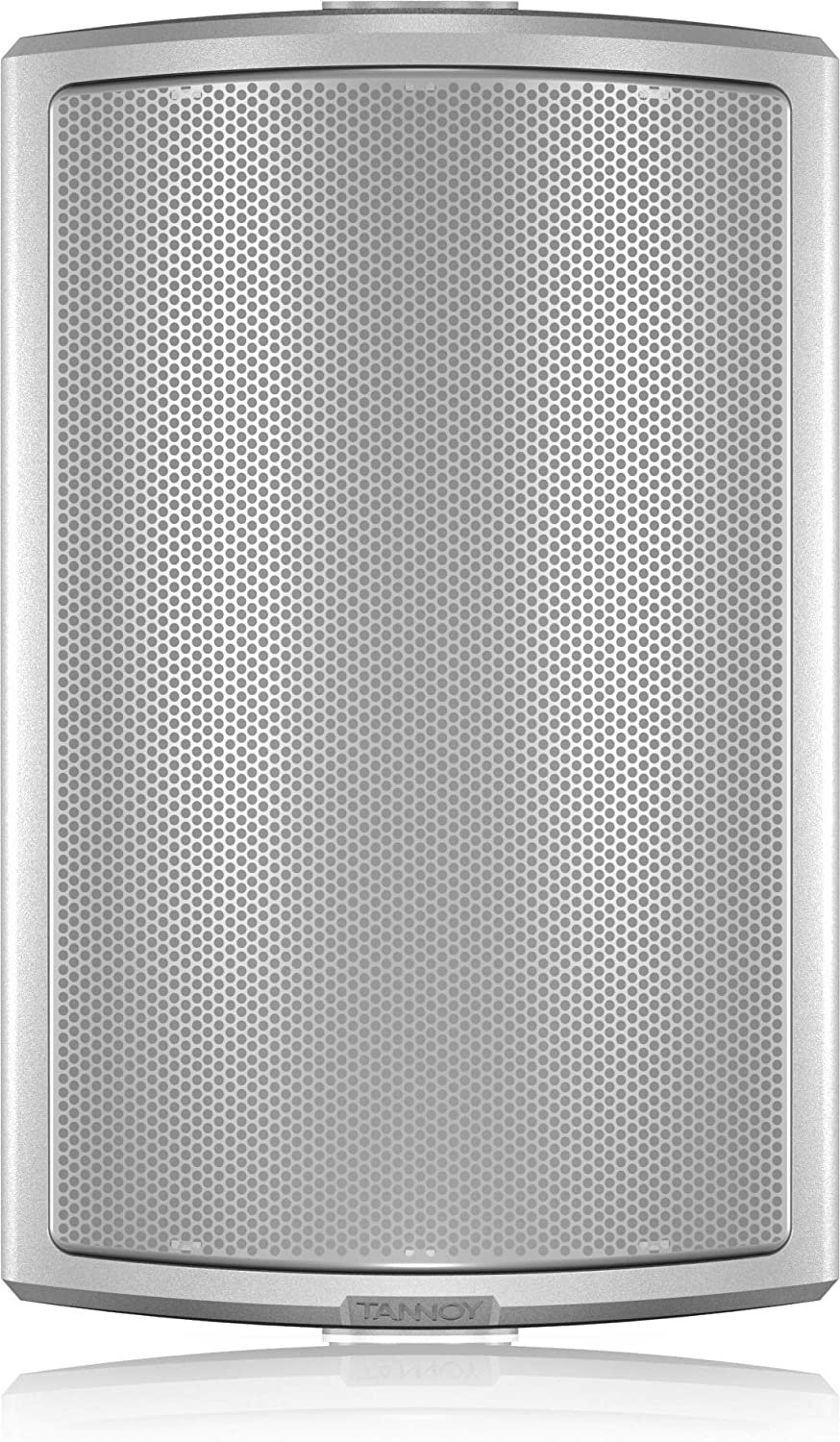

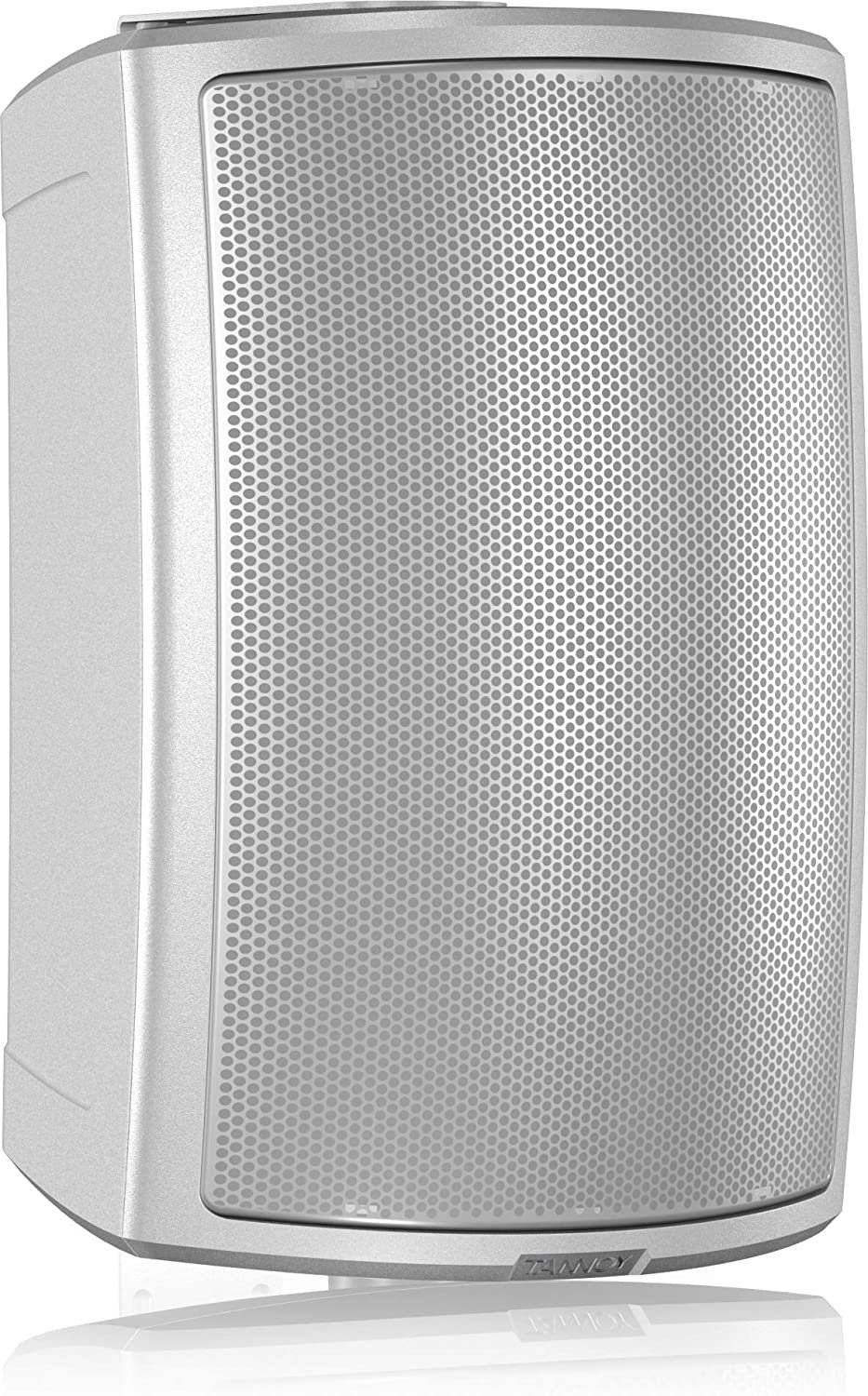

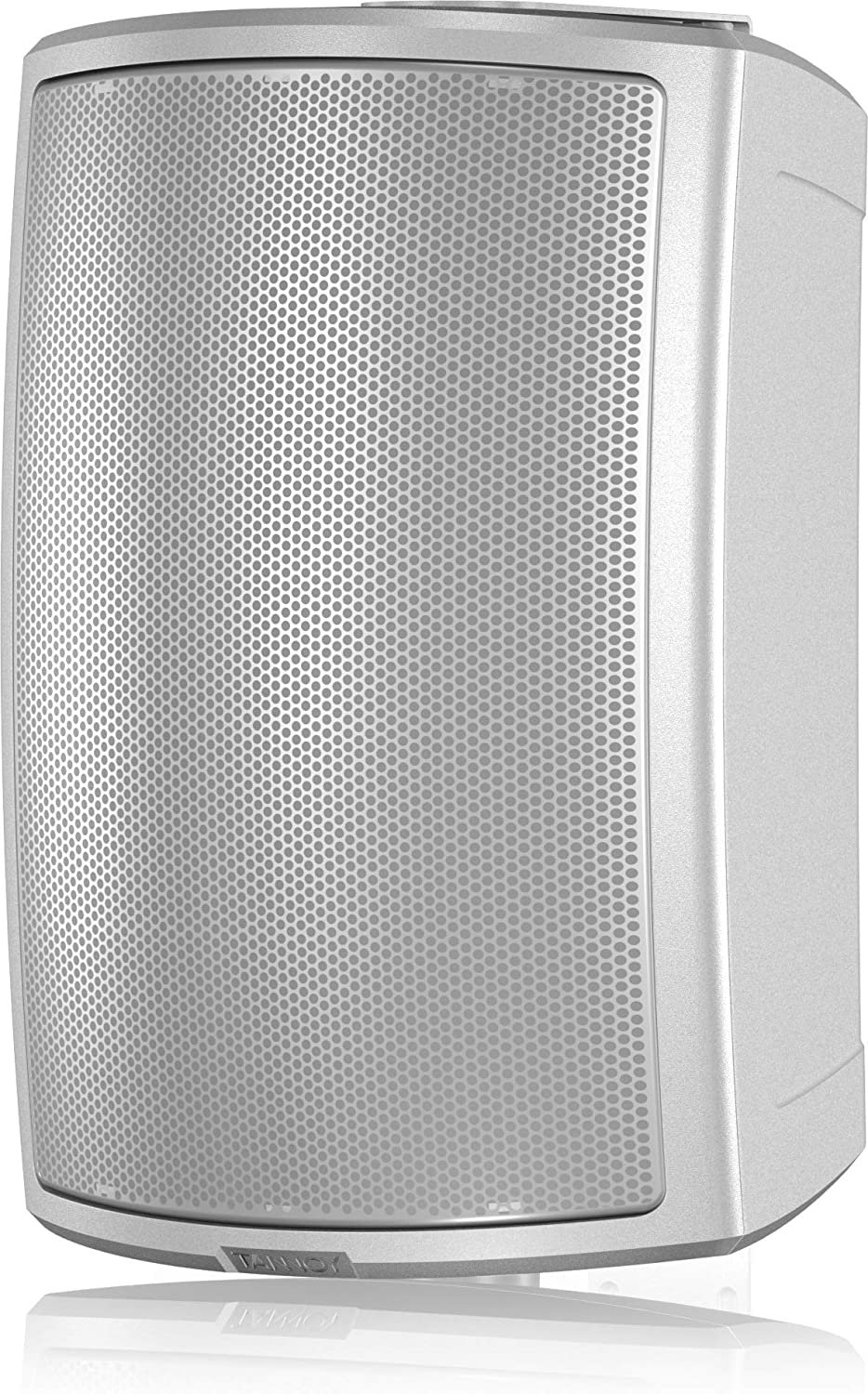

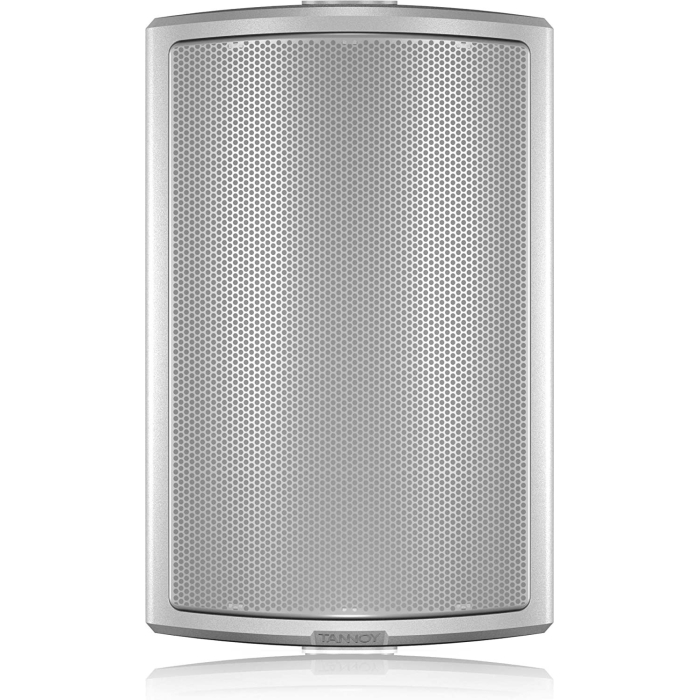

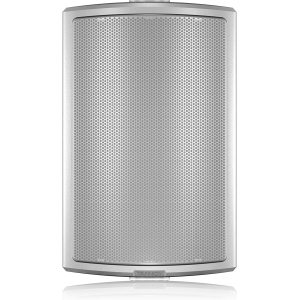

Tannoy AMS 6DC 6″ Dual Concentric Surface-Mount Loudspeaker (White)

Tannoy

AED 1655.85 inc VAT.

The AMS 6DC-WH is a 320-Watt high sensitivity loudspeaker featuring a 6-inch Dual Concentric driver with Omnimagnet technology on a Torus Ogive Waveguide, delivering consistent broadband directivity and enhanced intelligibility. Ideal for diverse applications such as theme parks, hotels, restaurants, retail stores, corporate AV, residential developments, and houses of worship, the AMS 6DC-WH ensures a seamless sound signature within multi-zoned environments.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: AMS 6DC-WH Categories: , Brand:

Description

AMS 6DC-WH Loudspeaker

The AMS 6DC-WH is a high-performance 320-Watt loudspeaker designed for diverse environments, including theme parks, hotels, restaurants, bars, retail stores, and residential developments. Equipped with a 6″ Dual Concentric driver and Omnimagnet technology, the AMS 6DC-WH offers consistent broadband directivity and the linear response characteristic of TANNOY’s studio monitors. This speaker ensures impeccable sound quality for both indoor and outdoor installations, making it ideal for background and foreground music applications.

Key Features

  • Full-range surface-mount loudspeaker for various applications
  • Handles 80 Watts continuously, peaking at 320 Watts

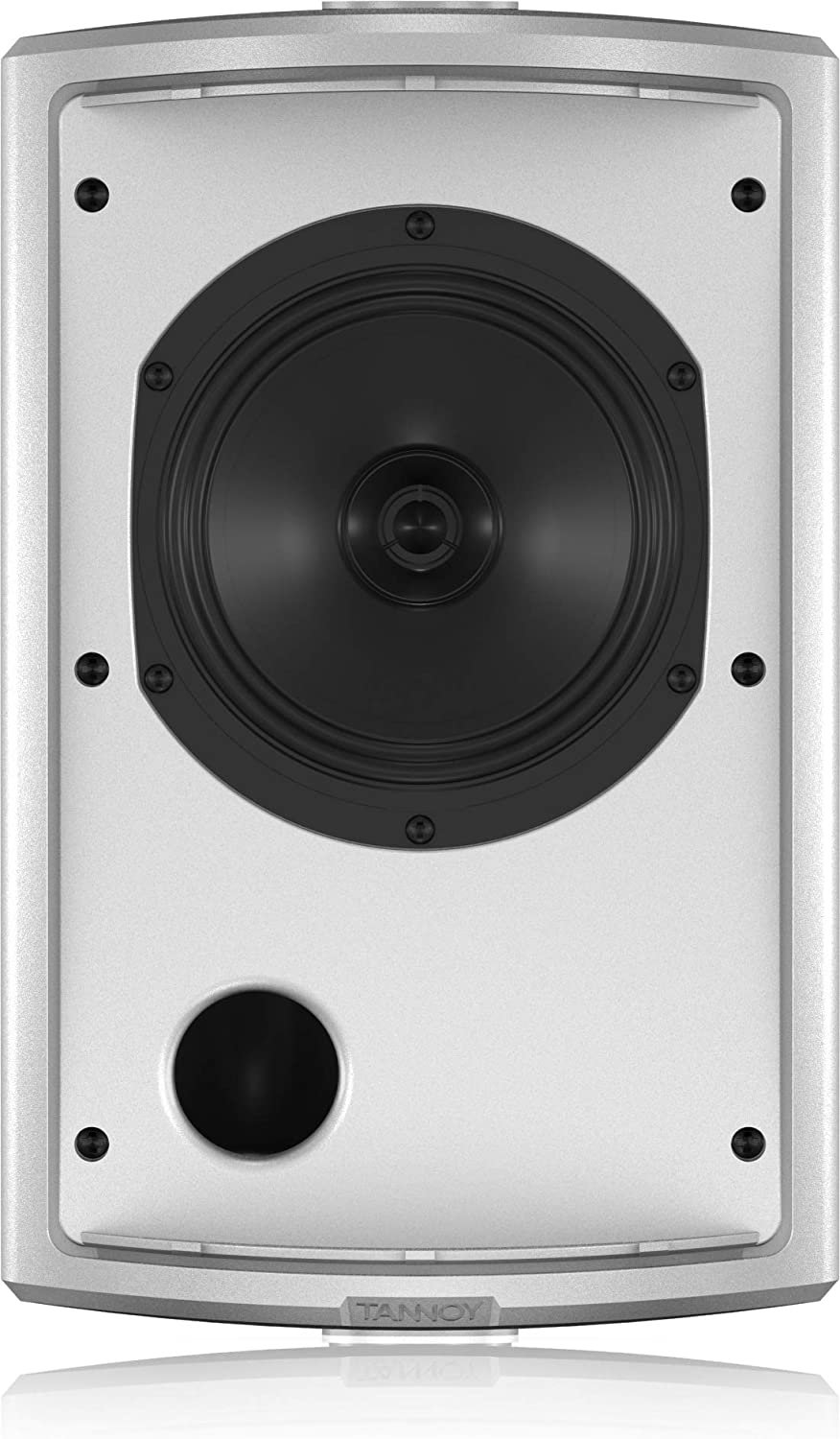

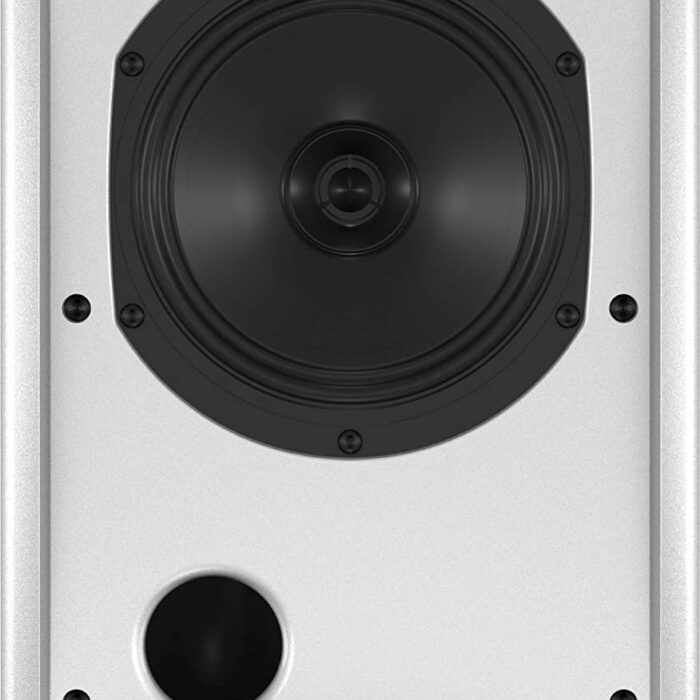

  • 6″ Dual Concentric driver with Omnimagnet technology
  • Torus Ogive waveguide enhances high-frequency response
  • Compatible with 70 V and 100 V line systems or 16 Ohm direct input
  • Weather resistant to IP65 standards for outdoor use
  • Durable ABS enclosure withstands high temperatures

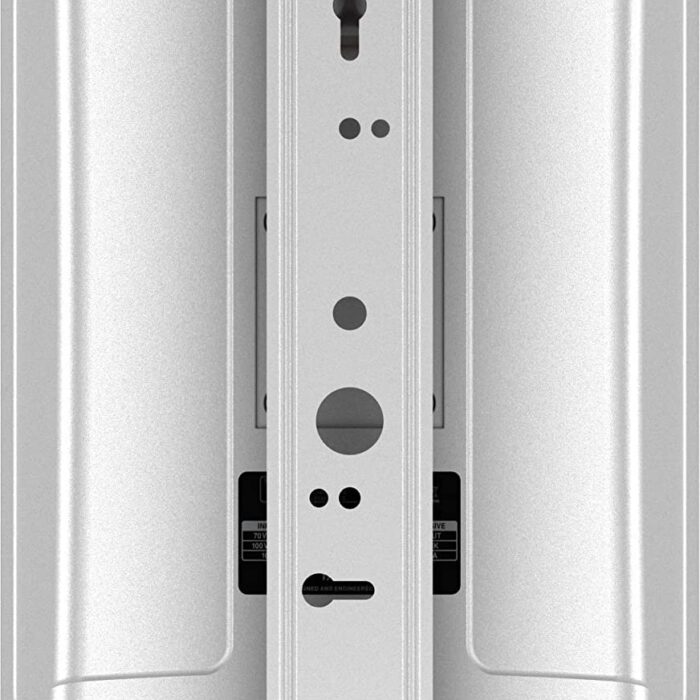

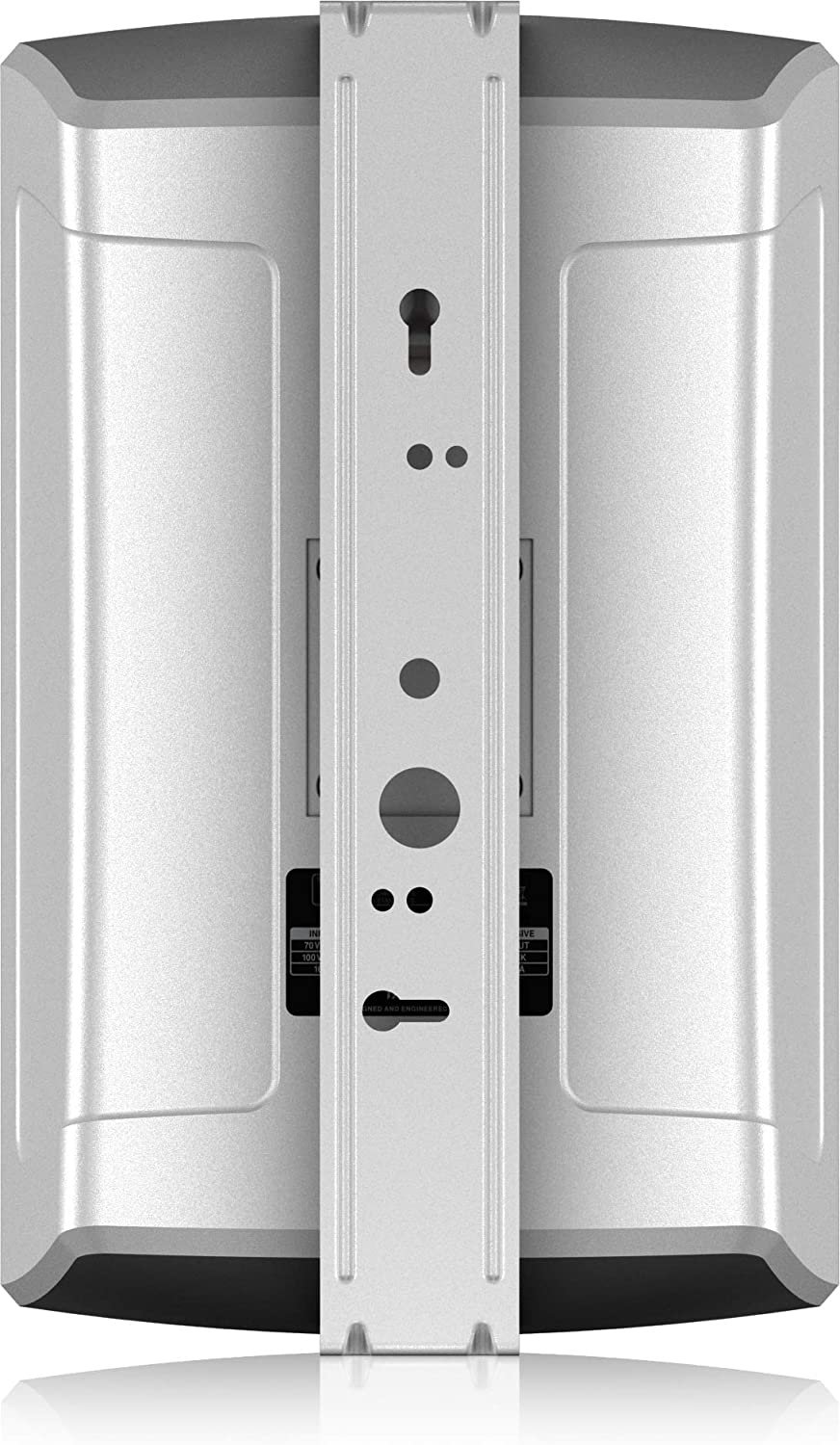

  • Comes with yoke bracket for straightforward installation

Specifications

Specification Details
Frequency Response (-3 dB) 75 Hz – 30 kHz
Frequency Range (-10 dB) 55 Hz – 40 kHz
Sensitivity (1 W @ 1 m) 89 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle 90 degrees conical
Power Handling 80 W (Average), 160 W (Program), 320 W (Peak)
Recommended Amplifier Power 160 W @ 16 Ohms
Max SPL 108 dB (Average), 114 dB (Peak)
Transformer Settings 70 V: 60 W / 30 W / 15 W / 7.5 W / OFF; 100 V: 60 W / 30 W / 15 W / OFF
Dual Concentric Driver 165 mm (6.5″) with Omnimagnet technology
Low Frequency Driver 44 mm (1.75″)
High Frequency Driver 25 mm (1.00″) PEI dome
Enclosure High-temperature resistant ABS

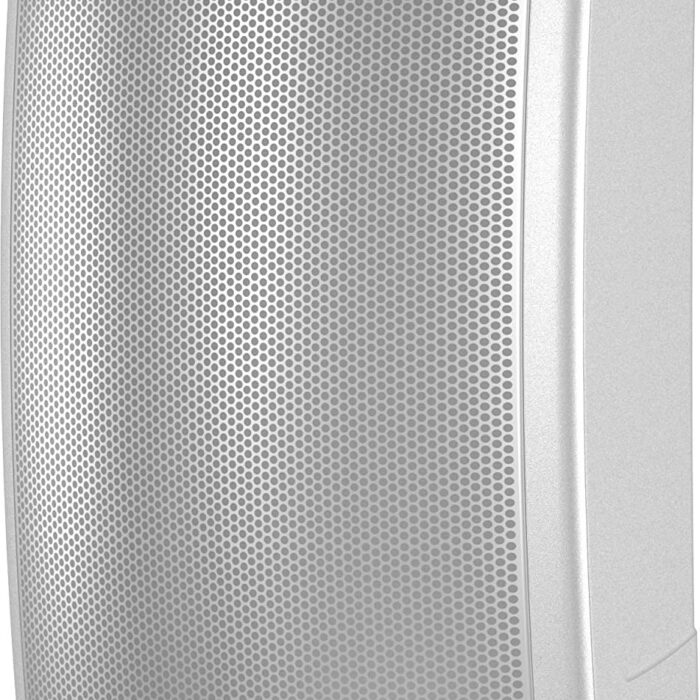

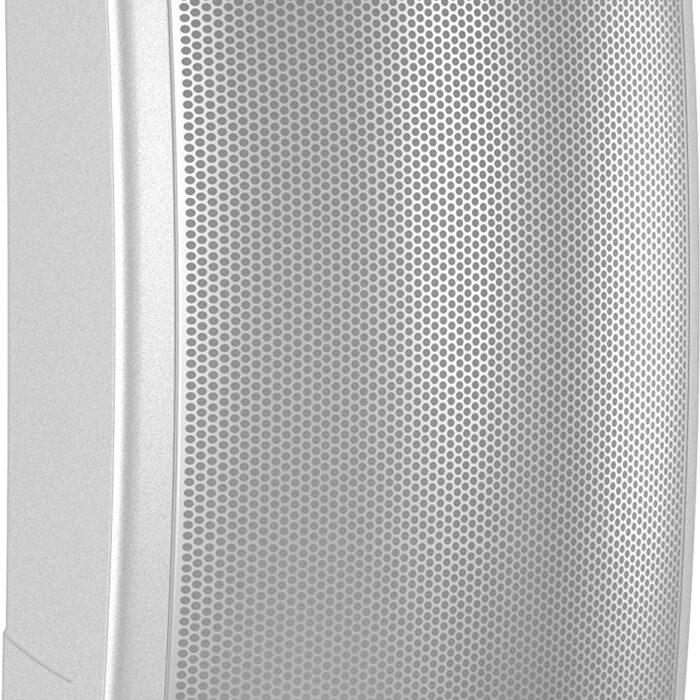

Grille Weather-resistant zinc nickel-plated steel
Connectors Removable locking connector with screw terminals
Dimensions (H x W x D) 364.8 x 230 x 268.8 mm (14.36 x 9.05 x 10.58″)
Net Weight 6.08 kg (13.40 lbs)
Shipping Weight 6.76 kg (14.90 lbs)
Included Accessories Yoke bracket
Packed Quantity 2
