Mixers

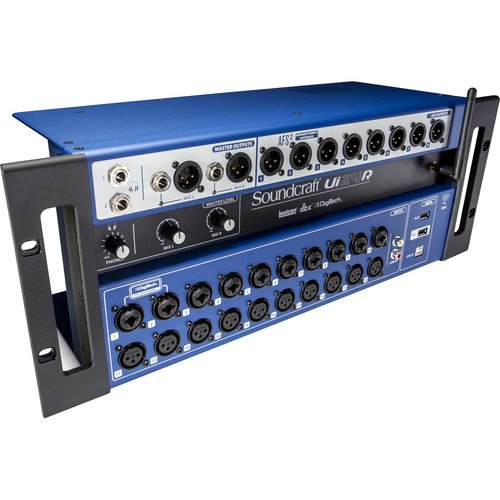

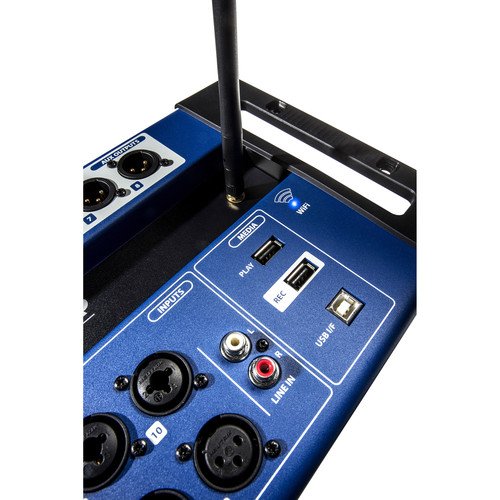

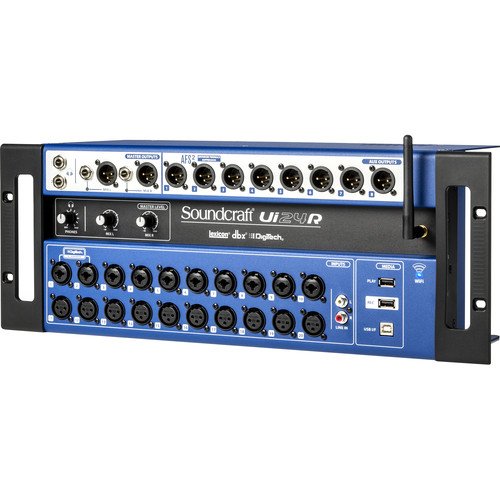

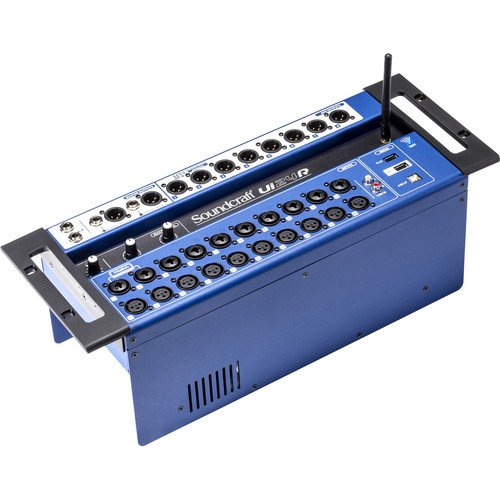

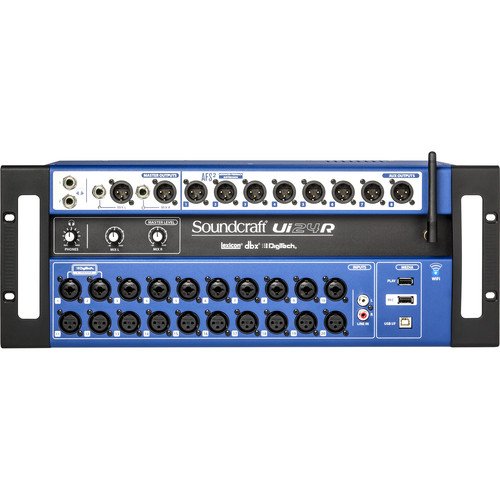

Soundcraft Ui24R 24-Channel Digital Mixer with Wi-Fi and USB Recording

Soundcraft

AED 6,109.25 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: Ui24R Categories: , Brand:

The Soundcraft Ui24R is a 24-input digital mixing system in a rack-mountable stagebox, offering remote control via dual-band Wi-Fi and compatibility with any web browser, providing a flexible and comprehensive solution for live sound reinforcement.

Description

The Ui24R from Soundcraft is a 24-input, remote-controlled, fully recallable digital mixing system, housed in a rack-mountable, road-rugged stagebox format. With built-in, dual-band Wi-Fi, cross-platform compatibility, and the ability to be controlled by any connected device via a standard web browser, the Ui24R offers a full-featured, flexible remote mixing solution for a wide variety of live sound reinforcement applications.

Features

  • Control via Tablet, Computer, or Smartphone
  • Integrated Dual-Band Wi-Fi
  • iOS, Android, Windows, Mac OS, and Linux
  • Remote-Controlled Studer Mic Preamps
  • DSP from dbx, DigiTech, and Lexicon
  • Per Channel: 4-Band EQ, HPF, and Dynamics
  • 31-Band GEQ & Dynamics on All Outputs
  • AFS Feedback Suppression on All Outputs
  • HDMI for Monitor Support
  • USB Input for Mouse and/or Keyboard

Specifications

Mixer
Number of Analog Input Channels 24 (20 Mono / 2 Stereo)
Number of Mic Preamps 20
Number of Analog Output Channels 2
Mix Routing 8 x Mono Aux Send
Presets None
Faders None
Signal Processing
Gain/Trim Range Mic/Line: -6 dB to +58 dB
Dynamic Processing Input Channels: Compressor, Gate
Gate Parameters Threshold: +6 dB, Depth: 0 dB, Attack: 1 ms to 400 ms, Hold: 1 ms to 2000 ms, Release: 5 ms to 2000 ms
Compressor Parameters Threshold: -90 to +6 dB, Attack: 1 ms to 400 ms, Release: 10 ms to 2000 ms, Makeup Gain: 0 to 48 dB
EQ Input Channels: 4-Band Parametric, Outputs: 31-Band Graphic
Graphic EQ Yes
Filters Input Channels: High-Pass: 20 Hz to 1 kHz, Low-Pass: 22 kHz to 1 kHz
Real Time Analyzer Yes
Audio Delay Yes
Performance
Frequency Response 20 Hz to 20 kHz ±0.5 dB
Max Input Level XLR Mic/Line Input: +19.5 dBu
Output Level Analog Output: +20.5 dBu
Headphone Output Power 1/4″: 500 mW (Max)
I/O Impedance XLR Mic Input: 6 Kilohms (Balanced)
Signal Generator Yes
Connectivity
Analog Inputs 10 x Combo XLR-1/4″ 3-Pin Balanced/Unbalanced Mic/Line Input, 10 x XLR 3-Pin Balanced Mic Input, 2 x 1/4″ TS Hi-Z Input, 2 x RCA TS Line Input, 1 x 1/4″ TS Footswitch Input
Analog Outputs 2 x 1/4″ TRS Headphone Output, 2 x XLR 3-Pin Balanced Main Output, 2 x 1/4″ TRS Main Output, 8 x XLR 3-Pin Balanced Aux Send
Digital I/O 1 x RJ45 (Control)
MIDI I/O None
USB 1 x USB Type-A (Recording), 1 x USB Type-B (Host Connection), 1 x USB Type-A (Control)
Expansion Ports None
Wireless Connectivity Wi-Fi
External Display Connection 1 x HDMI
Recording
Max Multitrack Recording 22 Tracks
Compatibility
OS Compatibility Windows, macOS, Linux, iOS, Android *As of October, 2020: check with manufacturer for the most up-to-date compatibility
Internet Connection Yes
Power
AC Input Power 88 to 265 VAC, 50 / 60 Hz
Power Consumption 65 W
Physical
Rackmount Size 4 RU (with Included Hardware)
Operating Temperature 41 to 104°F / 5 to 40°C
Operating Humidity 0 to 90%
Storage Temperature -4 to 140°F / -20 to 60°C
Dimensions 7 x 19 x 6.5″ / 177.8 x 482.6 x 165.1 mm
Packaging Info
Package Weight 14.4 lb
Box Dimensions (LxWxH) 22.362 x 10.63 x 9.291″
