Mixers

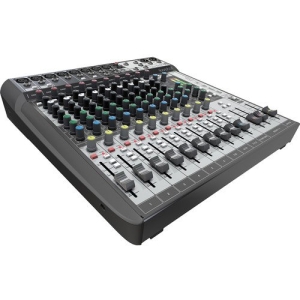

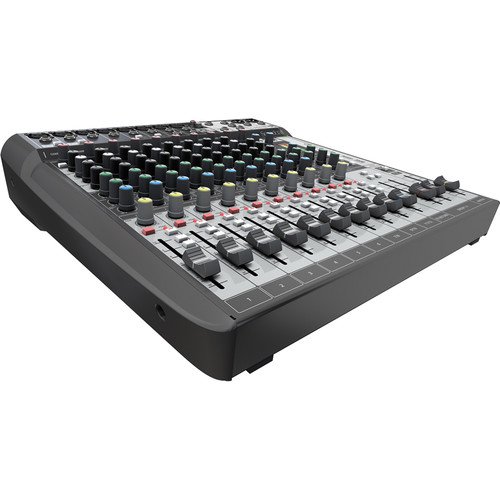

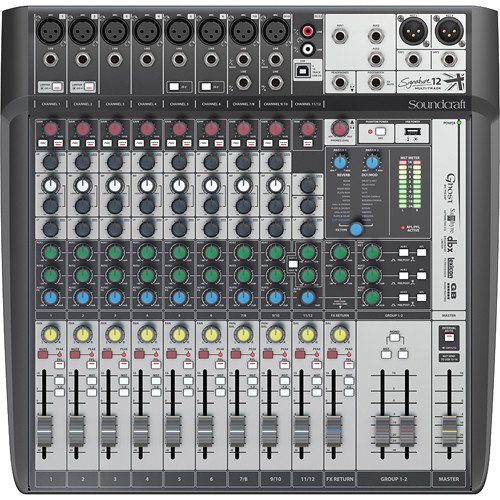

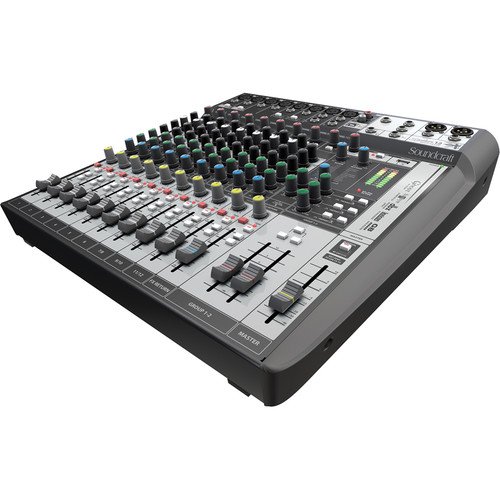

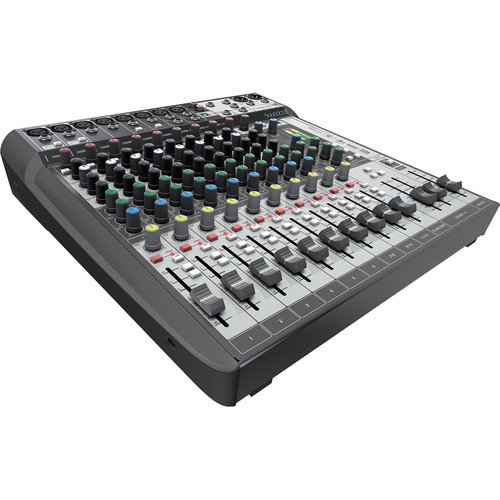

Soundcraft Signature 12MTK 12-Input Multitrack Mixer with USB Audio 14-in 12-out

Soundcraft

AED 3310.62 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: Signature 12MTK Category: Brand:

The Soundcraft Signature 12 MTK is a robust 12-input analog mixer, featuring on-board effects, multitrack USB recording, GB Series faders, flexible Aux pre/post switching, subgroups with extensive routing options, and dedicated outputs, suitable for musicians, bands, and various performance environments.

Description

Key Features

Specification Details
Frequency Response Mic / Line In to Any Output: 20 Hz to 20 kHz (±1.5 dB)
THD Mono Mic Sensitivity -30 dBu, Input Level -16 dBu, +14 dBu @ Mix Output: < 0.002% @ 1 kHz ; Stereo Mic Sensitivity -30 dBu, Input Level -16 dBu, +14 dBu @ Mix Output: < 0.007% 1 kHz
Noise Mono Mic Input E.I.N. (Max Gain): <-126 dBu (150 Ohm source); Stereo Mic Input E.I.N. (Max Gain): <-124 dBu (150 Ohm source)
Crosstalk @ 1 kHz Channel Mute: >-90 dB; Fader Cut-off (rel +10 mark): >-90 dB; Aux Send Pots Offness: >-82 dB
EQ Section Mono Inputs HF: 12 kHz, ±15 dB; MF (swept): 140 Hz to 3 kHz, ±15 dB; LF: 60 Hz, ±15dB ; Stereo Inputs HF: 12 kHz, ±15 dB; MF: 1 kHz, ±15 dB; LF: 60 Hz, ±15 dB
Input & Output Input and Output Levels: Mic Input: +12.5 dBu max; Line Input: >+26 dBu max; Stereo Inputs: >+26 dBu max; Mix Output: +21.5 dBu max; Headphones (@ 150 Ohms): 300 mW
Impedance Input & Output Impedance: Mic Input: 1.2 kOhms; Hi-Z Input: 968 kOhms; Line Input: 10 kOhms; Stereo Input: 21.5 kOhms; Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced)
USB Audio Inputs/Outputs: 14-in, 12-out; Bit Depth: 16-bit, 24-bit; Sampling Rate: 44.1 kHz / 48 kHz
Power Consumption <70 VA
Operating Temperature 41 to 104°F / 5 to 40°C
Dimensions 19.3 x 17.9 x 8.3″ / 49.0 x 45.5 x 21.0 cm
Weight 12.9 lb / 5.9 kg
Package Weight 16.35 lb
Box Dimensions (LxWxH) 19.2 x 17.9 x 8.3″
