Soundcraft Digital Mixing Console Si Impact 40-Input 32×32 USB Interface

Name: Soundcraft Digital Mixing Console Si Impact 40-Input 32x32 USB Interface
Brand: Soundcraft
SKU: Si Impact
Price: 19295.49 AED
Availability: InStock

AED 19295.49 inc VAT.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

SKU: Si Impact Categories: Electronics Audio, Mixers Brand: Soundcraft

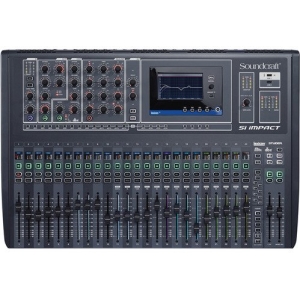

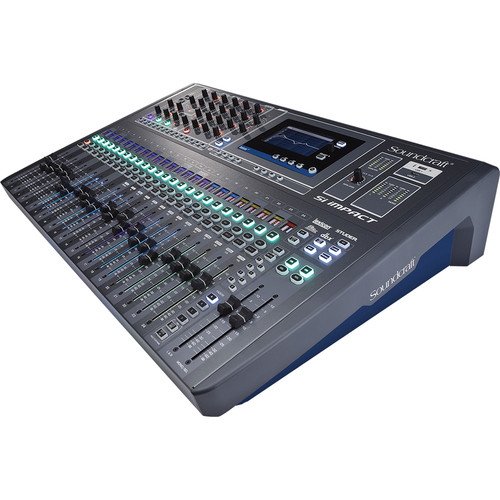

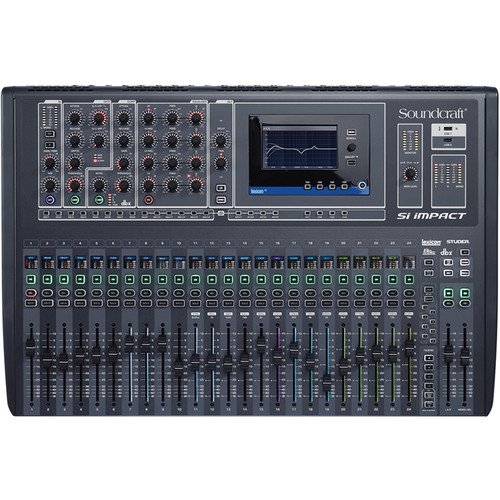

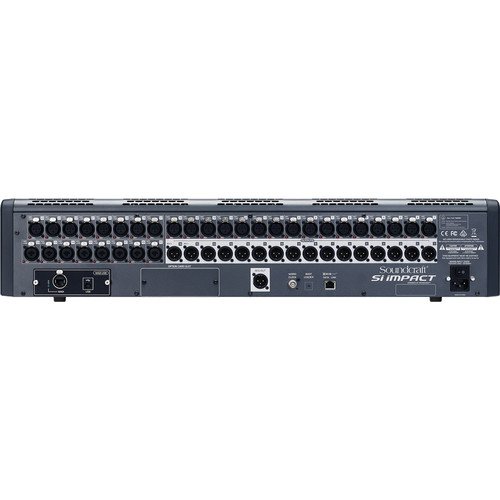

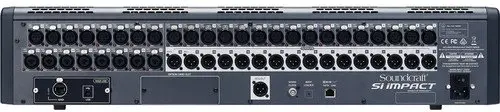

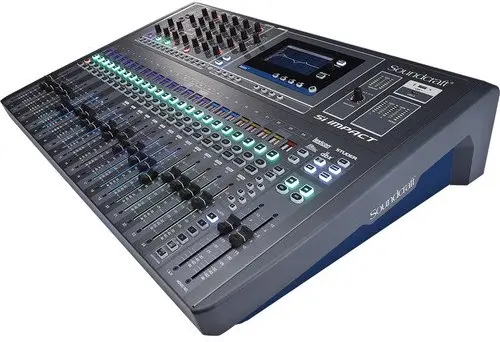

The Soundcraft Si Impact is a 40-input digital mixing console with a 32-in/32-out USB audio interface, featuring support for remote iPad mixing via a dedicated app. Designed with ease of use in mind, it combines the simplicity of an analog mixer with advanced workflow enhancements, including the FaderGlow system, which uses color illumination to display the status of each fader track.

Description
Additional information

Description

The Soundcraft Si Impact is a 40-input digital mixing console combined with a 32-in/32-out USB audio interface, providing excellent flexibility and ease of use. This console offers intuitive workflow enhancements such as the FaderGlow system, which uses different colors to indicate the status and function of each fader, making it as user-friendly as an analog mixer.

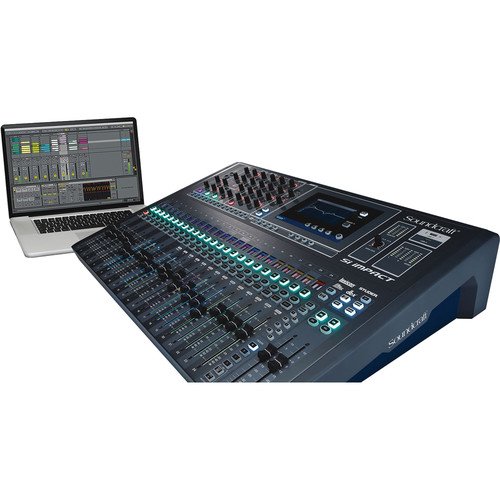

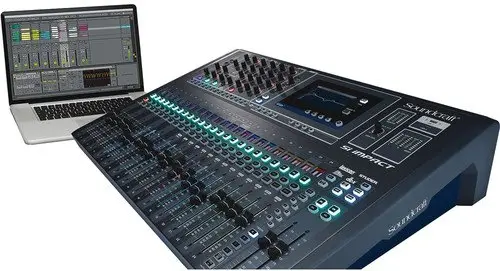

Equipped with studio-quality effects from Lexicon, dbx, and BSS graphic equalizers, the Si Impact is designed for a professional mixing experience. The mixer includes 32 mic inputs, 8 XLR/1/4″ combi-jacks for instruments, and a comprehensive suite of DSP tools. With its 26 motorized faders and a 5″ touchscreen display, the Si Impact ensures precise control and high-quality recordings thanks to its 32×32 USB audio interface, compatible with your DAW. It also comes with a free download of Ableton Live Lite 9.

Key Features

Specifications

Mixer

Number of Analog Input Channels

Signal Processing

Gain/Trim Range	Mic: -5 dB to 58 dB (in 1 dB Steps) Line: -10 dB to +16 dB
Gate Parameters	Threshold: -60 to -6 dBFS Depth: -60 to -3 dB Attack: 0.1 ms to 200 ms Release: 20 ms to 500 ms
Compressor Parameters	Threshold: -52 to -6 dBFS Ratio: 1:1 to 20:1 Attack: 0.1 to 200 ms Release: 5 to 900 ms Makeup Gain: 0 to 24 dB
Sidechain Filters	Gate: High-Pass: 22 Hz to 2.5 kHz Low-Pass: 160 Hz to 20 kHz
EQ Parameters	HF Shelf: ±15 dB at 800 Hz to 20 kHz MF Notch/Peak: ±15 dB at 22 Hz to 20 kHz, 6 to 0.3 Q LF Shelf: ±15 dB at 20 Hz to 500 Hz
Graphic EQ	28-Band 1/3 Octave, 31 Hz to 16 kHz
Filters	High-Pass: 40 Hz to 1 kHz
Audio Delay	Adjustable Up to 500 ms

Digital Audio

Sample Rates	AD/DA Conversion: Up to 200 kHz
Bit Depth	AD/DA Conversion: 24-Bit
DSP	40-Bit Floating Point
Jitter	±7 ns
Word Clock Input	48 kHz ±7 Hz
Latency	< 0.8 ms (Mic Input to Line Output) < 0.6 ms (Analog Input to AES Output) < 0.9 ms (Stagebox Input to Stagebox Output)

Performance

dBFS Reference Level	+21.5 dBu = 0 dBFS
Frequency Response	Mic/Line Input: 20 Hz to 20 kHz ±1.5 dB
Max Input Level	Mic Input: +22 dBu Line Input: +22 dBu
Output Level	Mix Output: +21.5 dBu (Max)
Headphone Output Power	300 mW into 150 Ohms
I/O Impedance	Mic Input: 3 Kilohms Line Input: 10 Kilohms Output: 150 Ohms (Balanced) 75 Ohms (Unbalanced) Word Clock Output: 50 Ohms Word Clock Input: 47 Ohms AES3 Output: 110 Ohms
Crosstalk	Adjacent Channels: < 120 dB Adjacent Inputs: -100 dB at 1 kHz, -85 dB at 10 kHz
CMRR	-80 dBu at Max Gain
EIN	-126 dBu at Max Gain
Noise Floor	< -86 dBu (at Unity Gain)
THD	< 0.01%

Power

AC Input Power	88 to 264 VAC, 50 / 60 Hz
Power Consumption	130 W (Maximum)

Physical

Operating Temperature	41 to 113°F / 5 to 45°C
Operating Humidity	0 to 90%
Storage Temperature	-4 to 140°F / -20 to 60°C
Dimensions	6.3 x 29.5 x 19.7″ / 160 x 750 x 500 mm
Weight	44.1 lb / 20 kg
