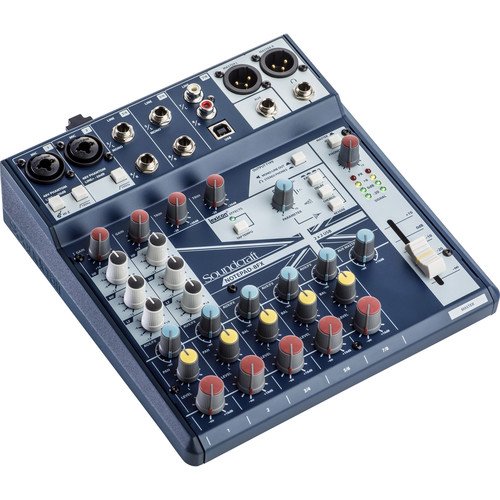

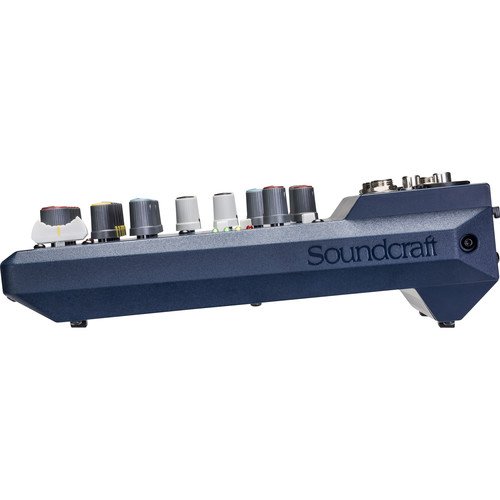

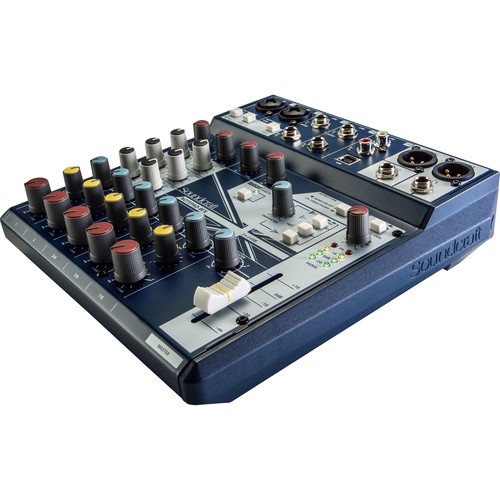

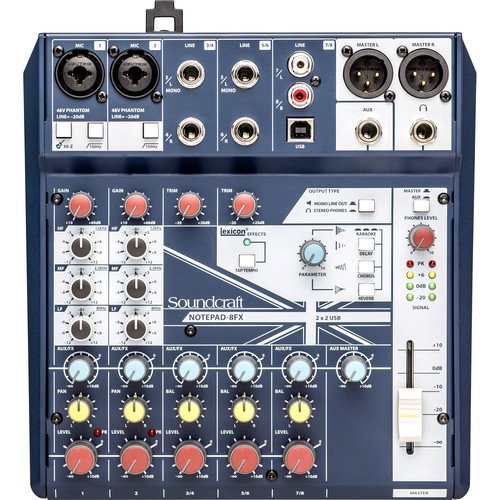

Soundcraft Notepad-8FX Analog Mixer with USB Interface and Lexicon Effects

Soundcraft

AED 911.44 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: Notepad-8FX Categories: , , Brand:

The Soundcraft Notepad-8FX is a compact 8-channel analog mixer featuring a 2×2 USB interface and Lexicon effects, ideal for music production, podcasts, and mobile events. It includes two mic preamps with combo XLR-1/4″ inputs, 3-band EQ, 100 Hz high-pass filters, and a Hi-Z instrument input for guitars.

Description

The Notepad-8FX from Soundcraft is a compact, 8-channel analog mixer with an integrated 2×2 USB audio interface and built-in Lexicon effects. This versatile audio solution is ideal for music production, podcasts, video projects, interviews, rehearsals, writing sessions, and mobile events. It features high-quality analog components, including two microphone preamps with combo XLR-1/4″ inputs, a 3-band EQ, and 100 Hz high-pass filters. The first input channel includes a Hi-Z instrument input, perfect for integrating guitars and high-impedance instruments.

Features

  • Two Combo XLR-1/4″ Mic/Line Inputs
  • Four 1/4″ Line Inputs and Two RCA Inputs
  • 2-In/2-Out USB Audio Interface
  • Lexicon FX with Delay, Reverb, & Chorus
  • Master XLR Outputs
  • Dedicated Aux Send
  • Independent Headphone Controls
  • 3-Band EQ on Channels 1-2
  • Hi-Z Input on Channel 1
  • Durable Metal Enclosure

Specifications

Mixer
Number of Analog Input Channels 8 (2 Mono / 3 Stereo)
Number of Mic Preamps 2
Analog Output Channels 1 x Stereo Master Output
1 x Mono Aux Send Output
1 x Stereo Headphone Output
Meters Main Meter:
2 x 4-Segment LED
Meter Range -20 dB to +6 dB Plus Peak/Clip
Signal Processing
EQ Parameters Mono Channels:
High: ±12 dB at 12 kHz
Mid: ±12 dB at 2.5 kHz
Low: ±12 dB at 80 Hz
Built-In Effects Delay
Chorus
Reverb
Connectivity
Analog Inputs 2 x Combo XLR-1/4″ Mic/Line Input
4 x 1/4″ Line Input
1 x Stereo RCA Line Input
Analog Outputs 2 x XLR 3-Pin Main Output (1 Stereo Pair)
1 x 1/4″ Aux Output
1 x 1/4″ TRS Headphone Output
USB 1 x USB Type-B
USB I/O Capacity 2 x Input / 2 x Output
Physical
Rack Mountable No
Packaging Info
Package Weight 3.385 lb
Box Dimensions (LxWxH) 12.05 x 10.8 x 3.6″
