Mixers

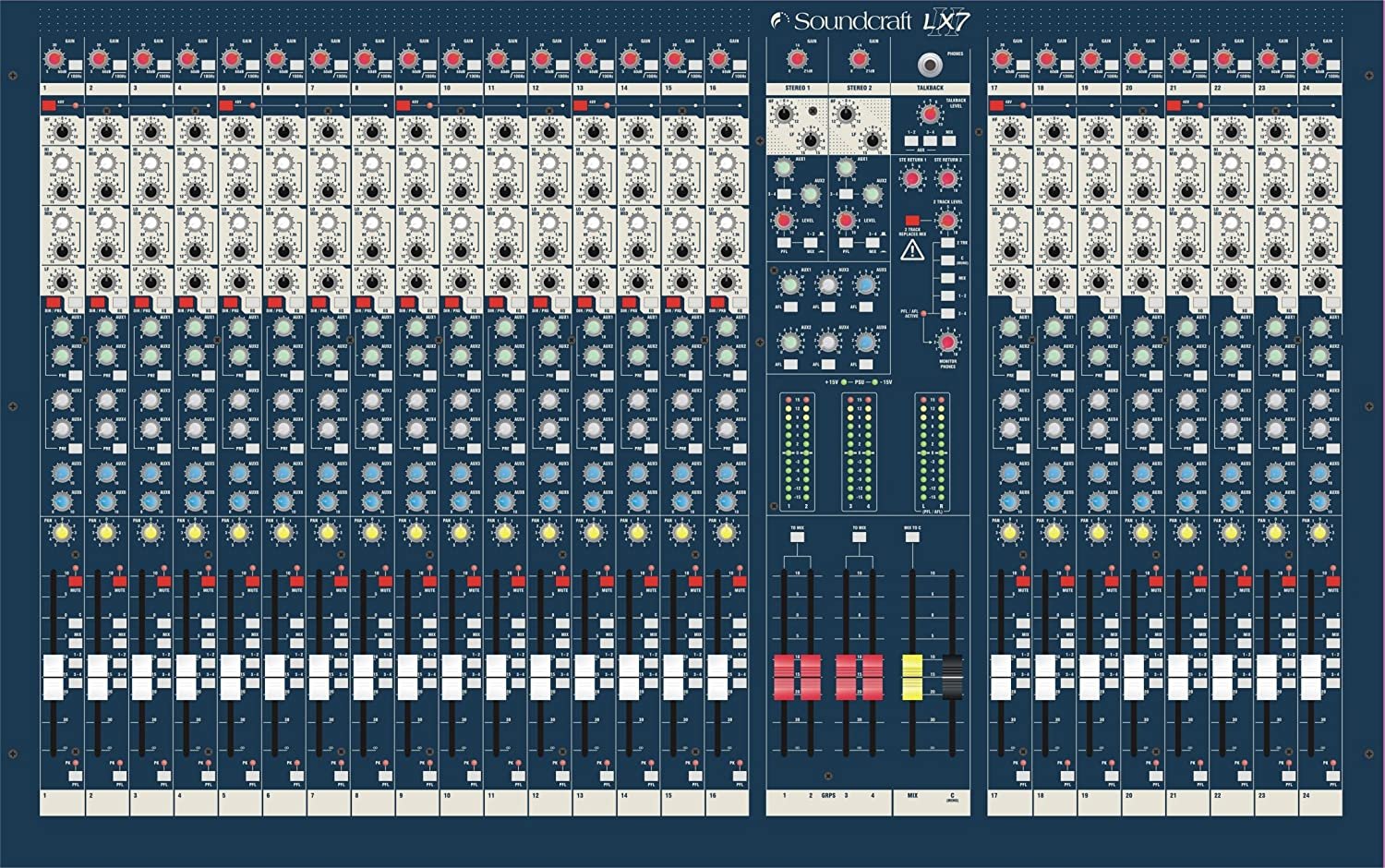

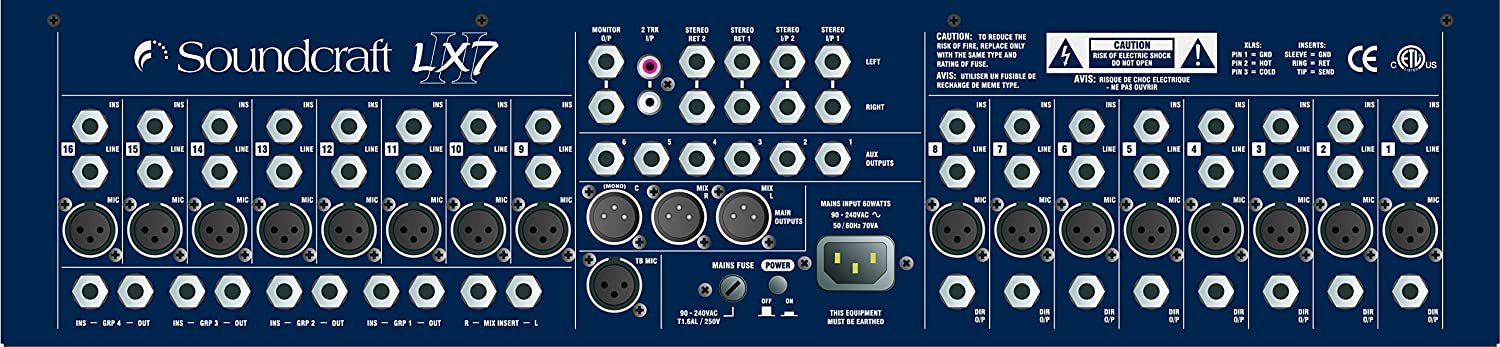

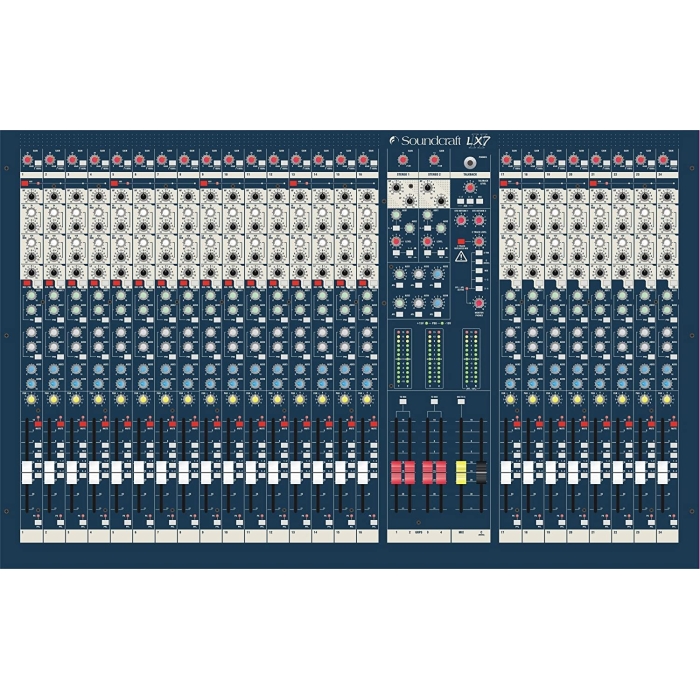

Soundcraft LX7ii 24-Channel Analog Mixer with Phantom Power

Soundcraft

AED 8736.77 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: LX7ii24 Categories: , Brand:

The Soundcraft LX7 II series offers professional analog mixers designed for recording and live sound, available in 16, 24, and 32 input configurations. Each input includes balanced 1/4″ phone line level inputs, with the first 16 channels featuring direct outputs for seamless recording and monitoring.

Description

Soundcraft LX7 II Series Professional Analog Console

The Soundcraft LX7 II series is a collection of high-quality professional analog consoles designed to meet the demanding requirements of both recording and live sound applications. Available in 16, 24, and 32 input configurations, the LX7 II series consoles ensure superior performance and flexibility for sound engineers.

Key Features

  • 24 input channels with balanced 1/4″ TRS phone and XLR mic inputs
  • Individual direct outputs on the first 16 channels
  • High quality redesigned microphone preamps
  • 4 subgroup outputs for versatile signal routing
  • 6 auxiliary sends for external effects and signal processing
  • 48V phantom power switched in blocks of four
  • Stereo input section for extensive connectivity

Specifications

Total # Of Inputs 24 – Total Line Inputs
Mic/Line Inputs 24 – Balanced 1/4″ TRS Phone Inputs
24 – Balanced XLR Mic Inputs
Stereo Line Inputs 2 – L/R Stereo Paired 1/4″ TRS Phone
In-Line Inputs/Returns No
AUX Sends 6 – 1/4″ TRS Phone
AUX Returns 2 – L/R Stereo Paired 1/4″ TRS Phone
Inserts No
BUS (Group) Outputs AUX Outputs: 6 – 1/4″ TRS Phone
2 Trk Master I/O Main Outputs: L/R Balanced 3-pin XLR male
ALT I/O Monitor Output: L/R 1/4″ TRS Phone
2 Trk Input: L/R RCA Phono jacks
Monitor Outputs Monitor Output: L/R 1/4″ TRS Phone
EQ Section 100Hz, 18dB per octave
HF: 12kHz, +/-15dB, 2nd order shelving
Hi-Mid: 550Hz-13kHz, +/-15dB, Q=1
Lo-Mid: 80Hz-1.9kHz, +/-15dB, Q=1
LF: 80Hz, +/-15dB 2nd order shelving
Solo/Mute Mute & Solo on all channels
Channel Level Control 100mm Faders
Trim/Gain Control Sealed Rotary Potentiometers
Phantom Power +48 Volt
Metering 12-segment multicolored LED: Group Masters, L/R Master sections
AFL/PFL LED indicator
Frequency Response XLR input to any output:
20Hz to 20kHz, +0/-1dB
Dynamic Range not specified by manufacturer
Signal-to-Noise Ratio < -128dBu (150 Ohm source)
22Hz – 22kHz bandwidth, unweighted
Total Harmonic Distortion (THD) All measurements at +10dBu output 30dB gain
XLR Input to Direct Output: <0.007% @ 1kHz
XLR Input to Mix Output: <0.008% @ 1kHz
Power Supply Universal Mains input 85V-270V AC, 50Hz/60Hz
Power Consumption – less than 50W
Dimensions 33.7 x 6.5 x 19.8″ (856 x 164 x 503mm) (WxHxD)
Weight 48lbs (21.8kg)

Packaging Info

Package Weight 47.4 lb
Box Dimensions (LxWxH) 37 x 25 x 13″
