Mixers

Soundcraft LX7ii 16-Channel Analog Recording Mixer with 6 Aux Sends

Soundcraft

AED 7279.43 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: LX7ii16 Categories: , Brand:

The Soundcraft LX7 II series professional analog consoles offer enhanced features for recording and live sound engineering, available in 16, 24, and 32 input configurations. Each input includes balanced 1/4” phone line level inputs, with direct outputs on the first 16 channels, making it suitable for various recording and monitoring applications.

Description

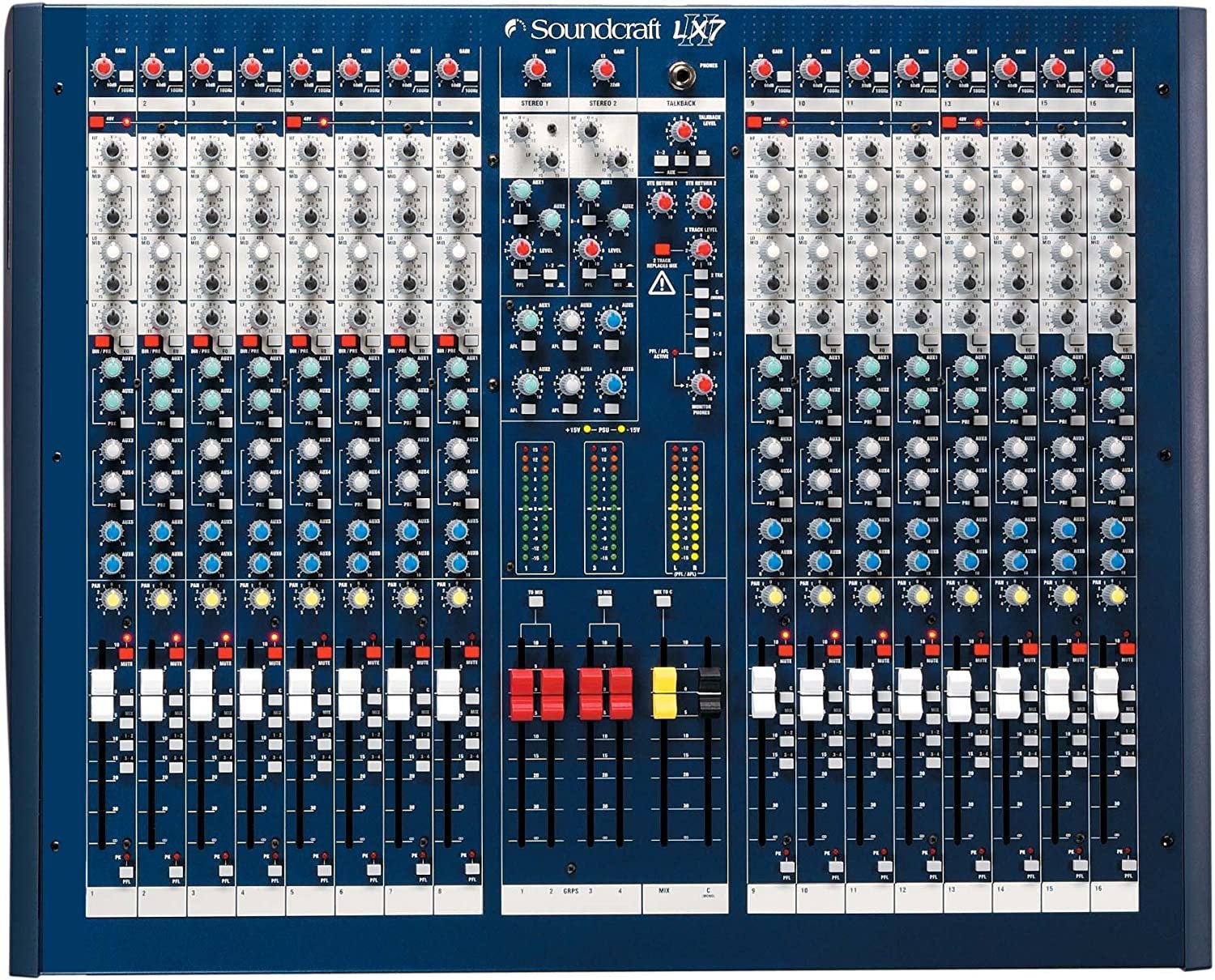

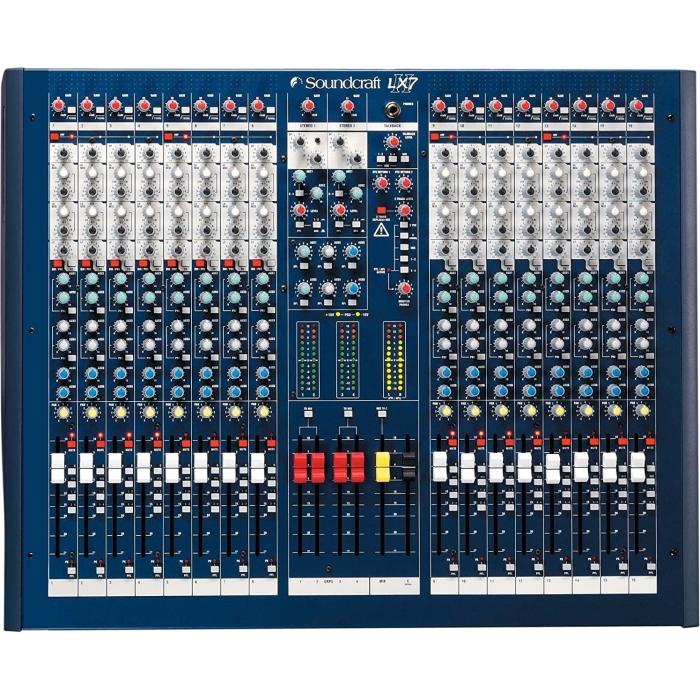

Soundcraft LX7 II Professional Analog Console

The Soundcraft LX7 II series of professional analog consoles is designed to meet the specific needs of recording and live sound engineers. Available in 16, 24, and 32 input configurations, each console provides balanced 1/4″ phone line level inputs. The first 16 channels include direct outputs for comprehensive recording and monitoring functions, ensuring your studio sessions and live performances are executed with precision.

Featuring high-quality, redesigned microphone preamps on every input channel alongside 1/4″ TRS phone inserts for external processor routing, the LX7 II series ensures superior sound quality. The four sub group outputs can be utilized for various routing needs, such as monitors and recorders. With 6 auxiliary sends, routing to effects and signal processors has never been more flexible.

Whether for recording or live sound, the Soundcraft LX7 II series offers unparalleled functionality and high-quality audio routing.

Specifications

Specification Details
Total # Of Inputs 16 – Total Line Inputs
Mic/Line Inputs 16 – Balanced 1/4″ TRS Phone Inputs
16 – Balanced XLR Mic Inputs
Stereo Line Inputs 2 – L/R Stereo Paired 1/4″ TRS Phone
In-Line Inputs/Returns No
AUX Sends 6 – 1/4″ TRS Phone
AUX Returns 2 – L/R Stereo Paired 1/4″ TRS Phone
Inserts No
BUS (Group) Outputs AUX Outputs: 6 – 1/4″ TRS Phone
2 Trk Master I/O Main Outputs: L/R Balanced 3-pin XLR male
ALT I/O Monitor Output: L/R 1/4″ TRS Phone
2 Trk Input: L/R RCA Phono jacks
Monitor Outputs Monitor Output: L/R 1/4″ TRS Phone
EQ Section 100Hz, 18dB per octave
HF: 12kHz, +/-15dB, 2nd order shelving
Hi-Mid: 550Hz-13kHz, +/-15dB, Q=1
Lo-Mid: 80Hz-1.9kHz, +/-15dB, Q=1
LF: 80Hz, +/-15dB 2nd order shelving
Solo/Mute Mute & Solo on all channels
Channel Level Control 100mm Faders
Trim/Gain Control Sealed Rotary Potentiometers
Phantom Power +48 Volt
Metering 12-segment multicolored LED: Group Masters, L/R Master sections
AFL/PFL LED indicator
Frequency Response XLR input to any output:
20Hz to 20kHz, +0/-1dB
Dynamic Range not specified by manufacturer
Signal-to-Noise Ratio < -128dBu (150 Ohm source)
22Hz – 22kHz bandwidth, unweighted
Total Harmonic Distortion (THD) All measurements at +10dBu output 30dB gain
XLR Input to Direct Output: <0.007% @ 1kHz
XLR Input to Mix Output: <0.008% @ 1kHz
Power Supply Universal Mains input 85V-270V AC, 50Hz/60Hz
Power Consumption – less than 50W
Dimensions 25.7 x 6.5 x 19.8″ (653 x 164 x 503mm) (WxHxD)
Weight 40lbs (18.2kg)

Packaging Information

Specification Details
Package Weight 37 lb
Box Dimensions (LxWxH) 30 x 25 x 12″
