Soundcraft GB8 48-Channel Live Sound Console with 4 Stereo Inputs
In stock
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
The Soundcraft GB8 live console series offers high-quality audio and versatile mixing options for FOH or monitor applications in various venue sizes, featuring frame sizes of 16, 24, 32, 40, and 48 channels to meet diverse live sound requirements.
Description

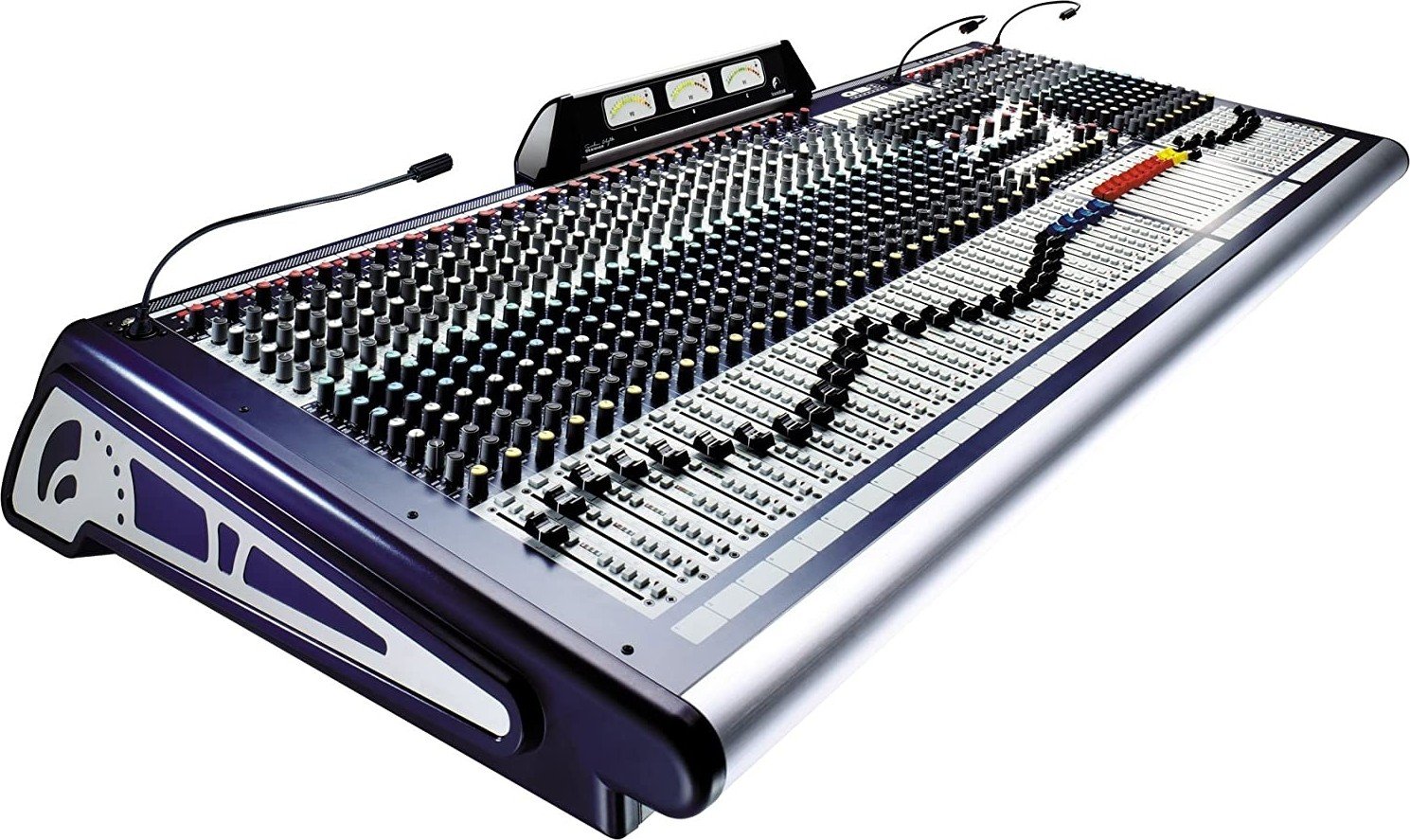

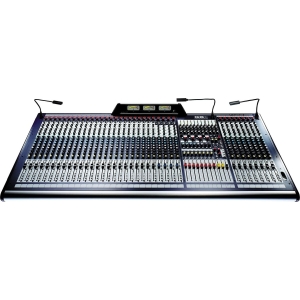

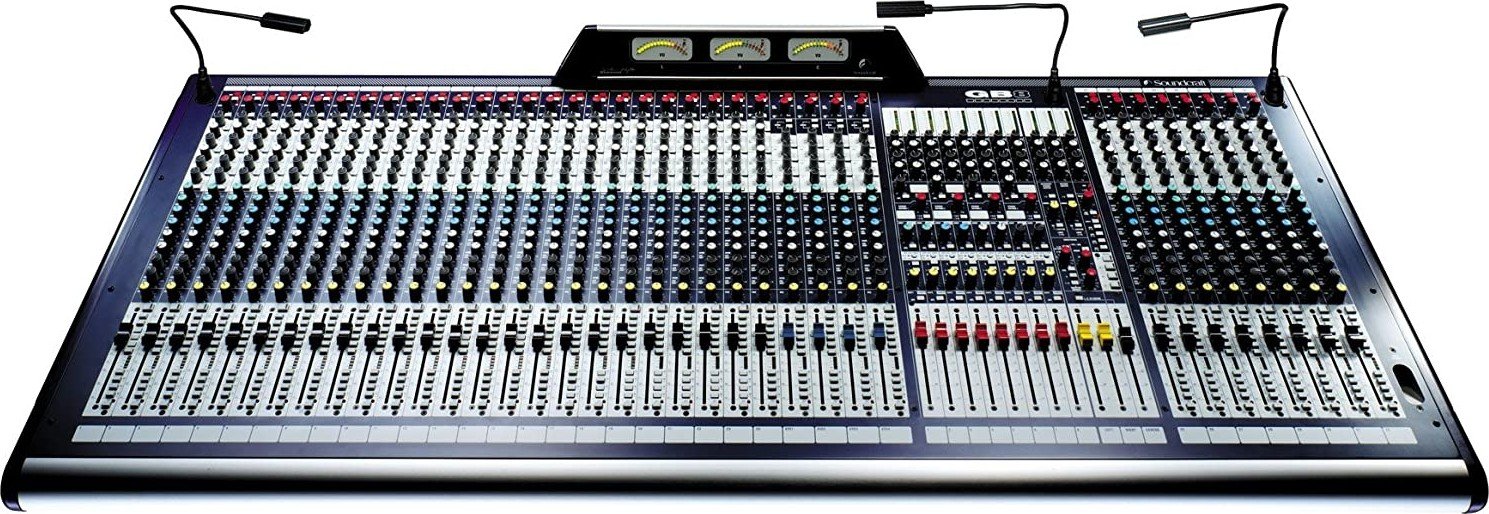

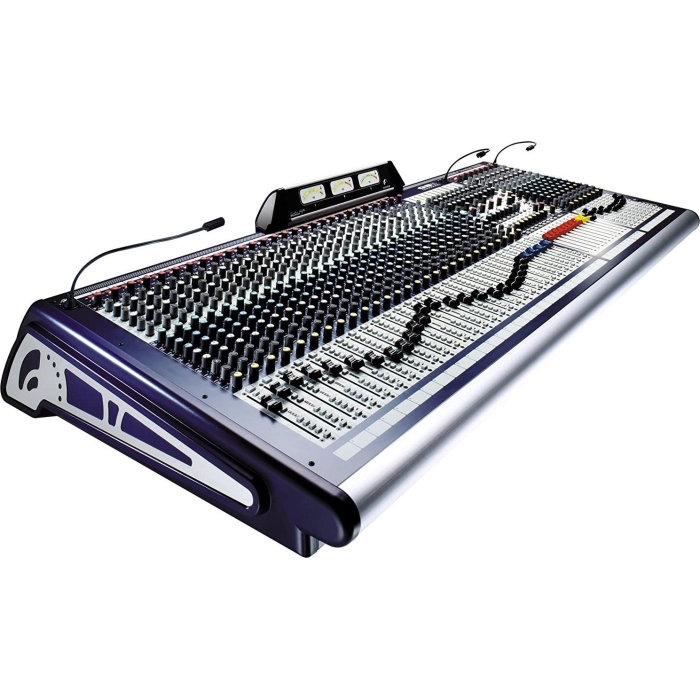

Soundcraft GB8 Live Console – 48 Channel Model
The Soundcraft GB8 live console series is designed to deliver high-quality audio fidelity and comprehensive mixing capabilities for front-of-house (FOH) or monitor mixing applications in both large and small venues. The GB8 series is available in various channel frames, with this particular model configured with 48 input channels, making it ideal for extensive live sound needs.
Features
- GB30 mic preamp for clear mic sound
- 4-band GB30 EQ with precise control
- Individually switched 48V phantom power on each mono input module
- 4 Full-feature Stereo input channels
- 8 Aux sends for flexible routing options
Specifications

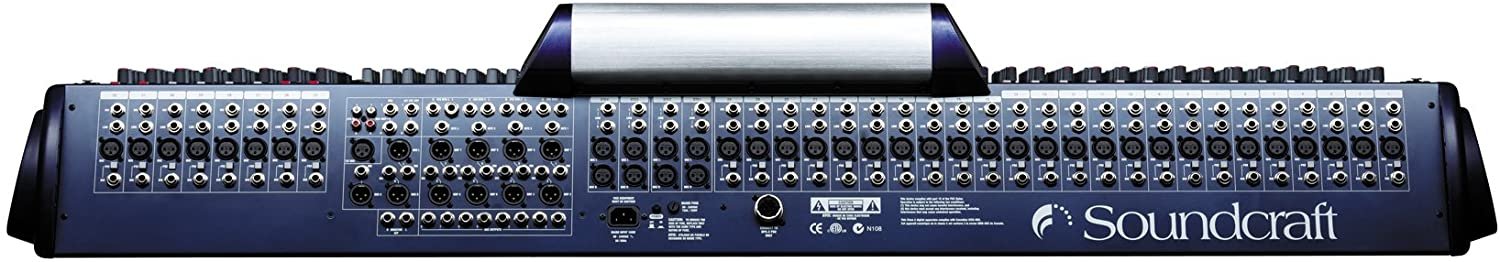

| Total Number of Inputs | 48 Total |
| Mic/Line Inputs | 48 Line: 1/4″ TRS Phone, 48 Microphone: 3-pin XLR |
| Stereo Line Inputs | 4 Stereo: L/R Paired 1/4″ Phone Line & 3-pin XLR Microphone |
| Aux Sends | 8 Aux Sends |
| Aux Returns | 4 Stereo Returns |
| Inserts | 1/4″ TRS Phone on Mono Inputs, Main Outputs, and Subgroup Outputs |
| Bus Outputs | 8 Subgroups: Balanced 3-pin XLR |
| 2-Track Master I/O | Mix L/R: Stereo Paired 3-pin XLR Balanced |
| Monitor Outputs | L/R Stereo Paired 1/4″ TRS Phone |
| EQ Section |
High Filter: 13kHz, +/- 15dB Hi-Mid: 550Hz – 13kHz, +/- 15dB Lo-Mid: 80Hz – 1.9kHz, +/- 15dB Low Filter: 80Hz, +/- 15dB |
| Stereo Inputs | 4 Full-feature Stereo Channels |
| Phantom Power | +48V Phantom, individually switched |
| Channel Level Control | 100mm Faders |
| Power Supply | Internal AC PSU – 85V to 270V AC, 50/60Hz universal input |
| Dimensions | 74.37 x 9.23 x 25.83″ (1889 x 235 x 656 mm) |
| Weight | 99.2 lbs (45 kg) |
Packaging Information
| Package Weight | 131.5 lbs |
| Box Dimensions (LxWxH) | 81.5 x 30.5 x 11.5 inches |
Additional information
| Brand | |
|---|---|
| EAN |
