Soundcraft GB4 40-Channel Live Sound Console with GB30 Mic Preamp

Soundcraft

AED 18209.44 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: GB4 Categories: , Brand:

The Soundcraft GB4 live console series provides high-quality audio and versatile mixing options for FOH or monitor mixing in various venue sizes, available in 12, 16, 24, 32, and 40 channel frames to cater to different live sound mixing requirements.

Description

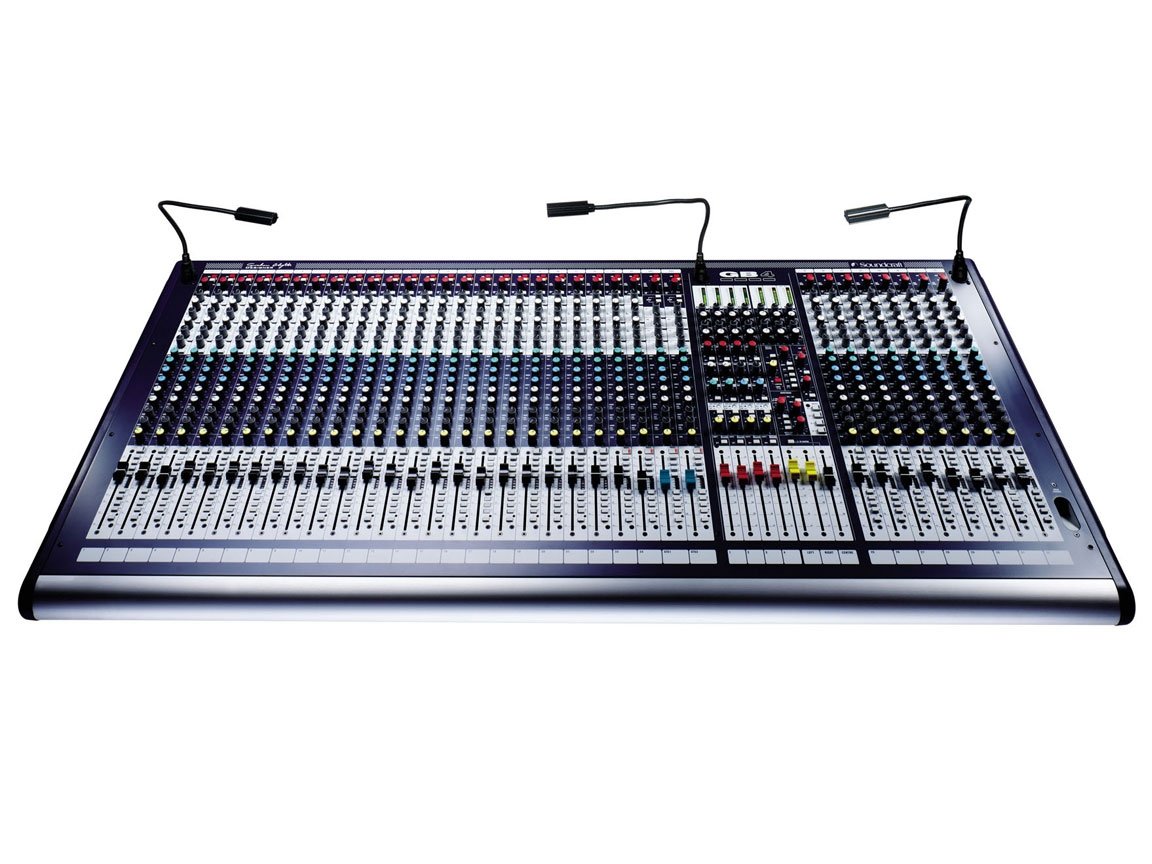

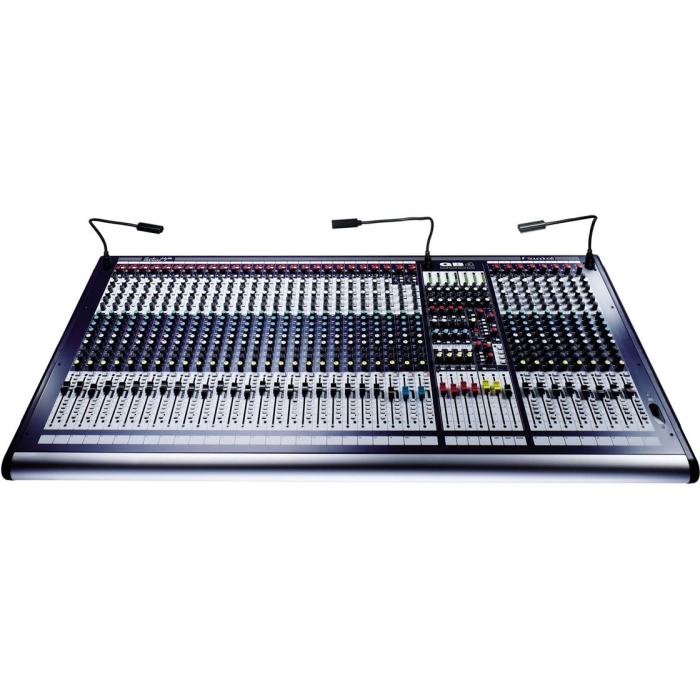

Soundcraft GB4 Live Console

The Soundcraft GB4 live console series offers exceptional audio fidelity and mixing flexibility for both front-of-house (FOH) and monitor mixing needs in venues of all sizes. The GB4 series is available in multiple channel configurations, ranging from 12 to 40 channels, ensuring it can meet various live sound mixing requirements.

This specific model features 40 input channels, providing ample connectivity options for comprehensive audio management. The 40 input channels include both microphone and line-level connections, complemented by 4 additional stereo inputs. These stereo inputs (ST1 – ST4) support L/R stereo line level and 3-pin XLR microphone inputs, ideal for capturing diverse audio sources such as vocals, instruments, and ambiance. Equipped with 4 group outputs, this console facilitates seamless routing to monitors and external recorders. Soundcraft’s renowned GB30 microphone preamp and EQ are integrated into the GB4 series, delivering superior sonic quality expected of high-end consoles.

Features

  • Soundcraft GB30 microphone preamp
  • 4-band GB30 EQ
  • 48V phantom power switchable on every mono input module
  • 4 full-feature stereo channels
  • 8 auxiliary sends, all switchable between pre/post fader operation

Specifications

Specification Details
Total # Of Inputs 40 Total
Mic/Line Inputs 40 Line: 1/4″ TRS Phone, 40 Microphone: 3-pin XLR
Stereo Line Inputs 4 Stereo: L/R Paired 1/4″ Phone Line & 3-pin XLR
In-Line Inputs/Returns No
AUX Sends 8 Auxiliary Sends
AUX Returns 4 Stereo Returns
Inserts 1/4″ TRS Phone – Mono Inputs, Main Output and Subgroup Outputs
BUS (Group) Outputs 4 Subgroups: Balanced 3-pin XLR
2 Trk Master I/O Mix L/R: Stereo Paired 3-pin XLR Balanced
ALT I/O ALT Stereo: L/R Stereo Paired 1/4″ Output
Monitor Outputs L/R Stereo Paired 1/4″ TRS Phone
EQ Section 13kHz High Filter, Hi-Mid 550Hz – 13kHz, Lo-Mid 80Hz – 1.9kHz, Low Filter 80Hz
Solo/Mute All Input Channels
Channel Level Control 100mm Faders
Trim/Gain Control Rotary Potentiometers
Phantom Power +48V Phantom individually switched
Metering Input Channels: Single tri-color 4-segment LED bar graph, Outputs: 7 tri-color 12-segment LED bar graphs, + Meter pod with 3 VU meters (L/R/C)
Frequency Response 20Hz to 20kHz <1dB
Signal-to-Noise Ratio -128dBu Mic E.I.N. @ unity gain, 150 ohms source impedance
Total Harmonic Distortion (THD) <0.006% @ 1kHz
Power Supply Internal AC PSU – 85V, 270V AC, 50/60Hz universal input, Consumption <150W
Dimensions 59.96 x 9.23 x 25.83″ (1523 x 235 x 656mm)
Weight 81.6 lbs. (37 kg)
