The Soundcraft GB2 live console series offers exceptional audio fidelity and versatile mixing capabilities for FOH or monitor applications in various venues, available in 16, 24, and 32 channel frames to meet diverse live sound mixing requirements.

Description

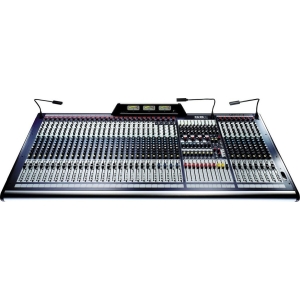

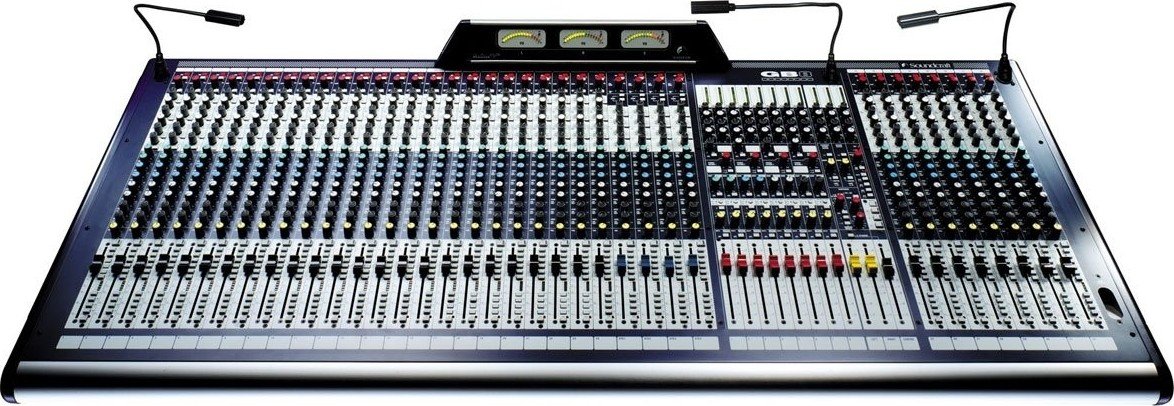

Soundcraft GB2 32-Channel Live Console

The Soundcraft GB2 live console is expertly engineered to deliver outstanding audio fidelity and precise mixing capabilities for both front-of-house (FOH) and monitor mixing applications. Whether you are working in large venues or intimate settings, the GB2 ensures reliable performance and exceptional sound quality.

This 32-channel model provides extensive connectivity options, including 32 microphone and line level inputs, along with 2 stereo inputs. The stereo channels feature both L/R line level inputs and 3-pin XLR microphone inputs, making this console versatile for capturing vocals, instruments, ambiance, and more.

Features

  • 32 Mono Input Channels, 2 Stereo Input Channels
  • 2 Subgroup Outputs
  • Matrix Mixer
  • 4 Auxiliary Sends
  • Direct Outputs for each channel

Specifications

Specification Details
Total # Of Inputs 32 Total
Mic/Line Inputs 32 Line: 1/4″ TRS Phone
32 Microphone: 3-pin XLR
Stereo Line Inputs 2 Stereo: L/R Paired 1/4″ Phone Line & 3-pin XLR Microphone
In-Line Inputs/Returns No
AUX Sends 4 Aux Sends
AUX Returns 4 Stereo Returns
Inserts 1/4″ TRS Phone – Mono Inputs, Main Output and Subgroup Outputs
BUS (Group) Outputs 2 Subgroups: Balanced 3-pin XLR
2 Trk Master I/O Mix L/R: Stereo Paired 3-pin XLR Balanced and 1/4″ Phone
ALT I/O ALT Stereo: L/R Stereo Paired 1/4″ Output
Monitor Outputs Monitor: L/R Stereo Paired 1/4″ TRS Phone
EQ Section High Filter: 13kHz, +/- 15dB, 2nd order shelving
Hi-Mid: 550Hz – 13kHz, +/- 15dB, Q=1.5
Lo-Mid: 80Hz – 1.9kHz, +/- 15dB, Q=1.5
Low Filter: 80Hz, +/- 15dB, 2nd order shelving
Solo/Mute All Input Channels
Channel Level Control 100mm Faders
Trim/Gain Control Rotary Potentiometers
Phantom Power +48V Phantom individually switched
Metering 12-segment LED bar graphs
Frequency Response 20Hz to 20kHz <1dB
Dynamic Range Not Specified by Manufacturer
Signal-to-Noise Ratio Measured RMS, 22Hz to 22kHz Bandwidth
-128dBu Mic E.I.N. @ unity gain, 150 ohms source impedance
Total Harmonic Distortion (THD) <0.006% Mic sens. -30dBu, +20dBu at all outputs @ 1kHz
Power Supply Internal AC PSU – 85V, 270V AC, 50/60Hz universal input
Power Consumption
Less than 150W

Packaging Info

Package Weight 83 lb
Box Dimensions (LxWxH) 54 x 30.5 x 11.5″
