SKU: EPM8 Categories: , , Brand:

The Soundcraft EPM 8 is an 8-channel audio mixer designed for recording and live sound applications, featuring 8 mono channels with balanced XLR and 1/4″ inputs, 2 stereo input channels, and renowned GB30 microphone preamps for high-quality audio performance.

Description

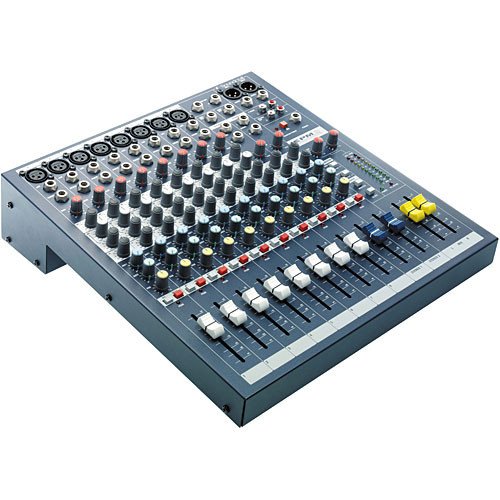

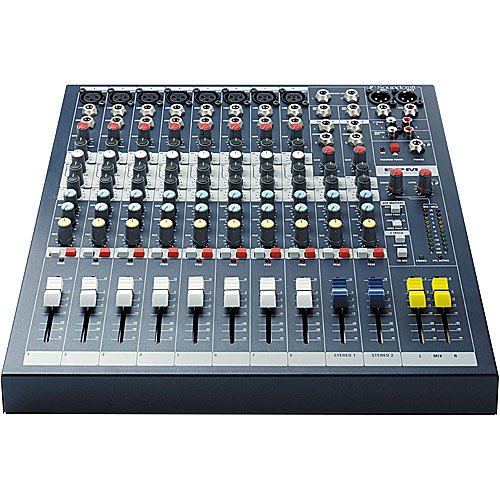

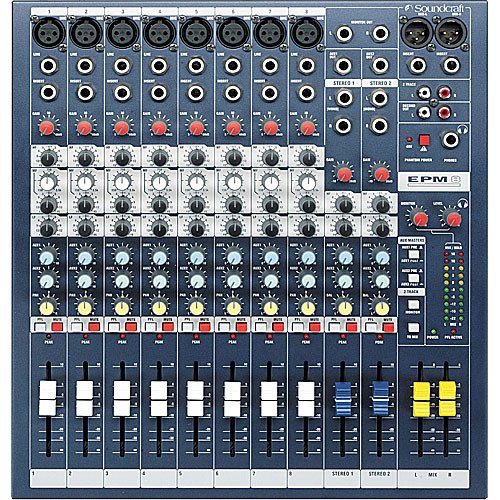

Soundcraft EPM 8 Audio Mixer

The Soundcraft EPM 8 offers a streamlined audio mixing solution that’s ideal for both recording studios and live sound environments. With a total of 8 mono channels and 2 stereo channels, this mixer provides versatility and high-end audio performance in a compact enclosure.

Key Features

  • 8 Mono & 2 Stereo Input Channels
  • Renowned GB30 Microphone Preamplifiers
  • Professional Quality for Recording and Live Sound
  • Compact and Portable Design

Specifications

Specification Details
Total Number of Inputs 8 Mono, 2 Stereo
Mic/Line Inputs 8x Mono 1/4″ TRS Phone, 2x Stereo L/R 1/4″ TRS Phone, 8x Microphone 3-pin XLR
Stereo Line Inputs 2x Stereo L/R 1/4″ TRS Phone
AUX Sends 2x Aux Sends
Inserts 1/4″ TRS Phone – Mono Inputs, Main Stereo Output
BUS (Group) Outputs Stereo Output Only
2 Trk Master I/O Mix L/R: Stereo Paired L/R RCA Phono
Monitor Outputs Monitor: L/R Stereo Paired 1/4″ TRS Phone
EQ Section Mono Inputs: +/- 15 dB, Lo: 80 Hz, Mid: 150 Hz – 3.5 kHz (swept), Hi: 12 kHz, Q: 1.5; Stereo Inputs: +/-15 dB, Lo: 80 Hz, Mid: 720 Hz, Hi: 12 kHz
Solo/Mute All Input Channels

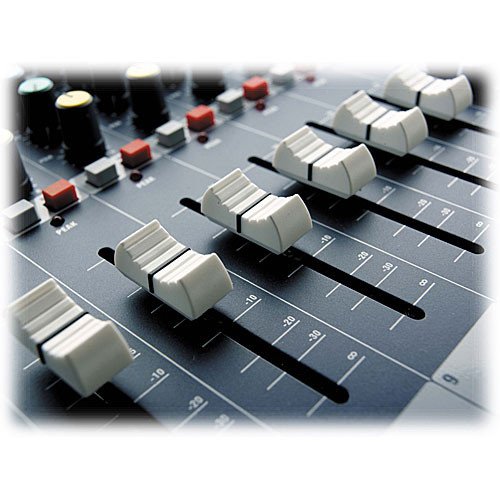

Channel Level Control 100 mm Faders
Trim/Gain Control Rotary Potentiometers
Phantom Power +48 V Phantom
Metering 10-Segment L/R Peak LEDs, +48 V Phantom Power LED, PFL Active LED, Power Indicator LED
Frequency Response 20 Hz to 20 kHz +/-1.5 dB
Signal-to-Noise Ratio Noise (22 Hz – 22 kHz measurement bandwidth), Mic EIN @ max gain, 150 ohms source impedance -127 dBu, Mix @ max, faders down <-85 dBu
Total Harmonic Distortion (THD) <0.02% Mic sensitivity 30 dB, +14 dBu @ mix output
Power Supply Integral lightweight switched-mode PS, AC mains supply: 85-270 V AC, 50/60 Hz universal input, Power Consumption: Less than 20 W
Dimensions 13.0 x 3.56 x 14.3″ (330 x 90.5 x 362 mm)
Weight 15.87 lb (7.2 kg)
