Soundcraft EPM6 8-Channel Audio Mixer (UK Version)

The Soundcraft EPM Series includes compact, user-friendly audio mixers designed for professional use, available in 6-, 8-, or 12-channel configurations. The EPM 6 model offers 6 mono and 2 stereo input channels, featuring 1/4″ phone line and balanced XLR inputs with high-quality GB30 microphone preamps, as well as L/R 1/4″ phone connections on stereo inputs, suitable for recording studios and live sound environments.
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
Description
Soundcraft EPM 6 Audio Console
The Soundcraft EPM Series offers a simple yet professional solution for audio mixing. With configurations available in 6-, 8-, or 12-channel chassis, these mixers are perfect for both recording and live sound reinforcement applications. The EPM 6 model is equipped with six mono and two stereo input channels, catering to the needs of recording studios, venues, and touring musicians alike.

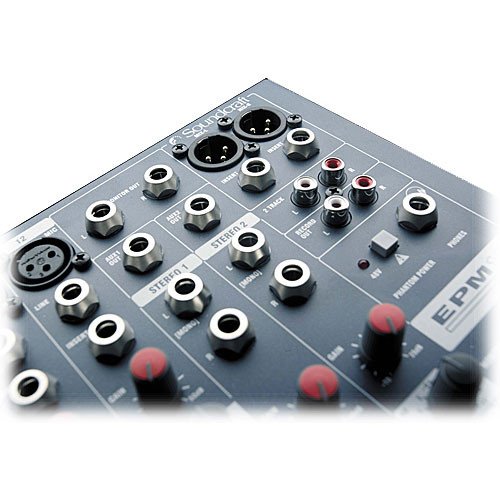

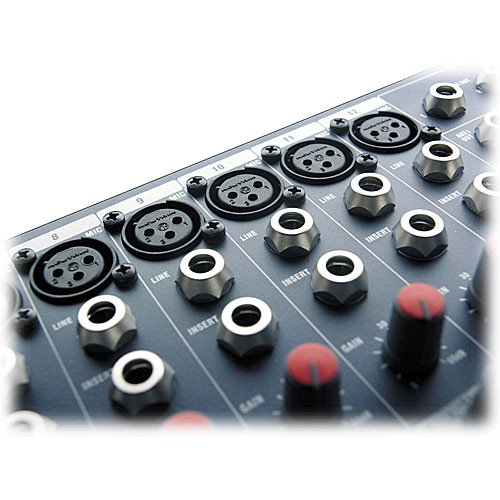

Each mono input features balanced XLR microphone inputs coupled with 1/4″ phone line connections. Utilizing the renowned GB30 microphone preamps, the EPM 6 ensures a clear and noiseless signal, a hallmark quality of Soundcraft’s large FOH consoles. The stereo inputs, designed with L/R 1/4″ phone connections, are ideal for stereo devices such as keyboards or returning effects.
Features
- 6 Mono & 2 Stereo Input Channels
- 6x GB30 Microphone Preamplifiers
- Designed for Both Recording and Live Sound Applications
- Compact and Mobile Enclosure
Specifications
Total # Of Inputs | 6x Mono, 2x Stereo |
Mic/Line Inputs | 6x Line Mono: 1/4″ TRS Phone, 2x Line Stereo: L/R 1/4″ TRS Phone, 6x Microphone: 3-pin XLR |
Stereo Line Inputs | 2x Stereo: L/R 1/4″ TRS Phone |
In-Line Inputs/Returns | No |
AUX Sends | 2x Aux Sends |
AUX Returns | No dedicated returns |
Inserts | 1/4″ TRS Phone – Mono Inputs, Main Stereo Output |
BUS (Group) Outputs | Stereo Output Only |
2 Trk Master I/O | Mix L/R: Stereo Paired L/R RCA Phono |
ALT I/O | No |
Monitor Outputs | Monitor: L/R Stereo Paired 1/4″ TRS Phone |
EQ Section | Mono Inputs +/- 15 dB, Lo: 80 Hz, Mid: 150 Hz – 3.5 kHz (swept), Hi: 12 kHz, Q: 1.5, Stereo Inputs +/- 15 dB, Lo: 80 Hz, Mid: 720 Hz, Hi: 12 kHz |
Solo/Mute | All Input Channels |

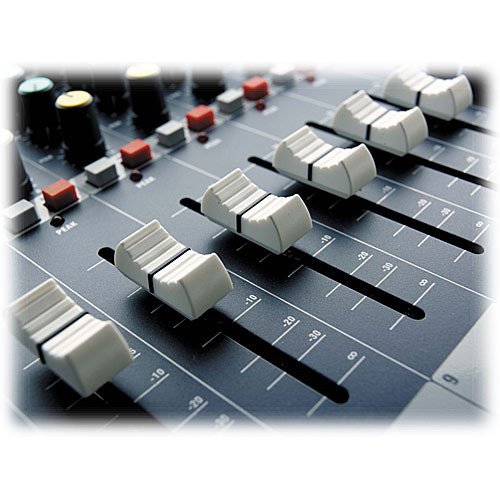

Channel Level Control | 100 mm Faders |
Trim/Gain Control | Rotary Potentiometers |
Phantom Power | +48 V Phantom |
Metering | 10-Segment L/R Peak LEDs, +48 V Phantom Power LED, PFL Active LED, Power Indicator LED |
Frequency Response | 20 Hz to 20 kHz +/-1.5 dB |
Dynamic Range | Not specified by manufacturer |
Signal-to-Noise Ratio | Noise (22 Hz – 22 kHz measurement bandwidth) Mic EIN @ max gain, 150 ohms source impedance -127 dBu, Mix @ max, faders to down <-85 dBu |
Total Harmonic Distortion (THD) | Mic sensitivity 30 dB, +14 dBu @ mix output: <0.02% |
Power Supply | Integral lightweight switched-mode PS, AC mains supply: 85-270 V AC, 50/60 Hz universal input, Power Consumption: Less than 20 W |
Dimensions | Not specified by the manufacturer |
Weight | 11.2 lb (5.1 kg) |
Packaging Information
Package Weight | 11.1 lb |
Box Dimensions (LxWxH) | 17.75 x 15 x 7.5″ |
