Soundcraft EPM12 12-Channel Analog Mixer with GB30 Mic Preamps (UK Version)

Soundcraft

AED 2485.43 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: EPM12 Categories: , Brand:

The Soundcraft EPM 12 is a versatile 12-channel audio mixer designed for recording studios, live sound reinforcement, and touring musicians, featuring 12 mono inputs with 1/4″ phone and XLR connections, 2 stereo inputs with L/R 1/4″ phone connections, and high-quality GB30 microphone preamps for detailed audio capture.

Description

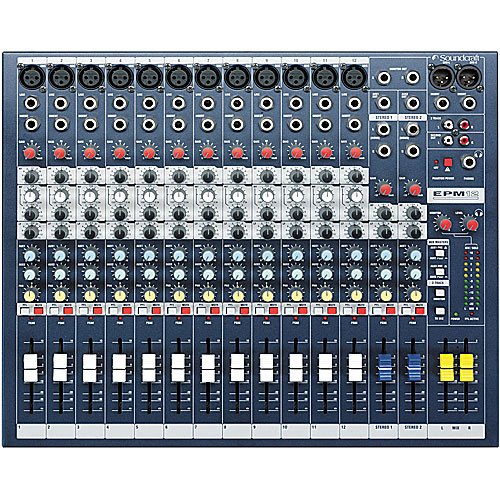

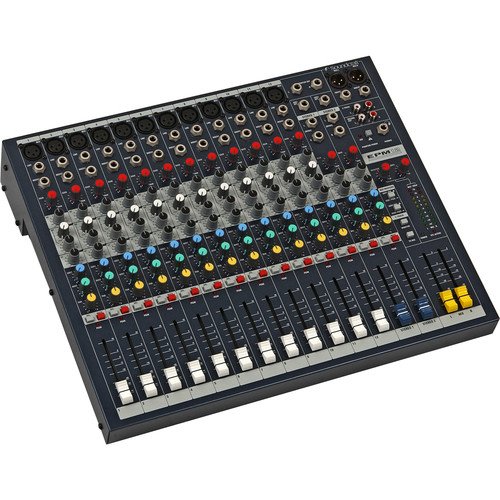

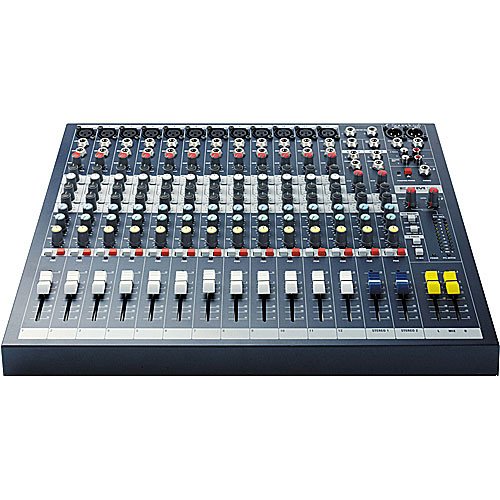

Soundcraft EPM 12 Audio Mixer

The Soundcraft EPM 12 offers a high-quality, professional-grade mixing solution for recording studios, venues, and touring musicians. This audio mixer boasts 12 mono and 2 stereo input channels, providing versatile connectivity to suit a variety of sound reinforcement and recording applications. Encased in a compact and mobile enclosure, the EPM 12 is designed to deliver an impressive performance.

Features

  • 12 Mono & 2 Stereo Input Channels
  • Equipped with 12x GB30 Microphone Preamplifiers
  • Ideal for Both Recording and Live Sound Environments
  • Compact Mobile Enclosure for Easy Transportation

Specifications

Specification Details
Total # Of Inputs 12x Mono
2x Stereo
Mic/Line Inputs 12x Line Mono: 1/4″ TRS Phone
2x Line Stereo: L/R 1/4″ TRS Phone
12x Microphone: 3-pin XLR
Stereo Line Inputs 2x Stereo: L/R 1/4″ TRS Phone
In-Line Inputs/Returns No
AUX Sends 2x Aux Sends
AUX Returns No dedicated returns
Inserts 1/4″ TRS Phone – Mono Inputs, Main Stereo Output
BUS (Group) Outputs Stereo Output Only
2 Trk Master I/O Mix L/R: Stereo Paired L/R RCA Phono
ALT I/O No
Monitor Outputs Monitor: L/R Stereo Paired 1/4″ TRS Phone
EQ Section Mono Inputs +/- 15 dB
Lo: 80 Hz
Mid: 150 Hz – 3.5 kHz (swept)
Hi: 12 kHz
Q: 1.5
Stereo Inputs +/-15 dB
Lo: 80 Hz
Mid: 720 Hz
Hi: 12 kHz
Solo/Mute All Input Channels

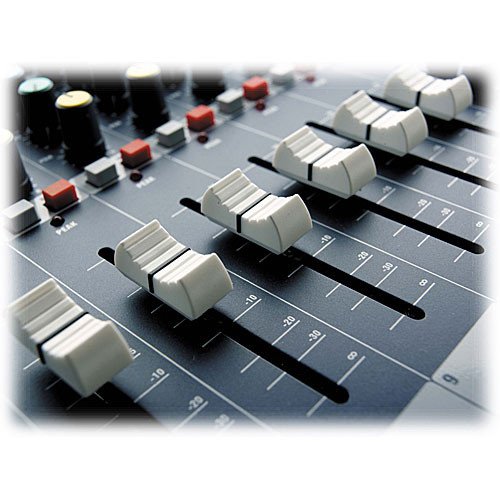

Channel Level Control 100 mm Faders
Trim/Gain Control Rotary Potentiometers
Phantom Power +48 V Phantom
Metering 10-Segment L/R Peak LEDs
+48 V Phantom Power LED
PFL Active LED
Power Indicator LED
Frequency Response 20 Hz to 20 kHz +/-1.5 dB
Dynamic Range Not specified by manufacturer
Signal-to-Noise Ratio Noise (22 Hz – 22 kHz measurement bandwidth)
Mic EIN @ max gain, 150 ohms source impedance -127 dBu
Mix @ max, faders to down <-85 dBu
Total Harmonic Distortion (THD) Mic sensitivity 30 dB, +14 dBu @ mix output: <0.02%
Power Supply Integral lightweight switched-mode PS
AC mains supply: 85-270 V AC, 50/60 Hz universal input
Power Consumption: Less than 20 W
Dimensions 17 x 3.56 x 14.25″ (432 x 90.5 x 362 mm)
Weight 12.13 lb (5.5 kg)
