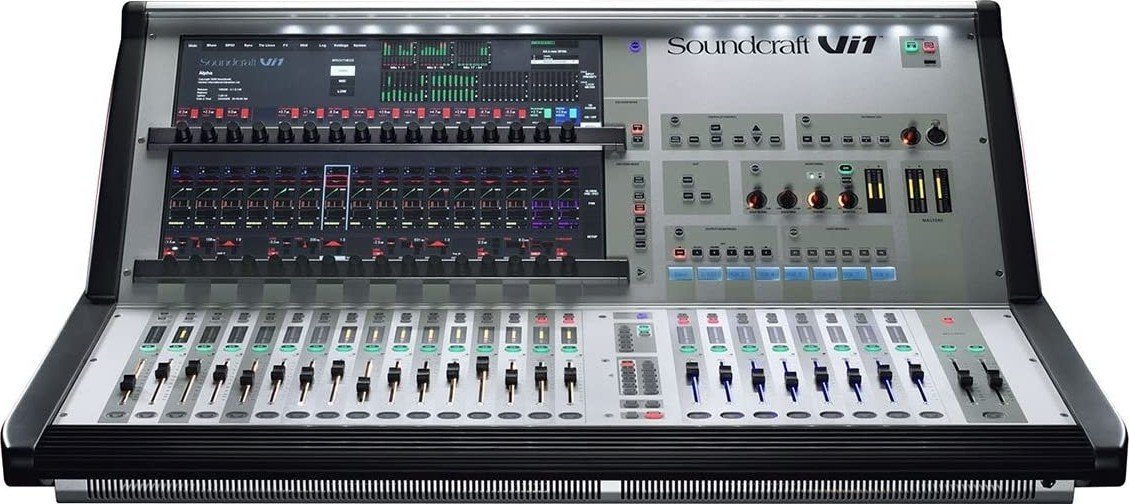

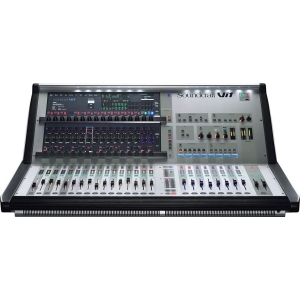

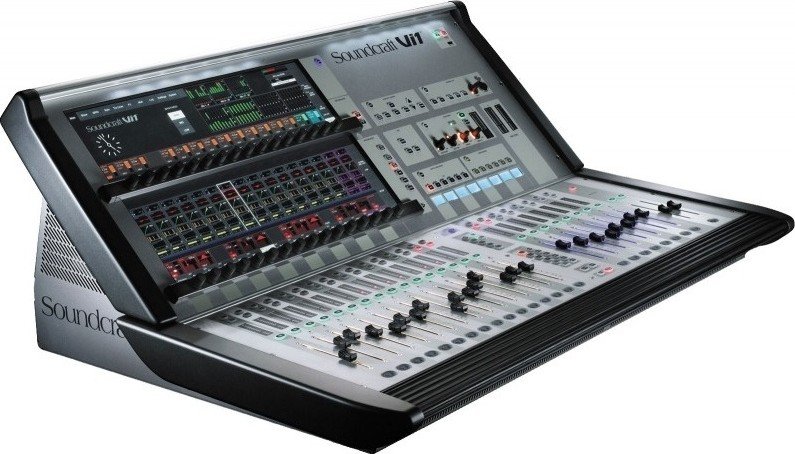

Soundcraft Vi1 Digital Mixing Console with 16 Faders and 32×32 I/O

Soundcraft

AED 76648.75 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: E947.300000 Categories: , , Brand:

The Soundcraft Vi1 is a sophisticated digital live sound mixing console, renowned for its powerful processing, streamlined user interface, and high-quality sound. Featuring a 16-input fader control surface, it offers an intuitive layout for effortless mixing. As part of the acclaimed Vi Series, the Vi1 is designed to meet the demands of touring, broadcasting, and installed sound scenarios, providing an affordable solution without compromising performance.

Description

The Soundcraft Vi1 is a digital live sound mixing console. Renowned for its powerful processing, user-friendly design, and exceptional sonic quality, the Vi1 seamlessly blends affordability and professional-grade features. Its 16-input fader control surface offers an intuitive digital mixing experience, making it a robust choice for live sound engineers.

Specifications

Specification Details
Frequency Response +0/-1dB, 20Hz-20kHz
THD+Noise 22Hz-22kHz
Residual Noise -95dBu (Local Line Output; no inputs routed, Mix fader @0dB)
CMRR 80dB @ 1kHz (Local Mic Input)
Sampling Frequency 48kHz
Latency < 2ms @48kHz
AES/EBU Input Sample Rate 32–108kHz (with SRC enabled)
DSP Resolution 40-bit floating point
Internal Clock Accuracy < +/- 50ppm
Internal Clock Jitter < +/- 5ns
External Sync BNC Wordclock
Mic Input Maximum Level +23dBu
Line Output Maximum Level +22dBu
Nominal Operating Level 0dBu (-18dBFS)
Mic Input Impedance 2k7Ω
Analog Input Impedance >10kΩ
AES/EBU Output Impedance 110Ω
Oscillator 20Hz – 20kHz/Pink/White Noise, variable level
Channel HP Filter 20Hz-600Hz, 18dB per octave
Channel LP Filter 1kHz-20kHz, 18dB per octave
EQ (HF) 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
EQ (Hi-Mid) 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Lo-Mid) 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (LF) 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering Internal 11-segment LED bargraphs
Mains Voltage Operating Range 90-264V, 47-63Hz
Mains Power Consumption 100W
Internal Mass Storage 4GB Compact Flash Card
Operating Temperature 0°C – 45°C (32°F – 113°F)
Relative Humidity 0% – 90%, non-condensing
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Dimensions (H x W x D) 394mm x 1034mm x 711mm (15.5″ x 40.7″ x 28.0″)
Weight 37kg (82lb)
