Studio Mixers

Soundcraft Digital Mixing Console Vi1000 96 Channels with Dante Networking

Soundcraft

AED 71200 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 5083487 Categories: , , Brand:

The Soundcraft Vi1000 is a compact digital mixing console ideal for smaller touring projects, rental companies, corporate AV applications, and music venues. It features 96 input channels, 24 mono/stereo busses, SpiderCore integrated DSP, Dante audio networking, built-in Lexicon effects, dynamic EQs based on the BSS DPR901ii, and integrated monitoring for AKG, Shure, and Sennheiser wireless systems.

Description

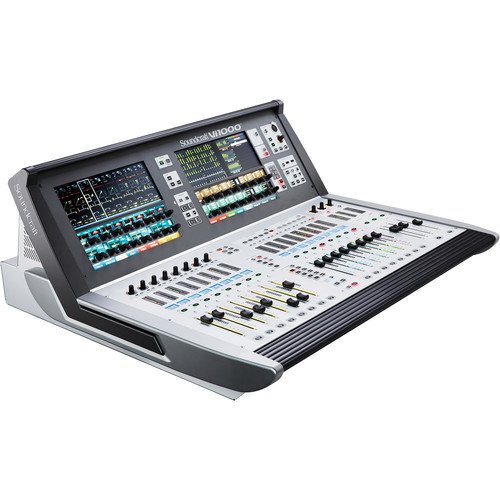

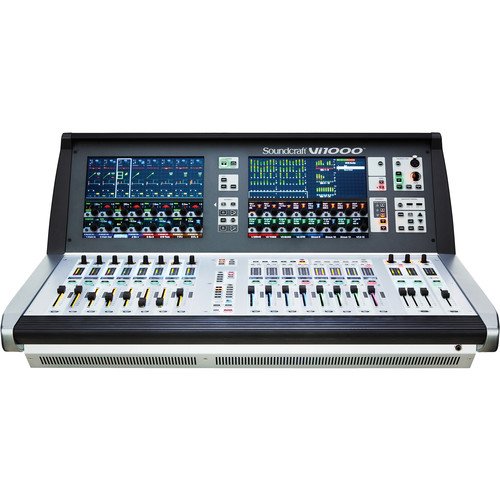

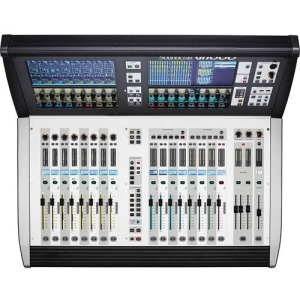

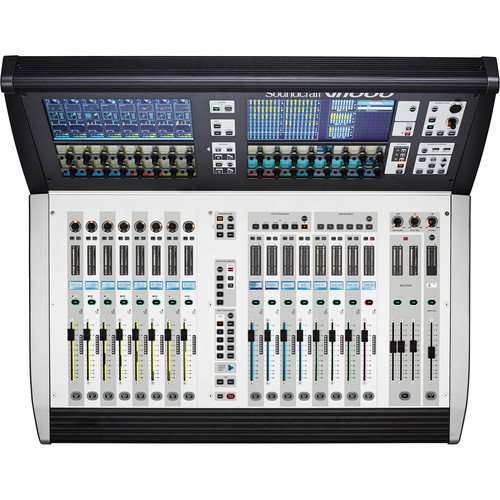

Soundcraft Vi1000 Digital Mixing Console

Designed for smaller touring projects, rental companies, corporate AV applications, and music venues, the compact Soundcraft Vi1000 is a versatile digital mixing console with advanced features. It boasts 96 input channels with 24 mono/stereo busses, SpiderCore integrated DSP, Dante audio networking, built-in Lexicon effects, on-board dynamic EQs based on the highly regarded BSS DPR901ii, and integrated monitoring support for AKG, Shure, and Sennheiser wireless systems.

Additionally, the mixer incorporates Vistonics II “knobs-on-glass” functionality, making it easy to see and access the power and versatility of the mixing environment, along with the Soundcraft’s Faderglow color coding, which illuminates the fader slots according to function using clearly defined colors.

Features

  • 96 Input Channels
  • 24 Mono / Stereo Busses + LRC Master Bus
  • Vistonics II “Knobs-On-Glass” Interface
  • Faderglow Color Coding
  • SpiderCore DSP Engine
  • Integrated Dante
  • Two Double-Slot Expansion Slots
  • Lexicon FX and BSS DPR901ii EQ
  • vMIX Automatic Microphone Mixing
  • Includes Dust Cover

Specifications

Mixer
Number of Analog Input Channels 96
Number of Mic Preamps 16
Max I/O Capacity 212 x Input / 212 x Output (with Optional Hardware)
Mix Routing 1 x Main LRC
128 x Matrix
24 x Bus
Groups 16 x VCA Group
Signal Processing
EQ 4-Band Parametric
Built-In Effects 4 x Stereo
Automatic Mic Mixing Yes
Digital Audio
Sample Rates 48 kHz
DSP 40-Bit Floating Point
Jitter ± 10 ns
Latency < 2 ms (Stagebox Input to Main Output)
Performance
Frequency Response Mic Input to Line Output:
20 Hz to 20 kHz -1 dB
EIN -128 dBu (2901653041)
Noise Floor -95 dBu
THD+N Mic Input to Line Output:
0.004%

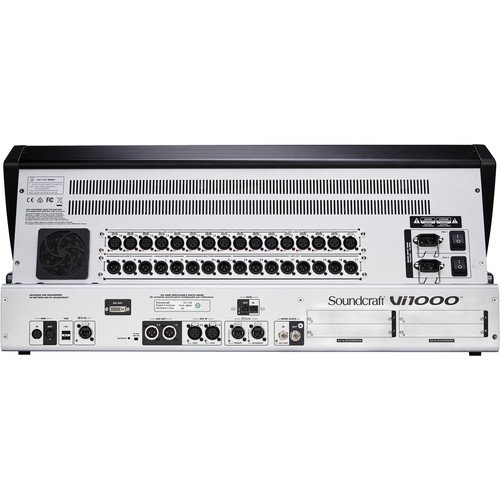

Connectivity
Analog Inputs 16 x XLR Mic/Line Input
Analog Outputs 16 x XLR Line Output
Digital I/O 1 x TOSLINK Optical MADI Input
1 x TOSLINK Optical MADI Output
2 x XLR AES3 Input
2 x XLR AES3 Output
2 x etherCON Dante
1 x BNC Input (Word Clock)
1 x BNC HiQnet
Expansion Ports 2 x 64 x 64 I/O Card
Power
AC Input Power 90 to 264 VAC, 50 / 60 Hz
Power Consumption 200 W
Physical
Dimensions 13.8 x 31.6 x 33.2″ / 351 x 803 x 843 mm
Weight 55 lb / 24.9 kg
