Stage Box

Soundcraft Mini Stagebox 32 with 32 Inputs 16 Outputs for Vi Si Consoles Model 5049659

Soundcraft

AED 13872.50 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 5049659 Categories: , , Brand:

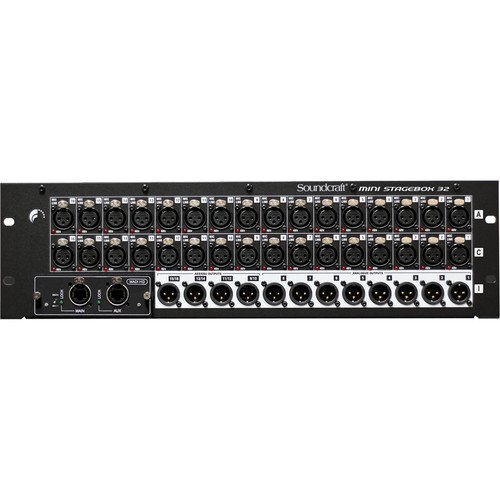

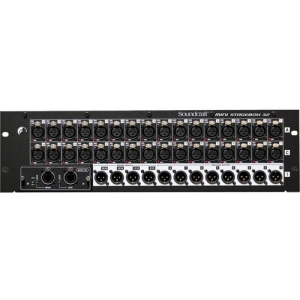

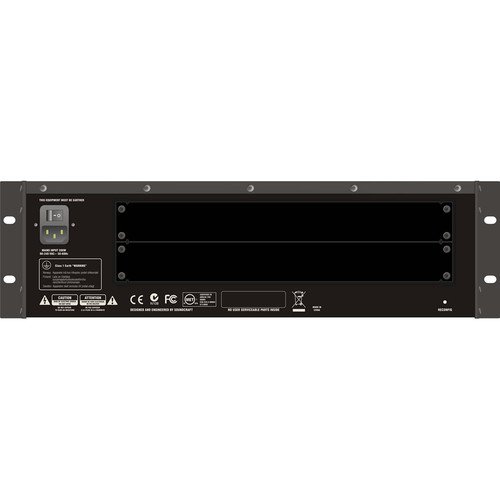

The Soundcraft Mini Stagebox 32 is a compact 3U rack unit designed to expand the I/O capabilities of Vi or Si series consoles, featuring 32 recallable mic/line inputs, 8 balanced line outputs, and 4 pairs of AES outputs, providing a total capacity of 32 inputs and 16 outputs, suitable for both local and remote stage applications.

Description

Soundcraft Mini Stagebox 32

The Soundcraft Mini Stagebox 32 presents a cost-effective and simple solution for extending the Input/Output (I/O) functionality of any Vi or Si series console. Ideal for both local use or remote scenarios extending hundreds of meters away, this unit requires only 3U of rack space and delivers a total I/O capacity of 32 inputs and 16 outputs.

Features

  • Compatible with Vi and Si Mixing Consoles
  • Expands system with 32 mic/line inputs and 16 outputs
  • Space-efficient 3U rack unit
  • Comes with an integrated power supply
  • Includes MADI HD single-cable interface card (upgradable)

Key Specifications

Specification Details
Compatible With Vi1, Vi2, Vi4, Vi6, Vi3000, Vi5000, Vi7000, Si Impact, Si Performer, Si Expression, Si Compact, Si1, Si1+, Si2, Si2+, Si3, Si3+
Frequency Response Mic/Line Input to any Output: +0/-1 dB, 20 Hz to 20 kHz
THD Mic Sensitivity -30 dBu: <0.01% @ 1 kHz
Residual Noise -85 dBu
Mic Input Noise (E.I.N.) -125 dBu (150 Ohms Source)
CMRR Mix Noise, Masters at Unity: < -86 dBu; 1 Input to Mix at Unity Gain: -84 dBu; CMRR Mic at 1 kHz (Max Gain): -86 dBu
Crosstalk <-80 dB at 1 kHz
Input Gain -5 to 58 dB Integrated Pad Design 1 dB Steps
Maximum Input Level +24 dBu
Maximum Output Level +22 dBu
Sample Rate 48 kHz
Converter 24-Bit
Latency 1.5 ms
Clock Accuracy +/- 25 ppm
Power Consumption 33 W
Operating Range 90 to 264 VAC, 47 to 63 Hz
Operating Temperature Range 14 to 122°F / -10 to +50°C
Relative Humidity 0 to 90%
Storage Temperature Range 14 to 122°F / -10 to +50°C
Package Weight 19.05 lb
Box Dimensions (LxWxH) 21.4 x 16.7 x 9.6″
