The Soundcraft Mini Stagebox 16 is a compact and cost-effective I/O expansion solution for Vi or Si series consoles, featuring 16 recallable mic/line inputs and 8 balanced line outputs in a 2U rack space, ideal for both local and remote stage applications.
Description

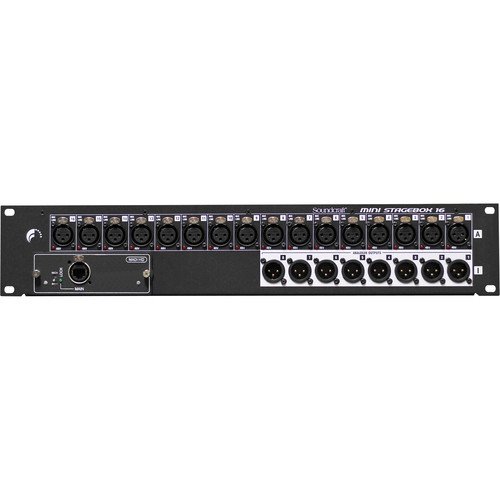

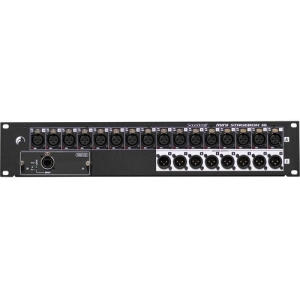

Soundcraft Mini Stagebox 16
The Soundcraft Mini Stagebox 16 provides a simple and cost-effective way to increase the I/O capabilities of your existing Vi or Si mixing consoles. Whether you need additional inputs and outputs locally or to connect stages hundreds of meters away, this compact unit offers significant expansion in just 2U of rack space.
Equipped with 16 recallable mic/line inputs and 8 balanced line outputs, the Mini Stagebox 16 extends your system’s capacity while maintaining high audio quality derived from the larger Compact Stagebox. It features a single-cable Cat 5 MADI HD interface for seamless connection to the host console, with potential upgrades for enhanced redundancy.
Features
- For Vi and Si Mixing Consoles
- Adds 16 Mic Line Inputs to System
- Adds 8 Outputs to System
- 2U Rack Unit
- Integrated Power Supply
- MADI HD Card Included
Specifications
| Compatible With | Vi1, Vi2, Vi4, Vi6, Vi3000, Vi5000, Vi7000 Si Impact, Si Performer, Si Expression, Si Compact Si1, Si2, Si3 |
| Frequency Response | +0/-1 dB, 20 Hz to 20 kHz |
| THD | <0.01% @ 1 kHz |
| Residual Noise | -85 dBu |
| Mic Input Noise (E.I.N.) | -125 dBu (150 Ohms Source) |
| CMRR | Mix Noise: < -86 dBu |
| Crosstalk | <-80 dB at 1 kHz |
| Input Gain | -5 to 58 dB |
| Max Input Level | +24 dBu |
| Max Output Level | +22 dBu |
| Sample Rate | 48 kHz |
| Converter | 24-Bit |
| Latency | 1.5 ms |
| Clock Accuracy | +/- 25 ppm |
| Power Consumption | 33 W |
| Operating Range | 90 to 264 VAC, 47 to 63 Hz |
| Operating Temp Range | 14 to 122°F (-10 to +50°C) |
| Relative Humidity | 0 to 90% |
| Storage Temp Range | 14 to 122°F (-10 to +50°C) |
Packaging Info
| Package Weight | 16.45 lb |
| Box Dimensions (LxWxH) | 21.3 x 16.6 x 9.6 in |
