Soundcraft Si Performer 1 Digital Live Console 16-Channel with DMX Control

Soundcraft

AED 25729.38 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 5039954 Categories: , Brand:

The 19″ rack-mountable Soundcraft Si Performer 1 Digital Live Console is a versatile audio solution for live sound reinforcement in diverse applications such as houses of worship, music venues, theaters, and corporate events, featuring an integrated DMX controller and compatibility with the ViSi Remote App for iPad, enabling unified control of sound and lighting by a single operator.

Description

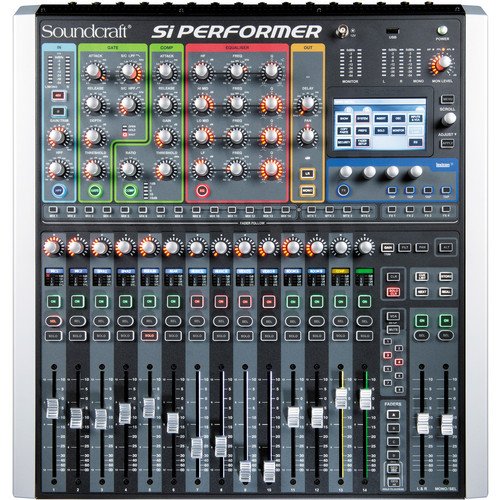

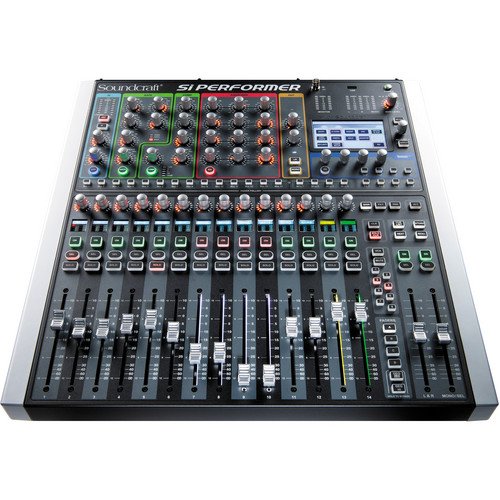

Soundcraft Si Performer 1 Digital Live Console

The 19″ rack mountable Soundcraft Si Performer 1 Digital Live Console is designed as a live sound reinforcement system for various professional audio applications, including houses of worship, music venues, musicians, bands, theaters, touring companies, and corporate events. It is especially beneficial for settings where one operator handles both sound and lighting due to its integrated DMX controller and compatibility with Soundcraft’s ViSi Remote App for Apple iPad.

Features

  • 80 Mix Channels
  • 16 Mono Microphone I/O
  • Backlit LCD Screens per Fader
  • GEQ per Bus
  • Four FX Busses and Lexicon FX Engine
  • LCR Mix Busses
  • Integrated DMX Control
  • AES In and Out
  • Two ViSi Connect Card Slots
  • Color Touch Screen Interface

Specifications

Category Specification Details
Mixer Number of Analog Input Channels 16
Mixer Number of Mic Preamps 16
Signal Processing Gain/Trim Range Mic: -5 dB to 58 dB (in 1 dB Steps)
Line: -10 dB to +16 dB
Signal Processing Gate Parameters Threshold: -60 to -6 dBFS
Depth: -60 to -3 dB
Attack: .1 ms to 200 ms
Release: 20 ms to 500 ms
Signal Processing Compressor Parameters Threshold: -52 to -6 dBFS
Ratio: 1:1 to 20:1
Attack: .1 to 200 ms
Release: 5 to 900 ms
Makeup Gain: 0 to 24 dB
Signal Processing Sidechain Filters Gate:
High-Pass: 22 Hz to 2.5 kHz
Low-Pass: 160 Hz to 20 kHz
Signal Processing EQ Parameters HF Shelf: ±15 dB at 800 Hz to 20 kHz
MF Notch/Peak: ±15 dB at 22 Hz to 20 kHz, 6 to 0.3 Q
LF Shelf: ±15 dB at 20 Hz to 500 Hz
Signal Processing Graphic EQ 28-Band 1/3 Octave, 31 Hz to 16 kHz
Signal Processing Filters High-Pass: 40 Hz to 1 kHz
Signal Processing Audio Delay Adjustable Up to 500 ms
Digital Audio Sample Rates AD/DA Conversion: Up to 200 kHz
Digital Audio Bit Depth AD/DA Conversion: 24-Bit
Digital Audio DSP 40-Bit Floating Point
Digital Audio Jitter ± 7 ns
Digital Audio Word Clock Input 48 kHz ±7 Hz
Digital Audio Latency < 0.8 ms (Mic Input to Line Output)
< 0.6 ms (Analog Input to AES Output)
< 0.8 ms (AES Input to Line Output)
< 0.5 ms (AES Input to AES Output)
< 0.9 ms (Stagebox Input to Stagebox Output)
Performance dBFS Reference Level +21.5 dBu = 0 dBFS
Performance Frequency Response Mic/Line Input: 20 Hz to 20 kHz ±1.5 dB
Performance Max Input Level Mic Input: +22 dBu at Max Gain
Line Input: +22 dBu at Max Gain
Performance Output Level Mix Output: +21.5 dBu (Max)
Performance Headphone Output Power 300 mW into 150 Ohms
Performance I/O Impedance Mic Input: 3 Kilohms
Line Input: 10 Kilohms
AES3 Input: 110 Ohms
Output: 150 Ohms (Balanced)
75 Ohms (Unbalanced)
Word Clock Output: 50 Ohms
Word Clock Input: 47 Kilohms
AES3 Output: 110 Ohms
DMX Output: 120 Ohms
Performance Crosstalk Adjacent Channels: < 120 dB
Adjacent Inputs: -100 dB at 1 kHz
-85 dB at 10 kHz
Performance CMRR -80 dBu at Max Gain
Performance EIN -126 dBu at Max Gain
Performance Noise Floor < -86 dBu (at Unity Gain)
Performance THD < 0.01%

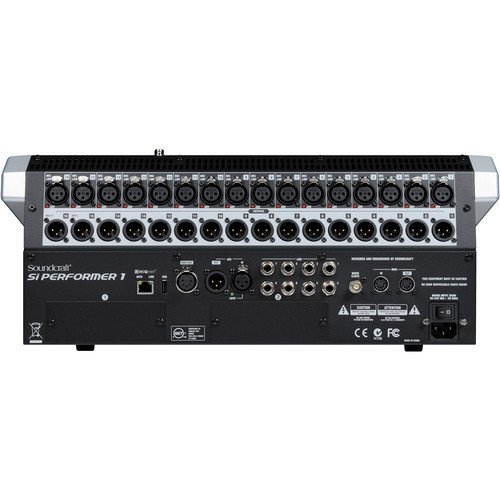

Connectivity Analog Inputs 16 x XLR Mic/Line Input
8 x 1/4″ Line Input
Connectivity Analog Outputs 16 x XLR Line Output
1 x 1/4″ TRS Headphone Output
Connectivity Digital I/O 1 x BNC Input (Word Clock)
1 x RJ45 HiQnet
1 x XLR 5-Pin DMX Output
1 x XLR AES3 Input
1 x XLR AES3 Output
Connectivity MIDI I/O 1 x MIDI 5-Pin In
1 x MIDI 5-Pin Out
Connectivity USB 1 x USB Type-A
Connectivity Expansion Ports 1 x 64 x 64 I/O Card
1 x 64 x 32 I/O Card
2 x I/O Card
Power AC Input Power 88 to 246 VAC, 50 / 60 Hz
Power Power Consumption 130 W (Maximum)
Power Lamp Power 12 VDC at 100 mA
Physical Operating Temperature 41 to 113°F / 5 to 45°C
Physical Operating Humidity 0 to 90%
Physical Storage Temperature -4 to 140°F / -20 to 60°C
Physical Dimensions 7.4 x 17.5 x 20.9″ / 18.8 x 44.5 x 53 cm
Physical Weight 30 lb / 13.6 kg
