Soundcraft Si Expression 2 Digital Mixer 24 Mic Preamps 5035678

Soundcraft

AED 19,424.11 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2โ€“3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 5035678 Categories: , Brand:

The Soundcraft Si Expression 2 Digital Mixer is a versatile live sound digital mixing console, offering 24 microphone preamps, 4 line inputs, AES in, 4 internal stereo FX returns, 22 faders, a 64 x 64 expansion slot, and 66 input processing channels for extensive routing and mixing capabilities.

Description

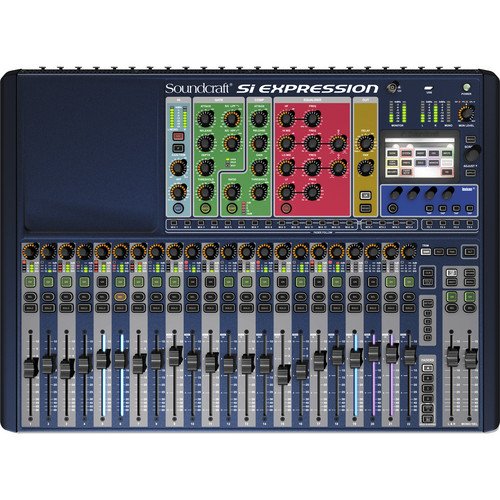

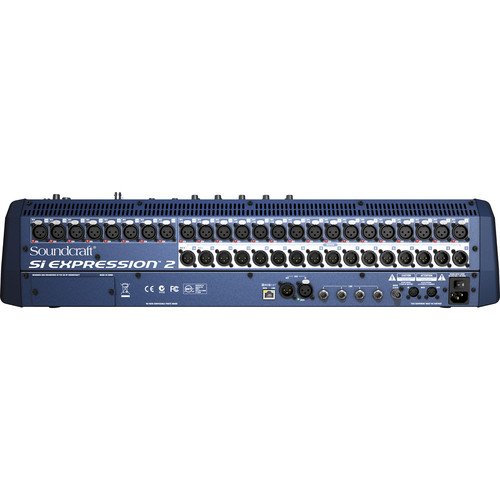

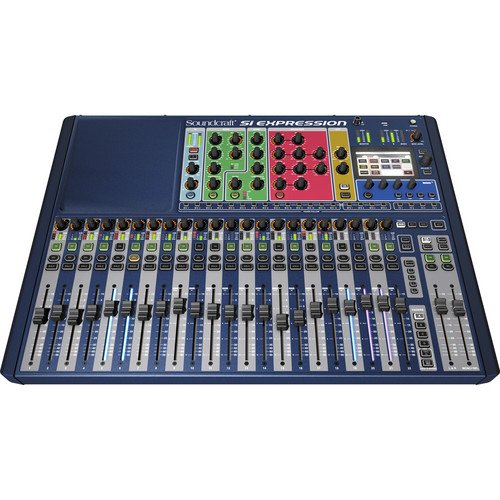

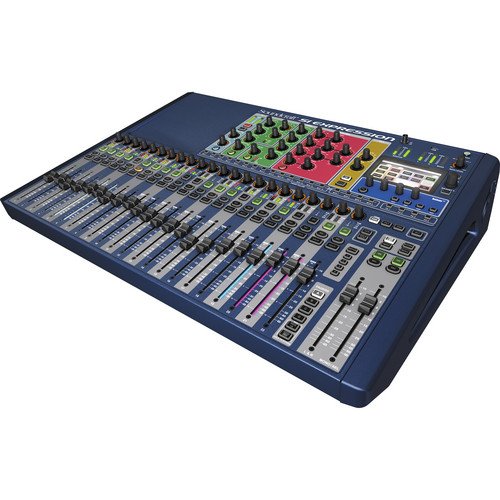

Soundcraft Si Expression 2 Digital Mixer

The Soundcraft Si Expression 2 Digital Mixer is a versatile and powerful digital mixing console designed for live sound applications. It boasts an array of features that meet the demands of both professional and amateur sound engineers, ensuring exceptional audio quality and flexibility.

Features

  • 24 Microphone Pre-Amplifiers
  • 22 Multi-Color Illuminating Faders
  • 64 x 64 Channel Expansion Slot
  • 14 Auxiliary/Group Mixes
  • 4 Stereo Lexicon FX Engines
  • 66 Input Processing Channels
  • Direct Output Gain Stabilization
  • Copy and Paste Channel Strip
  • Global Mode Encoders
  • ViSi Remote Control over iPad

Specifications

Preamplifier 24 x Balanced XLR’s with preamps
Faders 22
Frequency Response Mic/Line Input to any output ยฑ1.5 dB, 20 to 20,000 Hz
THD Mic sensitivity -30 dBu: <0.01% at 1 kHz
Residual Noise Master output; no inputs routed, mix fader at 0 dB: <-86 dBu
Mic Input Noise (E.I.N.) -126 dBu (150 ฮฉ source)
Mix Output Noise < -86 dBu
Input Noise 1 input to mix at unity gain: -84 dBu
CMRR Mic at 1 kHz: -80 dBu
Crosstalk Channel On attenuation: <120 dB
Channel Fader attenuation: <120 dB
Mic-Mic: -100 dB at 1 kHz, -85 dB at 10 kHz
Line – Line: -100 dB at 1 kHz, -85 dB at 10 kHz
Input Gain Microphone: -5 to 58 dB integrated pad design in 1 dB steps
Line Trim: -10 to 16 dB
Gate Threshold: -60 dBfs to -6 dBfs
Depth: -60 to -3 dB
Attack: 0.1 to 200 ms
Release: 20 to 500 ms
Side-chain HPF 22 to 2,500 Hz
Side-Chain LPF 160 to 20,000 Hz
Compressor Threshold: -52 dBfs to -6 dBfs
Ratio 1:1 to 20:1
Ratio: 1:1 to 20:1
Attack: 0.1 to 200 ms
Release: 5 to 900 ms
Make-up Gain: 0 to 24 dB
Equalizer Hi Mid and Low Mid: 22 to 20,000 Hz, ยฑ 15 dB, Q 6 to 0.3
Shelf (HF): 800 to 20,000 Hz, ยฑ 15 dB
Shelf (LF): 20 to 500 Hz, ยฑ 15 dB
HPF: 40 to 1,000 Hz
Audio Delay User adjustable 1 sample to 500 ms
Graphic EQ 31 to 16 kHz, 1/3 octave
Digital I/O AES Sample Rate Converter range: 8 to 200 kHz
External World Clock In range: 48 kHz ยฑ7 Hz (internal systems), ยฑ3 Hz with stageboxes
Word Clock Out jitter: ยฑ7 ns
Analogue Out for 0 dBfs: +21.5 dBu
Converter resolution: 24 bit
DSP resolution: 40 bit floating point
Latency Mic In to Line Out: <0.8 ms
Analogue In to AES Out: <0.6 ms
AES In to Line Out: <0.8 ms
AES In to AES Out; <0.5 ms
Stagebox Mic In to Stagebox: <0.9 ms
Input Level Mic Input: +22 dBu max
Line Input: +22 dBu max
Output Level Mix Output: +21.5 dBu max
Headphones at 150 ฮฉ 300 mW (recommended impedance 32 to 200 ฮฉ)
Input Impedance Mic Input: 3 kฮฉ
Line Input: 10 kฮฉ
AES Input: 110 kฮฉ
Word Clock used as Input: 110 kฮฉ
Output Impedance Outputs: 150 ฮฉ (balanced), 75 ฮฉ (unbalanced)
Word Clock used as Output: 50 ฮฉ
Word Clock used as Input: 47 kฮฉ
AES Output: 110 ฮฉ:
Lamp 12 VDC at 100 mA per socket
Power Consumption <130 W
AC Input Voltage range: 88 to 264 VAC auto sensing
AC Frequency range: 47 to 63 Hz
Operating Conditions Operating Temperature range: 41 to 113ยฐF (5 to 45ยฐC)
Humidity: 0 to 90% non condensing Ta= 104ยฐF (40ยฐC)
Storage Temperature range: -4 to 140ยฐF (-20 to 60ยฐC)
Dimensions 6.70 x 28.2 x 20.5″ (169 x 716 x 520 mm)
Weight 34.1 lb (15.5 kg)
Package Weight 47 lb
Box Dimensions (LxWxH) 33 x 27 x 11″
