Soundcraft Si Performer 3 Digital Live Console 80 Channels 32 Mic Inputs 5001849

Name: Soundcraft Si Performer 3 Digital Live Console 80 Channels 32 Mic Inputs 5001849
Brand: Soundcraft
SKU: 5001849
Price: 28946.38 AED
Availability: InStock

AED 28946.38 inc VAT.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

SKU: 5001849 Categories: Electronics Audio, Mixers Brand: Soundcraft

The Soundcraft Si Performer 3 Digital Live Console, ideal for live sound reinforcement in diverse settings like houses of worship, music venues, and corporate events, uniquely integrates a DMX controller and supports Soundcraft’s ViSi Remote App for Apple iPad, enabling a single operator to manage both sound and lighting.

Description
Additional information

Description

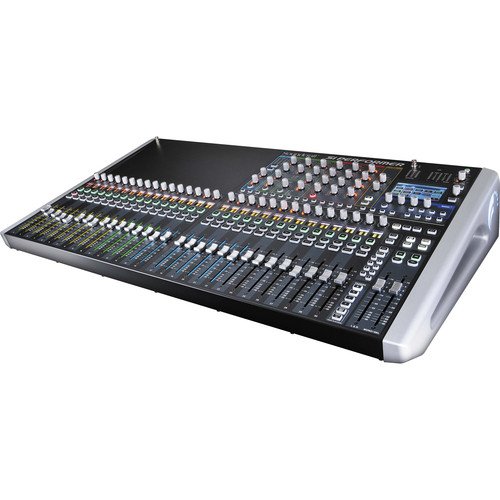

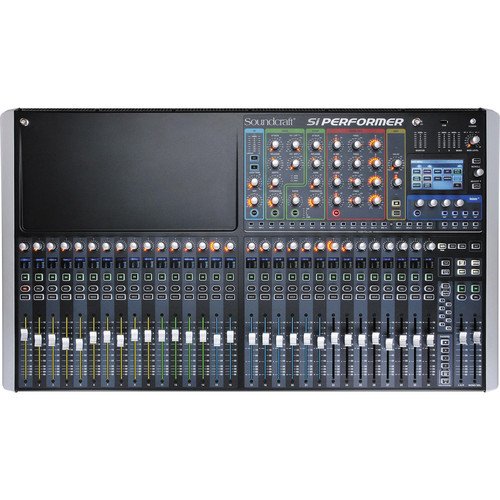

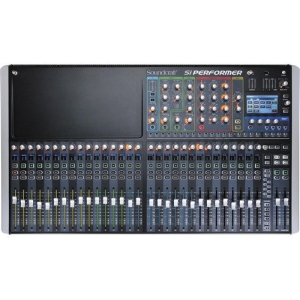

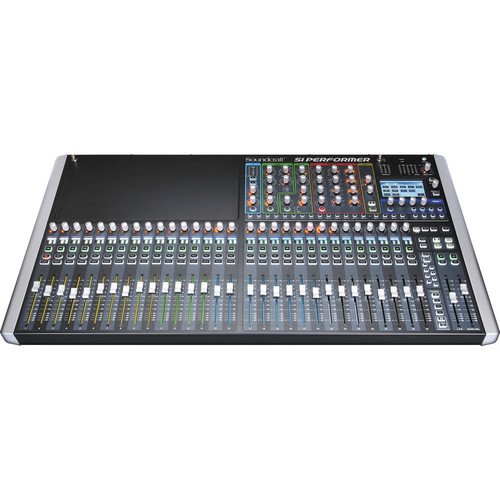

Soundcraft Si Performer 3 Digital Live Console

The Soundcraft Si Performer 3 Digital Live Console is an advanced audio mixer designed for live sound reinforcement. It is ideal for settings such as houses of worship, theaters, music venues, touring companies, and more. This console allows a single operator to manage both sound and lighting, thanks to its integrated DMX controller and compatibility with Soundcraft’s ViSi Remote App for Apple iPad.

Main Features

Specifications

Mixer

Number of Analog Input Channels	80
Number of Mic Preamps	32

Signal Processing

Gain/Trim Range	Mic: -5 dB to 58 dB (in 1 dB Steps) Line: -10 dB to +16 dB
Gate Parameters	Threshold: -60 to -6 dBFS Depth: -60 to -3 dB Attack: .1 ms to 200 ms Release: 20 ms to 500 ms
Compressor Parameters	Threshold: -52 to -6 dBFS Ratio: 1:1 to 20:1 Attack: .1 to 200 ms Release: 5 to 900 ms Makeup Gain: 0 to 24 dB
Sidechain Filters	Gate: High-Pass: 22 Hz to 2.5 kHz Low-Pass: 160 Hz to 20 kHz
EQ Parameters	HF Shelf: ±15 dB at 800 Hz to 20 kHz MF Notch/Peak: ±15 dB at 22 Hz to 20 kHz, 6 to 0.3 Q LF Shelf: ±15 dB at 20 Hz to 500 Hz
Graphic EQ	28-Band 1/3 Octave, 31 Hz to 16 kHz
Filters	High-Pass: 40 Hz to 1 kHz
Audio Delay	Adjustable Up to 500 ms

Digital Audio

Sample Rates	AD/DA Conversion: Up to 200 kHz
Bit Depth	AD/DA Conversion: 24-Bit
DSP	40-Bit Floating Point
Jitter	± 7 ns
Word Clock Input	48 kHz ±7 Hz
Latency	< 0.8 ms (Mic Input to Line Output) < 0.6 ms (Analog Input to AES Output) < 0.8 ms (AES Input to Line Output) < 0.5 ms (AES Input to AES Output) < 0.9 ms (Stagebox Input to Stagebox Output)

Performance

dBFS Reference Level	+21.5 dBu = 0 dBFS
Frequency Response	Mic/Line Input: 20 Hz to 20 kHz ±1.5 dB
Max Input Level	Mic Input: +22 dBu at Max Gain Line Input: +22 dBu at Max Gain
Output Level	Mix Output: +21.5 dBu (Max)
Headphone Output Power	300 mW into 150 Ohms
I/O Impedance	Mic Input: 3 Kilohms Line Input: 10 Kilohms AES3 Input: 110 Ohms Output: 150 Ohms (Balanced) 75 Ohms (Unbalanced) Word Clock Output: 50 Ohms Word Clock Input: 47 Kilohms AES3 Output: 110 Ohms DMX Output: 120 Ohms
Crosstalk	Adjacent Channels: < 120 dB Adjacent Inputs: -100 dB at 1 kHz -85 dB at 10 kHz
CMRR	-80 dBu at Max Gain
EIN	-126 dBu at Max Gain (2901653041)
Noise Floor	< -86 dBu (at Unity Gain)
THD	< 0.01%

Connectivity

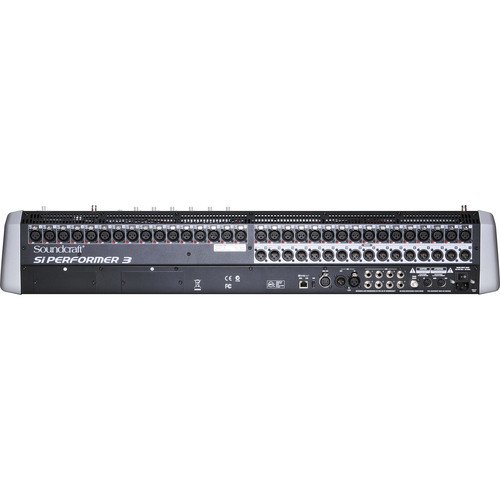

Analog Inputs	32 x XLR Mic/Line Input 8 x 1/4″ Line Input
Analog Outputs	16 x XLR Line Output 1 x 1/4″ TRS Headphone Output
Digital I/O	1 x BNC Input (Word Clock) 1 x RJ45 HiQnet 1 x XLR 5-Pin DMX Output 1 x XLR AES3 Input 1 x XLR AES3 Output
MIDI I/O	1 x MIDI 5-Pin In 1 x MIDI 5-Pin Out
USB	1 x USB Type-A
Expansion Ports	1 x 64 x 64 I/O Card 1 x 64 x 32 I/O Card 2 x I/O Card

Power

AC Input Power	88 to 246 VAC, 50 / 60 Hz
Power Consumption	130 W
Lamp Power	12 VDC at 100 mA per Socket

Physical

Operating Temperature	41 to 113°F / 5 to 45°C
Operating Humidity	0 to 90%
Storage Temperature	-4 to 140°F / -20 to 60°C
Dimensions	6.7 x 37 x 21.2″ / 17 x 94 x 53.8 cm
Weight	47.5 lb / 21.5 kg
