Description

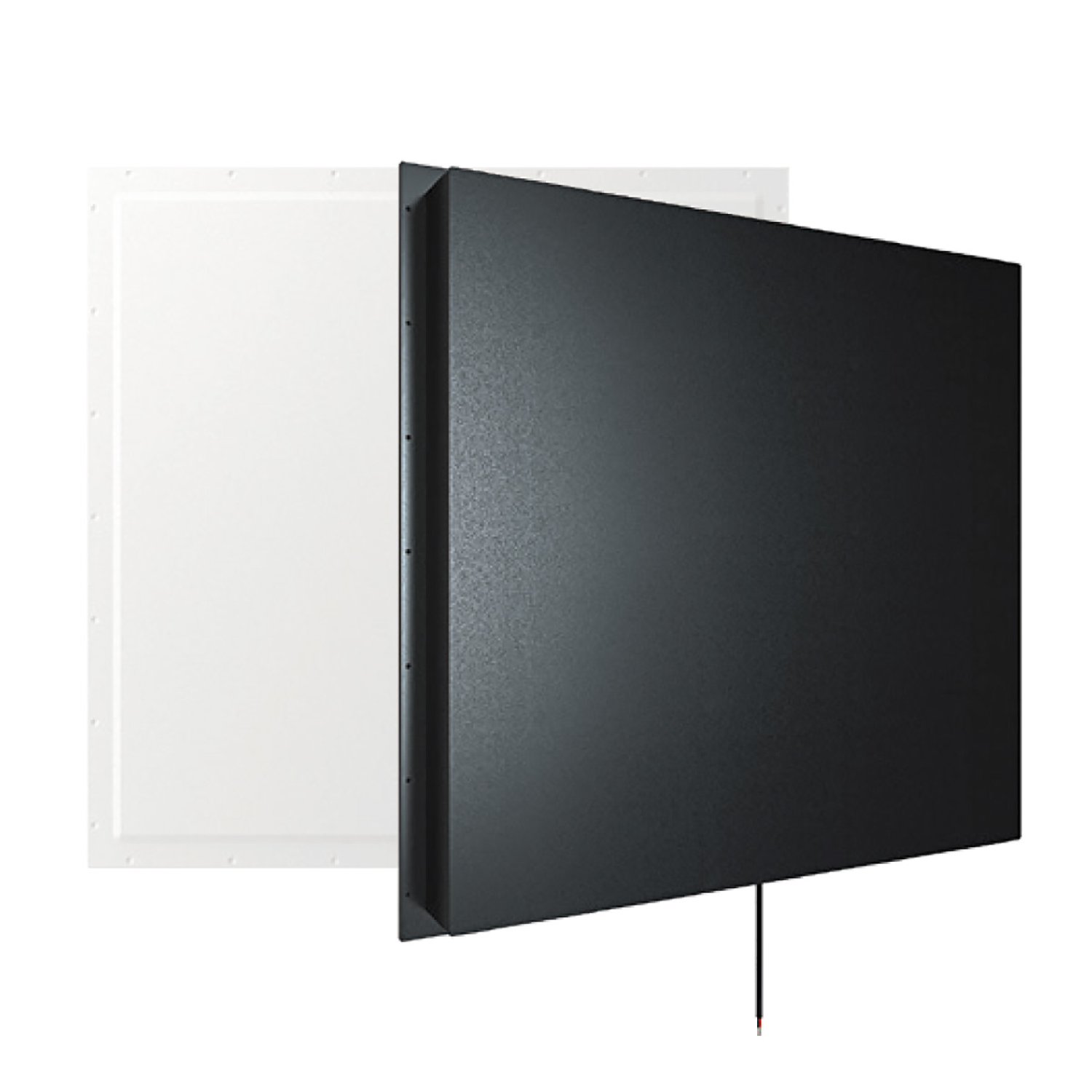

The Sonance Invisible Series 32″ x 32″ In-Wall Rectangle Speaker (IS15W) is part of Sonance’s Motion Flex Invisible Speaker family — engineered to “disappear” into walls while delivering professional-grade audio performance. The design pairs a Wave Flex Drive Unit and Air Flex woofer with an acoustically isolated baffle and Sonance’s proprietary Constant Directivity Crossover (CDX) to achieve smooth off-axis response and nearly 180° hemispherical dispersion. The Air Flex woofer couples a 15″ carbon-fiber woofer to an acoustically inert diaphragm to move a pocket of air like a piston for powerful, low-distortion bass. Installation and consistent finish performance are simplified by Sonance’s DISC (Depth Identification Sensing Calibration) system that measures finish thickness for repeatable results.
Specification | Details |
---|---|
Model / Abt SKU | IS15W / 93482 |
UPC | 041093934827 |
Series | Sonance Invisible Series (Motion Flex) |
Sold As | Each |
Key Technologies | Motion Flex, Wave Flex Drive Unit, Air Flex Woofer, Acoustically Isolated Baffle, Constant Directivity Crossover (CDX), DISC System |
Air Pulse Diaphragm Area | 592 in² (3819 cm²) |
Woofer | 15″ (381 mm) carbon fiber woofer |
Frequency Response | 25 Hz – 250 kHz (±3 dB) |
Impedance (Nominal) | 6 Ω |
Power Handling (RMS) | 250 W |
Sensitivity (2.83 V / 1 m) | 93 dB |
Dispersion | 180° hemispherical (up to 10 kHz) |
Speaker Shape / Type | Rectangle / In-Wall |
Color / Finish | Black (designed to be finished/matched to surface) |
Overall Dimensions (HxW) | Height: 32.2″ — Width: 32.2″ |
Depth / Mounting Depth | Depth: 3.86″ — Mounting Depth: 3.39″ |
Cut-Out Dimensions | Cut-Out Height: 30.12″ (approx, 765 mm) — Cut-Out Width: 30.12″ (approx, 765 mm) — Cut-Out Depth: 2.68″ (68 mm) |
Package Size (HxWxL) | 38″ x 9″ x 35″ |
Package Weight | 65 lbs |
Warranty | Manufacturer’s warranty — Product life (grille warranted 5 years). Some parts/labor limited 5 years per retailer listing. |
Installation Notes | Available in-store only through an authorized product specialist (per retailer); uses DISC system for finish thickness calibration; pre-construction brackets and isolating enclosures available for installation support. |
