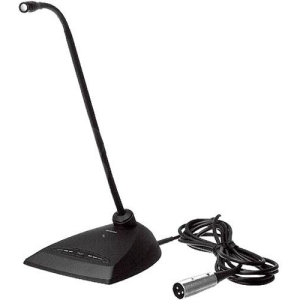

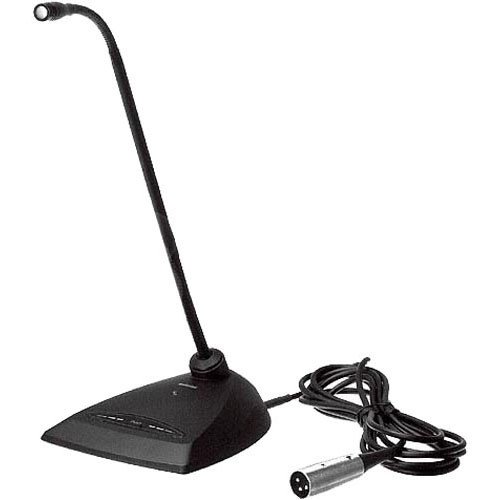

Shure Microflex Gooseneck Microphone

The Shure Microflex Gooseneck Microphones bring a whole new meaning to the word flexible. Beyond their fully adjustable goosenecks lies a new level of flexibility: the new Microflex interchangeable condenser microphone cartridge. Designed for easy replacement and available in cardioid and supercardioid polar patterns, the interchangeable cartridges offer a wide frequency response and accurate sound reproduction for a broad variety of applications such as houses of worship, courtrooms, and conference centers. The condenser cartridges fit every model in the new Microflex product line for enhanced convenience and consistent sound.

Microflex Gooseneck microphones are available in four models with a variety of heights and mounting styles to choose from. One model includes a silent mute switch with LED indicator, a Shure Microflex exclusive. And every Microflex Gooseneck features high sensitivity and balanced, transformerless output for maximum immunity to electromagnetic hum and RF interference, even over long cable runs. Each Microflex Gooseneck microphone comes with a complete installation kit.

Key Features

• Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
• Interchangeable cartridges (available separately) provide the right polar pattern for every application
• Balanced, transformerless output for increased immunity to noise over long cable runs
• Shockmount that provides over 20 dB of isolation from surface vibration noise
• Locking flange mount for permanently securing microphone to lecterns, pulpits, or conference tables

Specifications

Specification	Details
Form Factor	Gooseneck
Sound Field	Mono
Capsule	Condenser
Polar Pattern	Supercardioid
High-Pass Filter	None
Indicators	1 x Single LED (Status)
On-Board Controls	Mic Mute
Windscreen	Foam (Included)

Performance

Specification	Details
Frequency Range	50 Hz to 17 kHz
Maximum SPL	Supercardioid: 122.0 dB SPL (1 kHz, 1% THD, 1-Kilohm Load)
Impedance	180 Ohms at 1 kHz
Sensitivity	-32.5 dBV
Dynamic Range	94 dB (1-Kilohm Load)
Signal-to-Noise Ratio	66.0 dB (at 1 Pa/94 dB SPL)
Equivalent Noise Level	28 dB SPL

Connectivity

Specification	Details
Output Connectors (Analog)	1 x XLR 3-Pin Male (Locking, on Attached Cable)
Cable Length	9.84′ / 3 m
Cable Diameter	0.024″ / 0.6 mm
Number of Conductors	3

Power

Specification	Details
Operating Voltage	11 to 52 V (Phantom Power)
Operating Current Consumption	2 mA (Phantom Power)

Physical

Specification	Details
Mounting	Tabletop
Dimensions	L: 14″ / L: 35.56 cm (Microphone) H: 20 x W: 40.2 x L: 6.38″ / H: 50.8 x W: 102.1 x L: 16.2 cm (Base)
Weight	28.57 oz / 0.81 kg

Packaging Info

Specification	Details
Package Weight	4.3 lb
Box Dimensions (LxWxH)	22.9 x 10 x 7.5″
