Sennheiser EM 9046 SU Digital Wireless Receiver (470-798 MHz)

Sennheiser

AED 35855.85 inc VAT.

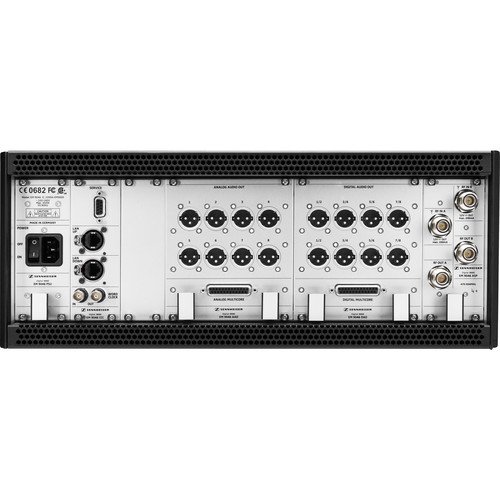

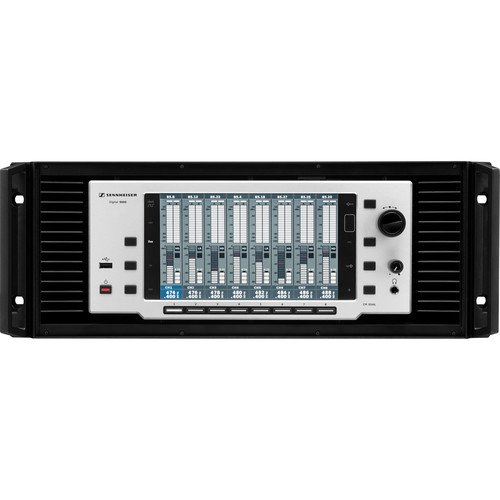

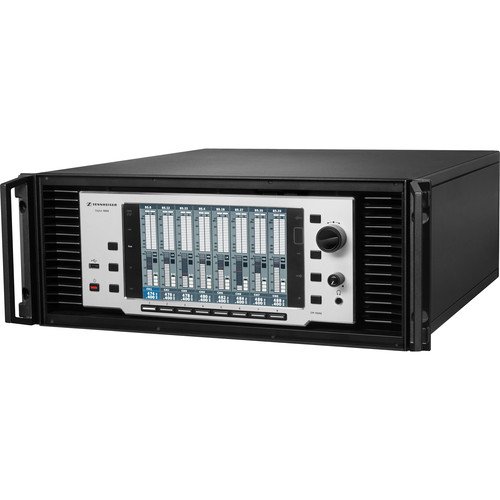

The Sennheiser EM 9046 SU is a digital wireless receiver mainframe for up to 8 EM 9046 DRX receiver modules, featuring PSU power supply, ASP antenna splitter, and CCC clock core controller modules. Ideal for live productions, it offers uncompressed digital audio, HD and Long Range transmission modes, 328 MHz tuning range, true-bit diversity, active antenna splitter, and an intuitive user interface with a graphical spectrum analyzer. Remote control via Wireless Systems Manager (WSM) is supported. Compatible with various Sennheiser transmitters, additional remote antennas, and output modules are required.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: EM 9046_SU Categories: , , Brand:

Description

Product Overview

The Sennheiser EM 9046 SU is an advanced digital wireless receiver mainframe designed for professional audio applications. Capable of accommodating up to 8 independent EM 9046 DRX receiver modules, this powerhouse offers unparalleled uncompressed digital audio quality and robust transmission reliability ideal for live productions, touring, and corporate events.

Main Features

  • Uncompressed HD Digital Sound
  • Long Range Transmission Mode with SeDAC Codec
  • Ultrawide 328 MHz Tuning Range
  • True-Bit Diversity Reception
  • Icon-based User Interface with Large TFT Display
  • Proprietary Encryption for Secure Transmission

Specifications

Specification Details
Wireless Technology Digital UHF
Diversity True Digital Diversity
RF Frequency Band 470 to 798 MHz
RF Bandwidth 328 MHz
Frequency Step Size 25 kHz
Latency 3 to 3.2 ms
Modulation Proprietary
Receiver Type Rackmount
Mounting Options Rackmount
Rackmount Size 4 RU (Full Rack)
Antenna Bias Voltage 12 VDC, 200 mA (Max, per Antenna)
Number of Audio Channels 8
Audio I/O 1 x 1/4″ 3-Pin Female Unbalanced Headphone Output
Gain Range -10 to +18 dB (1 dB Steps)
Frequency Response 60 Hz to 20 kHz (Mic)
Network I/O 2 x RJ45 (10/100 Mb/s)
Word Clock I/O 1 x BNC Input, 1 x BNC Output
RF Principle Double Superheterodyne
Approximate RF Sensitivity -86 dBm
Power Requirements AC Input
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Peak, RF Level, Transmitter Battery Status)
Dimensions 17.7 x 7 x 19.5″ / 449 x 177 x 496 mm
Weight 37.5 lb / 17 kg
