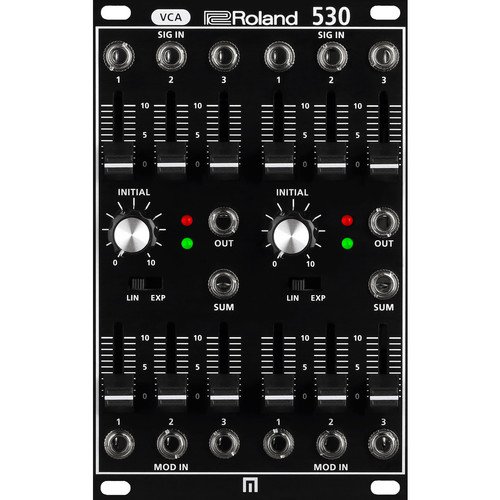

Roland System-500 Series – 530 – Dual VCA – Eurorack Module

Roland

AED 1942.50 inc VAT.

The System-500 Series – 530 from Roland is a dual voltage-controlled amplifier (VCA) in a single Eurorack module. Each independent VCA offers three inputs with level-slider controls, an initial level knob, and three modulation inputs with dedicated level sliders. Additionally, each VCA has a 2-way switch for linear or exponential settings, LED indicators for load and overloaded signals, and two summed outputs, which combine the outputs of each VCA. The 530 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately).

In stock
Enquiry Now
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: Sys-530 Category: Brand:

Description

The System-500 Series – 530 from Roland is a dual voltage-controlled amplifier (VCA) in a single Eurorack module. Each independent VCA offers three inputs with level-slider controls, an initial level knob, and three modulation inputs with dedicated level sliders. Additionally, each VCA has a 2-way switch for linear or exponential settings, LED indicators for load and overloaded signals, and two summed outputs, which combine the outputs of each VCA. The 530 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately).



Features

  • Dual Independent VCAs in a Single Module
  • 3 Inputs per VCA
  • 3 Level Sliders for Inputs per VCA
  • 3 CV Modulation Inputs per VCA
  • 3 Level Sliders for CV Levels per VCA
  • Linear/Exponential Switch per VCA
  • Sum Output Combines Both VCAs



Specifications

Controllers Signal-In 1 Slider
Signal-In 2 Slider
Signal-In 3 Slider
Modulation-In 1 Slider
Modulation-In 2 Slider
Modulation-In 3 Slider
2x Linear/Exponential Switches
2x Initial Knobs
Indicator LEDs Load: Green
Overload: Red
Connectors Signal In 1: 1/8″ / 3.5 mm
Signal In 2: 1/8″ / 3.5 mm
Signal In 3: 1/8″ / 3.5 mm
Out: 1/8″ / 3.5 mm
Sum: 1/8″ / 3.5 mm
Modulation In 1: 1/8″ / 3.5 mm
Modulation In 2: 1/8″ / 3.5 mm
Modulation In 3: 1/8″ / 3.5 mm
Horizontal Pitch 16 HP
Power Power Supply: Eurorack power
Current Draw: 50 mA (+12 V), 35 mA (-12 V)
Dimensions 3.2 x 2.3 x 5.1″ / 81.0 x 58.0 x 129.0 mm
Weight 6.8 oz / 194.0 g



Packaging Info
Package Weight 0.85 lb
Box Dimensions (LxWxH) 5.9 x 4.6 x 3.5″
