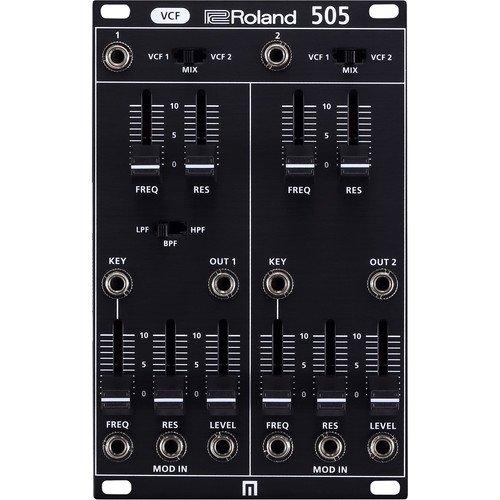

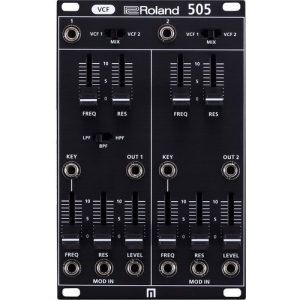

Roland System-500 – Series – 505 VCF – Dual Filters Based on SH-5 – Eurorack Module

Description

The Roland System-500 Series – 505 VCF is a dual, voltage-controlled filter (VCF), based on the highly coveted SH5 synthesizer, in a single Eurorack module. Filter 1 offers a multimode circuit (LP, BP, HP), while filter 2 uses a fixed bandpass mode. What’s more, the 505 can increase the resonance of the filter without losing the low end, making it a powerhouse for creating unique bass sounds.

There are dedicated inputs and outputs to each filter to allow for each to be used independently. Each filter also offers a mix switch allowing one to cascade the signal through either filter (series or parallel) for highly flexible signal routing. The 505 features a built-in VCA for each filter, as well as dedicated attenuator sliders and CV input controls for filter frequency, filter resonance, and level. The 505 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately).

Features

• Dual Independent VCFs in a Single Module
• 1 x Multimode Filter (HP, BP, LP)
• 1 x Fixed Bandpass Filter
• Dedicated Filter Cutoff and Resonance
• Built-In VCAs for Each Filter
• Use in Series or Parallel
• Independent In/Out for Each Filter
• Three CV Inputs per Channel
• CV Attenuators for Freq, Res, and Level
