Product Overview: Roland V-02HD MK II Multi-Format Video Mixer

Allen & Heath

AED 2352 inc VAT.

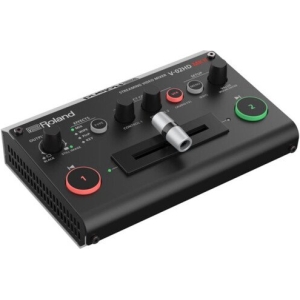

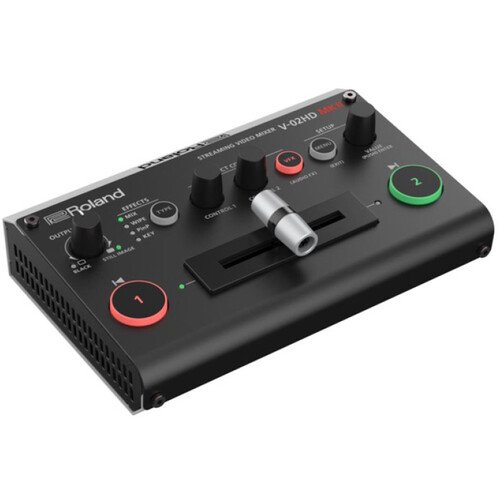

The Roland V-02HD MK II is a portable HD video mixer, allowing seamless switching between two HDMI sources using push buttons, a T-bar, or an optional foot-pedal switch, with outputs via HDMI or USB Type-C for streaming on Windows or Mac. Compact and lightweight, it fits in a gear bag and can be mounted on a tripod. Despite its size, it includes individual scalers for inputs and outputs, along with a T-bar for smooth transitions, graphics and effects controls, and an AC power supply.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: V-02HDMKII Categories: , , Brand:

Description

Product Overview: Roland V-02HD MK II Multi-Format Video Mixer

The Roland V-02HD MK II is a comprehensive and portable video mixer designed for seamless integration into mobile video production setups. It allows users to switch between two HDMI sources effortlessly, whether through push buttons, a T-bar, or an optional foot-pedal switch. This compact device outputs video via HDMI or USB Type-C, making streaming to a Windows or Mac computer straightforward and efficient.

Despite its small size, the V-02HD MK II is packed with features, including individual scalers on the input and output, as well as powerful video and audio effects and controls. Powered by an AC adapter, this unit is a complete solution for effective live video switching and streaming.

Key Features

  • Incorporates a switcher, scaler, audio solution, and inline video effects/compositor in a single unit.
  • Supports HDMI input from two cameras with dedicated preview and program outputs.
  • Features a built-in encoder for easy streaming via USB Type-C port.
  • Includes a 10-channel digital audio mixer with studio-grade audio effects.
  • Allows computer control and iPad remote app for enhanced functionality.
  • Capable of complex video effects like transitions, compositing, and visual effects.

Specifications

Specification Details
Switching Type Mechanical Switch, Pushbutton, T-Bar
Processing Resolution 1080p at 59.94
Color Processing 10-Bit 4:4:4
Audio Processing 48 kHz / 24-Bit

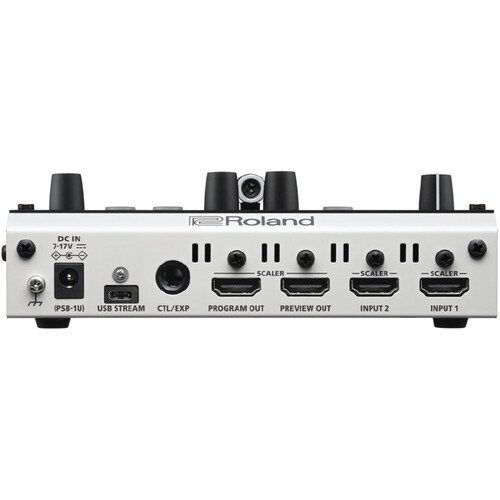

Video Inputs 2 x HDMI
Audio Inputs 2 x 1/8″ / 3.5 mm TRS Stereo Analog
Embedded Audio Input HDMI: 2-Channel (per Input)
Video Outputs 1 x HDMI (Program), 1 x HDMI (Preview)
Audio Outputs 1 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Power Consumption 7 to 17 VDC (10 W)
Dimensions 6.3 x 4.3 x 2″ / 16 x 10.8 x 5.1 cm
Weight 1.3 lb / 0.6 kg
