Description

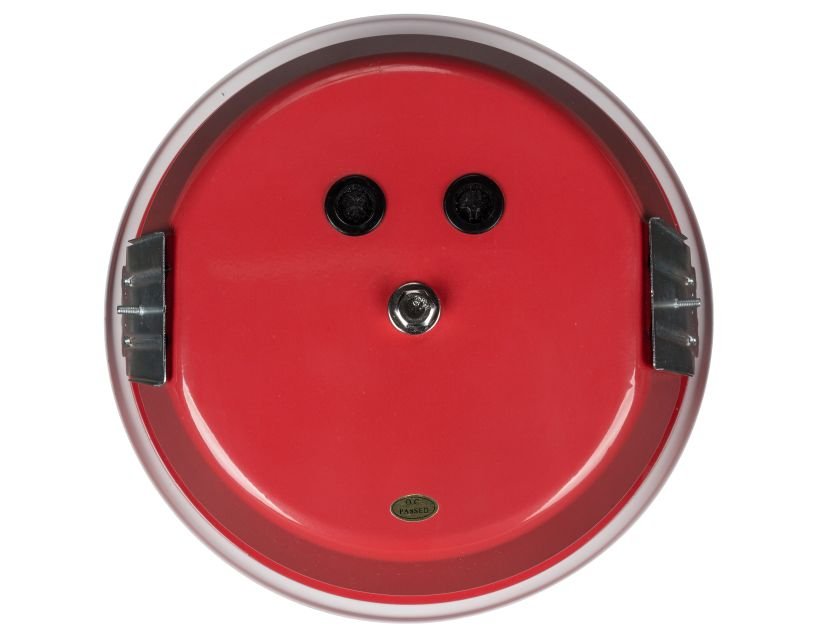

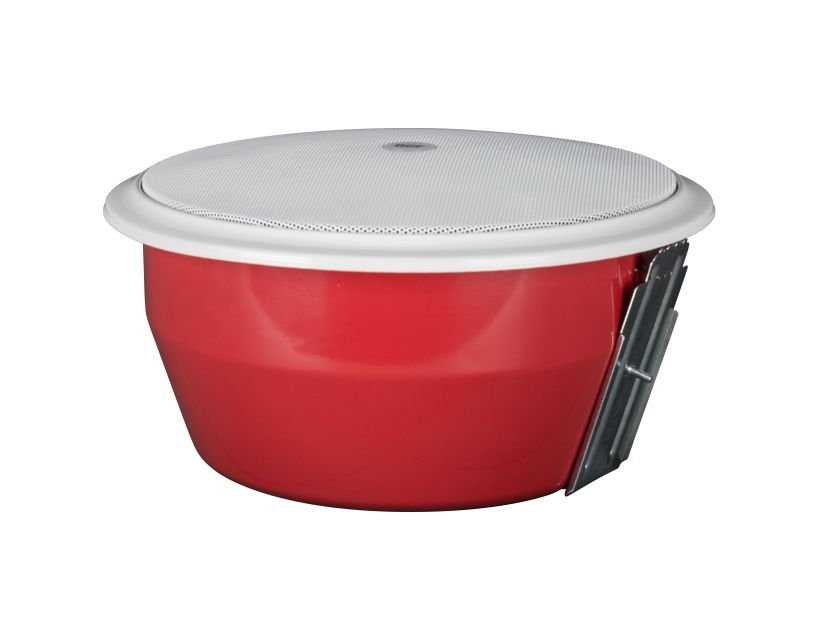

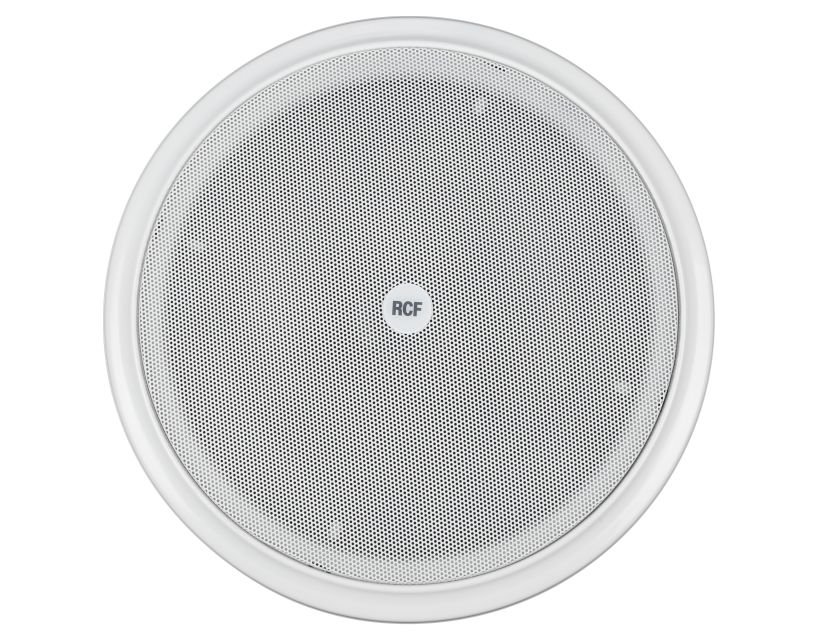

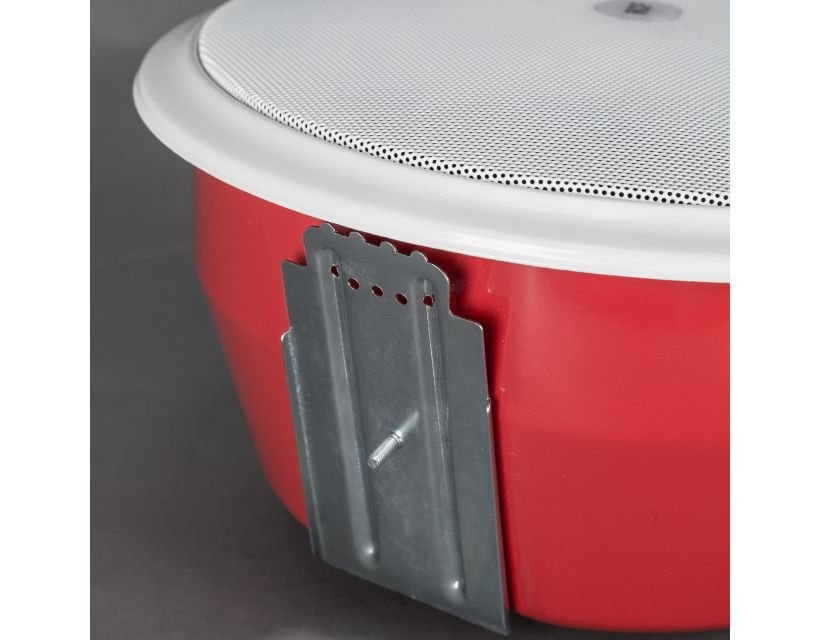

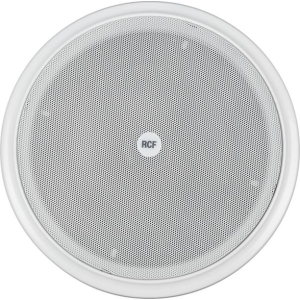

PL 82EN is a two-way ceiling speaker featuring a flameproof steel back can, designed for recess installation into ceilings or panels. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.



Features

• EN54-24 Certified
• 8″ coaxial woofer with 0.75″ dome tweeter
• Power selectable (100 V): 20 W – 10 W – 5 W
• 94 dB sensitivity
• Colour white RAL 9016
• Steel frame, grille and back can
• In/out ceramic terminal block
• Thermal fuse protection



Specifications

Acoustical Specifications

• FREQUENCY RESPONSE (-10DB):  130 Hz ÷ 20000 Hz
• MAX SPL @ 1M:  106 dB
• MAX SPL @ 4M:  94 dB
• COVERAGE ANGLE:  160°
• SYSTEM SENSITIVITY:  94 dB
• SYSTEM SENSITIVITY 1W @ 4M:  82 dB

Power Section

• POWER HANDLING:  20 W RMS
• PEAK POWER HANDLING:  80 W PEAK
• RECOMMENDED AMPLIFIER:  40 W
• PROTECTIONS:  Thermal fuse

Transducers

• DOME-TWEETER: 0.75”
• WOOFER:  Coaxial 8”’

Input/Output Section

• INPUT CONNECTORS:  Ceramic screw terminals
• OUTPUT CONNECTORS:  Ceramic screw terminals
• CONSTANT VOLTAGE TRANSFORMER:  100 V
• POWER SELECTION 1 (100 V):  20 W – 500 ohm
• POWER SELECTION 2 (100 V):  10 W – 1000 ohm
• POWER SELECTION 3 (100 V):  5 W – 2000 ohm

Standard Compliance

• CPR NUMBER:  1488-CPR-0486/W
• EN54-24 CERTIFIED:  Yes
• CE MARKING:  Yes

Physical Specifications

• COLOR:  White – RAL 9003
• HARDWARE:  Steel back cover
• GRILLE:  Steel
• CABINET/CASE MATERIAL:  Metal

Size

• DEPTH:  152 mm / 5.98 inches
• RECESSED DEPTH:  125 mm / 4.92 inches
• DIAMETER:  272 mm / 10.71 inches
• WEIGHT:  3.42 kg / 7.54 lbs
• CUT OUT DIAMETER:  240 mm / 9.45 inches

Shipping Information

• PACKAGE WEIGHT:  3.42 kg / 7.54 lbs
• PACKAGE DEPTH:  300 mm / 11.81 inches
• PACKAGE WIDTH:  300 mm / 11.81 inches
• PACKAGE HEIGHT:  180 mm / 7.09 inches
