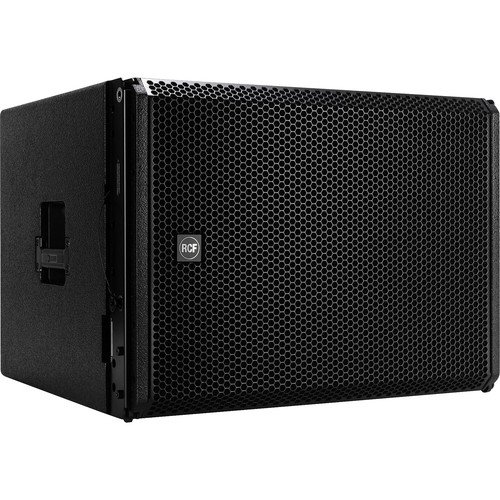

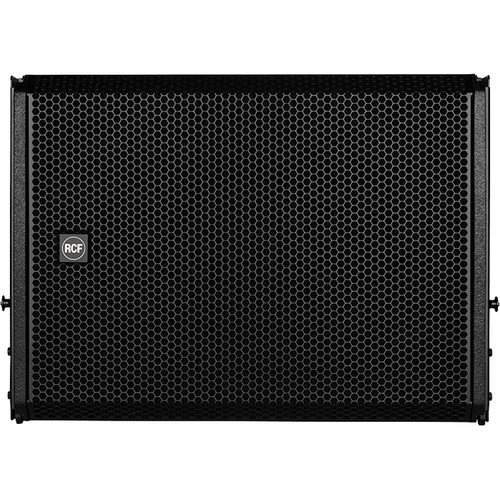

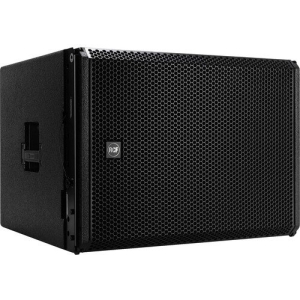

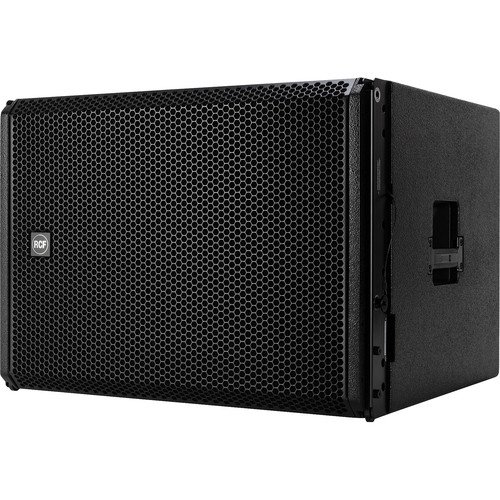

RCF HDL 38-AS 3200W Active Flyable Subwoofer Module – Black

RCF

AED 25503.45 inc VAT.

Designed for optimal integration with an HDL 30-A array, the black RCF HDL 38-AS active flyable subwoofer module provides 3200W peak (1600W RMS) of fast Class-D amplification, an impressive 136 dB max SPL, and the highly capable RDNet network control and monitoring system, rendering it a powerful solution for concert venues, theater houses, clubs, and other live stage applications.

The Baltic birch plywood cabinet, which is compatible with the HDL 30-A rigging, houses an 18″ neodymium woofer outfitted with a 4″ voice coil, allowing the HDL 38-AS to produce a frequency response of 30 to 140 Hz for deep bass. Onboard DSP—controllable via the subwoofer’s local panel or through RDNet software on a Windows-equipped device—enables effective manipulation of level, delay, EQ, and more. Connectivity includes XLR in and thru, etherCON RDNet in and out, and powerCON input and output.

In stock
Enquiry Now
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: HDL 38-AS 100-240V Categories: , Brand:

Description

Designed for optimal integration with an HDL 30-A array, the black RCF HDL 38-AS active flyable subwoofer module provides 3200W peak (1600W RMS) of fast Class-D amplification, an impressive 136 dB max SPL, and the highly capable RDNet network control and monitoring system, rendering it a powerful solution for concert venues, theater houses, clubs, and other live stage applications.

The Baltic birch plywood cabinet, which is compatible with the HDL 30-A rigging, houses an 18″ neodymium woofer outfitted with a 4″ voice coil, allowing the HDL 38-AS to produce a frequency response of 30 to 140 Hz for deep bass. Onboard DSP—controllable via the subwoofer’s local panel or through RDNet software on a Windows-equipped device—enables effective manipulation of level, delay, EQ, and more. Connectivity includes XLR in and thru, etherCON RDNet in and out, and powerCON input and output.



Features

RCF RDNet

RDNet is a robust management network and control platform for small, medium, and large arena-sized sound systems as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well), and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers; you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Legendary Woofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very-low frequencies, competitively small dimensions, self-powered design, RDNet remote control, cardioid configuration options, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

Powerful Class-D Amplifier

RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver ultrafast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminum structure which not only stabilizes the amplifier during transportation, but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

Cabinet and Mechanics

The hardware is designed for an easy and fast setup, completely compatible with the HDL 30-A rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.

Advanced FiR Filtering

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity, and perfect stereo images to the listener. The special FiRPHASE filters allow the speaker to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

Specifications

Configuration
Active Subwoofer
Enclosure Type
Line Array Subwoofer
Total Power Capacity
3200 W Peak
1600 W RMS
LF Driver
1 x 18″ / 45.7 cm Woofer
Enclosure Type
Line Array Subwoofer
Total Power Capacity
3200 W Peak
1600 W RMS
Amplifier Power Rating
3200 W Peak
1600 W RMS
Amplifier Class
Class-D
Drivers
MF Driver
No
LF Driver
1 x 18″ / 45.7 cm Woofer
LF Voice Coil
4″ / 10.2 cm
Magnet
Neodymium
Performance
Frequency Response
30 Hz to 140 Hz
Maximum SPL
136 dB
Input Sensitivity
+4 dBu
Protections
Output Limiter, Thermal

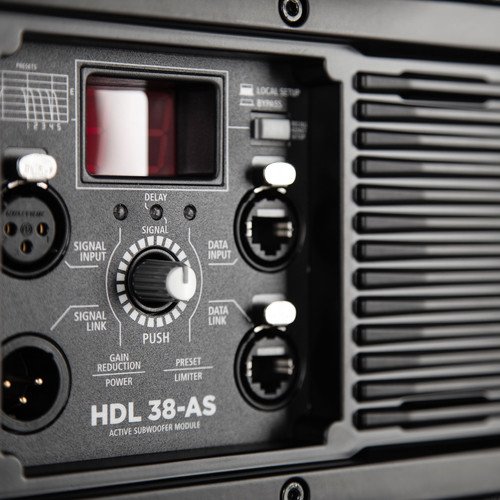

Connectivity
Audio I/O
1 x XLR 3-Pin Female Balanced/Unbalanced Line Input (Lockable)
1 x XLR 3-Pin Male Balanced/Unbalanced Line Thru
Network I/O
1 x etherCON (RDNet) Input
1 x etherCON (RDNet) Output
USB
No
Wireless Connectivity
No
Signal Processing
EQ
Yes
Parametric EQ
Yes
Semi-Parametric EQ
No
Alignment Delay
Yes
Phase Adjustment
Yes
Digital Signal Processing
Delay, FIR Filter, User Settings
Power
AC Input Power
115 VAC, 60 Hz
230 VAC, 50 Hz
AC Power I/O
1 x powerCON Input (Locking)
1 x powerCON Output (Locking)
Physical
Mounting
1 x Bracket Point (Each Side)
1 x Bracket Point (Rear)
Handles
1 x Each Side
Cooling
Convection
Environmental Protection
No
Construction Material
Metal Grille, Plywood
Certifications
CE
Dimensions
19.8 x 27.6 x 24.5″ / 50.3 x 70.1 x 62.2 cm
Weight
107.4 lb / 48.7 kg
