QSC Large Aluminum Array Frame AF2102-LA-BK Black for WideLine-10, 1423 lbs Capacity

QSC

AED 13,976.64 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: AF2102-LA-BK Categories: , Brand:

The QSC AF-2102-LA Large Aluminum Black Array Frame is designed for rigging the Wideline-10 line array loudspeaker, supporting up to 1423 pounds with a 7:1 strength rating or 8 enclosures. It features a three-point suspension system with front, left/right articulated joints, and a single rear link bar allowing for 2-degree increments of articulation, or 1-degree increments from 3 degrees using the second link bar location. The angular adjustments range from 0 to 10 degrees. The frame includes all necessary pieces and locking pins with lanyards, eliminating the need for additional ancillary items.

Description

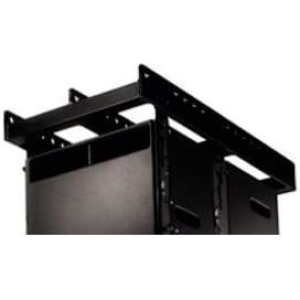

QSC AF-2102-LA Large Aluminum Black Array Frame

The QSC AF-2102-LA Large Aluminum Black Array Frame is designed for safely rigging the WideLine-10 line array loudspeaker. Crafted from heavy-duty aluminum, this fly grid is robust and reliable, capable of supporting up to 1423 pounds (646.8 kg) with a 7:1 strength rating. It can accommodate up to 8 stacked enclosures in a secure manner.

Featuring a three-point suspension system, WideLine-10 enclosures are equipped with front, left/right, and captive articulated joints, along with a single rear link bar. This system allows articulation in 2° increments using the first location on the link bar. For finer adjustments, the second location permits 1° increments, starting from 3°. Overall, the angular increments available are 0°, 2°, 3°, 4°, 5°, 6°, 7°, 8°, 9°, and 10°.

All components, including locking pins, remain with the enclosures, ensuring no additional items are necessary for suspension. Ball-lock pins come with lanyards to prevent loss, adding to the convenience and reliability of the system.

Key Specifications

Specification Details
Material Heavy-duty Aluminum
Color Black
Maximum Load Capacity 1423 pounds (646.8 kg)
Strength Rating 7:1
Maximum Stacked Enclosures 8
Suspension System Three-point
Angular Increments 0° to 10°
Locking Pins Equipped with Lanyards
