Ceiling Speakers

QSC AcousticCoverage Series AC-C8T-nb Speaker

QSC

AED 326.81 inc VAT.

The QSC AcousticCoverage Series AC-C8T-nb is a 70/100V ceiling-mounted loudspeaker with an 8″ driver, featuring a whizzer-treated paper cone transducer for clear vocal communication. It provides a frequency range of 53 Hz to 20 kHz and a 130° conical dispersion for wide area coverage in applications like background music, transportation terminals, and paging systems.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: AC-C8T-nb Categories: , , Brand:

Description

QSC AcousticCoverage Series AC-C8T-nb Speaker

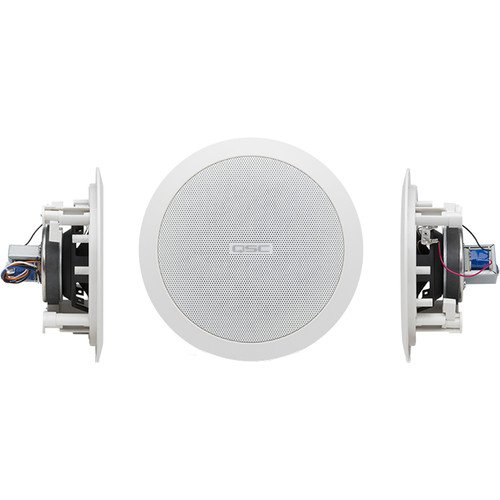

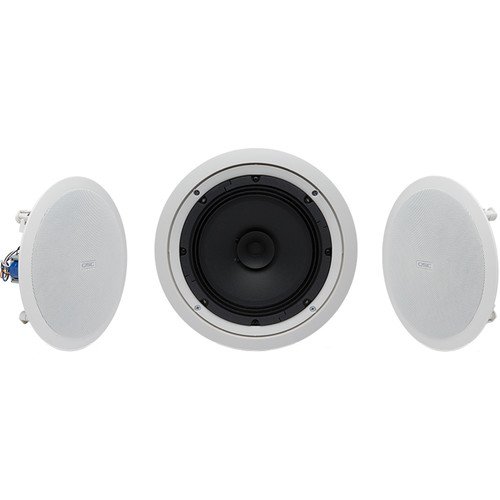

The QSC AcousticCoverage Series AC-C8T-nb is a versatile, full-range, ceiling-mounted loudspeaker designed for 70 or 100V systems. With an 8″ full-range driver, this speaker excels in providing background music, paging, and other audio needs across various environments.

The speaker’s whizzer, treated paper cone transducer ensures clear dispersion throughout the vocal range, making it suitable for critical communication needs. It features a frequency response of 53 Hz to 20 kHz and a conical dispersion of 130°, making it effective in providing even coverage in large areas, including those with low ceilings.

The QSC AC-C8T-nb is lightweight at 3.3 lb and requires only a 10″ cutout diameter for installation. The package includes a convenient installation assembly with four dog-ears under the steel grille for secure mounting.

Key Features

  • Excellent clarity through the critical voice range
  • Low-saturation 70/100V transformers with 8-ohm bypass
  • Advanced voicing via QSC Intrinsic Correction
  • UV inhibitor-treated white finish
  • Complete EASE, CF2, CAD & BIM information available online

Specifications

Specification Details
Active or Passive Passive
Number of Included Speakers 1
Speaker Configuration Full-Range
Power Handling 6 W RMS for 2 hours
Constant Voltage / Transformer Taps 70 V: 0.75 / 1.5 / 3 / 6 W
100 V: 1.5 / 3 / 6 W
Impedance 8 Ohms (Transformer Bypassed)
Full-Range Driver 1 x 8″ / 203.2 mm Paper Cone
Frequency Range 53 Hz to 20 kHz
Maximum SPL 104 dB (Continuous), 110 dB (Peak)
Sensitivity 96 dB
Coverage Angle 130° (Conical)
Directivity 7.5 dB (Directivity Index)
Color White
Mounting In-Ceiling
Cutout Depth 3.3″ / 83.8 mm
Construction Material ABS, Steel
Dimensions 11.14 x 3.31″ / 283 x 84 mm
Weight 3.3 lb / 1.5 kg
