PreSonus NSB 16.8 AVB Stage Box 16×8 with XMAX Preamps

Designed to work seamlessly with Presonus StudioLive Series III mixers, the Presonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. You also get 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free Presonus UC surface software. All eight outputs employ locking XLR jacks. A built-in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 16.8 to sit well on the stage and survive the rigors of the road. The unit can be rack-mounted with an optional rack-ear kit.

Features

• Rugged stage box enclosure
• 16 locking, remote controllable combo mic/line inputs
• 16 remote-controllable XMAX preamps
• Gain compensation for shared inputs
• 8 locking XLR line outputs

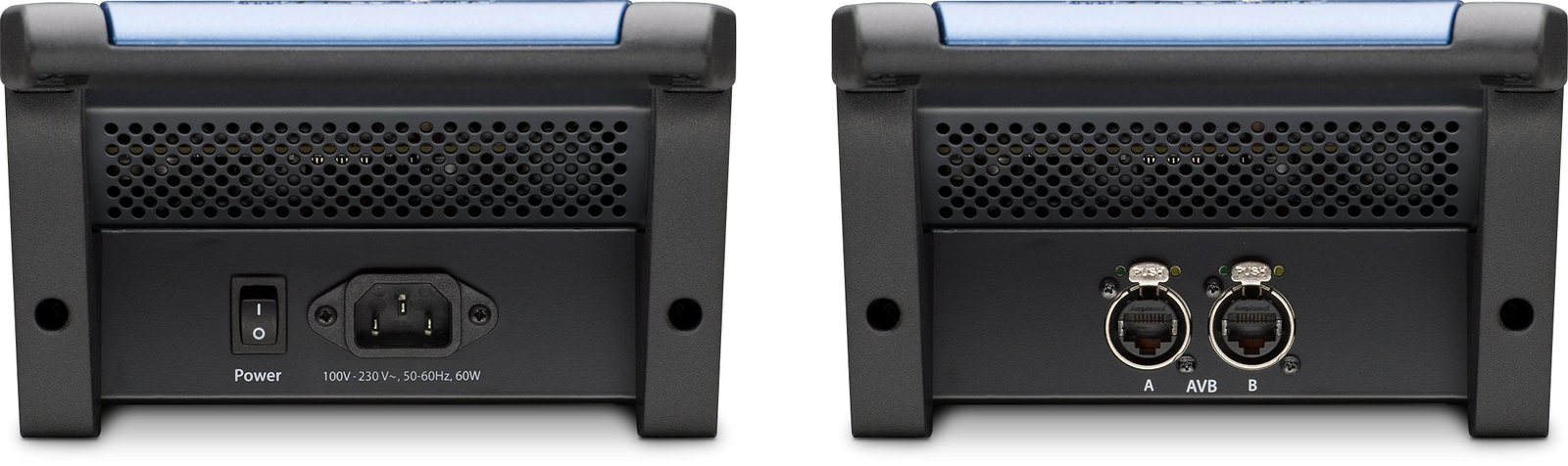

• 2 AVB ports with locking XLR Ethernet jacks
• 32 x 8 AVB (16 direct input channels + 16 gain-compensated input channels)
• Mute All button
• Locking IEC power jack
• 48V indicators
• Easy setup and control from StudioLive Series III consoles and free PreSonus UC Surface software
• Optional rack ears (available separately)
