PreSonus Eris Sub 10 Powered Studio Subwoofer

PreSonus Eris Pro Sub 10

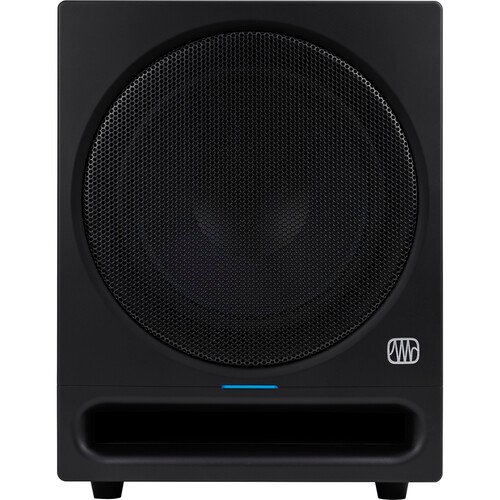

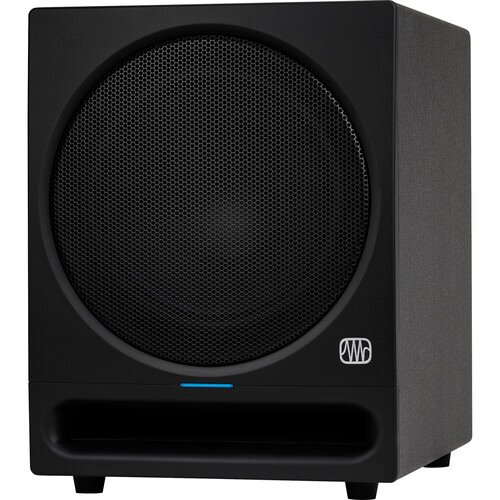

Expand the frequency range of your personal or professional music production studio with the PreSonus Eris Pro Sub 10. This front-firing 10″ active subwoofer is an ideal companion to the Eris Pro and Eris Studio series reference monitors, as well as any set of full-range studio monitors. The subwoofer complements your monitors without overshadowing them and extends the reach of your full-range system’s low end with a more musical and natural approach.

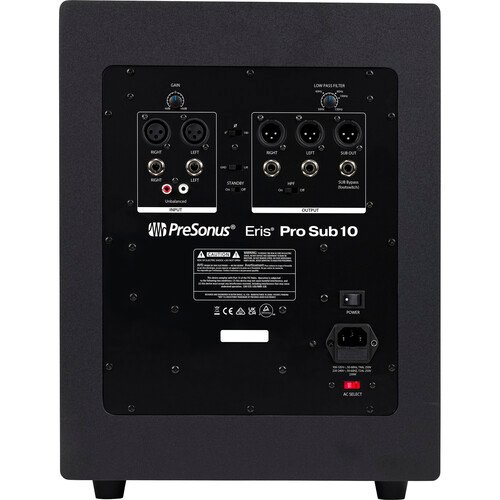

Utilizing a 170W Class-AB amplifier to power the 10″ composite woofer, the Eris Pro Sub 10 offers a frequency response from 20 to 200 Hz and a maximum SPL of 113 dB. The rear panel features a comprehensive set of controls to fine-tune the subwoofer’s performance, including input gain, a continuously variable low-pass filter for creating a seamless crossover transition, and a switchable high-pass filter that removes content below 80 Hz from the full-range signal sent to the monitors. A subwoofer bypass switch and power cord are included.

Key Features

• 10″ front-firing, glass-composite, low-frequency transducer
• Bass-reflex acoustic port
• Continuously variable low-pass filter (50 to 130 Hz) sets the upper frequency reproduced by the subwoofer
• Switchable high-pass filter removes frequency content below 80 Hz from the full-range subwoofer outputs to the main monitors
• Momentary footswitch (included) bypasses the subwoofer, high-pass filter, and Sub Out
• Input gain control (-30 dB to +6 dB, continuously variable), polarity invert switch, and ground-lift switch
• 170-watt (RMS) Class-AB amplification for up to 113 dB SPL, with a frequency response of 20 to 200 Hz
• Left and right, balanced XLR and ¼” TRS and unbalanced RCA main inputs
• Left and right balanced XLR and ¼” TRS outputs and XLR subwoofer output for connecting a second Eris Pro Sub 10

Specifications
