Description

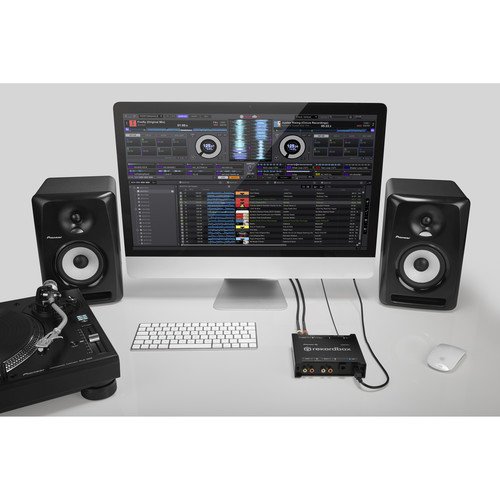

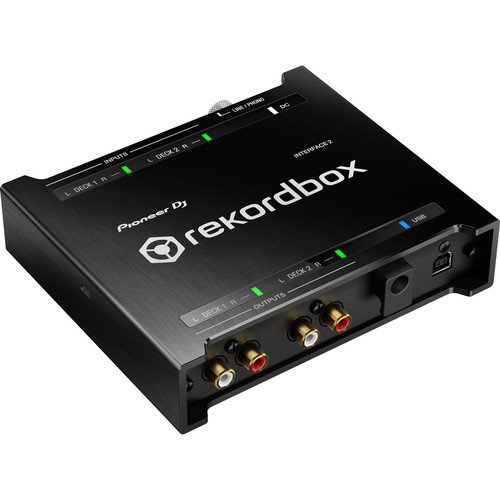

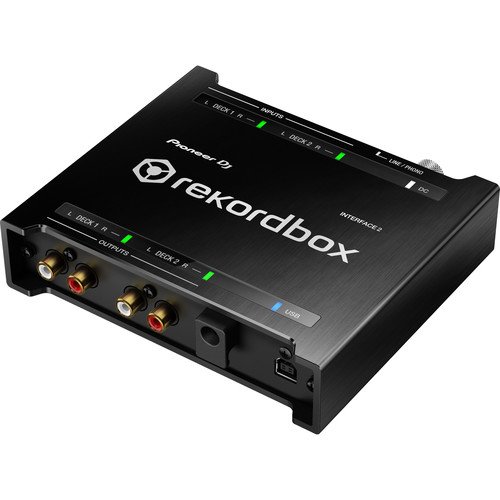

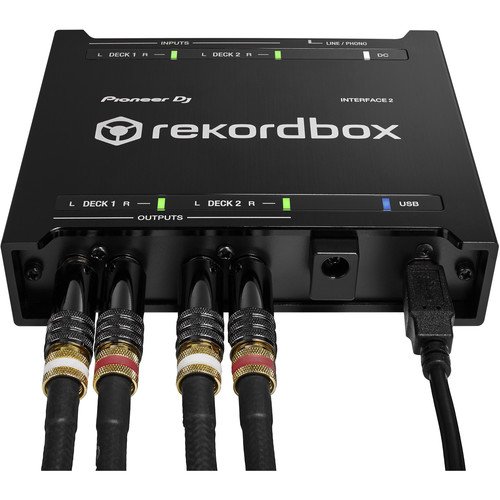

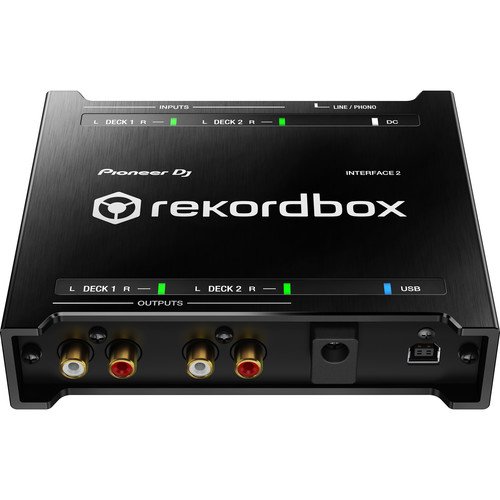

The Pioneer Interface 2 is a 2-channel audio interface designed for rekordbox dj and features rekordbox dvs, which allows you to play and scratch your digital music library from the included control vinyl disks. The Interface 2 connects to your computer via USB and offers three sample rates including 44.1, 48, and 96 kHz. Simply connect your turntables to the RCA inputs, launch the included rekordbox dj and dvs software, and start mixing right away. Alternatively, you can download a custom control signal WAV file if you’d like to use CDs or a USB drive to scratch with your players, controller, or all-in-one system.
Features
- Digital Vinyl System Interface
- For Turntables & CD Players

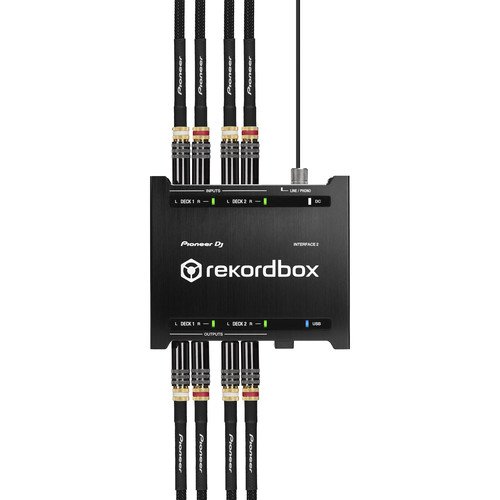

- Two Sets of RCA for Inputs & Outputs
- Professional Quality: 24-Bit
- Supported Sample Rates: 44.1, 48, 96 kHz

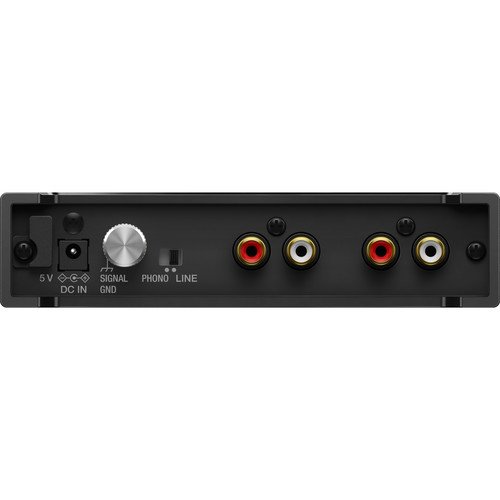

- Dedicated Turntable Grounding Post
- Includes rekordbox dj & dvs
- Two Control Vinyl Records Included
- Includes Four RCA Cables
- Includes Power Supply & USB Cable
Specifications
| Form Factor |
Desktop |
| Display |

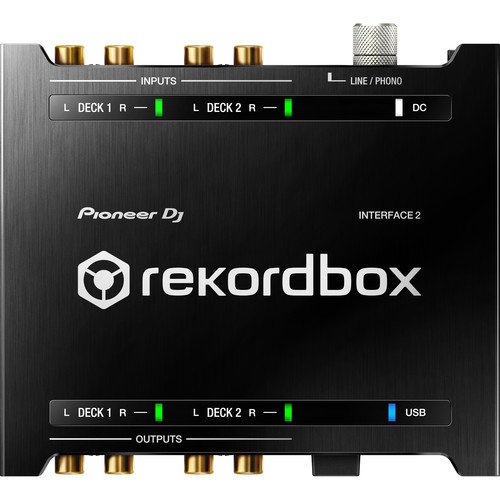

6 x Color LED |
| Channels of I/O |
2 Inputs / 2 Outputs at 44.1/48/96 kHz |
| Maximum Sampling Rate |
96 kHz / 24-Bit |
| Number of Microphone Preamps |
None |
| Built-In Microphone |
None |
| Expansion Slots |
None |
Signal Processing
| Pad |
None |
| High-Pass Filter |
None |
| Solo/Mute |
None |
Connectivity

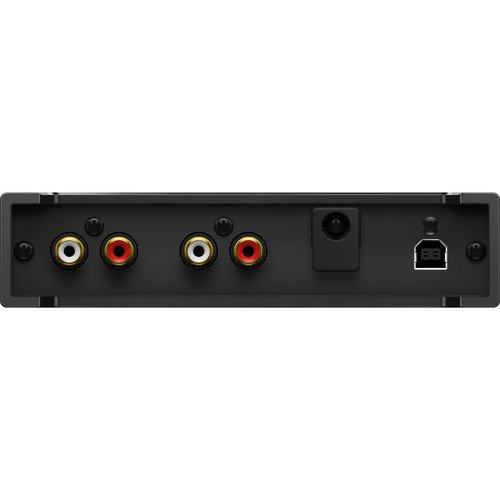

| Analog Audio I/O |
2 x Stereo RCA TS Unbalanced Line/Phono Input
2 x Stereo RCA TS Unbalanced Line Output |
| Phantom Power |
None |
| Digital Audio I/O |
None |
| Host Connection / USB |
1 x USB-B |
| Host Connection Protocol |
USB 2.0 |
| USB (Non-Host) |
None |
| Sync I/O |
None |
| Network I/O |
None |
| MIDI I/O |
None |
| Wireless Connectivity |
None |
Performance
| Frequency Response |
20 Hz to 20 kHz |
| SNR |
Line: 103 dB
Digital: 112 dB
Analog: 100 dB |
| THD |
Line: < 0.005%
Analog: 0.007%
Digital: 0.002% |
Digital Audio
| Sample Rates |
44.1 / 48 / 96 kHz |
| Bit Depths |
Up to 24-Bit |
| Sync Sources |
None |
Compatibility
| OS Compatibility |
Windows 10 or Later
macOS 10.11 or Later
*As of April, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software |
None |
| Included Plug-Ins |
None |
| Mobile Device Compatibility |
None |
| Required Hardware |
USB 2.0 Port |
| Internet Connection |
Required for Software/Driver Download |
Power
| Power Requirements |
USB Bus Power |
Physical
| Anti-Theft Features |
Kensington Security Slot |
| Dimensions |
5.55 x 5.03 x 1.28″ / 140.97 x 127.76 x 32.51 mm |
| Weight |
1.3 lb / 590.0 g |
Packaging Info
| Package Weight |
4.855 lb |
| Box Dimensions (LxWxH) |
13.35 x 12.7 x 3.65″ |
