Pioneer DJ DM-40-W White DJ Monitors

Pioneer DM-40-W Active Two-Way Monitors

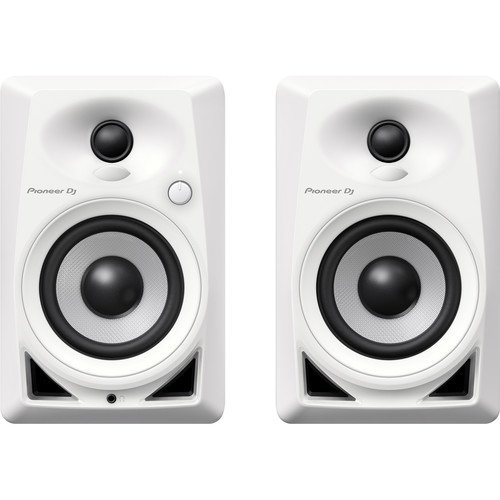

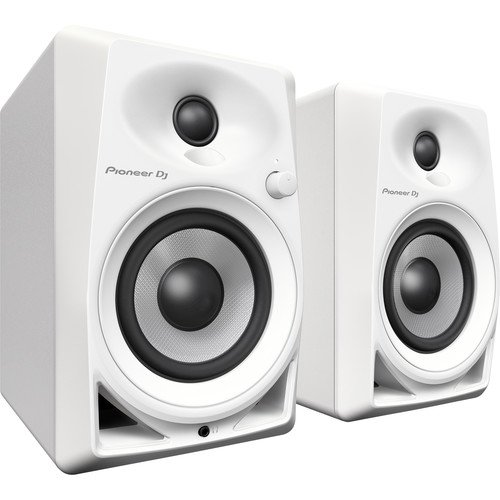

The DM-40-W from Pioneer offers a high-quality listening experience for DJs, producers, and musicians. These white, active two-way monitors are ideal for both mobile setups and personal studios. The built-in class AB amplifiers deliver 21W of power, driving 4″ fiberglass woofers and 0.75″ soft dome tweeters for a rich, full-range sound.

Key Features

Front-Loaded Bass Reflex System

4″ fiberglass woofers ensure strong, punchy bass. The bass reflex ducts are designed to optimize bass projection, with grooves that break up airflow to provide tight, clear low frequencies. This feature is especially effective when the monitors are placed against walls.

Stereo Sound

The 0.75″ soft dome tweeters use DECO convex diffusers to direct high frequencies in multiple directions, creating a wide sweet spot and consistent sound quality from various listening positions.

Time Alignment

Class AB amplifiers produce crisp, low-distortion sound. Both the tweeter and woofer are time-aligned to minimize crossover distortion, providing clarity and balance across the frequency spectrum.

Cabinet Design

The monitors’ curved front edges reduce resonance and ensure durability, while the sturdy vinyl-laminated MDF construction enhances sound quality.

Convenience

Multiple input options include RCA and 3.5mm jacks, catering to various audio sources such as DJ mixers, audio interfaces, and smartphones. The front panel features a 3.5mm headphone port and a volume control for easy mix monitoring.

Specifications

Specification	Details
Type	2-way Active
Woofer	4″ fiberglass
Tweeter	0.75″ soft dome

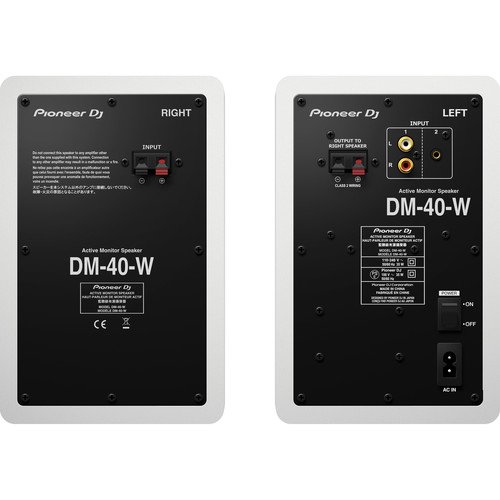

Inputs	1 x 1/8″ (3.5mm) stereo jack (left monitor), 2 x RCA jacks (left monitor), 1 x Speaker terminal (right monitor)
Outputs	1 x 1/4″ stereo headphone jack, 1 x Speaker terminal (left monitor)
Amplifier Class	AB
Amplifier Power	21 W at 4 Ohms (per channel)
Impedance	10 kOhms
Power Requirements	110 to 240 VAC, 50/60 Hz
Power Consumption	35 W, 0.5 W or less (standby)
Operating Temperature	41 to 95°F / 5 to 35°C
Operating Humidity	<85% relative humidity
Enclosure Material	Vinyl-laminated MDF
Dimensions	5.7 x 8.9 x 8.8″ / 146 x 227 x 223 mm (left monitor), 5.7 x 8.9 x 8.3″ / 146 x 227 x 210 mm (right monitor)
Weight	6 lb / 2.7 kg (left monitor), 4.9 lb / 2.2 kg (right monitor)
Package Weight	14.6 lb
Box Dimensions (LxWxH)	15.5 x 13.6 x 10.8″
