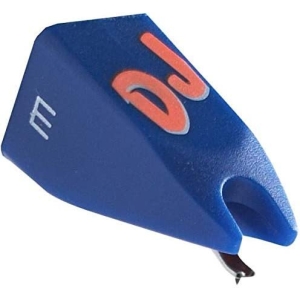

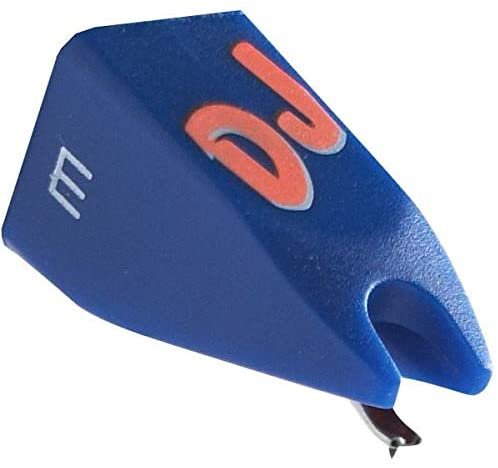

Name: Ortofon DJ E Turntable Stylus Needle
Brand: Ortofon
SKU: Stylus DJ E
Price: 199.00 AED
Availability: InStock

Ortofon DJ E Turntable Stylus Needle

AED 199 inc VAT.

The basic model for scratch and back-cueing offers outstanding rigidity with an extra-strengthened cantilever, featuring a specially designed elliptical stylus and an exceptionally balanced cantilever.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

DJ E Replacement Stylus

The DJ E Replacement Stylus is the essential tool for professional DJs, offering unparalleled scratch and back-cueing capabilities. Designed with an extra-strengthened cantilever, this stylus provides exceptional rigidity and stability.

Featuring a Special Elliptical stylus and a precisely balanced cantilever, the DJ E ensures remarkable tracking ability, superior durability, and minimal record wear, making it an ideal choice for high-use environments.

The DJ series is renowned for its versatile performance, delivering enhanced tracking and accurate sound reproduction. The low-wear stylus design guarantees exceptional groove handling with less applied weight, ensuring longevity for both your records and your equipment.

Technical Specifications

Specification	Details
Output Voltage at 1000Hz, 5cm/sec.	6 mV
Channel Balance at 1kHz	2 dB
Channel Separation at 1kHz	23 dB
Channel Separation at 15 kHz	15 dB
Frequency Range at -3dB	20-22,000 Hz
Frequency Response	20-20,000 Hz +/-2 dB
Tracking Ability at 315 Hz at Recommended Tracking Force	80 μm
Compliance, Dynamic Lateral	9 μm/m N
Stylus Type	Special Elliptical
Stylus Tip Radius	r/R 13/25 μm
Tracking Force Range	2.0-4.0 g (20-40 mN)
Tracking Force Recommended	3.0 g (30 mN)
Tracking Angle	20°
Internal Impedance, DC Resistance	750 Ohm
Internal Inductance	450 mH
Recommended Load Resistance	47 kOhm
Recommended Load Capacitance	200-600 pF
Concorde Cartridge Weight	18.5 g
