Ortofon MC Quintet Red Phono Cartridge

Ortofon

AED 1258.95 inc VAT.

The REGA AS-Spacer allows precise height adjustments of your Rega tonearm in 0.5 mm steps from 0.5 mm to 3.5 mm without removing the tonearm. This ensures the correct set-up for Ortofon cartridges, accommodating their lower height from the stylus tip to the top mounting surface. For Quintet cartridges, a 3.2 – 4 mm spacer is recommended. Simply loosen the screws, insert the spacer, and lock the screws to get your tonearm ready for optimal performance.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: MC Quintet Red Categories: , , Brand:

Description

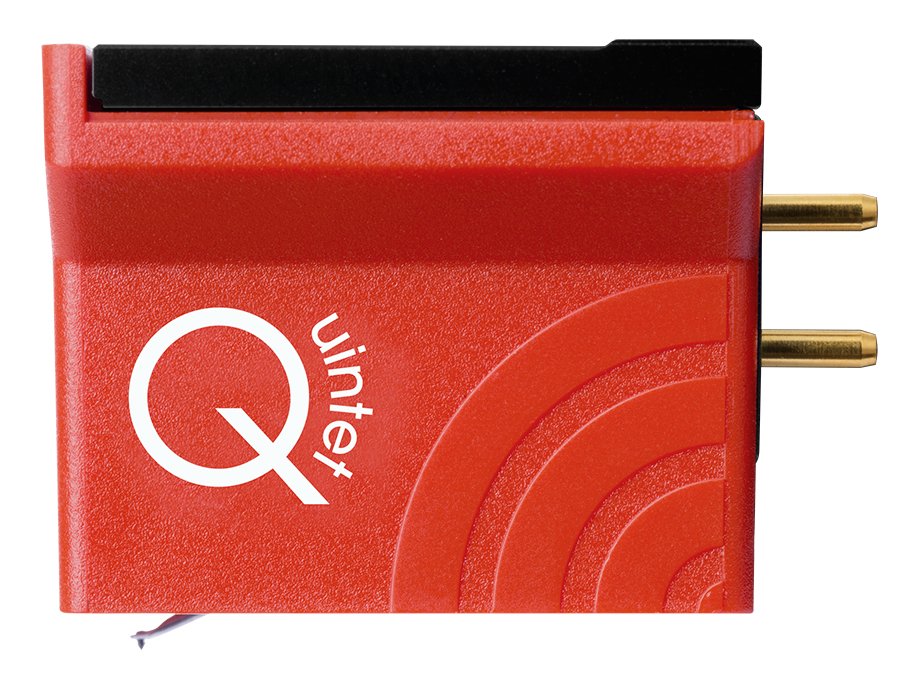

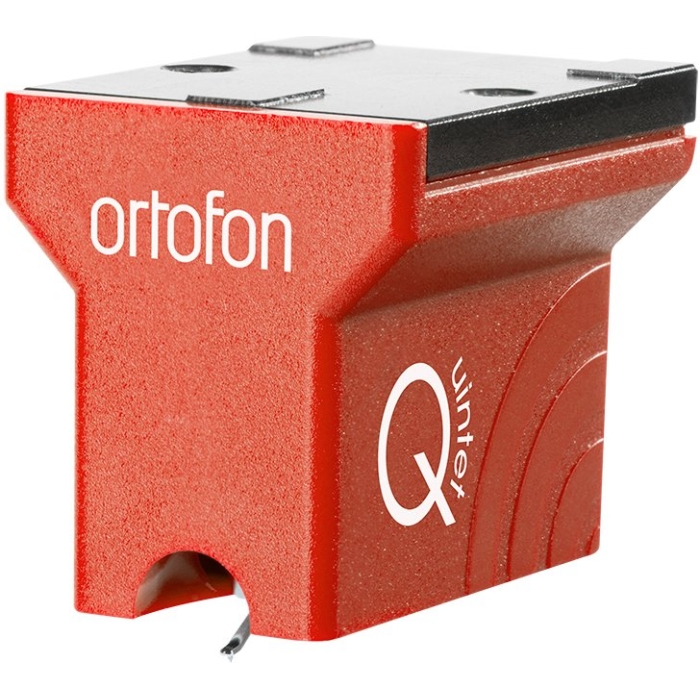

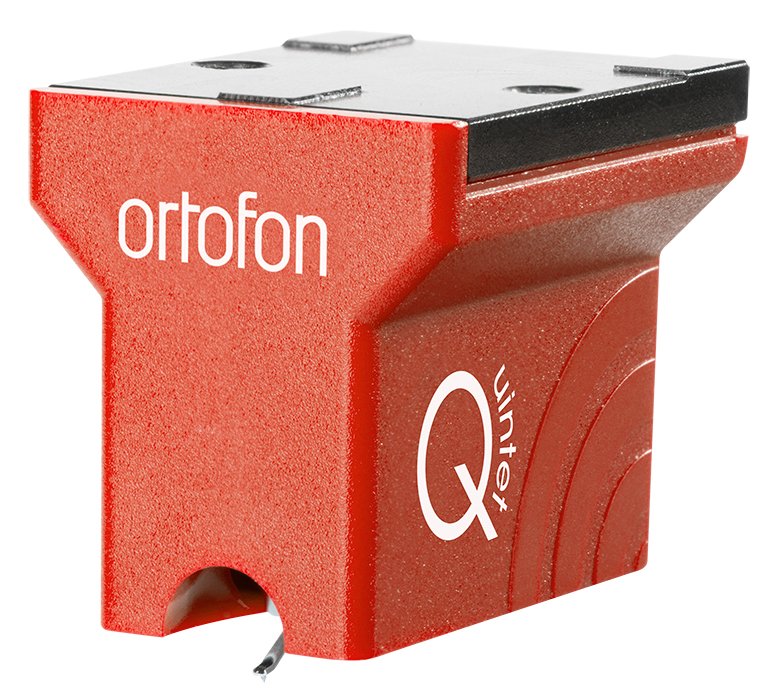

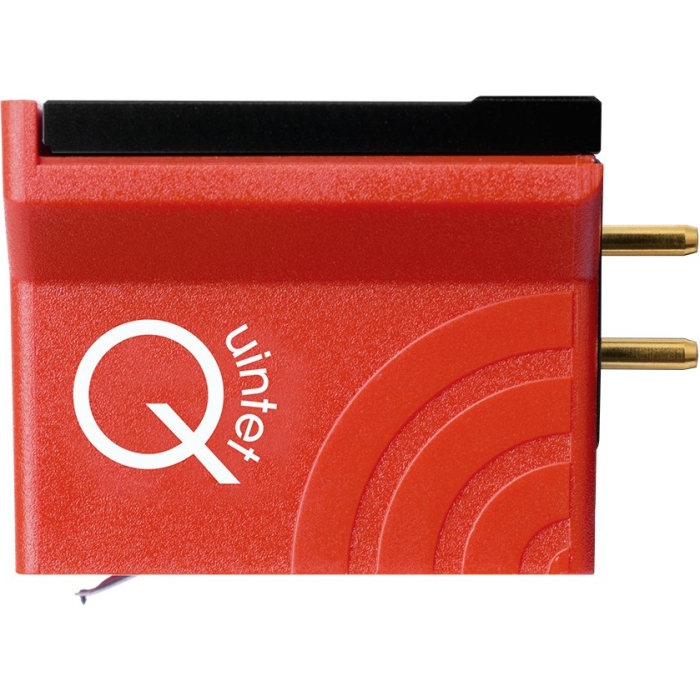

MC Quintet Red Phono Cartridge

The MC Quintet Red is a remarkable phono cartridge specifically designed to provide excellent sound reproduction. With an advanced build and precise engineering, it promises to deliver superior audio clarity for enthusiasts and professionals alike.

Compatibility with Rega brand TT/TA:

REGA brand cartridges have a lower mounting height from the stylus tip to the top. To correctly set up the Ortofon cartridge, spacers are needed. You can easily adjust the Rega tonearm height from 0.5 mm to 3.5 mm without removing it: just loosen the screws, insert the AS-spacer, and tighten the screws. For the Quintet cartridge, 3.2 – 4 mm spacers are recommended.

MC Quintet Red Technical Data

Specification Details
Output voltage at 1 kHz 5 cm/sec 0.5 mV
Channel balance < 1.5 dB
Channel separation at 1 kHz > 21 dB
Channel separation at 15 kHz > 14 dB
Frequency range at -3 dB 20 – 25.000Hz
Frequency response 20-20.000 Hz +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force 65 μm
Compliance, dynamic, lateral 15 μm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 μm
Tracking force range 2.1 – 2.5 g (21 – 25 mN)
Tracking force recommended 2.3 g (23 mN)
Tracking angle 20º
Internal impedance, DC resistance 7 Ohm
Recommended load impedance >20 Ohm
Cartridge body material ABS/Aluminium
Coil wire material Copper
Cartridge colour Red
Cartridge weight 9 g
