Ortofon 2M Red Phono Cartridge Needle

The 2M Red is equipped with an enhanced engine, delivering an output of 5.5 mV, ensuring optimized sound reproduction and exceptional sonic precision.
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
Description

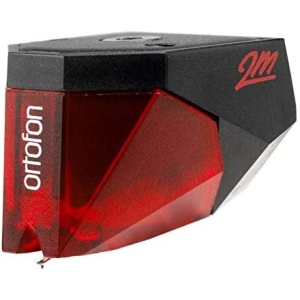

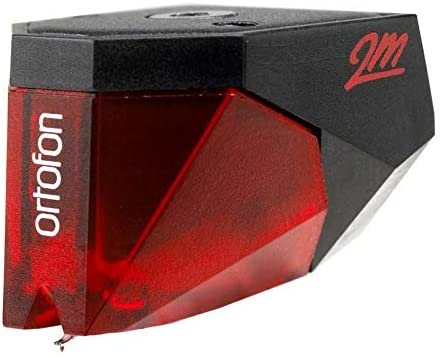

2M Red Phono Cartridge
The 2M Red features an improved engine, which provides an increased output of 5.5 mV and an optimized sound reproduction with a high level of sonic accuracy. The stylus features a tipped Elliptical diamond and split pole pins with a copper wire. The cartridge body is manufactured from Hopelex, ensuring high rigidity while eliminating unwanted resonances. The 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.
What’s Included
- Stylus Brush
- Screwdriver
- 2 x Screw M2.5 x 5
- 2 x Screw M2.5 x 7
Technical Specifications
Specification | Details |
---|---|
Output voltage at 1000 Hz, 5cm/sec | 5.5 mV |
Channel balance at 1 kHz | 1.5 dB |
Channel separation at 1 kHz | 22 dB |
Channel separation at 15 kHz | 15 dB |
Frequency range at -3dB | 20-22,000 Hz |
Frequency response | 20-20,000 Hz +3 / -1 dB |
Tracking ability at 315Hz at recommended tracking force | 70 µm |
Compliance, dynamic, lateral | 20 µm/mN |
Stylus type | Elliptical |
Stylus tip radius | r/R 8/18 µm |
Tracking force range | 1.6-2.0 g (16-20 mN) |
Tracking force, recommended | 1.8 g (18 mN) |
Tracking angle | 20° |
Internal impedance, DC resistance | 1.3 kOhm |
Internal inductance | 700 mH |
Recommended load resistance | 47 kOhm |
Recommended load capacitance | 150-300 pF |
Cartridge colour, body/stylus | Black/Red |
2M standard and 2M Verso cartridges weight | 7.2 g |
2M PnP MkII cartridge with integrated headshell weight | 20 g |
2M PnP MkII cartridge with integrated headshell length | 52 mm |
Replacement stylus unit | 2M Red (interchangeable with 2M Blue and 2M Silver) |
Styli Interchangeability
The 2M Series engines, coils, and magnets configurations are not identical: Red and Blue are identical, as are the Bronze and Black, and the true mono variants 2M Mono and 2M 78. The styli within these combinations are interchangeable:
- 2M Red, 2M Blue, and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78
