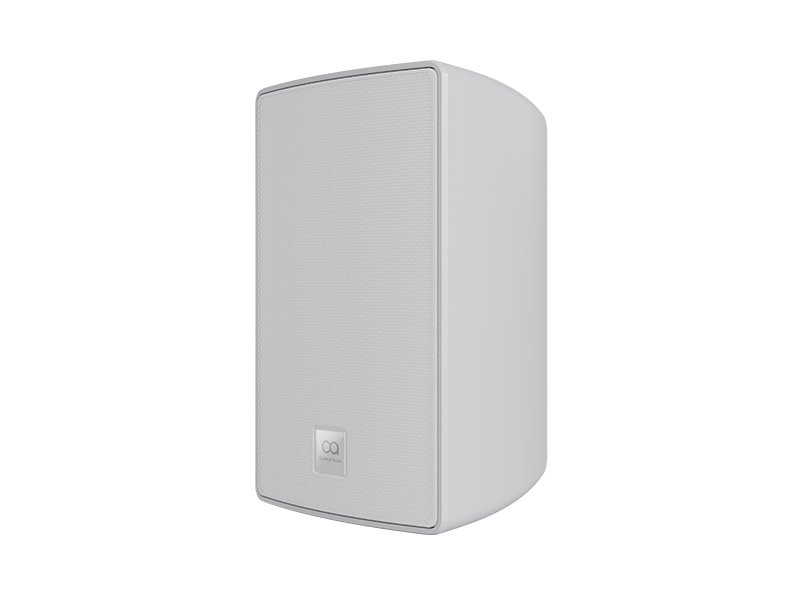

Optimal Audio CUBOID5-WTX Two-way, full range, passive, 5” loudspeaker with transformer (White)

Optimal Audio

AED 448.88 inc VAT.

Cuboid 5TX is a full range, two way, passive 5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.


In stock
Enquiry Now
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CUBOID5-WTX Categories: , Brand:

Description

Cuboid 5TX is a full range, two way, passive 5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.

With its attractive design and included mounting hardware, Cuboid 5TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.

Cuboid 5TX  features a 5.25” low frequency driver and a 0.75” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

Each Cuboid 5TX can be run on a series of 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.

For enhanced bass performance, Cuboid 5TX can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.

When coupled with Zone and WebApp, system set up and end user control is straight forward, and can be further supplemented by ZonePad wall controllers.



Features

  • Discreet size, high performance
  • Portrait or landscape mounting options
  • Wall bracket included
  • Max SPL 105dB (continuous) 111dB (peak)
  • 130° horizontal x 120° vertical coverage
  • IP54 for outdoor use with accessory terminal cover
  • 8 ohm or 70/100V line operation



Specifications



TYPE Two-way, full range, passive 5” loudspeaker with transformer
FREQUENCY RESPONSE (with preset) 97Hz – 20kHz +/-3dB,
-10dB @ 80Hz
DRIVERS LF: 5.25”(133mm) coated paper, ferrite motor system
HF: 0.75” (19mm) Silk Dome, neodymium motor system
IP RATING IP54 when used with accessory terminal cover
RATED POWER 50 W (AES) 200W (peak)
NOMINAL IMPEDANCE 8 Ohms
SENSITIVITY (1W/1m) 88dB
MAXIMUM SPL 105dB (cont) 111dB (peak) @ 8Ω
CROSSOVER 2.5kHz
RECOMMENDED HIGH PASS FILTER 24dB Per Octave @ 70 Hz
TRANSFORMER TAPS @ 70V 2.5, 3.75, 5, 7.5W
TRANSFORMER TAPS @ 100V 5, 7.5, 10, 15W
DISPERSION (-6dB) 130°H x 120°V
ENCLOSURE ABS
FINISH Paint
PROTECTIVE GRILLE Painted Aluminium
CONNECTORS 4 pin Euroblock
PIN CONNECTIONS (INPUT) Positive and negative in with link out terminals
FITTINGS M4 mounting points for wall bracket
DIMENSIONS (W)155mm x (H)255mm x (D)150mm
(W)6.1” x (H)10” x (D)5.9”
WEIGHT 2.15kg (4.7lb)
