Optimal Audio CUBOID5-B Two-way, full range, passive, 5” loudspeaker (Black)

Optimal Audio

AED 378 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CUBOID5-B Categories: , Brand:

Cuboid 5 is a full range, two way, passive 5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.



Description

Cuboid 5 is a full range, two way, passive 5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.

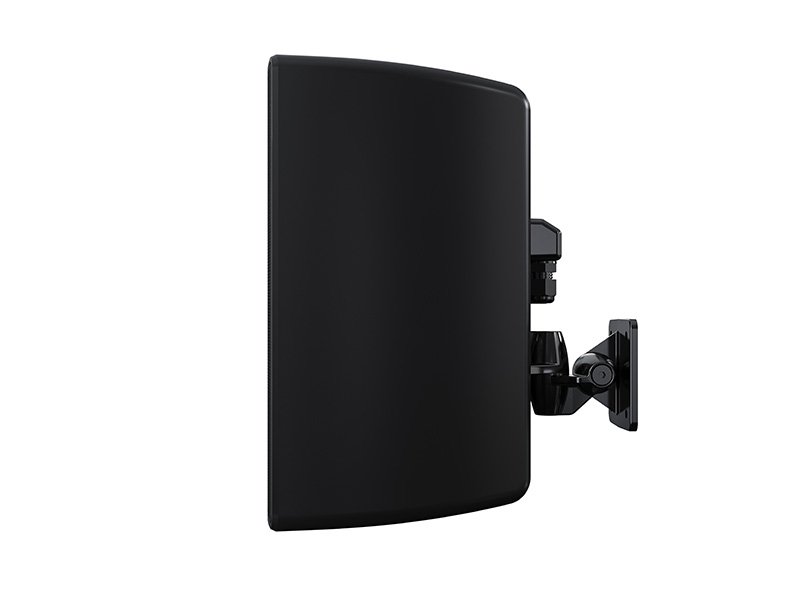

With its attractive design and included mounting hardware, Cuboid 5 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.



Cuboid  features a 5.25” low frequency driver and a 0.75” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

For enhanced bass performance, Cuboid 5 can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.

When teamed with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.



Features

  • Discreet size, high performance
  • Portrait or landscape mounting options
  • Wall bracket included
  • Max SPL 105dB (continuous) 111dB (peak)
  • 130° horizontal x 120° vertical coverage
  • IP54 for outdoor use with accessory terminal cover



Specifications

TYPETwo-way, full range, passive 5” loudspeakerFREQUENCY RESPONSE (with preset)97Hz – 20kHz +/-3dB,
-10dB @ 80HzDRIVERSLF: 5.25”(133mm) coated paper, ferrite motor system
HF: 0.75” (19mm) Silk Dome, neodymium motor systemIP RATINGIP54 when used with accessory terminal coverRATED POWER50 W (AES) 200W (peak)NOMINAL IMPEDANCE8 OhmsSENSITIVITY (1W/1m)88dBMAXIMUM SPL105dB (cont) 111dB (peak)CROSSOVER2.5kHzRECOMMENDED HIGH PASS FILTER24dB Per Octave @ 70 HzDISPERSION (-6dB)130°H x 120°VENCLOSUREABSFINISHPaintPROTECTIVE GRILLEPainted AluminiumCONNECTORS4 pin EuroblockPIN CONNECTIONS (INPUT)Positive and negative in with link out terminalsFITTINGSM4 mounting points for wall bracketDIMENSIONS(W)155mm x (H)255mm x (D)150mm
(W)6.1” x (H)10” x (D)5.9”WEIGHT2.15kg (4.7lb)
