Loudspeakers

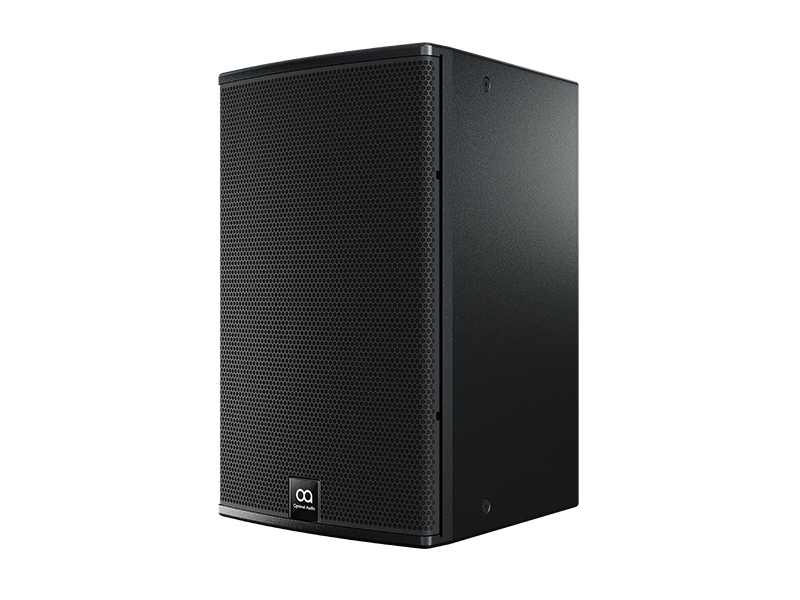

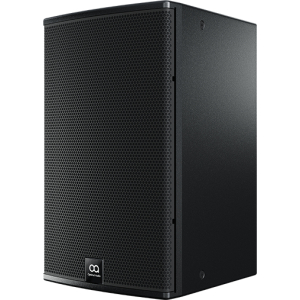

Optimal Audio CUBOID12-B Two-way, full range, passive, 12″ loudspeaker

Optimal Audio

AED 2598.75 inc VAT.

Cuboid 12 is a full range, two-way, passive, 12” loudspeaker designed to perform. For applications requiring that extra power and performance, it effortlessly delivers rich and detailed sound with punch and precision. With its wooden cabinet, steel grille and optional mounting hardware the professionally presented Cuboid 12 can be fixed in either portrait or landscape mode for a flexible, simple installation.


In stock
Enquiry Now
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CUBOID12-B Categories: , Brand:

Description

Cuboid 12 is a full range, two-way, passive, 12” loudspeaker designed to perform. For applications requiring that extra power and performance, it effortlessly delivers rich and detailed sound with punch and precision.

With its wooden cabinet, steel grille and optional mounting hardware the professionally presented Cuboid 12 can be fixed in either portrait or landscape mode for a flexible, simple installation.

Cuboid 12 features a 12” (300mm) low frequency (LF) driver for added bass and midband with a 1″ (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user-rotatable horn.

For enhanced bass performance, Cuboid 12 can be teamed with Sub 15.

When teamed with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further complemented by ZonePad wall controllers.



Features

  • Wooden cabinet
  • Portrait or landscape mounting options
  • Rotatable high-frequency horn
  • 62Hz – 20kHz frequency response ±3dB
  • Maximum SPL 123dB (continuous), 129dB (peak)
  • 80° horizontal x 50°  vertical coverage



Specifications



TYPE Two-way, full range, passive loudspeaker
FREQUENCY RESPONSE (with preset)

62Hz – 20kHz ± 3dB -10dB @ 47Hz
DRIVERS

LF: 12” (300mm), ferrite motor system HF: 1” (25mm) exit/1.4” (25mm) voice coil, polymide dome compression driver
RATED POWER 300W (AES) 1200W (Peak)
NOMINAL IMPEDANCE 8 Ohms
SENSITIVITY (1W/1m) 98dB
MAXIMUM SPL 123dB (cont), 129dB (peak)
CROSSOVER 2.5kHz passive
DISPERSION (-6dB) 80? H x 50? V (user-rotatable)
ENCLOSURE Trapezoid wooden cabinet
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing

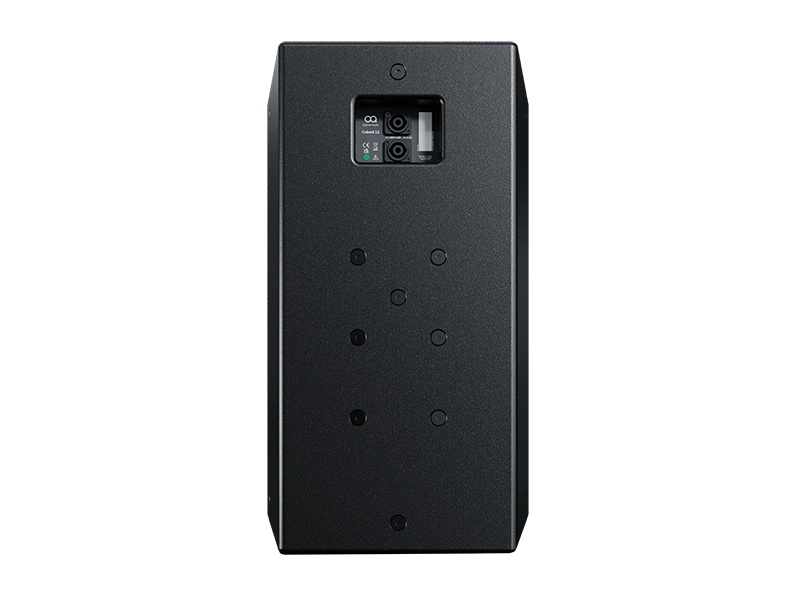

CONNECTORS 2x NL4 type
PIN CONNECTIONS (INPUT) 1+/1-
FITTINGS 21 x M8, inset bolts
DIMENSIONS

(W) 360mm x (H) 575mm x (D) 392mm (W) 14.17” x (H) 22.64” x (D) 15.43”
WEIGHT 20kg (44.09lbs)
