Neumann REK 4 Remote Electronics Kit for KH 420 – 30m Range
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
The REK 4 Remote Electronics Kit enables the electronics panel to be positioned up to 30 meters away from the loudspeaker cabinet, facilitating better heat management, easier control adjustments, and simpler servicing. The kit includes an 8-pole Speakon cable for driver signals and a CAT-5 cable for display signals, both designed to optimize space by facing downwards when installed. It supports 2.5 mm² wire for up to 20 meters and 4 mm² wire for up to 30 meters to ensure reliable performance.
Description

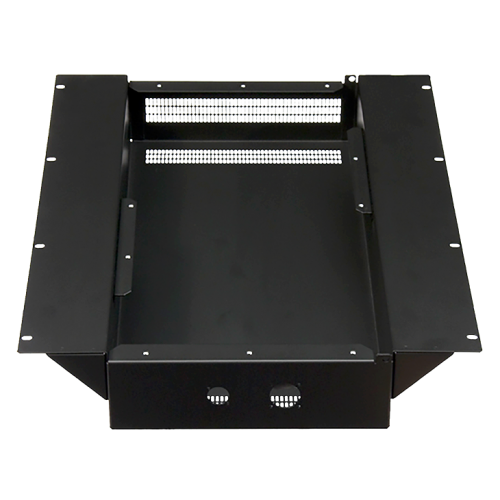

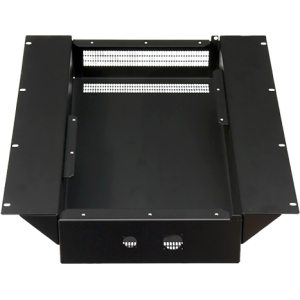

REK 4 – REMOTE ELECTRONICS KIT
This option allows the electronics panel to be located up to 30 m (90’) away from the loudspeaker cabinet. The benefits enjoyed when loudspeakers are flush mounted include lack of heat dissipation problems, easy adjustment of the controls, and easier electronics servicing. An 8-pole Speakon terminated cable carries the driver signals and a CAT-5 cable carries the display signals. Additional space is not required behind the cabinet as the connectors face downwards when installed.
Wire Gauge:
- Cable length up to 20 m (30’): 2.5 mm² (13 AWG)
- Cable length up to 30 m (45’): 4 mm² (11 AWG)
Key Features
| Specification | Details |
|---|---|
| Maximum Distance | 30 meters (90 feet) |
| Driver Signal Cable | 8-pole Speakon |
| Display Signal Cable | CAT-5 |
| Wire Gauge (up to 20m) | 2.5 mm² (13 AWG) |
| Wire Gauge (up to 30m) | 4 mm² (11 AWG) |
Additional information
| Brand |
|---|
