Neumann Monitor Alignment Kit with MA-1 and KH 750 DSP

Neumann

AED 7168.35 inc VAT.

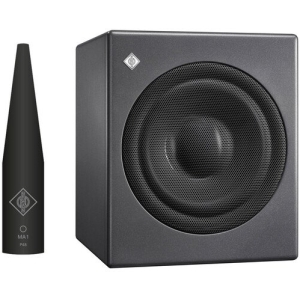

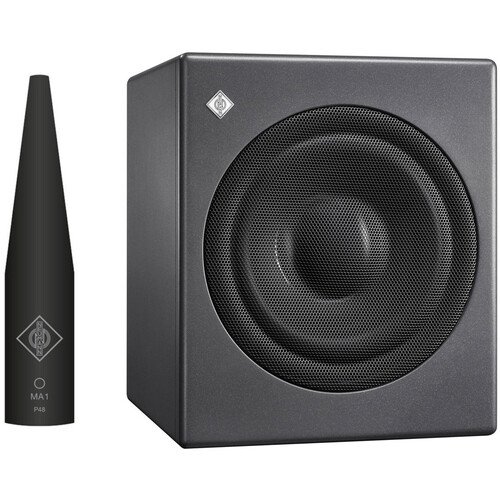

The Neumann Monitor Alignment Kit 1 includes a KH 750 DSP-powered 10″ subwoofer and an MA 1 measurement microphone, designed for use with KH 80 DSP or non-DSP KH-Series monitors. With Neumann’s calibration software developed with Fraunhofer IIS, the kit creates room-specific profiles to correct frequency, time-alignment, and amplitude issues for optimized stereo monitoring in any studio environment.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: Monitor Alignment Kit 1 Categories: , , Brand:

Description

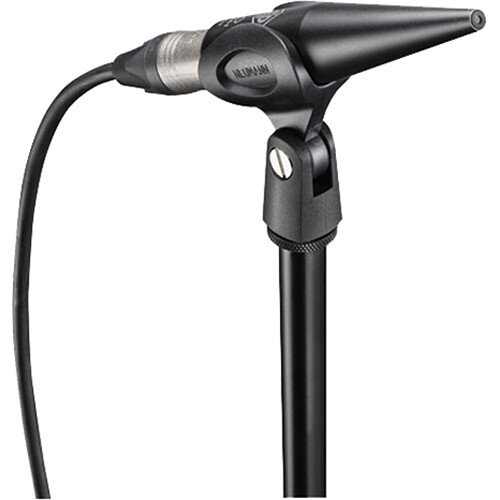

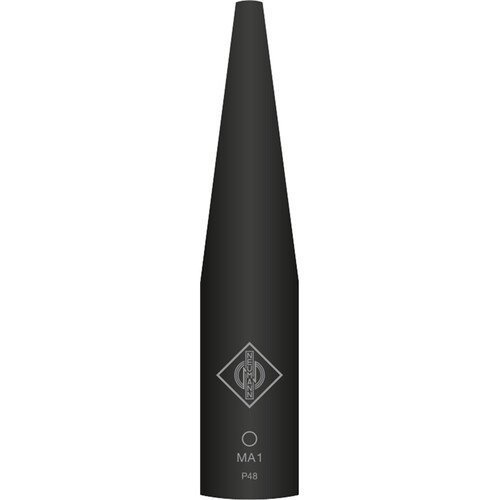

Neumann MA 1 Monitor Alignment Microphone and Calibration System

The Neumann MA 1 Monitor Alignment Microphone and Calibration System helps engineers, musicians, and producers get accurate mixes from their Neumann KH 80 DSP monitors or non-DSP KH-Series monitors when paired with the KH 750 DSP subwoofer. The system includes an omnidirectional measurement mic and downloadable software with Fraunhofer IIS algorithms to calibrate and adjust the speakers’ phase and amplitude, compensating for room imperfections.

Neumann KH 750 Compact DSP-Controlled Closed-Cabinet Subwoofer

The Neumann KH 750 is a compact, DSP-powered 10″ subwoofer suited for small studio monitoring systems, capable of reproducing 18 to 300 Hz frequencies at SPLs of 105 dB. It features multiple rear-panel options, including analog and digital I/O, fourth-order DSP crossovers, and a flexible 2.0/0.1 Bass Manager. The KH 750 seamlessly integrates with Neumann’s range of monitors for mixing, mastering, music, and broadcast applications.

Key Features

Specification Details
Monitor Type Active Subwoofer
Enclosure Sealed, Shielded
Power Rating 256 W
Drivers 1 x 10″ Woofer
Frequency Range 18 Hz to 300 Hz
Maximum SPL 105 dB
Analog Input Sensitivity/Gain +2 dB to -12 dB
Dimensions (W x H x D) 13 x 15.1 x 15.1 inches
Weight 43 lb
Audio I/O 2 x XLR Balanced Female Analog Input, 2 x XLR Balanced Male Analog Output, 1 x BNC AES/EBU Female Digital Input, 1 x BNC AES/EBU Female Digital Output
USB & Network I/O 1 x RJ45 (Controller)
AC Input Power 100 to 240 VAC, 50/60 Hz
