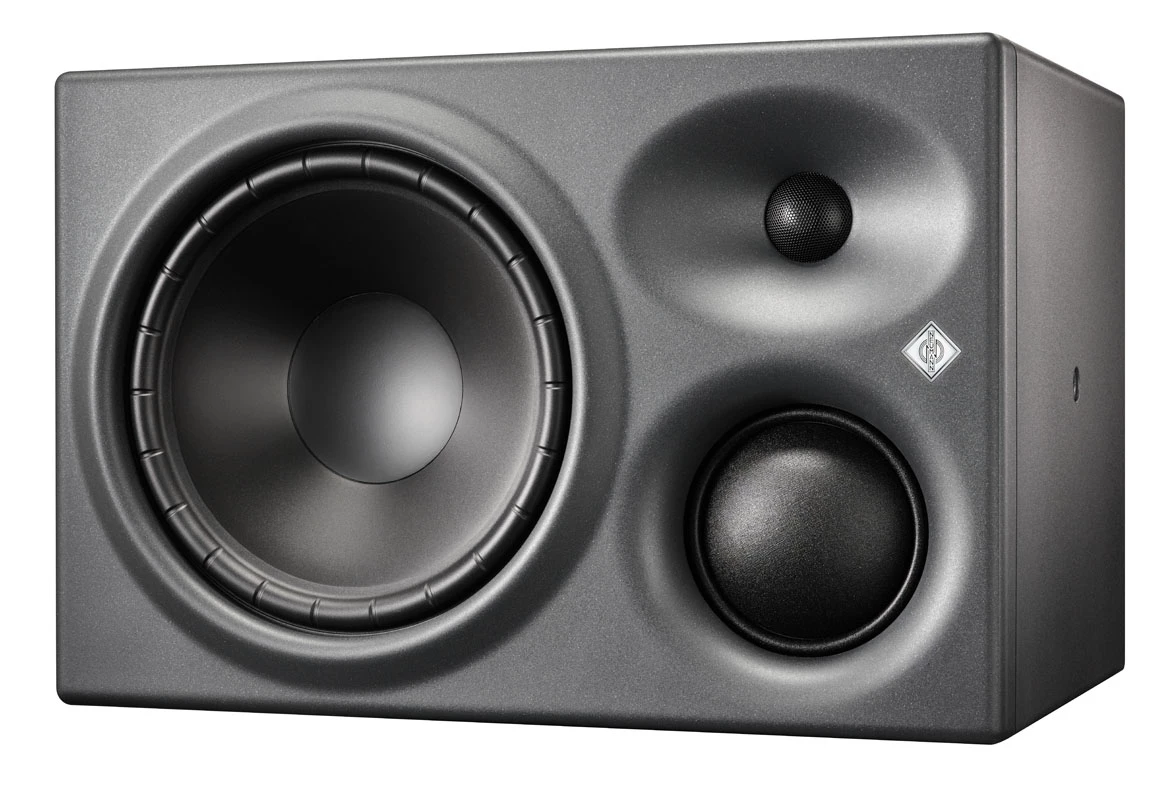

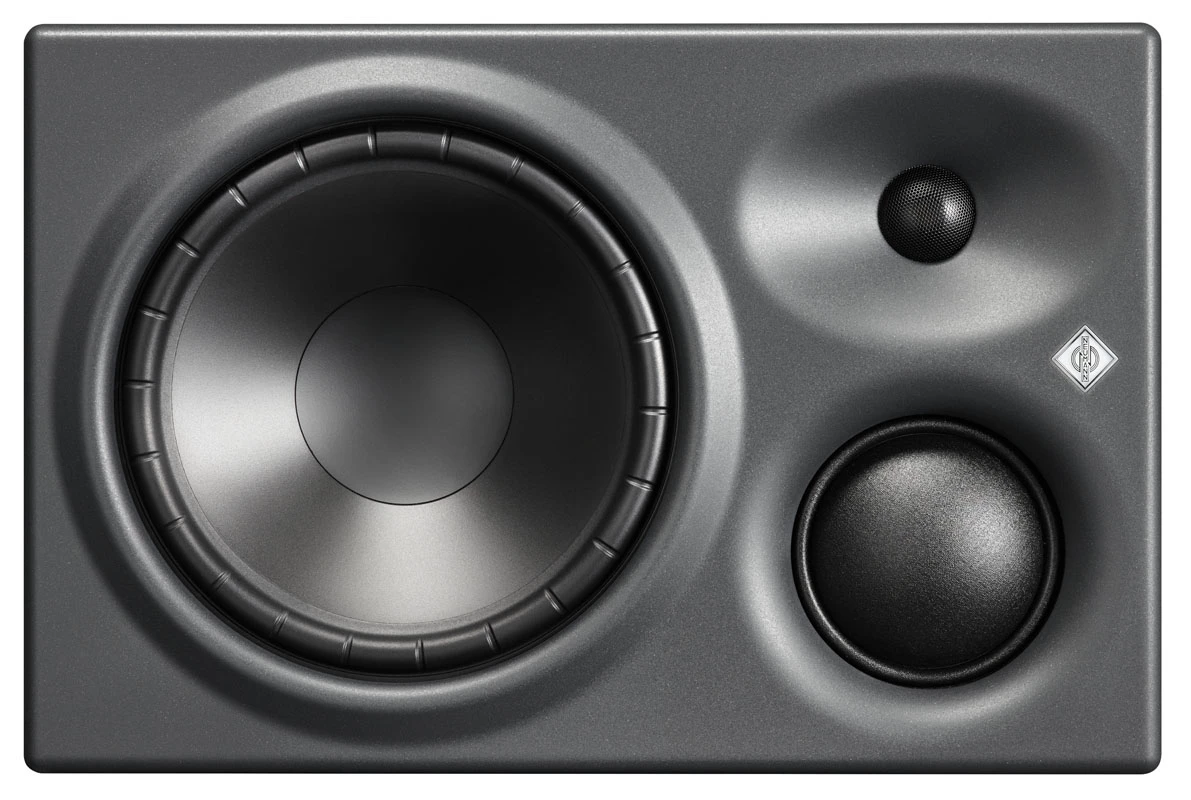

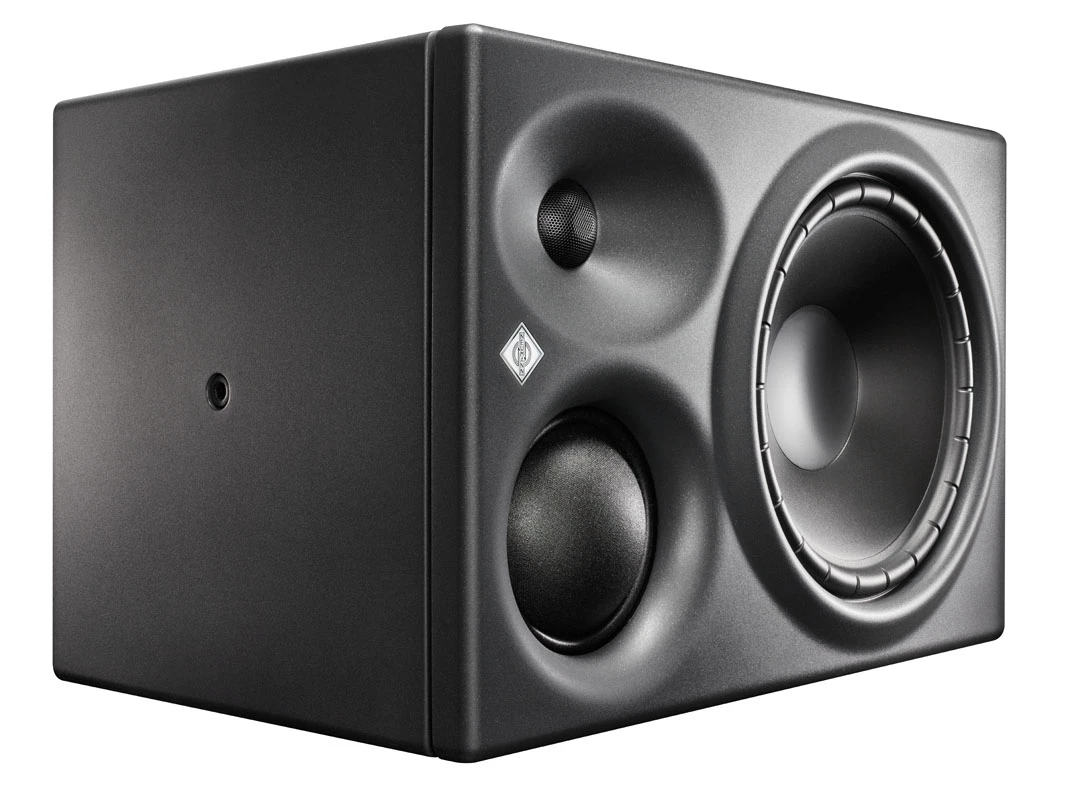

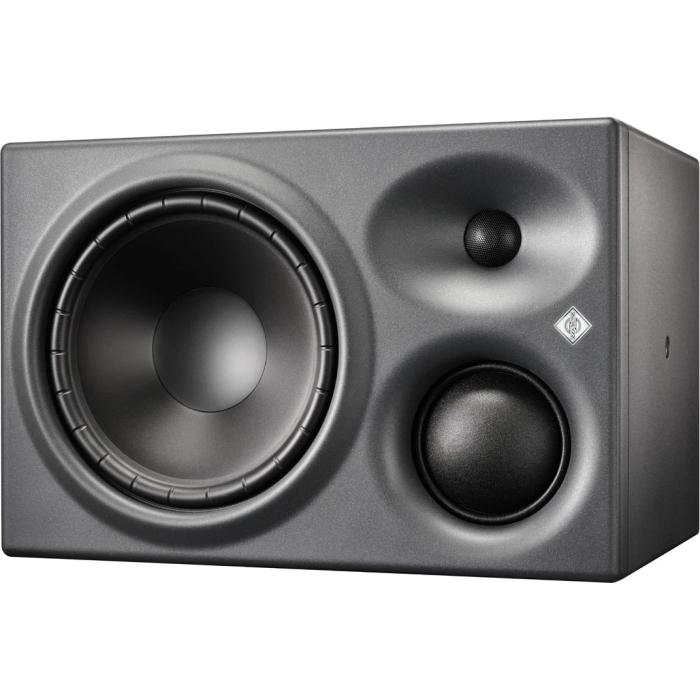

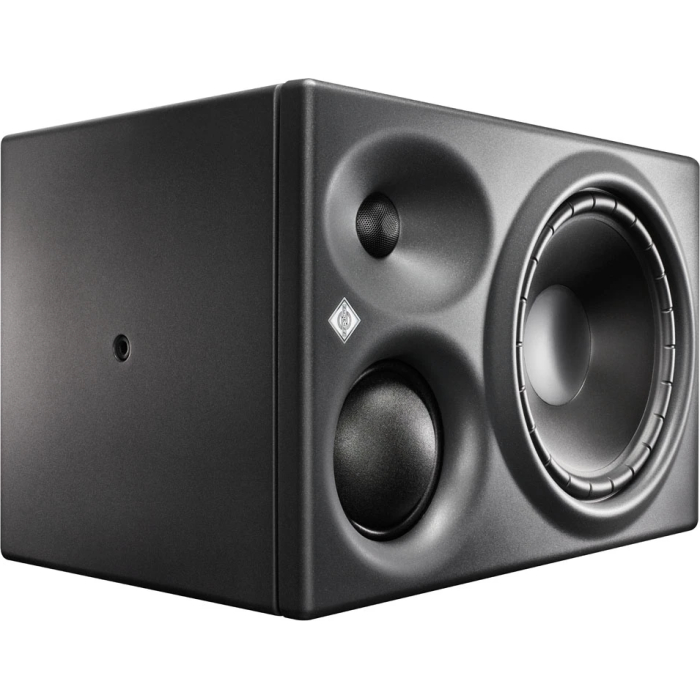

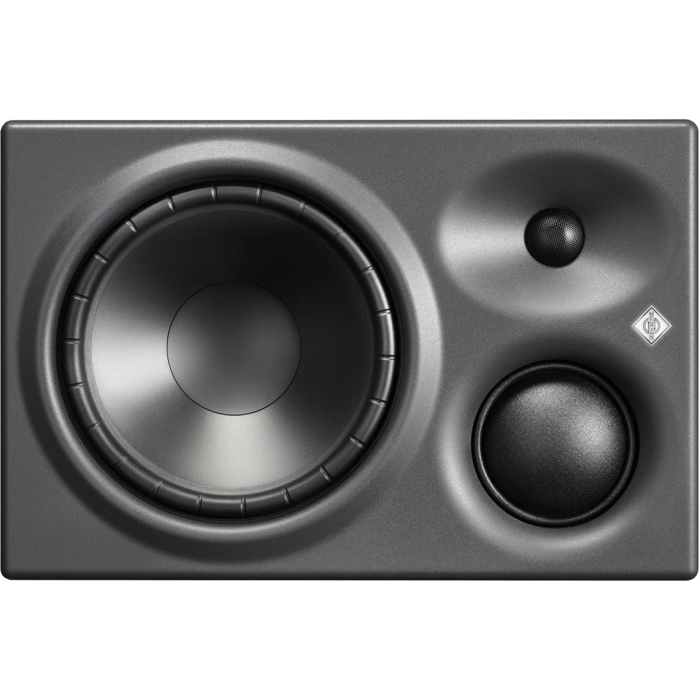

Neumann KH 310 Three-Way Active Studio Monitor

The Neumann KH 310 is a tri-amplified professional studio monitor designed for exceptional audio performance in tracking, mixing, and mastering applications. With a robust output and carefully engineered design, this monitor ensures accurate sound reproduction suitable for near-field and multichannel setups.

Equipped with an 8.25″ woofer, a 3″ midrange driver, and a 1″ tweeter, the KH 310 provides a well-balanced response across low, mid, and high frequencies. Its sealed, three-way cabinet design helps reduce standing waves, delivering fast bass transient response and clarity in audio.

Advanced Acoustic Technologies

Neumann’s Elliptical Mathematically Modeled Dispersion (MMD) waveguide contributes to a wider “sweet spot,” ensuring audio quality remains consistent across a large mixing console. The monitor’s 4-position bass, low-mid, and treble acoustic controls make it versatile for various acoustic environments.

The integrated mounting points allow flexible placement, while the self-adhesive feet offer added stability for different setup configurations. Its sleek front panel design minimizes diffraction, resulting in smoother frequency responses.

Key Features

• Alloy fabric dome for low-distortion high-frequency reproduction
• Dual color, dimmable Neumann logo indicating operation status and extensive protection system activation
• Intermodulation distortion minimized using in-house simulated drivers
• Class AB amplifiers for large headroom and improved transient response
• Independent thermo limiters for protecting voice coils in the woofer, midrange dome, and tweeter
• Compact, magnetically shielded sealed cabinet design
• 4-position acoustic controls (bass, low-mid, treble)

Specifications

Specification	Details
Monitor Type	Active 3-Way
Enclosure	Sealed, Shielded
Drivers	HF Driver: 1 x 1″ Tweeter MF Driver: 1 x 3″ Cone LF Driver: 1 x 8.25″ Woofer
Amplification	HF Amplifier: Class-AB 70 W RMS / 90 W Peak MF Amplifier: Class-AB 70 W RMS / 90 W Peak LF Amplifier: Class-AB 150 W RMS / 210 W Peak
Frequency Range	34 Hz to 21 kHz ± 3 dB
Frequency Response	36 Hz to 20 kHz ± 2 dB
Maximum SPL	116.3 dB
Total Harmonic Distortion (THD)	0.5%
Maximum Input Level	+24 dBu
Analog Input Sensitivity	0 to -15 dBu (Continuously Variable)
Self-Generated Noise	Less than 20 dBA
Protections and Limiting	Excursion Limiter, Soft Limiter, Thermal Limiting
CMRR	56 dB
EQ	LF Shelf: -7.5 to 0 dB Low-Mid Notch/Peak: -4.5 to 0 dB HF Shelf: -2 to +1 dB
Filters	High-Pass: 15 Hz, 6 dB/Octave
Crossover Frequency	Low-Pass: 650 Hz, 24 dB/Octave High-Pass: 2 kHz, 24 dB/Octave
Audio I/O	1 x XLR Balanced Analog Input
AC Input Power	100 to 240 VAC, 50/60 Hz
Power Consumption	24 W (Idle), 300 W (Maximum)
Operating Temperature	50 to 104°F (10 to 40°C)
Operating Humidity	90%
Storage Temperature	-13 to 158°F (-25 to 70°C)
Enclosure Material	Metal Grille
Mounting Points	2 x M8 (Side Panels)
Dimensions	15.1 x 10 x 11.5″ (383 x 253 x 292 mm)
Weight	28.6 lb (13 kg)
Package Weight	36.2 lb
Box Dimensions	23 x 15 x 13.4″
